Ergotron Neo-Flex Manuel utilisateur
888-24-064-P-02 rev. L • 01/19
若需最新的用户安装指南，请访问：www.ergotron.com
最新のユーザー インストール ガイドは、www.ergotron.com でご確認いただけます。
日本語, 汉语
1 of 14
Neo-Flex™
Mobile Media Center, UHD
with 90˚ Portrait/Landscape rotation
www.ergotron.com | USA: 1-800-888-8458 | Europe: +31 (0)33-45 45 600 | China: 400-120-3051 | Japan: [email protected]
14mm
15mm 13mm
<30 lbs
(15 kg)
<5 lbs
(2.2 kg)
20"
(510 mm)
-15˚
+5˚
90˚
UHD: 90 - 120 lbs
(41 - 54 kg)
888-24-064-P-02 rev. L • 01/19
WARNING
Stored Energy Hazard: The lift mechanism in the tower is under tension and will move up
rapidly, on its own, as soon as attached equipment is removed. For this reason, DO NOT remove
equipment or make adjustments to lift tension unless the front assembly has been moved to the
highest position on the tower! Failure to follow this instruction may result in serious personal
injury and/or equipment damage!
警告蓄積エネルギーの危険性:タワーのリフト機構には張力がかかっており、付属していた器
具が取り外されるた瞬間に高速で上に移動します。このため、前面の部品がタワーの最高位置に
きていない場 合は、器具を取り外したり、張力を調節して増加させないようにしてください。この指
示に従わない場合、重篤な身体傷害および/または器具の破損の原因となることがあります。
警告 储能危害：支柱中的升降机构有张力并会在拆除所安装的设备后自行快速上升。因
此，在将前部装置移到支柱最顶端时，不要拆除设备或调节升降张力。不遵守本规定可能导
致严重的人身伤害和/或设备损坏！
경고 저장에너지 위험성: 타워의 리프트 기계장치는 장력을 받는 상태에 있으며, 장착
장비가 제거되자마자 바로 자체의 빠른 속도로 올라가게 됩니다. 이러한 이유로 전방
에셈블리가 타워의 가장 높은 지점으로 올라가기까지는 장비 제거나 리프트의 장력을
조정하지 마십시오! 이 안내를 따르지 않으면, 심각한 부상 및/또는 장비의 손상을 초래할
수 있습니다!

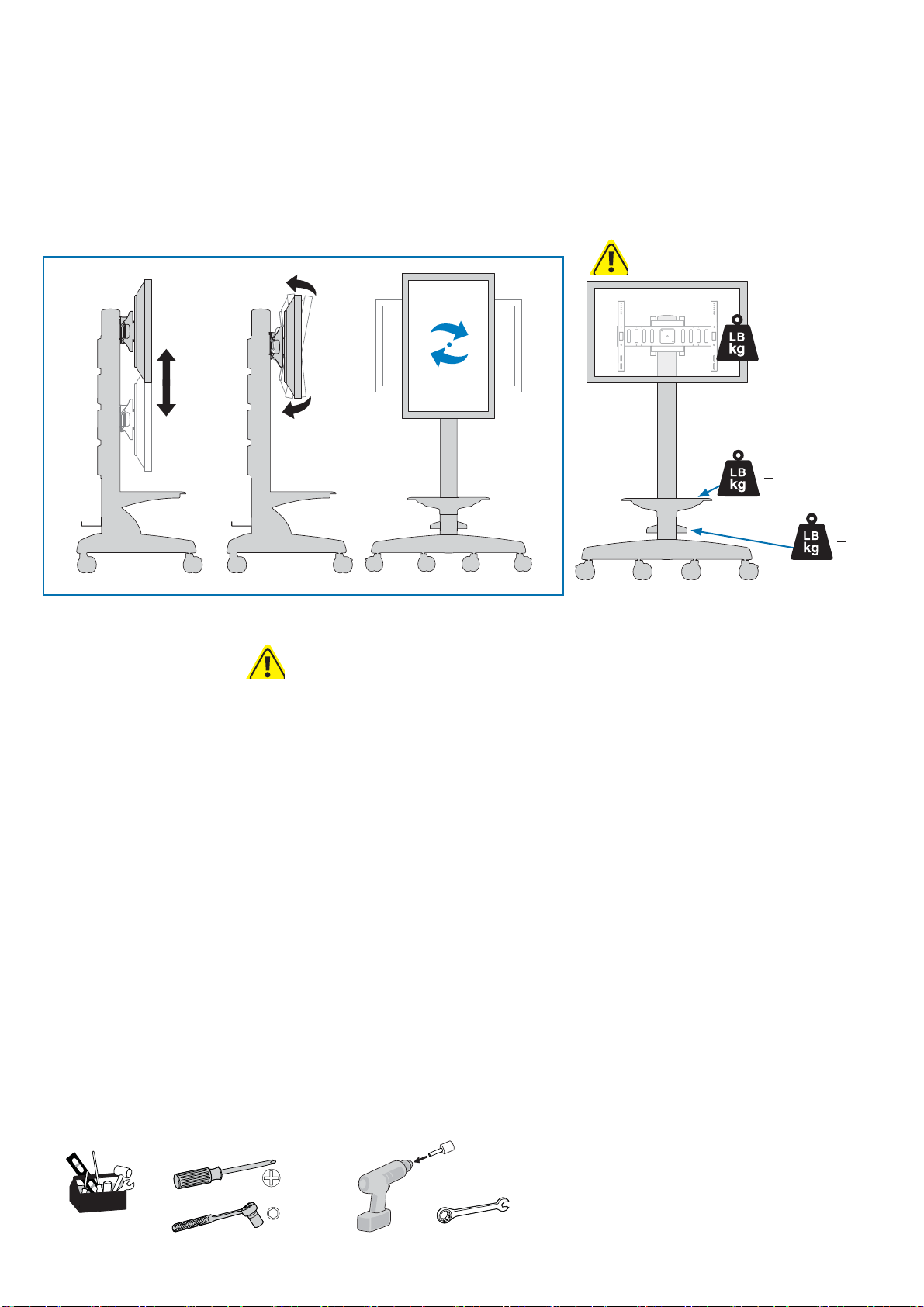

特長と仕様
必要なツール
特点和规格
需要的工具
2 of 14
A B
1
2
3
4
5
6
7
8
9
4x
4x
4x
4x2x
1x 1x
4x
1x
1x
8x M3.5 x 6mm
2x
M4x20mm
M4x40mm
M5x20mm
M5x40mm
4x
4x
4x
4x
M6x20mm
M6x45mm
M8x25mm
M8x50mm
4x
4x
4x
4x
4x
4x
4x
4x
1x 4x
1x
M5x8mm
1x
1x
2x
1x
M10 x 60mm

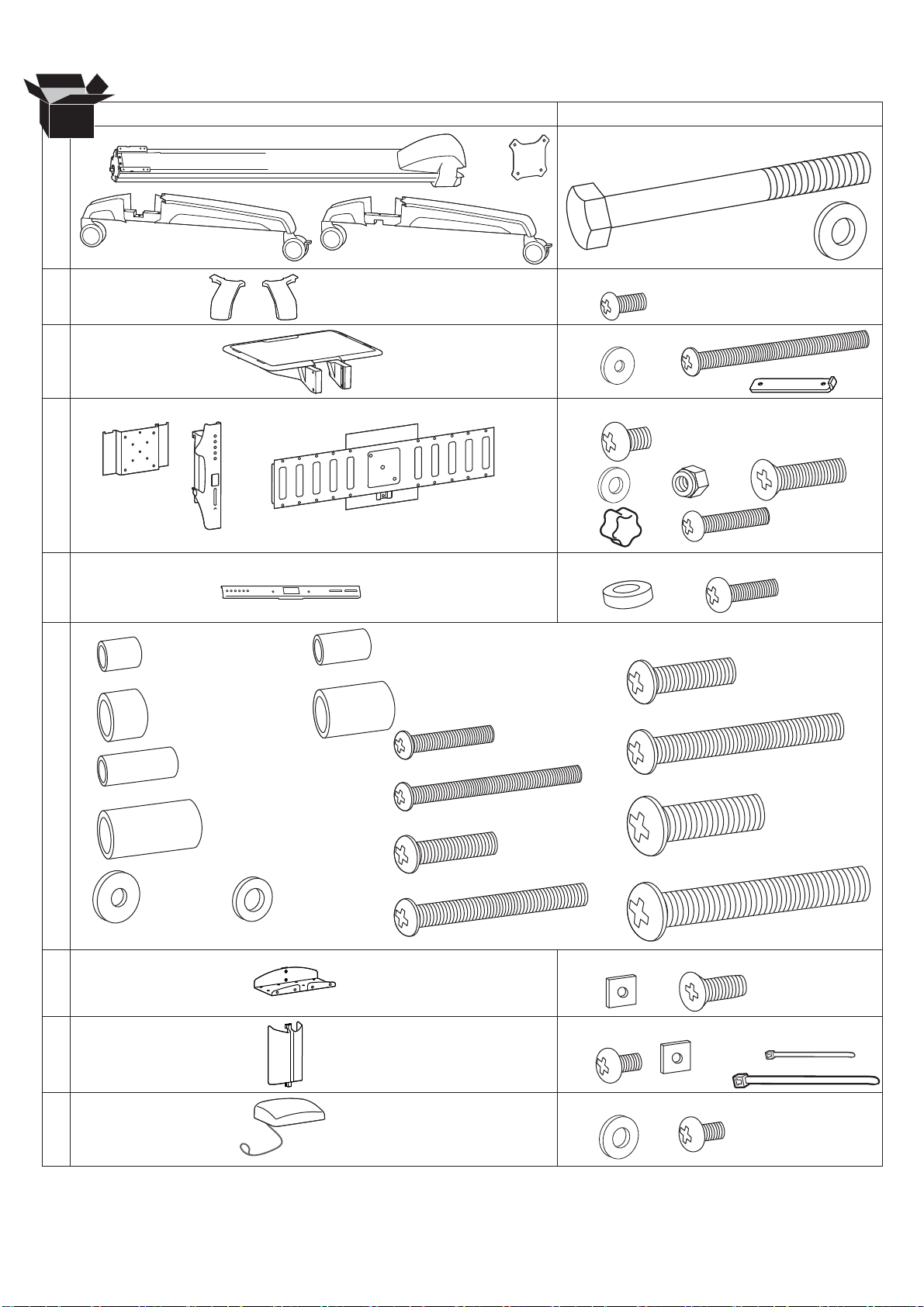

Leg Mounting Hardware
Leg Cover Mounting Screws
Shelf Mounting Hardware
Power Strip Hardware
Cable Management Support Hardware
Top Cap Hardware
TM Mounting Hardware
400mm Extension Hardware
Large Display Cart Hardware
M5 x 16mm
1x
1x
8x M3 x 37mm
1x
2x
2x
M8 x 14mm
2x M4 x 16mm
1x
2x
2x
8x 4x
5.1(ID) x 10(OD) x 6mm
8.1(ID) x 16(OD) x 6mm
5.1(ID) x 10(OD) x 18mm
8.1(ID) x 16(OD) x 24mm
5.3(ID) x 16(OD) x 1.0mm 6.3(ID) x 14(OD) x 1.0mm
4x
1x
M5x9mm
1x
1x
4x
2x
M5x8mm
M6x8mm
4x
4x
4x
5.1(ID) x 10(OD) x 12mm
8.1(ID) x 16(OD) x 12mm
888-24-064-P-02 rev. L • 01/19
3 of 14
1
2
a
b
1x 8x
1x
M3.5 x 6mm
1x
1x
4x
4x 1x
15mm Leg Mounting Hardware
Leg Cover Mounting Screws
888-24-064-P-02 rev. L • 01/19
注意:調節ネジは締めすぎないようにしてください。強く締め 付けすぎると、器具が破損する原因となります。
小心: 不要过度拧紧固定器。过度拧紧可能会损坏设备。
주의: 고정 장치를 너무 세게 조이지 마십시오. 너무 세게 조이면 장비가 손상될 수 있습니다.
Shippinng Box
出荷用ボックス
装运箱
4 of 14
3
2x
a
cb 2x
2x
2x
M3 x 37mm
M3 x 37mm
6x
2x
Shelf Mounting Hardware
Shelf Mounting Hardware
888-24-064-P-02 rev. L • 01/19
5 of 14
4x 4x2x
M8 x 14mm
4
4x
M6x8mm
ab
13mm
5
4x
M5 x 16mm
200 mm 300 mm 400 mm 500 mm 600 mm
4x
200 mm
300 mm
400 mm
500 mm
600 mm
TM Mounting Hardware
TM Mounting Hardware
400mm Extension Hardware
888-24-064-P-02 rev. L • 01/19
6 of 14
M4x20mm
M4x40mm
M5x20mm
M5x40mm
M6x20mm
M6x45mm
M8x25mm
M8x50mm
6
Ø
50 mm
25 mm
40 mm
20 mm
40 mm
20 mm
45 mm
20 mm
M8M6M5M4
6mm
6mm
6mm
6mm
6mm
Large Display Cart Hardware
M4x20mm
M4x40mm
M5x20mm
M5x40mm
4x
4x
4x
4x
M6x20mm
M6x45mm
M8x25mm
M8x50mm
4x
4x
4x
4x
8x 4x
5.3(ID) x 16(OD) x 1.0mm 6.3(ID) x 14(OD) x 1.0mm
4x
4x
4x
4x
4x
4x
5.1(ID) x 10(OD) x 6mm
8.1(ID) x 16(OD) x 6mm
5.1(ID) x 10(OD) x 18mm
8.1(ID) x 16(OD) x 24mm
5.1(ID) x 10(OD) x 12mm
8.1(ID) x 16(OD) x 12mm
18mm
24mm
12mm
12mm
888-24-064-P-02 rev. L • 01/19
Recessed Mount
くぼみつき
凹入
우묵하게 설치
FIND APPROPRIATE FASTENERS FOR YOUR DISPLAY:
ディスプレイ用に適切なファスナーを見つける
为显示器找到合适的紧固件：
Screw Diameter
ネジの直径
螺丝直径
Screw Length
ネジの長さ
螺丝长度
IMPORTANT: To ensure screws have the minimum thread engagement in the display, tighten screws with at least six, full, 360° revolutions.
重要:ディスプレイのネジかみ合いを最小限度に抑えるため、ネジは少なくとも6 回 、360回転させ、きつく締めてください。
重要说明：为确保螺丝在显示器中的螺纹啮合量最少，拧螺丝时应至少转六满圈。
CAUTION: DO NOT overtighten fasteners. Overtightening may cause damage to your equipment.
注意: 調節ネジは締めすぎないようにしてください。強く締め 付けすぎると、器具が破損する原因となります。
小心: 不要过度拧紧固定器。过度拧紧可能会损坏设备。
주의: 고정 장치를 너무 세게 조이지 마십시오. 너무 세게 조이면 장비가 손상될 수 있습니다.
7 of 14
y1= y2
x < 600mm
7
200 mm 300 mm 400 mm 500 mm 600 mm
888-24-064-P-02 rev. L • 01/19
gTighten screws with at least
six, full, 360° revolutions*,
but do not over tighten; over
tightening may cause damage
to display and/or brackets.
*Six full turns will ensure a mini-
mum thread engagement roughly
equal to the diameter of the
screw. For instance, if the screw
diameter is 8mm, the minimum
thread engagement is also 8mm.)
g至少360度6次的完全旋转*
来拧紧螺丝，但不可过度拧紧；
过度拧紧会对显示器
及或支架造成损害。
*六次完全旋转就能保证
螺纹齿合大致与螺丝的直径
相同。比如，如果螺丝的直径
是 8mm，
螺纹齿合也是 8mm。)
g최소 6번 완전히 360°
회전시켜* 나사를 조이되 너무
조이지는 마십시오. 너무 조이면
디스플레이 및/또는 브래킷이
손상될 수 있습니다.
*6번 완전히 돌리면 나사 지름과
거의 동일한 최소 나사산 물림을
얻을 수 있습니다. 예를 들어 나사
지름이 8mm인 경우 최소 나사산
물림도 8mm입니다.
MINIMUM THREAD ENGAGEMENT
ねじ山の最小限のかみ合い
螺纹啮合最少量
최소 나사산 물림
g360で少なくとも6回転*させてネ
ジを締めます。ただし、締めすぎないよう
にしてください 。ディスプレイおよび / また
はブラケットの破損の原因となる場合
があります。
*完全に6回転すると、ネジ山の最
小のかみ合いがネジの直径と大体同
じになります。例えば、ネジの直径が
8mmの場合、ネジ山の最小かみ合い
も8mmになります。
Use fastener chosen from Step 6.
ステップ6で選択したファスナーを使用します。
使用第 6 步中选取的紧固件。
8 of 14
8
9
ab
14mm
2x M4 x 16mm
TM Mounting Hardware
888-24-064-P-02 rev. L • 01/19
Lift – Up and down
リフト(上下)
升降（上下）
높이 (위/아래로)
Follow these instructions to tighten or loosen tension.
圧力を増減するには次の手順に従います。
遵照这些说明拧紧或拧松。
다음 지침에 따라 장력을 높이거나 줄이십시오.
It is important that you adjust this product according to the weight of the mounted equipment as described in the following steps. Any time equipment is added or removed from this product,
resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation.
Adjustments should move smoothly and easily through the full range of motion and stay where you set it. If adjustments are dicult and do not stay in the desired position, follow the
instructions to loosen or tighten the tension to create a smooth, easy adjustment motion. Depending on your product and the adjustment, it may take several turns to notice a dierence.
び実行してください。
調整は可動域内でスムーズかつ簡単に動く必要があり、選定した位置にしっかり固定されなければなりません。調整の動きがぎこちなく、選定位置で固定されない場合は、調整がスムーズにできるよう、説明書
に従って張力を増減します。お使いの製品や調整によっては、違いがはっきりするまで何回か回さなければならないこともあります。
应当依照下列各步骤中描述的所安装设备的重量来调节本产品，这一点非常重要。 任何时候，增减该产品上的设备都会导致安装负载重量的变化，您应当重复这些调节步骤，以确保在最优化条
件下安全使用。
调节应当能在整个动作范围内灵活自如，并能固定在所调整的位置。如果调节困难且不能固定在想要的位置上，请遵照说明书拧松或拧紧，使调节动作灵活自如。根据您所用产品及调节方式，可
能需要旋转几圈后才能注意到差别。
It is important that you adjust this product according to the weight of the mounted equipment as described in the following steps. Any time equipment is added or removed from this product,
resulting in a change in the weight of the mounted load, you should repeat these adjustment steps to ensure safe and optimum operation. 조절 장치는 전체 이동 범위에서 부드럽고 쉽게
이동할 수 있어야 하며 사용자가 지정한 위치에 유지되어야 합니다. 조절이 어렵고 원하는 위치에 고정되지 않을 경우 지침에 따라 장력을 줄이거나 높여 조절 장치가 부드럽고 쉽게 움직이게
하십시오. 제품과 조절 장치에 따라 여러 번 돌려야 차이가 느껴질 수 있습니다.
9 of 14
10
a
b
1x
90˚
TM Mounting Hardware
888-24-064-P-02 rev. L • 01/19
10 of 14
