Epson PowerLite Pro Cinema 6010 Manuel utilisateur

PowerLite®Pro Cinema 6010

Home Theater Projector

User’s Guide

2Contents

Contents

Introduction 5

Projector Parts 6

Remote Control 8

Optional Accessories 9

Registration and Warranty 9

Using This Manual 10

Setting Up the Projector 11

Choose a Location 11

Installing the Projector 15

Connecting the Cables 17

Connecting Video and Computer Equipment 17

Making Other Connections 19

Installing Batteries in the Remote Control 20

Turning the Projector On and Off 20

Turning On the Projector 20

Turning Off the Projector 21

Selecting the Image Source 21

Positioning the Image 22

Making Basic Adjustments 25

Focusing and Zooming 25

Choosing the Aspect Ratio 26

Viewing 3D images 27

Projecting in Split Screen mode 28

Choosing the Color Mode 29

Contents 3

Advanced Color Adjustments 30

Adjusting the Gamma Setting 31

Adjusting RGBCMY 32

Locking the Projector 32

Making Detailed Adjustments 34

Using the Menu System 34

Changing How the Menus Display 35

Adjusting the Picture Quality 36

Input Brightness Settings 36

Sharpness and Picture Quality Settings 38

Color Settings 39

3D Setup 41

Adjustments for Computer Images 43

Split Screen Setup 43

Selecting Memory Settings and Resetting the Projector 45

Creating Memory Settings 45

Selecting Memory Settings 45

Renaming Memory Settings 46

Deleting Saved Memory Settings 46

Resetting the Projector 47

Customizing Projector Features 48

Image Sizing 48

Screen Options 49

Other Setup Options 49

Adjusting the LCD Alignment 51

Using HDMI Link 54

Setting Up HDMI Link 54

Changing HDMI Link Settings 55

4Contents

Maintenance 56

Cleaning the Lens 56

Cleaning the 3D Glasses 57

Cleaning the Projector Case 58

Cleaning and Replacing the Air Filter 58

Replacing the Lamp 60

Resetting the Lamp Usage Timer 63

Checking the Projector Status 63

Storing the Projector 64

Transporting the Projector 64

Problem Solving 65

What To Do When the Lights Come On or Flash 65

Solving Picture Problems 67

Solving Remote Control Problems 71

Where to Get Help 72

Specifications 73

Notices 77

Important Safety Information 77

FCC Compliance Statement 79

A Note Concerning Responsible Use of Copyrighted Materials 80

Trademarks 81

Introduction 5

Introduction

The PowerLite®Pro Cinema 6010 projector lets you enjoy theater-quality 3D images in the

relaxing environment of your own home. Designed especially for home cinema use, it offers

these outstanding features:

■Native 1080p (1920 × 1080) resolution, dynamic contrast ratio up to 200,000:1 and up

to 2400 lumens of brightness (color and white light output) for incredibly rich, sharp

images in any room lighting

■Auto Iris system that constantly controls the light output based on the gamma and

black/white levels of your projected content, for perfectly adjusted images and deepest

blacks

■EPSON C2Fine®3LCD technology for reliable picture quality, increased contrast ratio

and uniform colors

■1080Perfect™video processing for more film-like images free of noise or artifacts

■10-bit color quality for unmatched color accuracy, with over a billion colors available

■HDMI®(High-Definition Multimedia Interface®) ports for superior, uncompressed

digital video

■Built-in cinema filter and Fujinon® lens for exceptional picture quality

■True 16:9 wide-format projection

■Flexible setup configurations, including front projection and ceiling mounted, with

vertical and horizontal lens shift dials for offset placement

6Introduction

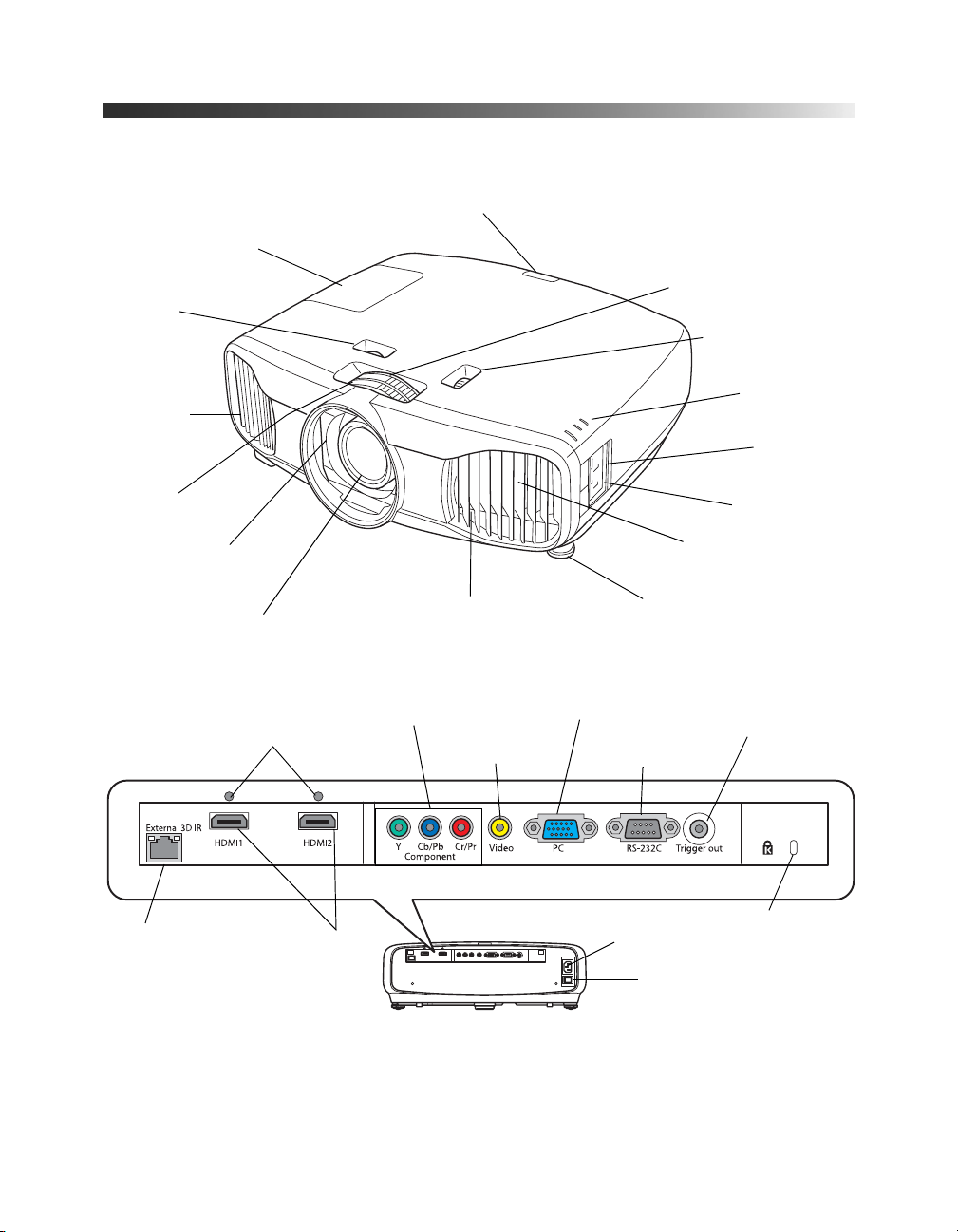

Projector Parts

Air exhaust

Projector lens

Adjustable foot

HDMI ports

External 3D IR port

Remote receiver

Vertical lens shift dial

Front

Back

Lamp cover

Air intake

Air filter cover

Power inlet Kensington®lock port

RS-232C port

Video port

PC port

Control panel

Horizontal

lens shift dial

Focus ring

Zoom ring

Cable clip holes

Component ports

Power switch

Trigger out port (12V DC

200mA max)

Auto lens

shutter

Control

panel cover

Power and

warning

lights

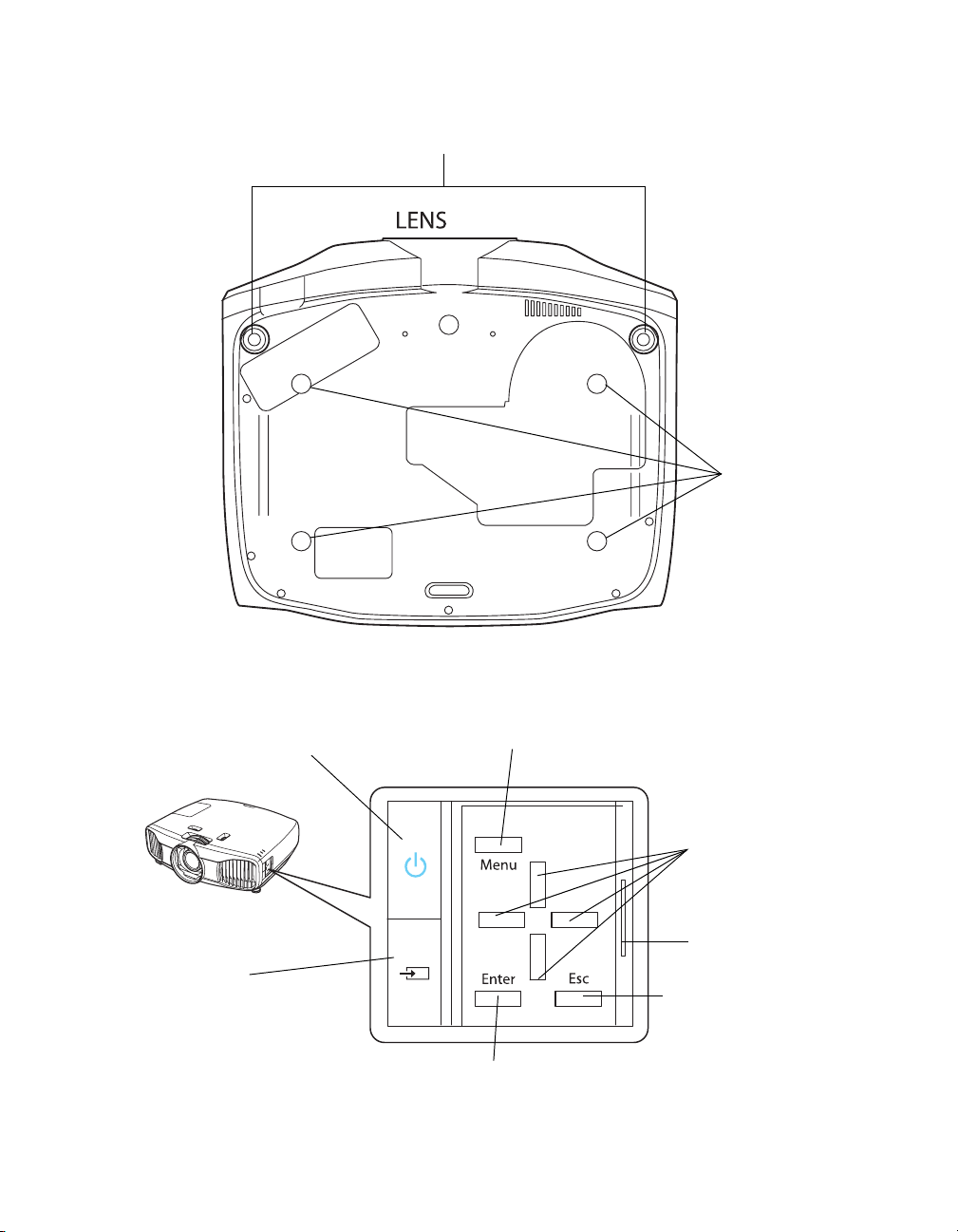

Introduction 7

Escape button

Power button

Mounting bracket

attachment points

Bottom

Projector Control Panel

Source button

Menu navigation/

vertical keystone

buttons

Front adjustable feet

Menu button

Enter button

Retractable

cover

8Introduction

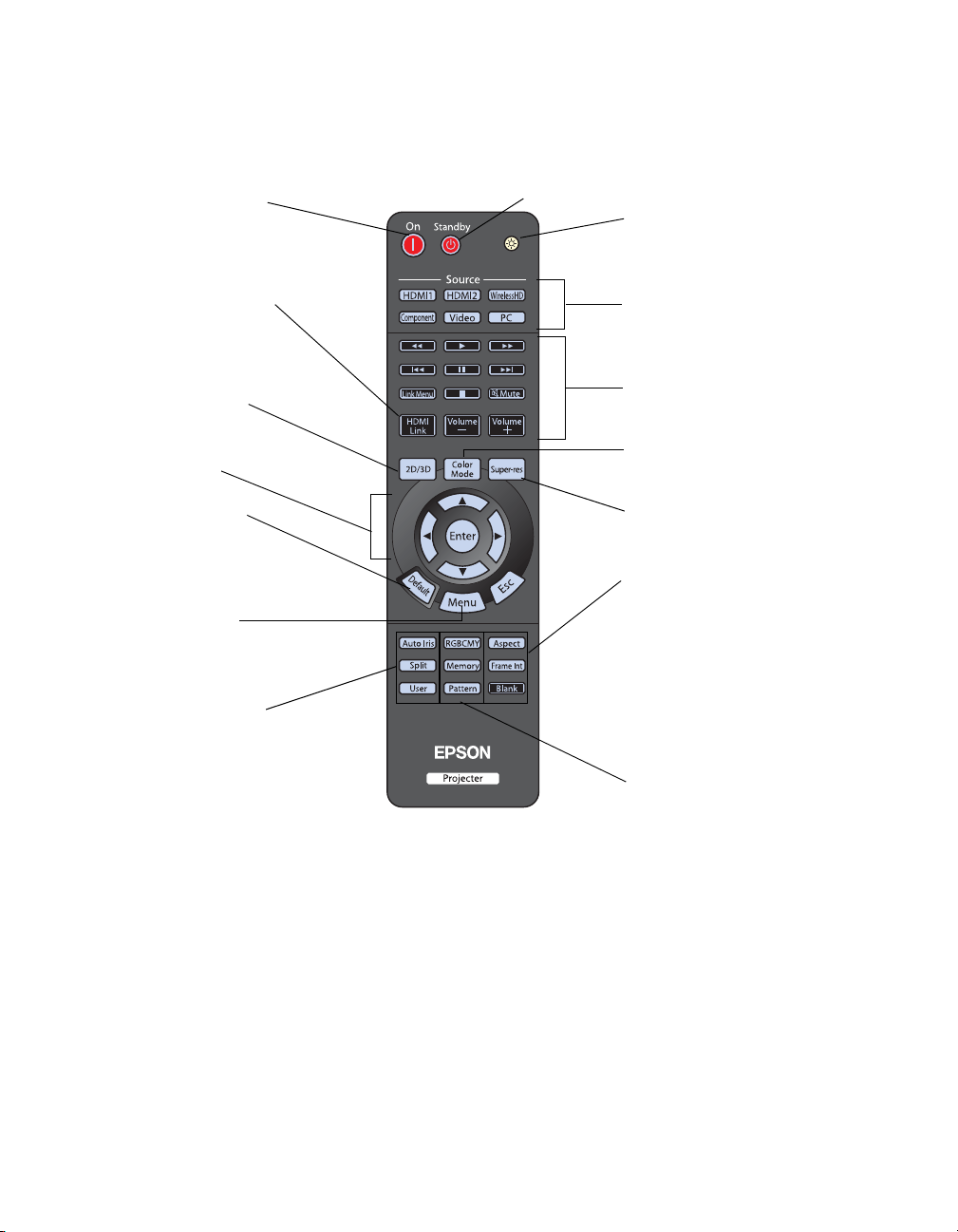

Remote Control

Source buttons

Switch between equipment

connected to the projector

On button

Turns projector on

navigation

buttons

Color Mode button

Quickly change color settings

to match room lighting

HDMI Link button

Enables and disables the

HDMI link function

Illumination button

Lights the remote control

buttons for easy viewing

Menu button

Displays the projector’s

menus

Default button

Resets menu

selection to default

values

2D/3D button

Toggles

between 2D and

3D projection

HDMI Link control buttons

Control playback of a linked

video device

Super-res button

Adjusts the Super-res setting

on or off

Standby button

Turns projector off

Aspect button

Changes the picture’s aspect

ratio (not available for all

sources)

Frame Int button

Adjusts the Frame

Interpolation setting

Blank button

Temporarily stops projection

or hides the menu screen

Auto Iris button

Adjusts the Auto Iris

function

Split button

Adjusts the Split Screen

function

User button

Function can be set by the

user from the Settings

RGBCMY button

Displays the color

adjustment menu

Memory button

Accesses the memory

Pattern button

Displays test patterns to

adjust the image

Introduction 9

Optional Accessories

Epson provides the following optional accessories for the projector:

In addition to the accessories listed above, 1-year and 2-year extended service plans are

available. You can purchase these plans and other accessories from an authorized EPSON

reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To

purchase online, visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Registration and Warranty

Your projector comes with a basic three-year carry-in warranty. For details, see the Quick

Setup sheet.

In addition, Epson offers free Extra CareSM Home Service. In the unlikely event of an

equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will

ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See your

Extra Care Home Service brochure for details.

To register, simply follow the registration instructions on the CD, or register online at

epson.com/webreg. Registering also lets you receive special updates on new accessories,

products, and service.

Product Part number

Replacement lamp V13H010L69

Air filter replacement V13H134A39

Kensington security lock (anti-theft device) ELPSL01

Projector mount CHF2500

Computer cable (6 feet [1.8 meters]) F3H982-06

3D active shutter glasses V12H483001

External 3D IR emitter V12H484001

Fixed Anamorphic Lens Kit ELPFALKED

Motorized Anamorphic Lens Kit ELPALK3

10 Introduction

Using This Manual

This book contains all the information you need to use the projector, in addition to basic

setup and maintenance instructions, troubleshooting tips, important safety instructions,

specifications, and warranty information.

Please follow these guidelines as you read through the manual:

Warning: Must be followed carefully to avoid bodily injury.

Caution: Must be observed to avoid damage to your equipment.

Note: Contains important information about your projector.

Tip: Contains helpful projection tips.

Need additional help? Take advantage of Epson’s automated support services 24 hours a day

at epson.com/support (U.S.) or epson.ca/support (Canada). Use this site to view FAQs or

product information and e-mail Epson.

If you need more help, you can use the EPSON®PrivateLine®Support service. Call

(800) 637-7661 and enter the PIN on the PrivateLine support card that came with your

projector.7
