Epson Megaplex MG-50 Manuel utilisateur

MegaPlex MG-50/MG-850HD

Home Theater Projector

User’s Guide

2Contents

Contents

Introduction 5

Projector Parts 6

Optional Accessories 10

Registration and Warranty 10

Using This Manual 11

Setting Up the Projector 12

Choosing a Location 12

Installing the Projector 15

Installing Batteries in the Remote Control 17

Turning the Projector On and Off 17

Turning On the Projector 17

Turning Off the Projector 18

Projecting From an iPod, iPhone, or iPad 19

Connecting an iPod or iPhone 19

Connecting an iPad 20

Checking the Dock Light 21

Removing Your iPod, iPhone, or iPad 22

Device Playback 23

Playing Video and Music From Your iPod, iPhone, or iPad 23

Playing Music When the Projector Is in Standby Mode 24

Controlling Playback 24

Configuring the Screen Saver 25

Projecting Photos, Videos and YouTube Videos From Your iPod, iPhone, or iPad 25

Playing Music With Photos 26

Contents 3

Connecting Other Devices 27

Connecting Video Equipment 27

Connecting Computer Equipment 28

Installing the USB Driver 29

Connecting a Microphone 30

Connecting a USB Storage Device 30

Playing a Slideshow 31

Customizing Slideshow Settings 33

Making Basic Adjustments 34

Positioning the Image 34

Adjusting the Image 36

Resizing the Image 36

Focusing the Image 37

Selecting the Image Source 37

Choosing the Aspect Ratio 38

Choosing the Color Mode 39

Choosing the Sound Mode 40

Making Detailed Adjustments 41

Using the Menu System 41

Fine-tuning the Image 43

Adjusting Signal Settings 45

Customizing Projector Features 47

Customizing Power and Operation 48

Resetting the Projector 50

Using the Projector Security Features 51

Creating Your Own Startup Screen 52

Capturing the Image 52

Locking the Projector 53

Password Protecting 54

iPod Management 56

Using Security Locking 57

4Contents

Maintenance 58

Cleaning the Lens 58

Cleaning the Projector Case 58

Cleaning and Replacing the Air Filter 59

Replacing the Lamp 61

Resetting the Lamp Usage Timer 63

Checking the Projector Status 64

Storing the Projector 64

Transporting the Projector 65

Problem Solving 66

What To Do When the Lights Come On or Flash 66

Solving Picture Problems 68

Solving Remote Control Problems 71

Where to Get Help 72

Specifications 73

General 73

Lamp 74

Remote Control 74

Dimensions 74

Electrical 74

Environmental 75

Safety 75

Compatible Video Formats 75

System Requirements 78

Notices 80

Introduction 5

Introduction

The MegaPlex MG-50/MG-850HD projector lets you enjoy theater-quality images in the

relaxing environment of your own home. Designed especially for home cinema use, it offers

these outstanding features:

■Built-in dock that allows you to display media from and charge iPods, iPhones, or iPads

■Native WXGA 720p (MG-850HD) and 540p (MG-50) resolution, and up to

2800 lumens (2200 lumens for the MG-50) of brightness (color light output) for

incredibly rich, sharp images in any room lighting

■Auto Iris system that constantly controls the light output based on the gamma and

black/white levels of your projected content, for perfectly adjusted images and deepest

blacks

■Epson 3LCD technology for reliable picture quality, increased contrast ratio, and

uniform colors

■HDMI®(High-Definition Multimedia Interface®) port for superior, uncompressed

digital video

■True 16:9 wide-format projection

■Closed captioning (MG-850HD)

■Flexible setup configurations, including front projection and ceiling mounted, plus auto

vertical keystone

■Up to seven (MG-850HD) color modes (five for the MG-50), to quickly optimize

viewing for different lighting environments, and a vast array of custom color adjustments

6Introduction

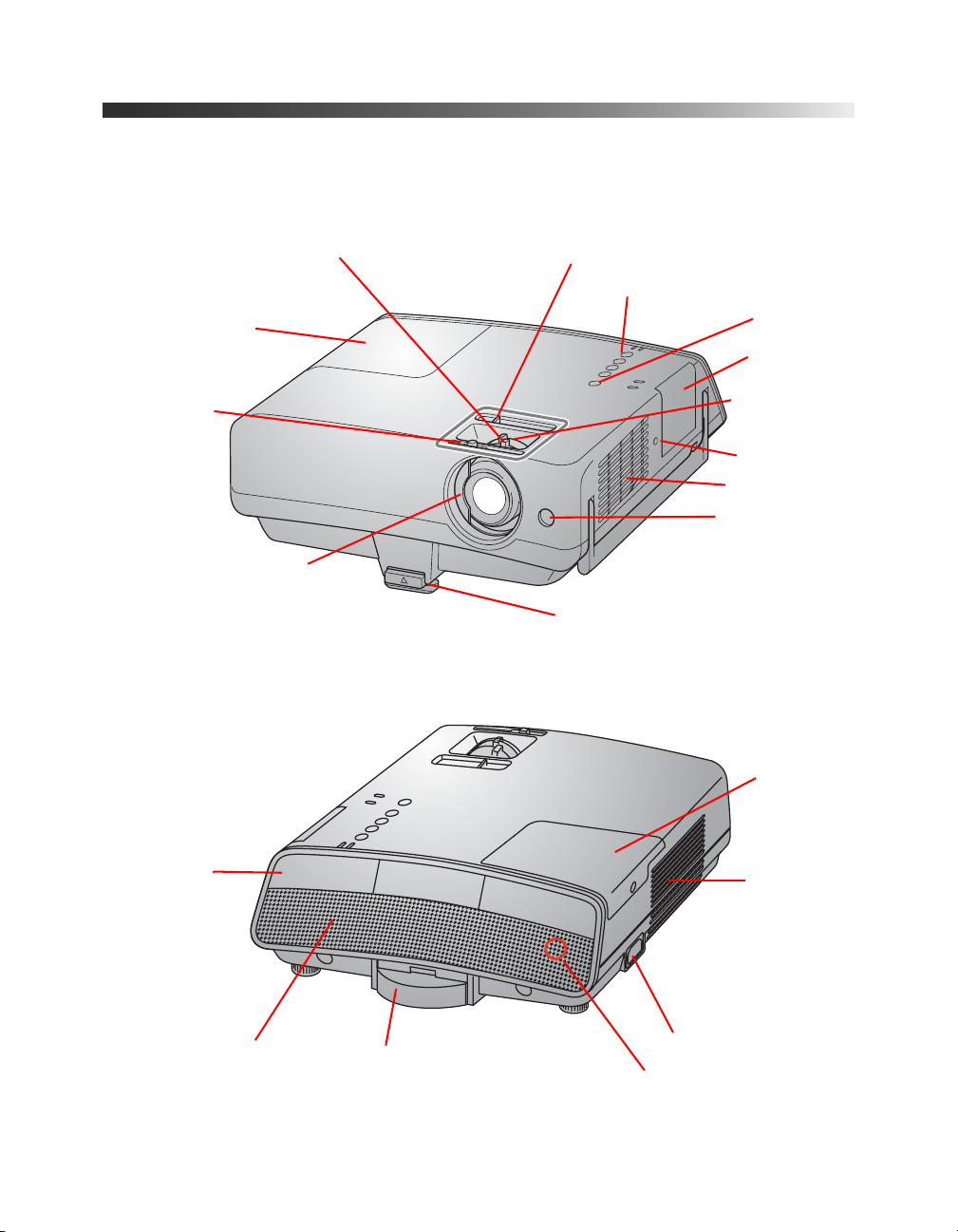

Projector Parts

Front

Back

Control panel

Air exhaust vent

Lens cover

Horizontal keystone slider

Adjustable foot

Remote control

receiver

Focus ring

Lamp cover

Security slot

Light sensor

Port cover

A/V mute slide Zoom ring

(MG-850HD only)

AC power inlet

Air exhaust

vent

Remote control receiver

Speakers iPod dock

Lamp cover

Port cover

Projector Parts 7

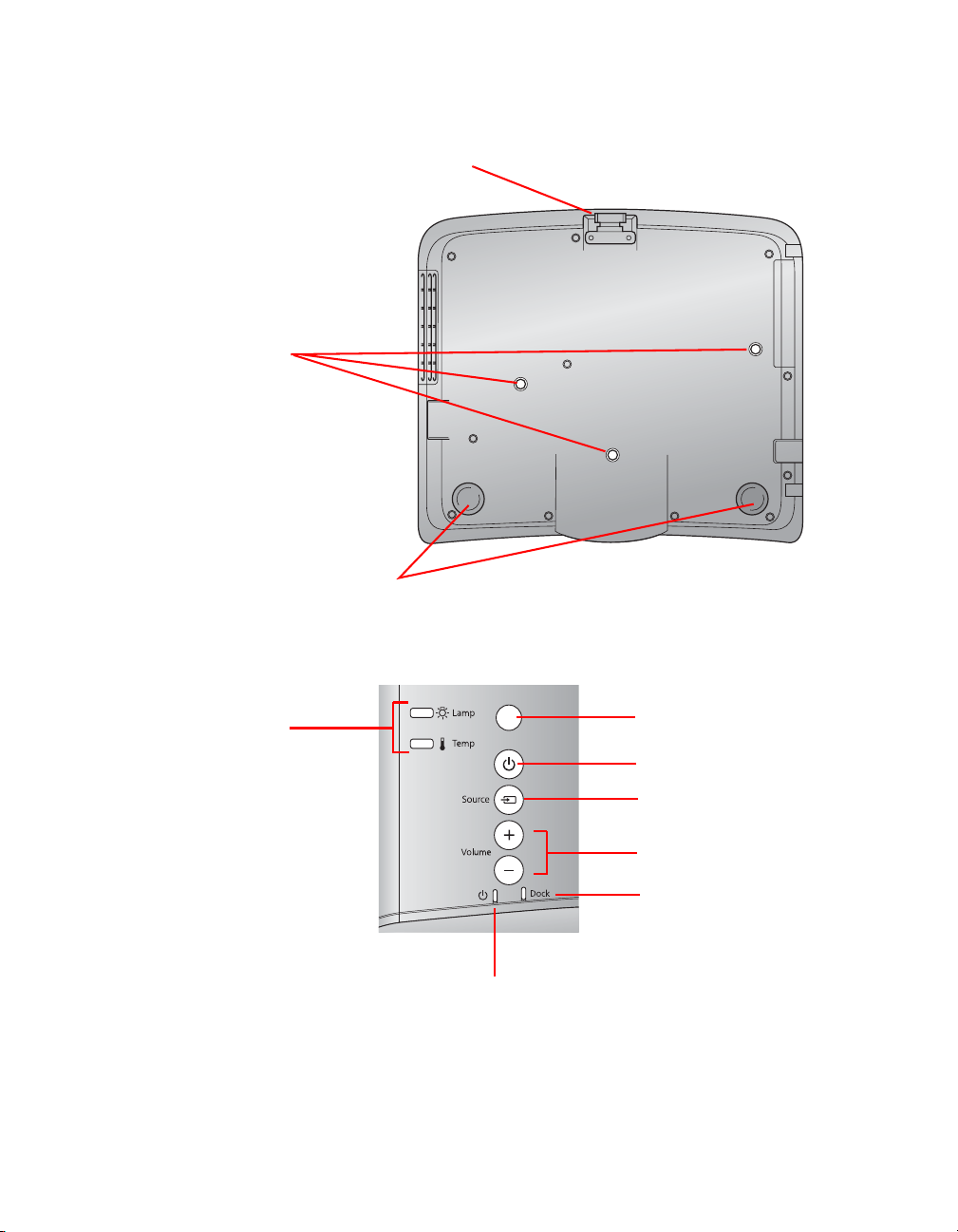

Bottom

Control Panel

Mounting bracket

attachment points

Rear adjustable feet

Front adjustable foot

Power button

Volume

Dock light

Status lights

Power light

Source button

Light sensor

8Introduction

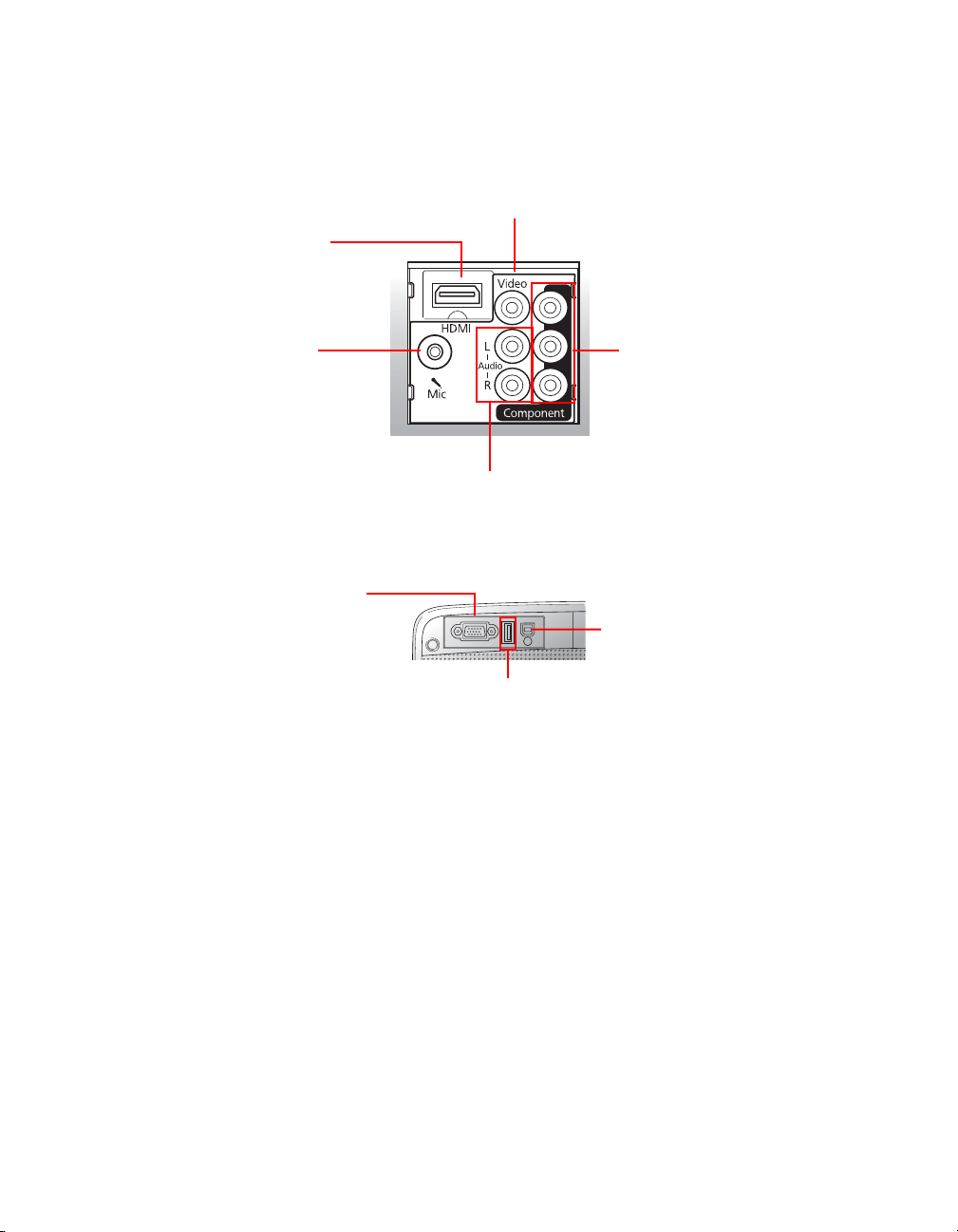

Projector Ports

Side ports

Back ports

HDMI

Component

video

Microphone

Audio (L/R)

Composite video

USB

TypeB

USB TypeA

(MG-850HD only)

PC input

Projector Parts 9

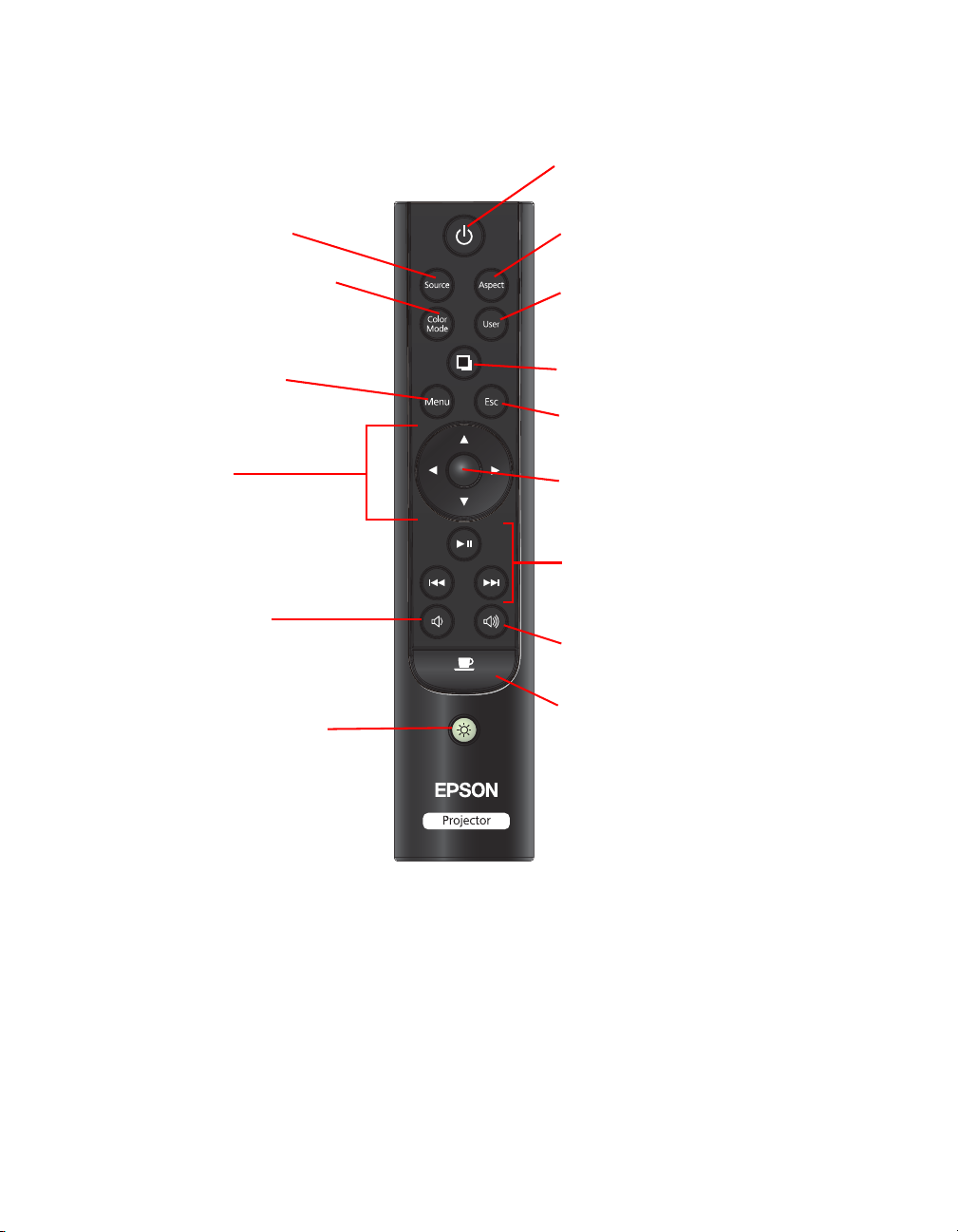

Remote Control

Source button

Switches between

image sources connected to

the projector

Power button

Turns projector on or off

navigation

buttons

Menu button

Displays the

projector’s

menus

Aspect button

Changes the picture’s aspect ratio

Esc (escape) button

Exits the current menu item

A/V mute button

Temporarily turns projected

images and audio off and on

Enter button

Selects menu items or opens

the line menu

Controls playback:

Play/Pause

Rewind

Fast-forward

Illumination button

Lights the playback and

volume buttons for easy

viewing

Color Mode button

Optimizes viewing for

different lighting

environments

Turns down

the volume Turns up the

volume

Transfers control to the iPod

when connected

User button

Shortcut to selected menu items

10 Introduction

Optional Accessories

Epson provides the following optional accessories for the projector:

In addition to the accessories listed above, 1-year and 2-year extended service plans are

available. You can purchase these plans and other accessories from an authorized Epson

reseller. To find the nearest reseller, please call 800-GO-EPSON (800-463-7766). To

purchase online, visit www.epsonstore.com (U.S. sales) or www.epson.ca (Canadian sales).

Registration and Warranty

Your projector comes with a basic two-year carry-in warranty. For details, see the warranty

brochure.

In addition, Epson offers free Extra CareSM Home Service. In the unlikely event of an

equipment failure, you won’t have to wait for your unit to be repaired. Instead, Epson will

ship you a replacement unit anywhere in the United States, Canada, or Puerto Rico. See your

Extra Care Home Service brochure for details.

To register, simply follow the registration instructions on the CD, or register online at

epson.com/webreg. Registering also lets you receive special updates on new accessories,

products, and service.

Product Part number

Replacement lamp V13H010L67

Air filter replacement V13H134A37

Kensington®security lock (anti-theft device) ELPSL01

Epson DC-06 document camera (MG-850HD only) V12H321005

Projector mount V12H003B23
