Interactive Table Mount

User's Guide

English

Safety Instructions

For your safety, read all the instructions in this guide, the User's Guide for your projector, and Safety

Instructions before using this product. Incorrect handling that ignores instructions in these guides could

damage the product or could result in personal injury or property damage. Keep this guide at hand for future

reference.

Explanation of Symbols

The warning marks shown below are used throughout this guide to prevent personal injury or property

damage. Make sure you understand these warnings when reading this guide.

Safety Precautions for Installation

This symbol indicates information that, if ignored, could possibly result in personal injury or even death

due to incorrect handling.

This symbol indicates information that, if ignored, could possibly result in personal injury or physical

damage due to incorrect handling.

This symbol indicates relevant or useful information.

Symbol indicating an action that must

not be done

Symbol indicating an action that should

be done

Follow the instructions in this guide when installing the product.

If the instructions are not followed, the product may fall or collapse, resulting in personal injury or an accident.

Handle the power cord carefully.

Incorrect handling may cause fire or electric shock. Observe the following precautions when handling:

- Do not handle the power plug with wet hands.

- Do not use a power cord that is damaged or modified.

- Do not pull the power cord with too much force when passing it through the base frame unit.

Do not install this product in a place where it might be subjected to vibration or shock.

Vibration or shock could cause damage to the projector or mounting surface. It could also cause this product or projector

to fall and cause serious personal injury or even death.

Inspect this product on a regular basis to ensure there are no broken parts or loose screws.

If there are any broken parts, stop using this product immediately. Otherwise, this product or projector may fall or

collapse, and cause an accident or personal injury.

Never modify this product.

Tighten all screws firmly after installation.

Otherwise, this product or the projector may fall or collapse, and cause personal injury or an accident.

Install this product on a table that meets the following conditions.

- The tabletop is 15 to 80 mm (0.6 to 3.1") thick.

- The tabletop is strong enough to support the weight of this product.

- The table is stable enough not to collapse after installation of this product (legs are not pointing inwards or collapsible,

for example.).

- The table is strong enough to take the weight of the projector and this product.

Do not use screw-locking adhesives, lubricants, or oil to install this product on a table.

If you use screw-locking adhesives, lubricants or oil on the attachment plate fixing part of the projector, the case may

crack and cause the projector to fall, resulting in personal injury or property damage.

Warning

Caution

Warnin

English

About This Guide

This guide describes how to install the following projectors to a table using the Interactive Table Mount

(ELPMB29).

EB-485Wi/EB-485W/EB-480i/EB-480/EB-475Wi/EB-475W/EB-470

BrightLink 485Wi/BrightLink 485Wi+/BrightLink 480i/BrightLink 475Wi/BrightLink 475Wi+

1. Package Contents

Have the necessary tools ready before you begin the installation.

Do not lean against or apply any force to the table mount or projector.

Otherwise, the table mount or projector may fall or collapse and cause an accident or personal injury.

Do not install this product in a location where the operating temperature for the projector may be

exceeded.

Such an environment may damage the projector.

Base frame unit with adjuster bolts

Attachment plate

Tray

Hexagon wrenches (for M4 and

M8)

Bolts

Shape Name Quantity Application

M4 x 12 mm hexagon socket head cap bolt with

washer and spring washer

4 For mounting the attachment plate to

the projector.

M4 x 8 mm hexagon socket head cap bolt 1 For mounting the tray to the base

frame unit.

2 Used as stoppers.

M8 x 35 mm hexagon socket head cap bolt 2 For mounting the attachment plate to

the base frame unit.

Warnin

Caution

2. Specifications

3. Table to Install This Product

Install this product on a table that meets the following conditions.

The tabletop is strong enough to support the weight of this product.

The table is stable enough not to collapse after installation of this product (legs are not pointing inwards

or collapsible, for example.).

The table is strong enough to take the weight of the projector and this product.

The table surface is a light color such as white.

The tabletop is 15 to 80 mm (0.6 to 3.1") thick.

The tabletop is larger than the following minimum necessary size.

See the projection distance table in step afor the image size.

Item Specification Remark

Mass Approx. 7.5 kg

Maximum load capacity 6.5 kg

Forward/backward adjustment

range of the adjuster bolt

80 mm (3.1") Distance between the edge of the table and the center of

the bolt: 35 to 115 mm (1.4 to 4.5")

EB-485Wi/485W/475Wi/475W

BrightLink 485Wi/BrightLink 485Wi+/BrightLink 475Wi/BrightLink 475Wi+ [Unit: inch (mm)]

Image Size Rectangular Table Round Table (Diameter)

65 (1651) 48.0 x 55.8

(1220 x 1417)

80.0 (2032)

60 (1524) 44.9 x 52.0

(1140 x 1321)

75.0 (1905)

EB-480i/480/470

BrightLink 480i [Unit: inch (mm)]

Image Size Rectangular Table Round Table (Diameter)

60 (1524) 48.4 x 48.7

(1230 x 1238)

70.0 (1778)

56 (1422) 45.7 x 45.6

(1160 x 1158)

65.0 (1651)

English

If any obstacles such as a shaft exist on the bottom side of the tabletop, the distance between the edge of

the table and the obstacle must be at least 75 mm (3") or the obstacle must be within 85 mm (3.3") from

the edge of the table.

15 to 80 mm

(0.6 to 3.1")

15 to 80 mm

(0.6 to 3.1")

75 mm or more

(3" or more)

0 to 85 mm

(0 to 3.3")

4. Installation Procedure

aDetermine the image size and the position of the projector

(1) Determine the position according to the image size. There are two positions ( and in

the following illustration) to choose from.

See the following table for the position suitable for each image size.

EB-485Wi/485W/475Wi/475W

BrightLink 485Wi/BrightLink 485Wi+/BrightLink 475Wi/BrightLink 475Wi+ [Unit: inch (mm)]

Projection

Distance

(Y)

Image Size (S)

DistanceBetween

the Edge of the

Table and the

Bottom of the

Screen (16:10)(a)

Distance Between

the Edge of the

Table and the Top

of the Screen

(16:10)(b)

Aspect ratio

16:10

Aspect ratio 4:3 Aspect ratio 16:9

Wide Tele Wide Tele Wide Tele Wide Tele Wide Tele

15.0

(380)

(1651)

(1219)

(1448)

(1092)

(1600)

(1194)

11.4

(290)

15.7

(400)

45.7

(1160)

41.3

(1050)

13.8

(350)

(1524)

(1143)

(1346)

(1016)

(1499)

(1143)

10.6

(270)

15.0

(380)

42.5

(1080)

39.0

(990)

English

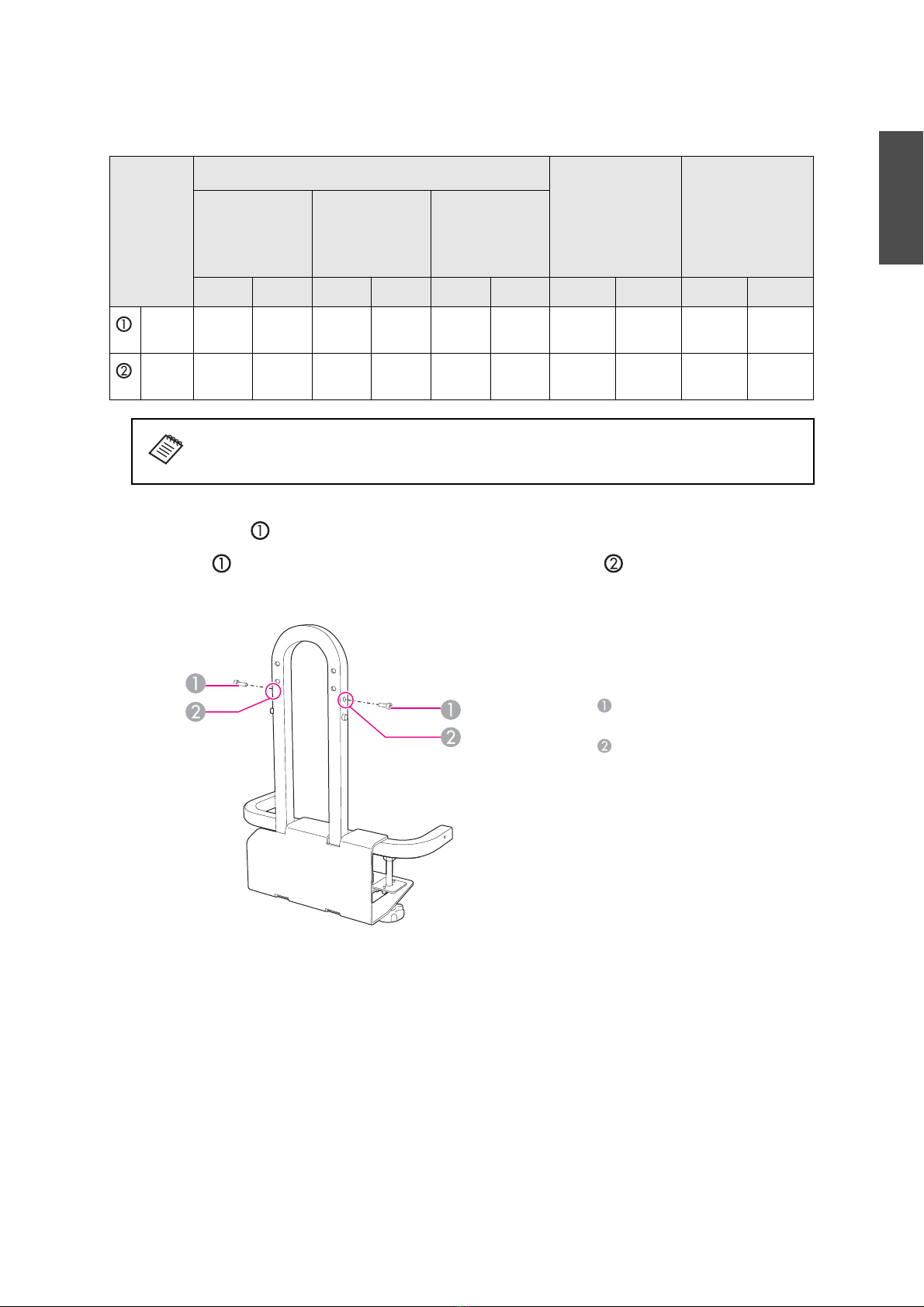

(2) If you select , attach M4 x 8 mm hexagon socket head cap bolts (x2) to the base frame

unit at as stoppers for the projector. Bolts were secured at when shipped.

EB-480i/480/470

BrightLink 480i [Unit: inch (mm)]

Projection

Distance

(Y)

Image Size (S)

DistanceBetween

the Edge of the

Table and the

Bottom of the

Screen (4:3)(a)

Distance Between

the Edge of the

Table and the Top

of the Screen

(4:3)(b)

Aspect ratio

16:10

Aspect ratio 4:3 Aspect ratio 16:9

Wide Tele Wide Tele Wide Tele Wide Tele Wide Tele

15.0

(380)

(1448)

(1067)

(1524)

(1143)

(1397)

(1041)

10.2

(260)

15.0

(380)

46.1

(1170)

42.1

(1070)

13.8

(350)

(1346)

(1016)

(1422)

(1067)

(1321)

(965)

9.8

(250)

14.2

(360)

43.3

(1100)

39.4

(1000)

You can change the image size using E-Zoom of the projector.

You can adjust the projection position using Image Shift of the projector.

M4 x 8 mm hexagon socket head

cap bolts

Positions

bAssemble the parts

(1) Mount the attachment plate on the projector using M4 x 12 mm hexagon socket head cap

bolts (4 bolts with washer and spring washer).

(2) Mount the tray on the base frame unit using an M4 x 8 mm hexagon socket head cap bolt.

You can mount the tray on either the left or right side of the base frame unit.

If you are using EB-485Wi/EB-480i/EB-475Wi/BrightLink 485Wi/BrightLink 485Wi+/BrightLink

475Wi/BrightLink 475Wi+, you can place the pen tray supplied with the projector on the tray.

If you do not have a pen tray, you can put the remote control, for example, on the tray.

Attachment plate

M4 x 12 mm hexagon socket head

cap bolts (with washer and spring

washer)

Tray

M4 x 8 mm hexagon socket head

cap bolt

Do not put the Easy Interactive Pen directly on the tray. The Easy Interactive Pen may not work

if it becomes damaged or soiled.

Caution

English

cDetermine the position to attach the table mount

(1) Loosen the adjuster bolts (x3) to fit the thickness of the tabletop, so that you can attach the

base frame unit to the tabletop.

(2) Attach the base frame unit to the table by sliding the base frame unit onto the edge of the

table.

Adjuster bolts

Base frame unit

(3) Align one side of the U-shaped arch on the base frame unit ( in the following illustration)

and the supposed central line of the screen during projection ( in the following

illustration) to align the center of the lens and the center of the screen.

dMount the base frame unit by tightening the three adjuster bolts

Fix the adjuster bolts on a flat surface on the bottom side of the tabletop temporarily. Move

the adjuster bolts forward or backward if there are any obstacles such as a shaft.

U-shaped arch

Center of the screen

Table

Projection range

Adjuster bolts

Each adjuster bolt requires a flat

surface with at least 60 mm (2.4") in

diameter.
