English

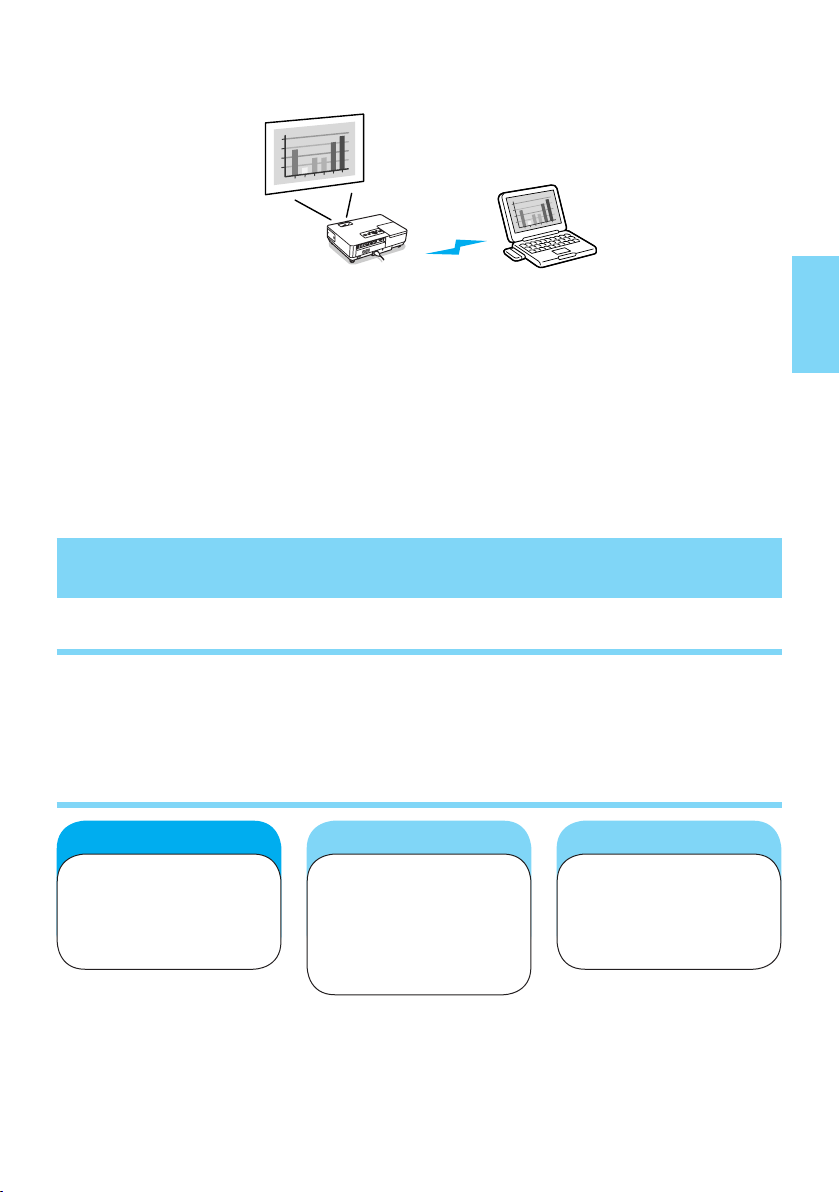

This guide explains how to easily connect a computer to the projector using a

wireless LAN*. For a detailed explanation of the operating method, see "Operating

the Projector from a Computer via a Network" in the EasyMP Operation Guide.

* The connection method described in this guide uses an ad hoc wireless LAN connection.

For details on connecting using an access point, see “Connecting to an Access Point

with Wireless LAN” in the EasyMP Operation Guide.

Preparing the Computer

Preparation

❏ EasyMP Software CD-ROM (Included)

❏ Computer

A built-in wireless LAN or an inserted wireless LAN card that satisﬁes the software requirements outlined on

the following page.

Contents of the EasyMP Software CD-ROM

Install

EMP NS Connection

This software is necessary to

connect the projector to the

network*1.

Necessary

EMP SlideMaker2

This software creates scenarios

for presentations. Project by

using the projector's PC Free

function*1.

Necessary

EMP Monitor

This software allows you

to monitor the status of the

projector from a computer*2.

*1 Operation Details “EasyMP Operation Guide”

*2 Operation Details “EMP Monitor Operation Guide”

Software Requirements

Runs under the following operating environment.

EMP NS Connection EMP SlideMaker2*3 EMP Monitor

OS Windows

2000 SP4/XP/

XP SP1/XP SP2

Mac OS X 10.3 or

later

Recommended: Mac

OS 10.4.5 or later/

10.3.9

Windows 98/98 SE/

Me/2000/XP

Windows 98 SE/Me/NT

4.0/2000 Professional/

XP Home Edition/XP

Professional

Internet Explorer Ver 5.0 or

later

CPU Mobile Pentium III

1.2 GHz or more

Recommended:

Pentium M 1.2 GHz

or more

Power PC G3 900

MHz or more

Celeron 300 MHz or more

Recommended: Celeron 400

MHz or more

Pentium MMX 166 MHz or

Recommended: Pentium II

233 MHz or more

Memory

capacity

256 MB or more

Recommended: 512 MB or more

64 MB or more

Recommended:128 MB or

64 MB or more

Recommended:128 MB or

Available hard

disk space

20 MB or more 12 MB or more 6 MB or more

Display Resolution of XGA (1024 × 768) or higher Resolution of SVGA (800 ×

600) or higher

Recommended: XGA (1024

× 768) or higher

Resolution of SVGA (800 ×

600) or higher

16 bit or higher colour display

Colour display of about 32,000 colours

– 32 bit or higher colour

display

*3 When using a PowerPoint ﬁle, either Ofﬁce 2000, XP, or 2003 are necessary.

●If using Windows 2000/NT4.0/XP, installation can only be carried out by a user with administrator

privileges.

●Make sure you close all open applications.

Starting (Windows)

Add or remove Virtual Displays

Finish installation

License agreement screen

English

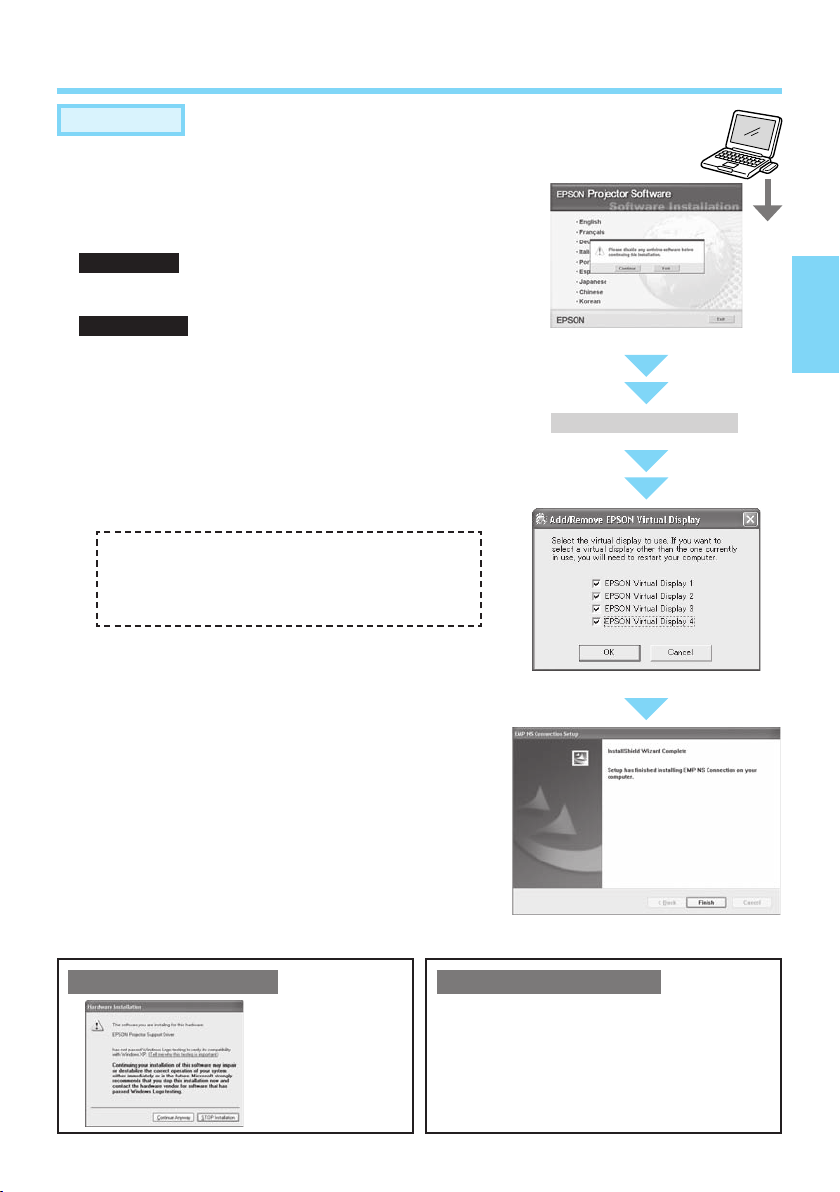

Installing EasyMP Software

Procedure

1Turn on the computer.

2Insert the EasyMP Software CD-ROM into the

computer.

For Windows

The installer starts automatically.

For Macintosh

In the "EPSON" window, click the "Installer for Mac OS X"

icon. The installer starts.

Installation starts. Follow the instructions on the screen.

●Click "Install" on the software selection screen.

●Click "Yes" on the license agreement screen to continue

installation.

●Select the virtual display to use on the "Add/Remove

EPSON Virtual Display" screen.

You need "Virtual Video Driver" to use "Multi-screen

Display". If you do not install it here, you can install it

later. (Select "Start" - "Programs" - "EPSON Projector"

- "Add and Delete EPSON Virtual Display")

3Click "Finish" to complete the installation.

Next, SlideMaker2 and EMP Monitor are installed. Continue

by following the instructions on the screen

If this screen is displayed

Select "Yes"

(Windows 2000) or

"Continue Anyway"

(Windows XP).

If installation does not start

Select "Start" - "Run", and then in the "Run"

dialog box type the letter for your CD-ROM

drive followed by ":\\Epsetup.exe" and then

click the "OK" button.

Conﬁguration menu

Check the orientation of the included Wireless LAN unit, and install it

to the projector.

You can lock it in place with the screw included.

sUser’s Guide (Document CD-ROM) "Base"

Network settings screen

Network setting screen

Preparing the Projector

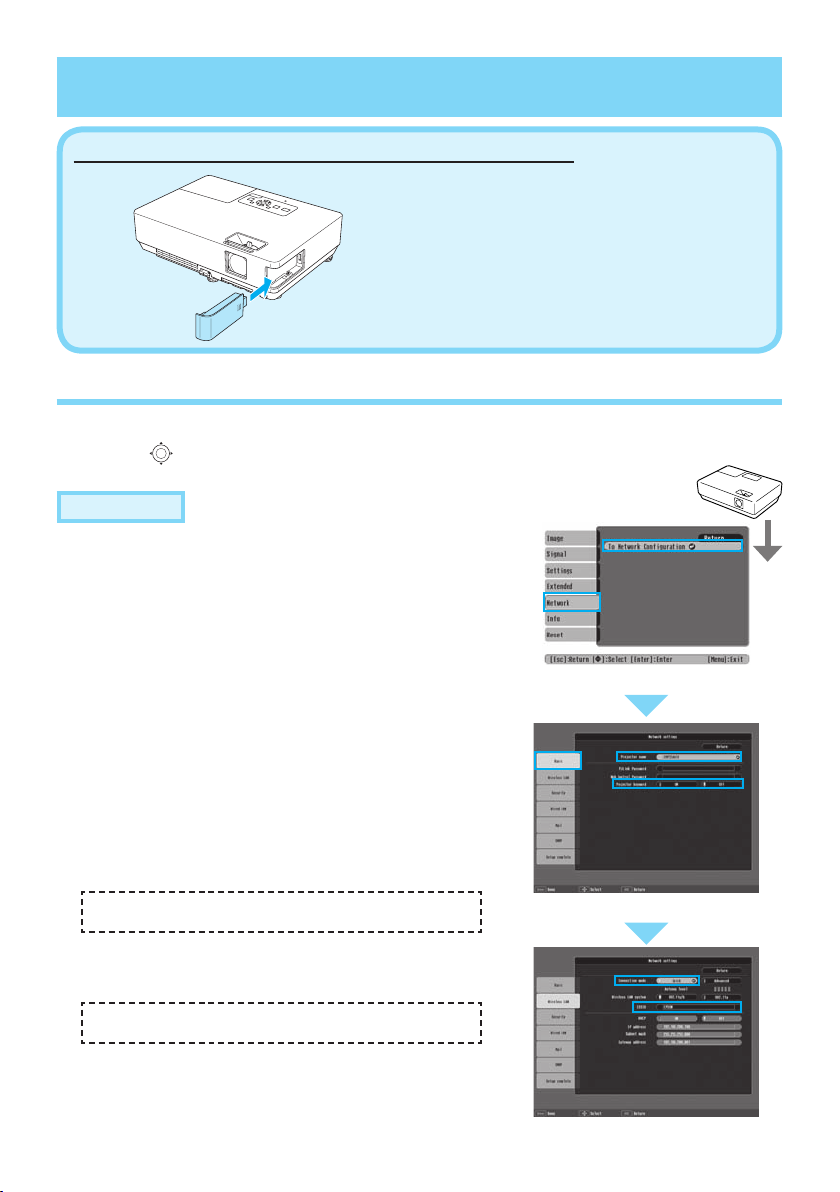

First, connect the Wireless LAN unit to the projector.

Conﬁrm the projector's network settings

How to operate by using the remote control (included).

Use the [ ] button to move and the [Enter] button to conﬁrm.

Procedure

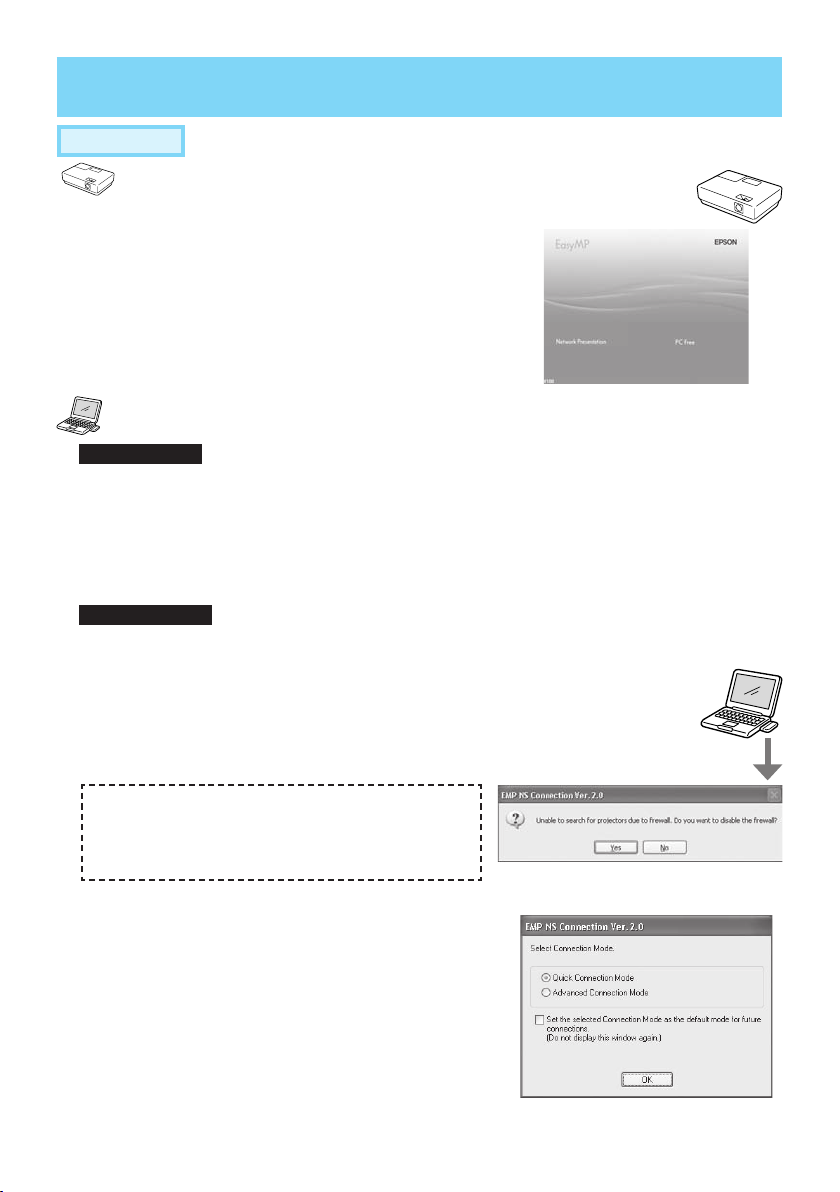

1Press the [Power] button on the remote control

to turn on the projector.

2Press the [Menu] button on the remote control.

The conﬁguration menu is displayed.

3Select "Network".

The network menu is displayed.

4Select “To Network Conﬁguration”.

The Network settings screen is displayed.

5Select "Basic" and set "Projector name" and

"Projector keyword".

See the following page for an explanation of the items.

6Select "Wireless LAN" and set "ESSID".

See the following page for an explanation of the items.

7Press the [Menu] button on the remote control.

The conﬁguration menu closes.

English

Network setting "Basic" screen

Item Explanation

Projector name The name of the projector. The name set here is displayed in the projector list

when connected.

EMPxxxxxx (xxxxxx is a speciﬁc number) is displayed. Change it to an easy to

remember name.

Enter alphanumeric characters.

Enter example: EPSON001

PJLink Password Not necessary to set.

Web Control Password Not necessary to set.

Projector keyword When set to "ON", a keyword must be entered when connecting to the network.

This can prevent computers from making unscheduled connections and

interrupting presentations.

Usually this should be set to "ON".

Network setting "Wireless LAN" screen

Item Explanation

Connection mode Set "Quick Connection Mode".

Antenna level Displays the electromagnetic wave strength for the wireless LAN.

Wireless LAN system Set the wireless LAN system as either "802.11g/b" or "802.11a".

ESSID Displayed as "EPSON". You can change it or leave it as it is.

DHCP

Not necessary to set.

IP address

Subnet mask

Gateway address

DNS server (primary)/DNS server

(secondary)

In "Quick Connection Mode" one computer can connect to one projector (1 to 1 connection).

EasyMP Screen

EMP NS Connection screen

Connecting with a Wireless LAN (Windows/Macintosh)

Procedure

(Projector operation)

1Press the [Power] button on the remote control

to turn on the projector.

2Press the [EasyMP] button on the remote

control.

The EasyMP screen is displayed.

(Computer operation)

3For Windows

Select "Start" - "Programs" - (or "All

Programs") - "EPSON Projector" - "EMP NS

Connection".

EMP NS Connection starts.

For Macintosh

In the volume of the hard disk where EMP NS

connection is installed, double-click the

"Applications" folder and then double-click the

EMP NS Connection icon.

EMP NS Connection starts.

If the screen on the right is displayed during start up, click

the "Yes" button.

When "Yes" is clicked, a ﬁrewall exception is created for

EMP NS Connection and it is then available.

4Select "Quick Connection Mode" and click

"OK".

The projector is searched for and the search results are

displayed.

(Procedure 5)

(Procedure 6)

Stop/Show/Pause

(When connected to the projector)

Project a PowerPoint slide show

only (Presentation Mode)

Projector control Movie Sending ModeSet options

Multi-screen display Preview

English

5Select the projector you want to connect to.

6Click the "Connect" button.

7If the keyword entry screen is displayed, enter

the projector keyword (four digits) that is

projected on the EasyMP screen, and click

"OK".

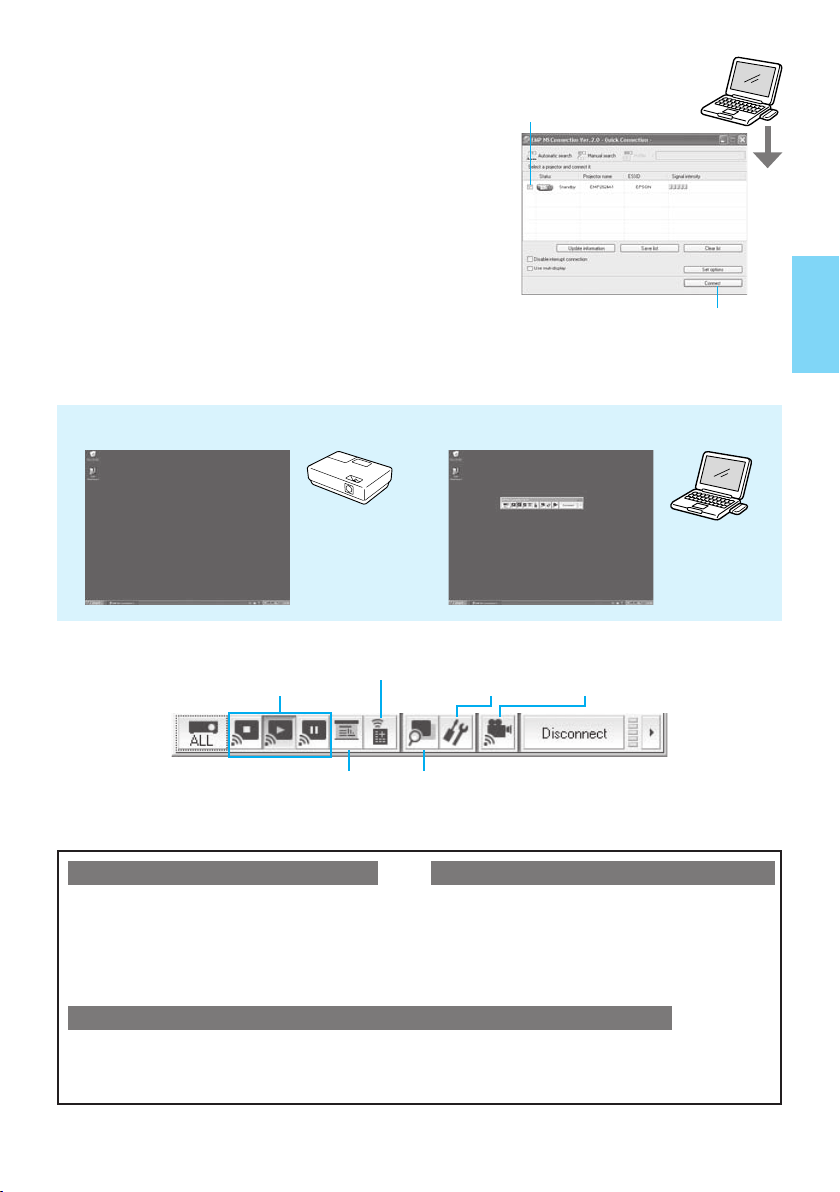

The computer and the projector are connected via the network.

The EMP NS Connection tool bar is displayed on the computer

screen. You can use this tool bar to operate the projector, make

settings, and disconnect from the network.

Screen during connection

When the target projector is not found

Check that the projector's power supply is on

and that the EasyMP screen is displayed. It is

also possible that the electromagnetic waves of

the wireless LAN are too weak to reach. Check

that the projector is not too far away.

When there are too many projectors displayed

You can narrow the search by performing the

following operation.

1 Click "Manual search".

2 Enter the ESSID for the target projector and

click the "Enter" button.

When the following message is displayed when you click the "Enter" button

"The selected projector is busy. Do you want to continue the connection process?" Because

interrupt is prohibited you cannot connect while the selected projector is connected to another

computer.

USB cable

(included)

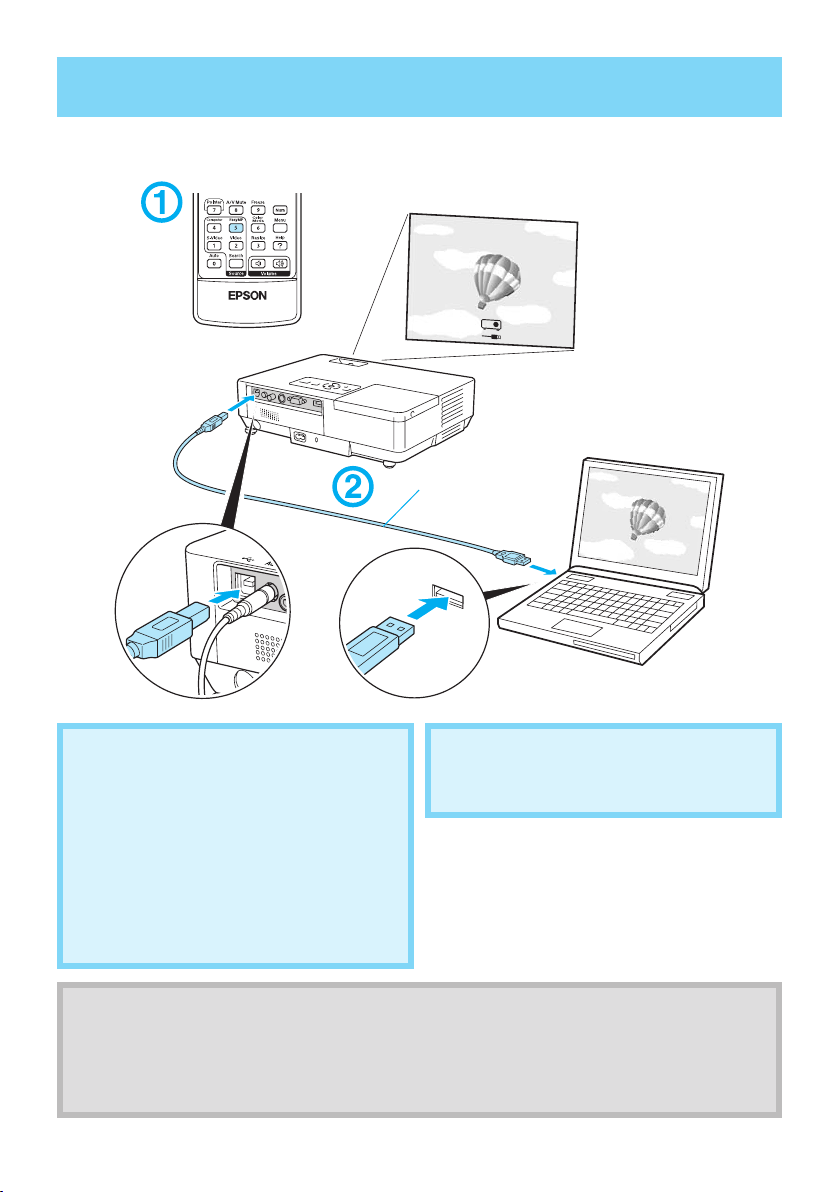

Connecting with a USB cable (Windows)

*Turn on the power supply to the computer and the projector.

Connecting a computer for the

ﬁrst time

● When the projector and the computer are

connected via a USB cable, the application

automatically starts to install.

●If you want to cancel installation, select

"Decline" on the "Licence Agreement

Screen".

●If a "Digital Signature Warning" screen is

displayed, select "Continue".

When uninstalling the application

●Select "Start Menu" - "EPSON USB Display"

- "Delete EPSON USB Display".

* Installation and Uninstallation must be carried

out by a user with administrator privileges.

Attention

●Do not connect via a hub, connect the projector and the computer directly.

●The picture quality and the transfer rate decrease when the computer’s USB standard is USB

1.1. We recommend using USB standard USB 2.0 with the computer.

●Depending on the computer speciﬁcations, you may not be able to connect.

Autres manuels pour EasyMP EMP-1715

Ce manuel convient aux modèles suivants

Table des matières

Langues :

Autres manuels Epson Projecteur

Epson

Epson EB-955W Instructions d'installation

Epson

Epson PowerLite 4650 Manuel d'instructions et de sécurité

Epson

Epson HA35A Manuel utilisateur

Epson

Epson PowerLite EB-L200SW Fiche technique

Epson

Epson brightlink Manuel utilisateur

Epson

Epson 520 Fiche technique

Epson

Epson V11H257220 - MovieMate 72 LCD Projector Manuel utilisateur

Epson

Epson PowerLite 50c Manuel utilisateur

Epson

Epson EB-X14G Manuel utilisateur

Epson

Epson EX71 Manuel utilisateur

Epson

Epson PowerLite 1915 Manuel utilisateur

Epson

Epson MovieMate 50 Manuel utilisateur

Epson

Epson EMP 822 Manuel utilisateur

Epson

Epson EMP-9100 Manuel utilisateur

Epson

Epson V11H923620 Manuel utilisateur

Epson

Epson PowerLite 52c Manuel utilisateur

Epson

Epson EX7210 Manuel utilisateur

Epson

Epson PowerLite Pro G5450WUNL Manuel utilisateur

Epson

Epson EB-W12 Manuel utilisateur

Epson

Epson EB-L260F Manuel utilisateur

Epson

Epson PowerLite Home Cinema 8500 UB Manuel utilisateur

Epson

Epson PowerLite 76c Manuel utilisateur

Epson

Epson EasyMP EMP-765 Manuel utilisateur

Epson

Epson EMP-S1 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manuel utilisateur

JVC

JVC 1108TTH-AO-AO Manuel utilisateur
