EPSON PRODUCT SUPPORT BULLETIN

Date: 04/20/2009 Originator: JAM

PSB #: PSB.2009.06.001 Authorization:

Reference: TI 09-05e Rev. A/B Total Pages: 5

Product(s): PowerLite 735c / Cinema 500 / 737c / 745c / 755c / 765c / 830p / 835p /

1705c / 1715c / 6100i / 6110i / 7800p / 7850p / 7900NL / 8300i / 8300i with

EasyMP.net module / 9300NL / 1815p / 1825 / 822p / 83c / 822+ / 83+ /

G5000 / Pro G5150 / Pro G5350 / Pro G5200W / 1725 / 1735W / 400W /

410W / 84 / 85 / 825 / 826W

PowerLite 61p / 81p / 82c / 821p / 1810 / 260d (Latin America) / 280d (Latin

America) with TCP/IP to Serial converter

Subject: Release of EMP Monitor for Windows version 4.30

This bulletin was created to inform you of the release of the new version 4.30 of the Epson

EMP Monitor software utility.

Description of Change:

Improvements have been made to the EMP Monitor software utility.

Note: For the PowerLite 61p / 81p / 82c / 821p / 1810 / 260d (Latin America) / 280d (Latin

America) models, a serial to TCP/IP conversion adapter is necessary. The function of Auto

Update does not work for these models. You need to manually click on refresh to get an

updated status of projectors.

Reason:

The improved points of version 4.30 are as follows:

Application EMP Monitor

Version

upgraded Version 4.22 ÆVersion 4.30

Improved

points (1) Addition of 7 new languages

-Indonesian, Croat, Slovak, Bulgarian, Malay, Vietnamese, and

Hebrew

Existing 27 languages

-Chinese (Traditional), Netherlands, Danish, Polish, Hungarian,

Czech, Romanian, Slovene, Norwegian, Swedish, Finnish, Russian,

Ukrainian, Greek, Turkish, Arabic (Windows NT4 does not support),

English, Japanese, French, German, Italy, Spanish, Portuguese,

Chinese (Simplified), Korean, Catalan, Thai

Page 1 of 4

PSB.2009.06.001

(2) Addition of Input Source (Only PowerLite 84 / 85 / 825 / 826W)

Previous version of EMP Monitor included USB Display, USB and LAN as

one source: EasyMP.

The input source buttons for USB display, USB, and LAN are available as

separate input sources as shown below:

- Old version - EMP Monitor V4.22

EMP Monitor V4.22

- New version - EMP Monitor V4.30

EMP Monitor V4.30

(3) New feature for the PowerLite 84 / 85 / 825 / 826W.

Displays projector’s serial number in the Menu settings

-The projector’s serial number is now displayed in the projector’s

menu under “info”,

-EMP Monitor can also display the projector’s serial number as

shown below:

Page 2 of 4

PSB.2009.06.001

Limitations When the PowerLite1725 / 1735W exhibit a Lamp Cover Open error state,

EMP Monitor cannot detect the error. The reason is that when the lamp

cover is opened, the primary power source that reports the error state to

EMP Monitor is turned off immediately. This is different from other models

which make the secondary power source turn off under the same condition.

Note: EMP Monitor Ver. 4.xx is not compatible with EMP Monitor Ver. 3.05 and earlier

versions. EMP Monitor Ver. 4.xx cannot read the setting files of EMP Monitor Ver. 3.05

and earlier versions.

System Requirements:

OS •Windows 98 SE / Me / NT 4.0 (SP6) *Except Arabic and

Hebrew / Windows 2000 Pro / XP Home Edition / XP

Professional (32 bit) / Vista Home Basic / Home Premium /

Ultimate / Business / Enterprise (32 bit) *Except Ukrainian /

Vista SP1 Home Basic / Home Premium / Ultimate /

Business / Enterprise (32 bit)

•Internet Explorer Ver. 5.0 or later must be installed

CPU Minimum: Pentium MMX 166 MHz (Recommended: Pentium II

233 MHz or higher)

Memory At least 64 MB (Recommended: 128 MB or above)

Available hard disk

space At least 50 MB

Display SVGA (800×600) or higher resolution, 32 bit or higher display

color

Obtaining the Update:

Download epson13055.exe from www.epson.com to get the version 4.30 update for EMP

Monitor. The files are extracted and copied to C:\EPSON\epson13055_emp_monitor_430.

This file is a self-extracting archive and will start the installation utility for EMP Monitor. Follow

the on-screen instructions during the installation process.

Page 3 of 4

PSB.2009.06.001

Software Upgrade History:

Version Release date Remarks

3.00 December

25,2002 Supported PowerLite 735c

3.01 February

26,2003 Supported PowerLite 7800p / 8300i

3.02 April

18,2003 Supported PowerLite 7850p / 8300i with EasyMP.net option

module

3.03 November

21,2003 Supported PowerLite Cinema 500

3.04 April

1, 2004 Supported Serial -TCP/IP conversion adapter for PowerLite

61p / 81p

4.01 October

18, 2004 Supported projectors that are configured on a large-scale

network.

4.02 August

29, 2005 Addition of timer function and auto search function by

specifying IP addresses.

Improvement of communication logs size.

4.10 May

8, 2006 Addition of new functions, Improvement of usability, and

Corresponding to PowerLite 6100i.

4.20 May

15, 2007 EMP NS Connection V2.20 supports Windows Vista (Home

Basic / Home Premium / Ultimate / Business / Enterprise).

4.21 September

26, 2007 Supported 25 languages

4.22 March 31, 2008 Supported 27 languages

Addition of new Error Information

Supported Video (BNC)

4.30 April 3, 2009 Supported 34 languages

Additional Input Sources

Displays projector’s serial number in Menu settings

Page 4 of 4

PSB.2009.06.001

Page 1 of 3

PSB.2007.11.005A

EPSON PRODUCT SUPPORT BULLETIN

Date: 11/13/2007 Originator: AP

PSB #: PSB.2007.11.005A Authorization:

Reference: TI 07-63e, Rev. A Total Pages: 3

Product(s): Epson EMP Monitor

Subject: EMP Monitor Version 4.21 Release

This bulletin was created to inform you of the release of Epson EMP Monitor version 4.21

utility.

New Functions and Improvements:

New Functions,

Improvements

Supported Models Function / Improvement

Description

Support for 25

languages

All projectors (see Supported

Projectors table)

Language support extended to

include Chinese (traditional),

Dutch, Danish, Polish,

Hungarian, Czech, Romanian,

Slovene, Norwegian, Swedish,

Finnish, Russian, Ukrainian,

Greek, Turkish, Arabic.

Languages supported in prior

version of EMP Monitor: English,

Japanese, French, German,

Italian, Spanish, Portuguese,

Chinese (simplified), Korean

Abnormally low air

flow notification

PowerLite 6100i / 6110i Indicates an abnormal decrease

in the force of air flow through

the air filter. User should check

for air filter obstructions, clean

and replace air filter as

necessary.

This feature is available only for

the indicated models.

Air flow sensor error PowerLite 6100i (with firmware

version 1.10 or later) / 6110i

Indicates air flow sensor error.

This feature is available only for

the indicated models

Clean air filter

notification

PowerLite 6110i User notification to clean air filter.

This feature is available only for

the indicated model.

Supported Projectors:

This application supports the following Epson projectors:

Page 2 of 3

PSB.2007.11.005A

PowerLite 735c PowerLite 1715c PowerLite 1815p

PowerLite 737c PowerLite 6100i PowerLite 822p

PowerLite 745c PowerLite 7800p PowerLite 6110i

PowerLite 755c PowerLite 7850p PowerLite Cinema 500

PowerLite 765c PowerLite 7900NL PowerLite 61p

PowerLite 830p PowerLite 8300i / 8300NL PowerLite 81p

PowerLite 835p PowerLite 8300i with the

EasyMP.net Option Module

installed

PowerLite 82c

PowerLite 1705c PowerLite 9300NL PowerLite 821p

Supported Operating Environment:

Operating System requirement •Windows 98SE / Me / NT 4.0 SP6 (except

Ukrainian) / 2000 Professional / XP Home Edition

/ XP Professional (32 bit) / Vista Home Basic /

Vista Home Premium / Vista Ultimate (32 bit) /

Vista Business (32 bit) / Vista Enterprise (32 bit)

(except Arabic)

•Internet Explorer 5.0 or later

Minimum CPU requirement Pentium MMX 166 MHz (Recommended: Pentium II 233

MHz or faster)

Minimum RAM requirement At least 64 MB (Recommended: 128 MB or more)

Drive space requirement At least 50 MB free

Display requirements SVGA (800 x 600) or higher resolution, 32 bit color

display or higher

Obtaining the Update:

Download epson12456.exe from www.epson.com to get the version 4.21 update for EMP

Monitor. This file is a self-extracting archive and will start the installation utility for EMP

Monitor.

Page 3 of 3

PSB.2007.11.005A

Software History:

Version Release Date Notes

3.00 December 25, 2002 Added support for the PowerLite 735c

3.01 February 26, 2003 Added support for the PowerLite 7800p / 8300i

3.02 April 18, 2003 Added support for the PowerLite 7850p / PowerLite 8300i

with the EasyMP.net option module installed

3.03 November 21, 2003 Added support for the PowerLite Cinema 500

3.04 April 1, 2004 Added support for the Serial ↔TCP/IP conversion

adapter for the PowerLite 61p / 81p

4.01 October 18, 2004 Added support for projectors installed on large scale

networks

4.02 August 29, 2005 Addition of timer function, auto search by specifying IP

address.

Improvement of communication logs sizes

4.10 May 8, 2006 Addition of support for PowerLite 6100i with support for

additional monitoring features unique to the PowerLite

6100i

4.20 May 29, 2007 Added support for Windows Vista (32 bit)

4.21 September 26, 2007 Increased language support to 25 languages

Page 1 of 1

EPSON PRODUCT SUPPORT BULLETIN

Date: 8/30/2007 Originator: DS

PSB #: PSB.2007.08.001 Authorization:

Reference: N/A Total Pages: 1

Product(s): Epson Projectors with an HD-15 VGA Analog/Component Input

Subject: Elmo HV-110XG Document Camera and Projector Compatibility

This bulletin was created to inform you of an operational issue with the Elmo HV-110XG

Document Camera when initially connected to an Epson projector.

Problem:

When attempting to use the Elmo HV-110XG Document Camera connected via the VGA HD15

connection to display content from its document bed. When connected to the projector, the

projector displays only the Blue Screen - No Signal message and will blink off and on or

display just the Blue Screen - No Signal message. When a computer is connected to the Elmo

HV-110XG Document Camera and switched to Pass-Through mode, the computer image is

displayed correctly by the projector. When switching back to the document table source of the

Elmo HV-110XG Document Camera, the problem returns. The Elmo HV-110XG Document

Camera puts out a Progressive Scan 20fps signal to the projector's VGA Analog port. This

signal is detected at 15 kHz Vertical and 291.8 kHz Horizontal frequencies which are beyond

projector sync specifications.

Solution:

With the Elmo HV-110XG Document Camera powered on and connected to the projector via

the VGA computer cable, access the Computer1/Computer2 setting in the projector menu

system and select the Component setting within the appropriate connection. This will allow

the Elmo HV-110XG Document Camera and projector to sync and the projector to display the

image of the document camera bed and its contents. However, the image will have a pink

cast. To eliminate the pink cast, change the projector setting from Component to RGB then to

Auto and exit from the menu. The projected image will now look normal. This will now allow

the Elmo HV-110XG Document Camera to sync and display the image properly to any other

connected Epson projector without having to change the projector settings.

Page 1 of 14

PSB.2004.10.002

EPSON PRODUCT SUPPORT BULLETIN

Date: 10/08/2004 Originator: DS

PSB #: PSB.2004.10.002 Authorization:

Reference: TI 04-46e Rev. A Total Pages: 14

Product(s): EMP NS Connection, EMP Network Manager, EMP Monitor,

EMP Multi Screen Adjustment, Cinema Color Editor, VCOM Driver

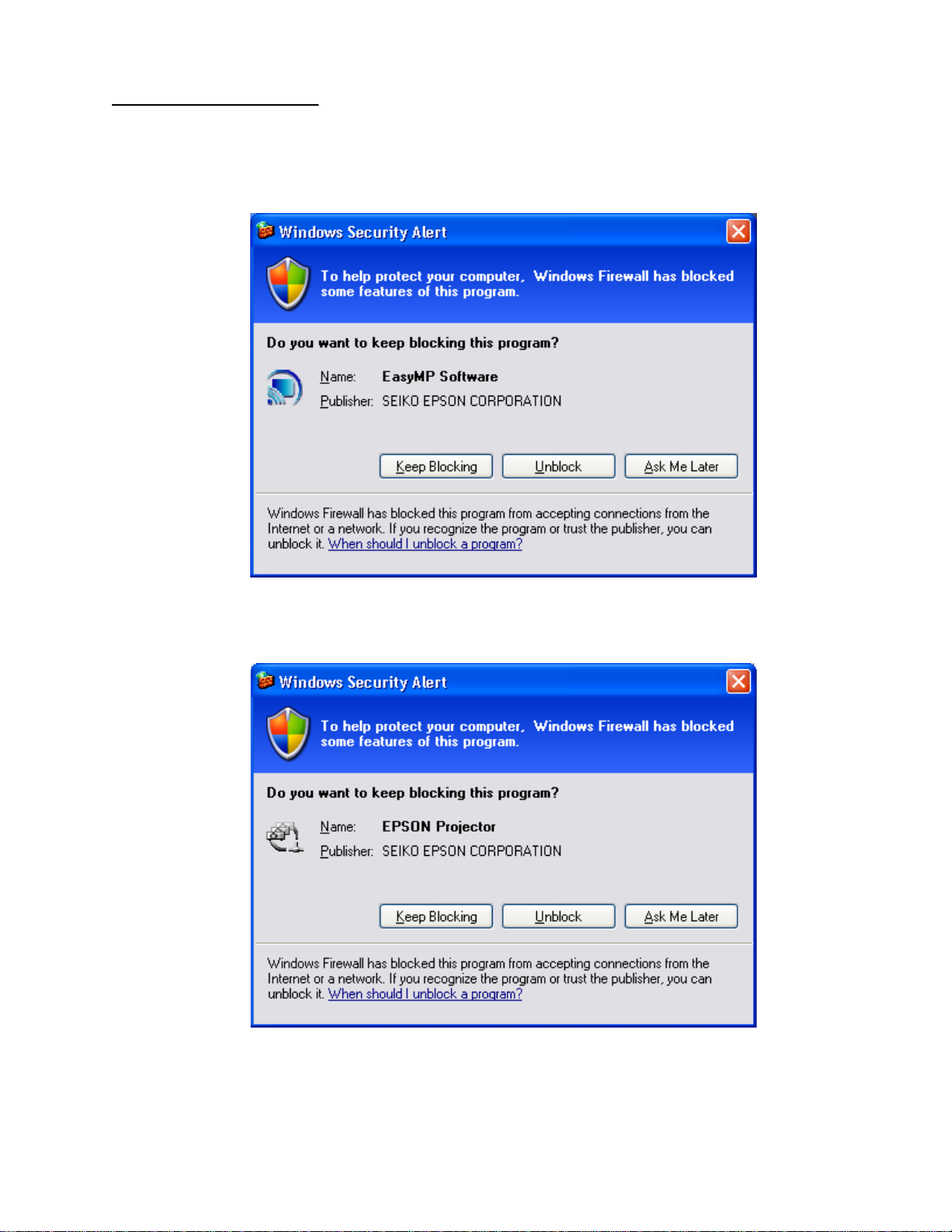

Subject: Evaluation results of Epson Projector PC applications tested in Windows XP

with SP2.

The purpose of this bulletin is to provide information on Epson PC projector applications tested

under the Windows XP SP2 (Service Pack2) environment.

Description:

Information is provided about the evaluation results and recommendations for Epson PC

projector applications functionality in Windows XP SP2 Firewall environment.

Reason:

Compatibility testing for functionality of EMP NS Connection, EMP Network Manager, EMP

Monitor, EMP Multi Screen Adjustment, Cinema Color Editor, VCOM Driver in the Windows

XP SP2 environment.

Results of Windows XP SP2 installation:

Installing SP2 on PCs did not disturb the installation of the above software applications.

Also, the application software can be installed on PCs where SP2 or earlier versions are

installed without any issues.

The information contained in the following pages provides details for executing the

applications in Windows XP SP2.

Page 2 of 14

PSB.2004.10.002

Executing the Software:

When executing the software noted below for the first time after SP2 installation completes,

the following security alert messages are displayed:

[EMP NS Connection]

Security alert screen (EMP NS Connection)

[EMP Network Manager]

Security alert screen (EMP Network Manager)

Autres manuels pour 830p - PowerLite XGA LCD Projector

Ce manuel convient aux modèles suivants

Autres manuels Epson Projecteur

Epson

Epson EMP-73 Manuel utilisateur

Epson

Epson EB-W12 Manuel utilisateur

Epson

Epson EB-U50 Manuel utilisateur

Epson

Epson PowerLite 1221 Fiche technique

Epson

Epson PowerLite 811p Dimensions

Epson

Epson PowerLite 822+ Manuel utilisateur

Epson

Epson V11H233020 Manuel utilisateur

Epson

Epson BrightLink 450Wi - Interactive Projector Manuel utilisateur

Epson

Epson PowerLite Home Cinema 3100 Manuel utilisateur

Epson

Epson EMP 600 Manuel utilisateur

Epson

Epson PowerLite 7550C Dimensions

Epson

Epson G5000 - PowerLite XGA LCD Projector Manuel utilisateur

Epson

Epson PowerLite Pro G6170 Manuel utilisateur

Epson

Epson PowerLite 84 Fiche technique

Epson

Epson PowerLite Cinema 200 Dimensions

Epson

Epson PowerLite 4300 Instructions d'utilisation et de sécurité

Epson

Epson dreamio EMP-TW200H Manuel utilisateur

Epson

Epson EB-L30002U Manuel utilisateur

Epson

Epson EMP 600 - SVGA LCD Projector Manuel utilisateur

Epson

Epson EB-G6750WUNL Manuel utilisateur

Epson

Epson EMP-811 Manuel utilisateur

Epson

Epson 6100i - PowerLite XGA LCD Projector Manuel du propriétaire

Epson

Epson EB-93e Manuel utilisateur

Epson

Epson PowerLite 420 Guide de référence

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur

Asus

Asus ZenBeam Latte Manuel utilisateur

BOXLIGHT

BOXLIGHT CP-322i/CP-634i Manuel utilisateur

JVC

JVC 1108TTH-AO-AO Manuel utilisateur
