CMOS 16-BIT SINGLE CHIP MICROCONTROLLER

S5U1C17611T2 Manual

(Software Evaluation Tool for S1C17611)

Rev.1.0

Evaluation board/kit and Development tool important notice

1. This evaluation board/kit or development tool is designed for use for engineering evaluation, demonstration,

or development purposes only. Do not use it for other purpose. It is not intended to meet the requirement of

design for finished product.

2. This evaluation board/kit or development tool is intended for use by an electronics engineer, and it is not the

product for consumer. The user should use this goods properly and safely. Seiko Epson dose not assume any

responsibility and liability of any kind of damage and/or fire coursed by usage of it. User should cease to use

it when any abnormal issue occurs even during proper and safe use.

3. The part used for this evaluation board/kit or development tool is changed without any notice.

NOTICE

No part of this material may be reproduced or duplicated in any form or by any means without the written

permission of Seiko Epson. Seiko Epson reserves the right to make changes to this material without notice.

Seiko Epson does not assume any liability of any kind arising out of any inaccuracies contained in this material

or due to its application or use in any product or circuit and, further, there is no representation that this material is

applicable to products requiring high level reliability, such as, medical products. Moreover, no license to any

intellectual property rights is granted by implication or otherwise, and there is no representation or warranty that

anything made in accordance with this material will be free from any patent or copyright infringement of a third

party. When exporting the products or technology described in this material, you should comply with the

applicable export control laws and regulations and follow the procedures required by such laws and regulations.

You are requested not to use, to resell, to export and/or to otherwise dispose of the products (and any technical

information furnished, if any) for the development and/or manufacture of weapon of mass destruction or for other

military purposes.

All brands or product names mentioned herein are trademarks and/or registered trademarks of their respective

companies.

Configuration of product number

Devices

S1 C 17xxx F 00E1 00

Development tools

S5U1 C17000 Y2 1 00

Packing specifications

00: Besides tape & reel

0A: TCP BL 2 directions

0B: Tape & reel BACK

0C: TCP BR 2 directions

0D: TCP BT 2 directions

0E: TCP BD 2 directions

0F: Tape & reel FRONT

0G: TCP BT 4 directions

0H: TCP BD 4 directions

0J: TCP SL 2 directions

0K: TCP SR 2 directions

0L: Tape & reel LEFT

0M: TCP ST 2 directions

0N: TCP SD 2 directions

0P: TCP ST 4 directions

0Q: TCP SD 4 directions

0R: Tape & reel RIGHT

99: Specs not fixed

Specification

Package

[D: die form; F: QFP, B: BGA]

Model number

Model name

[C: microcomputer, digital products]

Product classification

[S1: semiconductor]

Packing specifications

[00: standard packing]

Version

[1: Version 1]

Tool type

Hx: ICE

Dx: Evaluation board

Ex: ROM emulation board

Mx: Emulation memory for external ROM

Tx: A socket for mounting

Cx: Compiler package

Sx: Middleware package

Yx: Writer software

Corresponding model number

[17xxx: for S1C17xxx]

Tool classification

[C: microcomputer use]

Product classification

[S5U1: development tool for semiconductor

products］

Table of Contents

1. Overview..................................................................................................................... 1

1.1 Usage Method ..........................................................................................................................1

2. Block Diagram............................................................................................................ 2

3. Hardware Information................................................................................................ 3

3.1 Layout Information .................................................................................................................. 3

3.2 Jumper, and Each Type of Mounting Pattern ........................................................................4

3.3 Circuit Diagram........................................................................................................................5

3.4 Parts List ..................................................................................................................................6

Revision History............................................................................................................... 7

S5U1C17611T2 Manual Seiko Epson Corporation i

(Rev.1.0)

1. Overview

S5U1C17611T2 (S5U1C17611T2: Software Evaluation Tool for S1C17611) is an evaluation and development

support board for the S1C17611 single-chip microcontroller made by Seiko Epson.

S5U1C17611T2 has built-in S1C17611 and crystal unit, and the terminals of S1C17611 are outputted at the

through holes on the board.

S5U1C17611T2 can be used as the software development environment of S1C17611 by connecting to the

S5U1C17001H (ICD mini) and S5U1C17002H (ICD board) emulators made by Seiko Epson.

1.1 Usage Method

The software development environment of S1C17611 can be built through the following steps.

(1) Connect ICD mini to J2 and J6 of S5U1C17611T2 using the dedicated cable that comes with the ICD

mini.*1

(2) Provide power supply*2through connector (J8) for power supply.

(3) Connect ICD mini to PC*3using the USB cable that comes with the ICD mini.

<When S5U1C17002H (ICD board) is used>*4

(1) Connect ICD board to J1 of S5U1C17611T2 such that the pin numbers on both sides match.*5

(2) Connect ICD board to PC*3using the USB cable that comes with the ICD board.

*1 For the connection between ICD mini and S5U1C17611T2, refer to the S5U1C17001H user manual.

*2 It is prohibited to apply voltage in excess of the supply voltage input range of S1C17611. For the supply

voltage input range of S1C17611, refer to the S1C17611 technical manual.

*3 It is necessary for the software development tool (S5U1C17001C) to be installed.

*4 Simultaneous power supply from ICD board and power supply connector (J8) is prohibited. It causes

damage to S5U1C17611T2.

*5 3.3V supply voltage is provided to S5U1C17611T2 by connecting to ICD board.

S5U1C17611T2 Manual Seiko Epson Corporation 1

(Rev.1.0)

2. Block Diagram

The block diagram of S5U1C17611T2 is as shown in Figure 2.1.

S5U1C17001H

Figure 2.1 S5U1C17611T2 block diagram

Debug I/F

32kHz

Crystal Unit (X1)

8MHz

Crystal Unit (X2)

Reset SW

(SW1)

ICD mini I/F

Connector (J2,J6)

S5U1C17611T21

S1C17611

ICD board I/F

Connector (J1)

S5U1C17002H

OSC1

OSC3

Pins Extension

connector

(J3,J4,J5,J7)

(Not Mounted)

External Power

Supply (J8)

Power

Supply

LED (D1)

VDD

RESET

2 Seiko Epson Corporation S5U1C17611T2 Manual

(Rev.1.0)

3. Hardware Information

3.1 Layout Information

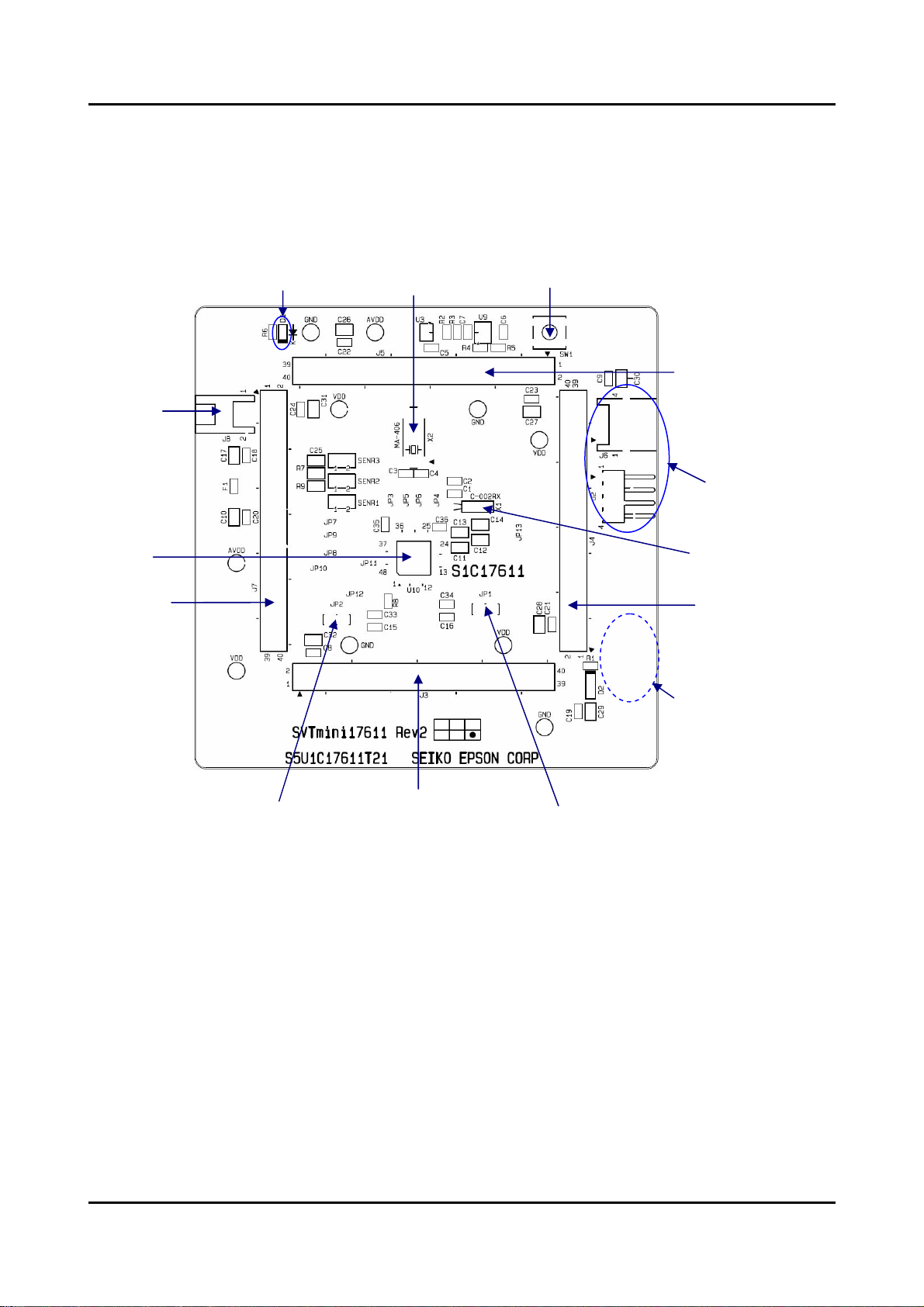

The parts layout of S5U1C17611T2 is as shown in Figure 3.1.

*1 The J3, J4, J5 and J7 connectors are for patternization only. The connector parts are included with the

main product, so mount and use when required.

Figure 3.1 S5U1C17611T2 parts layout

8MHz

Crystal Unit (X2) Reset SW

(SW1)

LED (D1)

S1C17611 (U10)

32kHz

Crystal Unit (X1)

ICD mini I/F

connector (J2, J6)

Power supply

connector (J8)

Extension

connector (J5)

(foot pattern only*1)

Extension

connector (J7)

(foot pattern only*1)

ICD board I/F

connector (J1)

(on the reverse side)

Extension

connector (J3)

(foot pattern only*1)

Extension

connector (J4)

(foot pattern only*1)

Jumper for Power supply

to AVDD on S1C17611 Jumper for Power supply

to VDD on S1C17611 (JP1)

(

JP2

)

S5U1C17611T2 Manual Seiko Epson Corporation 3

(Rev.1.0)

3. Hardware Information

3.2 Jumper, and Each Type of Mounting Pattern

The list of jumper functions of S5U1C17611T2 is as shown in Figure 3.1. In addition, each type of mounting

pattern is as shown in Table 3.2.

Table 3.1 List of jumper functions

Jumper Jumper Type Setting When Shipped Selectable Function

JP1 Pin Connected: VDD supply to S1C17611 Unconnected: No VDD supply to

S1C17611

JP2 Pin Connected: AVDD supply to S1C17611 Unconnected: No AVDD supply to

S1C17611

JP3 Solder bridge Unconnected: OSC3 is unconnected to

J5-17 pin Connected: OSC3 connected to J5-17

JP4 Solder bridge Unconnected: OSC4 is unconnected to

J5-20 pin Connected: OSC4 connected to J5-20

JP5 Solder bridge Connected: OSC3 is connected to X2

(Crystal unit) Unconnected: OSC3 unconnected to

X2 (Crystal unit)

JP6 Solder bridge Connected: OSC4 is connected to X2

(Crystal unit) Unconnected: OSC4 unconnected to

X2 (Crystal unit)

JP7 Solder bridge Connected: P07/RFIN is connected to

J7-15 pin Unconnected: P07/RFIN unconnected

to J7-15 pin

JP8 Solder bridge Connected: P11/SENA is connected to

J7-17 pin Unconnected: P11/SENA

unconnected to J7-17 pin

JP9 Solder bridge Connected: P10/REF is connected to J7-16

pin Unconnected: P10/REF unconnected

to J7-16 pin

JP10 Solder bridge Connected: P12/SENB is connected to

J7-18 pin Unconnected: P12/SENB

unconnected to J7-18 pin

JP11 Solder bridge Connected: P12/SCLK is connected to

J5-12 pin Unconnected: P12/SCLK

unconnected to J5-12 pin

JP12 Solder bridge Connected: P14/SIN is connected to J5-4

pin Unconnected: P14/SIN unconnected

to J5-4 pin

JP13 Solder bridge Connected: P13/SOUT is connected to

J5-8 pin Unconnected: P13/SOUT

unconnected to J5-8 pin

Table 3.2 Each mounting pattern

Location Mounting pattern Remarks

J3 2 rows×20-pin connector (2.54mm pitch) Comes with the connector (FFC-40BMEP1B)

J4 2 rows×20-pin connector (2.54mm pitch) Comes with the connector (FFC-40BMEP1B)

J5 2 rows×20-pin connector (2.54mm pitch) Comes with the connector (FFC-40BMEP1B)

J7 2 rows×20-pin connector (2.54mm pitch) Comes with the connector (FFC-40BMEP1B)

SENR1 Thermistor, humidity sensor (2.54mm pitch) For external connection of RF converter*1

SENR2 Thermistor, humidity sensor (2.54mm pitch) For external connection of RF converter*1

SENR3 Thermistor, humidity sensor (2.54mm pitch) For external connection of RF converter*1

R7 Chip resistor (2.0×1.25mm) For external connection of RF converter*1

R9 Chip resistor (2.0×1.25mm) For external connection of RF converter*1

C25 Chip capacitor (2.0×1.25mm) For external connection of RF converter*1

*1 This mounting pattern is assumed to be built into the external circuit of RF converter and the parts are not

built-in.

4 Seiko Epson Corporation S5U1C17611T2 Manual

(Rev.1.0)

3. Hardware Information

S5U1C17611T2 Manual Seiko Epson Corporation 5

3.3 Circuit Diagram

Figure 3.2 S5U1C17611T2 circuit diagra

(Rev.1.0)

3. Hardware Information

3.4 Parts List

Table 3.3 S5U1C17611T2 parts list*1

Parts Name Location Model No., Specs Qty. Manufacturer

MCU U10

S1C17611F

(TQFP12-48) 1 SEIKO EPSON CORPORATION

Crystal unit X1 C-002RX 32.768kHz

12.5pF/20PPM 1 EPSON TOYOCOM CORPORATION

Crystal unit X2 MA-406 8MHz

16pF/50PPM 1 EPSON TOYOCOM CORPORATION

Voltage detection IC U9 S-1000N18-M5T1G 1 Seiko Instruments Inc.

General-purpose logic U3 SN74LVC1G97DCK 1 Texas Instruments

LED D1 PG1111C 1 STANLAY ELECTRIC CO., LTD.

Diode D2 CRS06(Q) 1 TOSHIBA CORPORATION

Ferrite beads F1 BLM18PG330SN1D 1 Murata Manufacturing Co., Ltd.

Switch SW1 SKRAAKE010 1 ALPS ELECTRIC CO., LTD.

Connector J1 PS-10SD-D4T1-1 1 Japan Aviation Electronics Industry, Ltd.

Connector J2 A2-4PA-2.54DS(71) 1 HIROSE ELECTRIC CO., LTD.

Connector J6 S04B-PASK-2(LF)(SN) 1 JST Mfg. Co., Ltd

Connector J8 S2B-XH-A(LF)(SN) 1 JST Mfg. Co., Ltd

Jumper pin JP1, JP2 2

Jumper socket JP1, JP2 2

C1 5pF 1

C2, C5, C6, C7,

C8, C9, C11,

C12, C13, C14,

C15, C16, C18,

C19, C20, C21,

C22, C23, C24,

C35, C36

0.1μF 21

C3,C4 15pF 2

C10, C17 3.3μF 2

C26, C27, C28,

C29, C30, C31,

C32 10μF 7

Ceramic chip

capacitor

C33, C34 4.7μF 2

R1 10kΩ1

R2 47kΩ1

R3, R5 0Ω2

R4 470kΩ1

R6 680Ω1

Chip resistor

R8 33Ω1

Power cable (housing) Included XHP-2 1 JST Mfg. Co., Ltd

Power cable (contact) Included 2

Power cable (wire) Included 2

Spacer Included 4

Flat washer Included 4

Connector Included (can

mount to J3, J4,

J5, J7) FFC-40BMEP1B 4 Honda Tsushin Kogyo Co., Ltd.

*1 There may be changes to built-in parts without prior notice.

6 Seiko Epson Corporation S5U1C17611T2 Manual

(Rev.1.0)

Table des matières

Autres manuels Epson Microcontrôleur

Epson

Epson S5U1C17001H2 Manuel utilisateur

Epson

Epson S1C17W14 Manuel utilisateur

Epson

Epson S1C17W03 Manuel utilisateur

Epson

Epson S5U1C17001C Manuel utilisateur

Epson

Epson S5U1C17564T1 Manuel utilisateur

Epson

Epson S1C17W15 Manuel utilisateur

Epson

Epson S5U1C17656T Manuel utilisateur

Epson

Epson S1C6S3N2 Manuel utilisateur

Epson

Epson S5U1C17000Y23 Guide de l'utilisateur

Epson

Epson S1C33L26 Manuel utilisateur

Epson

Epson S1C63003 Manuel utilisateur

Epson

Epson S1C17 Series Manuel utilisateur

Epson

Epson S1C17001 Manuel utilisateur

Epson

Epson S5U1C17589T21 Manuel utilisateur

Epson

Epson S1C31 Manuel utilisateur

Epson

Epson S1C31D50 Manuel du propriétaire

Epson

Epson S1C17M10 Manuel utilisateur

Epson

Epson S1C17W12 Manuel utilisateur

Epson

Epson S1C31W65 Manuel utilisateur

Epson

Epson S5U1C33001H Manuel utilisateur

Epson

Epson S1C31D50 Manuel utilisateur

Epson

Epson S1C31D01 Instructions de montage

Epson

Epson S5U1C31001L1200 Manuel utilisateur

Epson

Epson S1C17W22 Manuel utilisateur

Manuels Microcontrôleur populaires d'autres marques

AMS

AMS AS7261 Demo Kit Manuel utilisateur

Novatek

Novatek NT6861 Manuel utilisateur

Espressif Systems

Espressif Systems ESP8266 SDK Guide de configuration

Nuvoton

Nuvoton ISD61S00 ChipCorder Mode d’emploi

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Manuel utilisateur

Texas Instruments

Texas Instruments Chipcon CC2420DK Manuel utilisateur

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Manuel utilisateur

NEC

NEC 78GK0S/K 1+ Series Instructions d'installation et d'utilisation

Mikroe

Mikroe SEMITECH N-PLC Click Instructions d'installation et d'utilisation

Intel

Intel Agilex Manuel utilisateur

Cypress

Cypress CY4607 HX2VL Manuel utilisateur

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Manuel utilisateur

Texas Instruments

Texas Instruments TMS320F2837 D Series Manuel utilisateur

CYPRES

CYPRES CY14NVSRAMKIT-001 Manuel utilisateur

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Manuel utilisateur

Espressif Systems

Espressif Systems ESP8266EX Mode d'emploi

Abov

Abov AC33M8128L Manuel utilisateur

Laird

Laird BL654PA Manuel utilisateur
