Epson S1C31 Manuel utilisateur

Rev.4.0

CMOS 32-BIT SINGLE CHIP MICROCONTROLLER

S1C31 Family

Software Development

Setup Guide Rev.4

Evaluation board/kit and Development tool important notice

1. This evaluation board/kit or development tool is designed for use for engineering evaluation, demonstration,

or development purposes only. Do not use it for other purposes. It is not intended to meet the requirements of

design for finished products.

2. This evaluation board/kit or development tool is intended for use by an electronics engineer and is not a

consumer product. The user should use it properly and in a safe manner. Seiko Epson dose not assume any

responsibility or liability of any kind of damage and/or fire coursed by the use of it. The user should cease to

use it when any abnormal issue occurs even during proper and safe use.

3. The part used for this evaluation board/kit or development tool may be changed without any notice.

NOTICE

No part of this material may be reproduced or duplicated in any form or by any means without the written

permission of Seiko Epson. Seiko Epson reserves the right to make changes to this material without notice.

Seiko Epson does not assume any liability of any kind arising out of any inaccuracies contained in this material

or due to its application or use in any product or circuit and, further, there is no representation that this material is

applicable to products requiring high level reliability, such as, medical products. Moreover, no license to any

intellectual property rights is granted by implication or otherwise, and there is no representation or warranty that

anything made in accordance with this material will be free from any patent or copyright infringement of a third

party. When exporting the products or technology described in this material, you should comply with the

applicable export control laws and regulations and follow the procedures required by such laws and regulations.

You are requested not to use, to resell, to export and/or to otherwise dispose of the products (and any technical

information furnished, if any) for the development and/or manufacture of weapon of mass destruction or for other

military purposes.

Arm, Cortex, Keil and µVision are registered trademarks of Arm Limited (or its subsidiaries) in the US and/or

elsewhere. IAR Systems, IAR Embedded Workbench, C-SPY, I-jet, IAR and the logotype of IAR Systems are

trademarks or registered trademarks owned by IAR Systems AB. SEGGER and J-Link are trademarks or

All brands or product names mentioned herein are trademarks and/or registered trademarks of their respective

companies.

“

S1C31 Family Software Development Seiko Epson Corporation i

Setup Guide (Rev.4.0)

Table of Contents

1. Overview..................................................................................................................... 1

1.1 Software development environment list..................................................................................1

2. Acquisition of Software Development Environment............................................... 2

2.1 How to Get...................................................................................................................................2

2.2 Documents for Referencing Detailed Information..................................................................3

3. Setup of Software Development Environment ........................................................ 4

3.1 Installation of IDE .......................................................................................................................4

3.1.1 When Using the IAR EWARM ...............................................................................................4

3.1.2 When Using the MDK-ARM...................................................................................................5

3.2 Installing the S1C31SetupTool package ..................................................................................6

3.3 Connection of Hardware............................................................................................................8

3.3.1 When Using the I-jet ..............................................................................................................8

3.3.2 When Using the J-Link ..........................................................................................................9

3.4 Installation of peripheral circuit sample software package ................................................11

Revision History............................................................................................................. 12

1. Overview

S1C31 Family Software Development Seiko Epson Corporation 1

Setup Guide (Rev.4.0)

1. Overview

This document describes the setup procedure of our recommended software development environment for user

who are using S1C31 Family * 1 for the first time.

* 1: S1C31 Family is a microcontroller equipped with ARM® Cortex®-M0+ processor and is a product of Seiko

Epson Corporation.

1.1 Software development environment list

Figure 1.1.1 shows the software development environment set (toolchain) of the S1C31 Family.

Figure 1.1.1 S1C31 Family Toolchain

This document describes the procedure for setting up the software development environment required for "When

software development" in Figure 1.1.1.

I-jet / J-Link*2

.out*3

.bin*3

.axf*3

.bin*3

IAR EWARM*2

Keil MDK-ARM*2

Evaluation

Board*1

Evaluation

Board*1

S1C31xxx Peripheral

Circuit Sample

Software PKG*1

J-Link*2

When mass

production

When software

development

S1C31Setup

Tool PKG*1

S1C31Setup

Tool PKG*1

J-Link / Flasher*2

SEGGER J-Flash*2

User Board*4

*1 Provided by us

*2 Made by 3rd Party

*3 Generated file

*4 User board

Flasher*2

User Board*4

.PA*3

C31 PA file

creation tool*1

S1C31Setup

Tool PKG*1

Write and ship

in our factory

2. Acquisition of Software Development Environment

2Seiko Epson Corporation S1C31 Family Software Development

Setup Guide (Rev.4.0)

2. Acquisition of Software Development Environment

This chapter describes how to obtain our recommended software development environment required for software

development.

2.1 How to Get

The user can use the third-party ARM® development Environment (Integrated Development Environment /IDE

and Debug Probe) to development the software for the S1C31 Family.

Table 2.1.1 shows the recommended development Environment for S1C31 Family. Please contact the tool

vendors or the tool vendor’s distributors to obtain these tools.

Table 2.1.1 Development Environment Needed

Type

Name

Remarks

PC with Windows 10

Integrated Development Environment

(IDE)

IAR Embedded Workbench for ARM

(by IAR Systems)

Please prepare either one.

MDK-ARM with uVision5 (by ARM)

Debugging Probe

I-jet (by IAR Systems)

Please prepare either one.

J-Link (by SEGGER)

Please prepare either one of IDEs and either one of debug probes in Table 2.1.1. However, please note that some

combinations of IDE and debug probe can not be used as shown in Table 2.1.2.

Table 2.1.2 Available Combinations of IDE and Debug Probe

I-jet

J-Link

IAR Embedded Workbench for ARM

(IAR EWARM)

Available

MDK-ARM

Not available

Available

Furthermore, by using the software and evaluation board provided by us, users can start software development

smoothly. Table 2.1.3 shows the software development environment provided by us.

Table 2.1.3 Tools Provided by Seiko Epson

Name

Contents

S1C31 Setup Tool package*1

Files required for software development environment.

(Flash loader, configuration files (.svd, etc.), etc.)

S1C31xxx Peripheral circuit sample

software package*1

Peripheral circuit library and sample software.

S5U1C31xxxTx*2 (SVT Board)

S1C31xxx Evaluation Board.

*1: Please download from the Seiko Epson microcontroller web site.

*2: Please contact your local distributor or sales office.

2. Acquisition of Software Development Environment

S1C31 Family Software Development Seiko Epson Corporation 3

Setup Guide (Rev.4.0)

2.2 Documents for Referencing Detailed Information

For detailed information on each development environment tool, refer to the documents shown in Table 2.2.1.

Table 2.2.1 List of Reference Document

Tool

Reference

information

Reference document

IAR EWARM

Installation

Quick Reference *1

IDE operations

Getting Started with IAR Embedded Workbench for ARM *1

IDE Project Management and Building Guide *1

C-SPY® Debugging Guide *1

MDK-ARM

Installation

Getting Started with MDK *2

IDE operations

Getting Started with MDK *2

Complete User’s Guide Selection *2

I-jet

IAR Debugging probes User Guide *1

J-Link

J-Link/J-Trace User Guide *3

S1C31 Setup Tool package

This document *4

S1C31xxx Peripheral Circuit

Sample Software package

S1C31 Family Peripheral Circuit Sample Software Manual *4

S1C31xxx Evaluation Board

S5U1C31xxxTx Manual *4

*1: Please download from the IAR Systems web site.

The URL of this web site is as follows: <https://www.iar.com/>

*2: Please download from the ARM KEIL web site.

The URL of this web site is as follows: < http://www.keil.com/ >

*3: Please download from the SEGGER web site.

The URL of this web site is as follows: < https://www.segger.com/ >

*4: Please download from the Seiko Epson microcontroller web site.

3. Setup of Software Development Environment

4Seiko Epson Corporation S1C31 Family Software Development

Setup Guide (Rev.4.0)

3. Setup of Software Development Environment

This chapter describes the procedure for setting up the software development environment obtained in Chapter 2.

3.1 Installation of IDE

This section describes the procedure to install IAR EWARM and MDK-ARM.

3.1.1 When Using the IAR EWARM

Install the IAR EWARM by following the procedure shown below.

(1) Download the installer of IAR Embedded Workbench for ARM from the web site of IAR Systems.

(2) Finish all the application on the Windows.

(3) Double click the installer(exe file) to launch it. Then the installation screen shown below will be displayed.

(Figure 3.1.1.1)

(4) Click [Install IAR Embedded Workbench®] to start the installation wizard. (Figure 3.1.1.1)

Figure 3.1.1.1 Installation Screen of IAR Embedded Workbench for ARM

(5) Follow the prompts in the installation wizard to proceed with the installation. The recommended settings are

as follows.

•Installation directory: Default location

•Installation option: Full installation

If you launch the IAR Embedded Workbench for the first time after installation, license registration will be

requested. The procedure of license registration varies depending on the type of license you purchased. For more

information on the procedure of license registration, refer to “Quick Reference”(listed in Table 2.2.1).

3. Setup of Software Development Environment

S1C31 Family Software Development Seiko Epson Corporation 5

Setup Guide (Rev.4.0)

3.1.2 When Using the MDK-ARM

Install the MDK-ARM by following the procedure shown below.

(1) Download the installer of MDK-ARM from the ARM web site.

(2) Finish all the application on the Windows.

(3) Double click the installer(exe file) to launch it. Then the installation wizard shown below will be displayed.

(Figure 3.1.2.1)

Figure 3.1.2.1 Installation Screen of MDK-ARM

(4) Follow the prompts in the installation wizard to proceed with the installation of MDK Core. The

recommended settings are as follows.

•Installation directory: Default location

(5) Pack Installer is started automatically after the installation MDK Core, select [cortex-M0 plus] to install the

software pack for “cortex-M0 plus”.

If you use MDK-ARM without code size limits after installation, license registration is required. The procedure

of license registration varies depending on the type of license you purchased. For more information on the

procedure of license registration, refer to “Getting Started with MDK”(listed in Table 2.2.1).

3. Setup of Software Development Environment

6Seiko Epson Corporation S1C31 Family Software Development

Setup Guide (Rev.4.0)

3.2 Installing the S1C31SetupTool package

This section describes the installation procedure for the S1C31SetupTool package, which includes the flash

loader and configuration files (such as .svd).

(1) Download S1C31SetupTool.zip from our microcontroller website and unzip it to any folder.

(2) Execute “s1c31ToolchainSetup.exe” from the extraction destination folder.

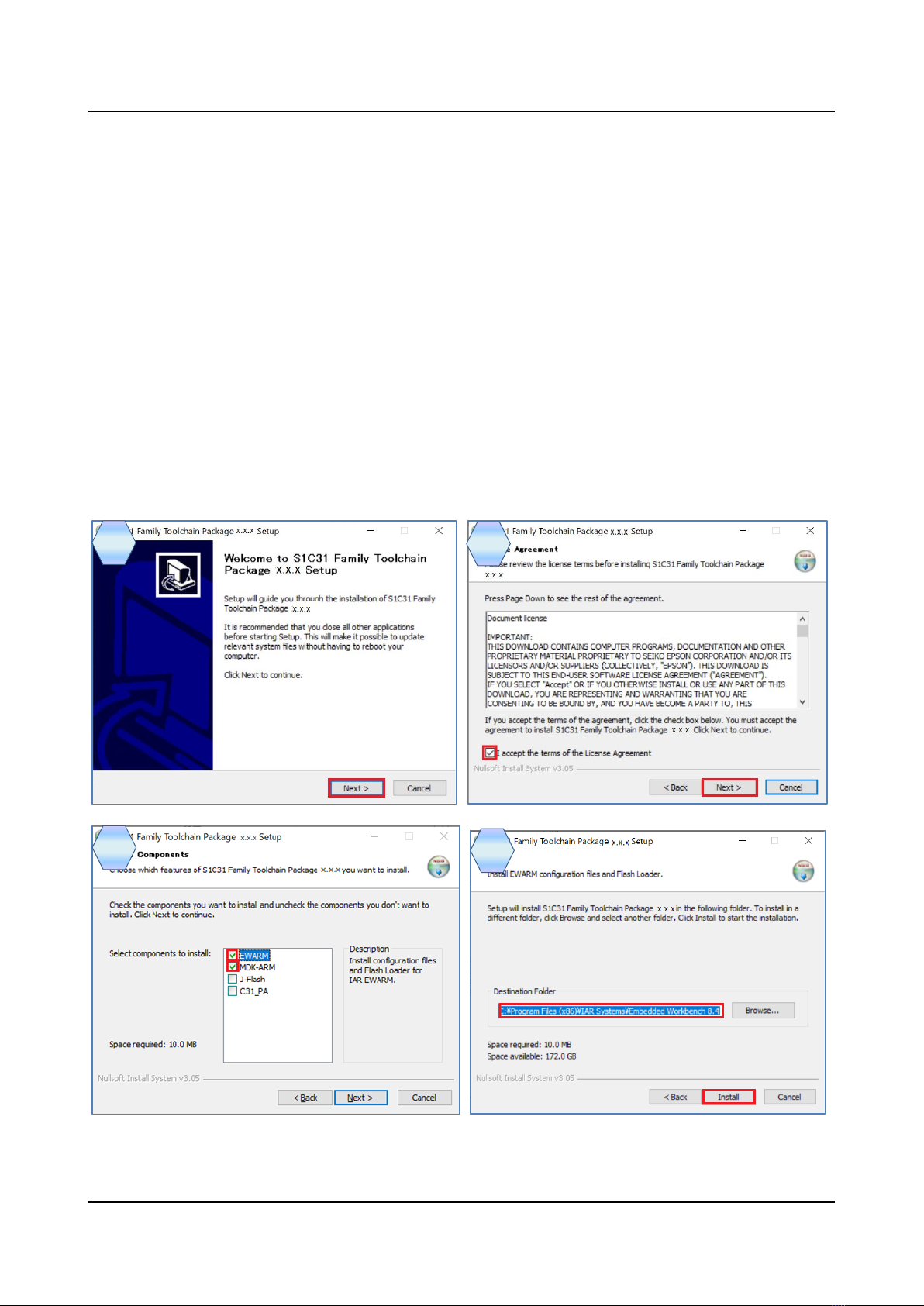

(3) After starting the installer, execute the installation according to the instructions of the

installer.

1. Check the installation contents

2. Confirmation of the terms of the license agreement

3. Select the software development environment to use

4. Select the installation folder and execute the installation

If the software development environment to be used is not installed, "Destination

Folder" will be displayed in an empty state.

5. Exit the installer

* When IAR EWARM is selected in [3]

3. Setup of Software Development Environment

S1C31 Family Software Development Seiko Epson Corporation 7

Setup Guide (Rev.4.0)

* When KEIL MDK-AMR is selected in [3]

Table des matières

Autres manuels Epson Microcontrôleur

Epson

Epson S1C17W14 Manuel utilisateur

Epson

Epson S5U1C17000Y23 Guide de l'utilisateur

Epson

Epson S5U1C17M13T1 Manuel utilisateur

Epson

Epson S1C31D01 Instructions de montage

Epson

Epson S1C33L26 Manuel utilisateur

Epson

Epson S1C6S3N2 Manuel utilisateur

Epson

Epson S1C17W22 Manuel utilisateur

Epson

Epson S1C17 Series Manuel utilisateur

Epson

Epson S1C17W03 Manuel utilisateur

Epson

Epson S1C17F13 Manuel utilisateur

Epson

Epson S1C31D50 Manuel du propriétaire

Epson

Epson S1C17M01 Manuel utilisateur

Epson

Epson S1C17624 Manuel utilisateur

Epson

Epson S1C17M12 Manuel utilisateur

Epson

Epson S1C17M20 Manuel utilisateur

Epson

Epson S1C31D50 Manuel utilisateur

Epson

Epson S5U1C17564T1 Manuel utilisateur

Epson

Epson S1C31W74 Manuel utilisateur

Epson

Epson S1C17M10 Manuel utilisateur

Epson

Epson S1C17 Series Manuel utilisateur

Epson

Epson ICDmini 3.0 Manuel utilisateur

Epson

Epson S5U1C17589T21 Manuel utilisateur

Epson

Epson Arm S1C31 Series Manuel utilisateur

Epson

Epson S1C17001 Manuel utilisateur

Manuels Microcontrôleur populaires d'autres marques

AMS

AMS AS7261 Demo Kit Manuel utilisateur

Novatek

Novatek NT6861 Manuel utilisateur

Espressif Systems

Espressif Systems ESP8266 SDK Guide de configuration

Nuvoton

Nuvoton ISD61S00 ChipCorder Mode d’emploi

STMicrolectronics

STMicrolectronics ST7 Assembler Linker Manuel utilisateur

Texas Instruments

Texas Instruments Chipcon CC2420DK Manuel utilisateur

Lantronix

Lantronix Intrinsyc Open-Q 865XR SOM Manuel utilisateur

NEC

NEC 78GK0S/K 1+ Series Instructions d'installation et d'utilisation

Mikroe

Mikroe SEMITECH N-PLC Click Instructions d'installation et d'utilisation

Intel

Intel Agilex Manuel utilisateur

Cypress

Cypress CY4607 HX2VL Manuel utilisateur

DIGITAL-LOGIC

DIGITAL-LOGIC MICROSPACE Manuel utilisateur

Texas Instruments

Texas Instruments TMS320F2837 D Series Manuel utilisateur

CYPRES

CYPRES CY14NVSRAMKIT-001 Manuel utilisateur

Texas Instruments

Texas Instruments INA-DUAL-2AMP-EVM Manuel utilisateur

Espressif Systems

Espressif Systems ESP8266EX Mode d'emploi

Abov

Abov AC33M8128L Manuel utilisateur

Laird

Laird BL654PA Manuel utilisateur
