Epson S5U1C63000P Manuel utilisateur
MF1408-01a
CMOS 4-BIT SINGLE CHIP MICROCOMPUTER
(S1C63 Family Peripheral Circuit Board)
S5U1C63000P
Manual
NOTICE
No part of this material may be reproduced or duplicated in any form or by any means without the written permission of Seiko
Epson. Seiko Epson reserves the right to make changes to this material without notice. Seiko Epson does not assume any
liability of any kind arising out of any inaccuracies contained in this material or due to its application or use in any product or
circuit and, further, there is no representation that this material is applicable to products requiring high level reliability, such
as medical products. Moreover, no license to any intellectual property rights is granted by implication or otherwise, and there
is no representation or warranty that anything made in accordance with this material will be free from any patent or copyright
infringement of a third party. This material or portions thereof may contain technology or the subject relating to strategic
products under the control of the Foreign Exchange and Foreign Trade Law of Japan and may require an export license from
the Ministry of International Trade and Industry or other approval from another government agency.
MS-DOS, Windows, Windows 95, Windows 98 and Windows NT are registered trademarks of Microsoft Corporation, U.S.A.
PC-DOS, PC/AT, PS/2, VGA, EGA and IBM are registered trademarks of International Business Machines Corporation, U.S.A.
NEC PC-9800 Series and NEC are registered trademarks of NEC Corporation.
All other product names mentioned herein are trademarks and/or registered trademarks of their respective owners.
© SEIKO EPSON CORPORATION 2001 All rights reserved.
New configuration of product number
Starting April 1, 2001, the configuration of product number descriptions will be changed as listed
below. To order from April 1, 2001 please use these product numbers. For further information, please
contact Epson sales representative.
Devices
S1 C63158 F0A01
Packing specification
Specification
Package (D: die form; F: QFP)
Model number
Model name (C: microcomputer, digital products)
Product classification (S1: semiconductor)
Development tools
S5U1 C63000 A1 1
Packing specification
Version (1: Version 1)
Tool type (A1: Assembler Package)
Corresponding model number
(63000: common to S1C63 Family)
Tool classification (C: microcomputer use)
Product classification
(S5U1: development tool for semiconductor products)
00
00
CONTENTS
S5U1C63000P MANUAL EPSON i
(S1C63 FAMILY PERIPHERAL CIRCUIT BOARD)
S5U1C63000P Manual (S1C63 Family Peripheral Circuit Board)
This manual describes how to use the S1C63 Family Peripheral Circuit Board (S5U1C63000P). This circuit
board is used to provide emulation functions when it is installed in the ICE (S5U1C63000H1/
S5U1C63000H2), a debugging tool for the 4-bit Single Chip Microcomputer S1C63 Family.
This manual describes only the common specifications of the S1C63 Family Peripheral Circuit Board
(S5U1C63000P), so refer to the S5U1C63000P Manual (Peripheral Circuit Board for S1C63xxx) for the model
dependent specifications. For details on ICE functions and how to operate the debugger, refer to the
separately prepared manuals.
Contents
CHAPTER 1INTRODUCTION____________________________________________ 1
1.1 Outline of S5U1C63000P .............................................................................1
1.2 Components of S5U1C63000P .....................................................................1
1.3 External View of S5U1C63000P................................................................... 1
CHAPTER 2SETTING UPTHE S5U1C63000P _____________________________ 2
2.1 Installing the S5U1C63000P in the ICE (S5U1C63000H1/S5U1C63000H2) ....... 2
2.2 Downloading Cricuit Data 1 – when new ICE (S5U1C63000H2) is used .............. 3
2.3 Downloading Cricuit Data 2 – when previous ICE (S5U1C63000H1) is used ....... 3
CHAPTER 3PRODUCT SPECIFICATIONS ___________________________________ 4
CHAPTER 1: INTRODUCTION
S5U1C63000P MANUAL EPSON 1
(S1C63 FAMILY PERIPHERAL CIRCUIT BOARD)
CHAPTER 1INTRODUCTION
1.1 Outline of S5U1C63000P
The S5U1C63000P provides on a board all the peripheral circuits of S1C63 Family microcomputers other
than the core CPU. By installing this board in the ICE (S5U1C63000H1/S5U1C63000H2) you can use it to
emulate each model in the S1C63 Family. This board contains a programmable gate array (FPGA) and
supports each model by downloading the circuit data from the host PC to the FPGAvia the ICE.
1.2 Components of S5U1C63000P
After unpacking your S5U1C63000P package, check to see that all of the following components are
included.
(1) S5U1C63000P main unit.............................................................................................. 1 board
(2) I/O cable (80-pin/40-pin ×2 flat type) .................................................................... 1 pair
(3) I/O cable (100-pin/50-pin ×2 flat type) .................................................................. 1 pair
(4) Connector for connecting to target system (40-pin)............................................... 2 pieces
(5) Connector for connecting to target system (50-pin)............................................... 2 pieces
(6) Warranty card ............................................................................................................... 1 card
(7) User registration card .................................................................................................. 1 card
(8) Precautions on Using the S5U1C63000P Peripheral Circuit Board ..................... 1 sheet
(9) S5U1C63000P Manual (S1C63 Family Peripheral Circuit Board) ........................ 1 copy
1.3 ExternalView of S5U1C63000P
VSVD
VC5
PRG
CLK
RESET
IOSEL2
XC4062XLA
DE
13
VLCD
Fig. 1.3.1 External view of S5U1C63000P
CHAPTER 2: SETTING UP THE S5U1C63000P
2EPSON S5U1C63000P MANUAL
(S1C63 FAMILY PERIPHERAL CIRCUIT BOARD)
CHAPTER 2SETTING UPTHE S5U1C63000P
2.1 Installing the S5U1C63000P in the ICE (S5U1C63000H1/S5U1C63000H2)
(1) Unfasten the screws located on the left and right sides of the front panel of the ICE (S5U1C63000H1/
S5U1C63000H2) by turning them counterclockwise, then remove the front panel.
(2) Insert the S5U1C63000P board into the ICE along the its uppermost guide rails until the tip of the board
touches the back of the ICE. If some other board is mounted on the uppermost guide rails, remove that
board by using the jig supplied with the ICE before you insert the S5U1C63000P board (see Figure 2.1.3).
(3) Once the S5U1C63000P board has been inserted almost fully into the ICE, secure it in position by
using the jig supplied with the ICE (see Figure 2.1.2).
(4) When the above is done, replace the front panel.
(1), (4)
(2)
(3)
S5U1C63000P board

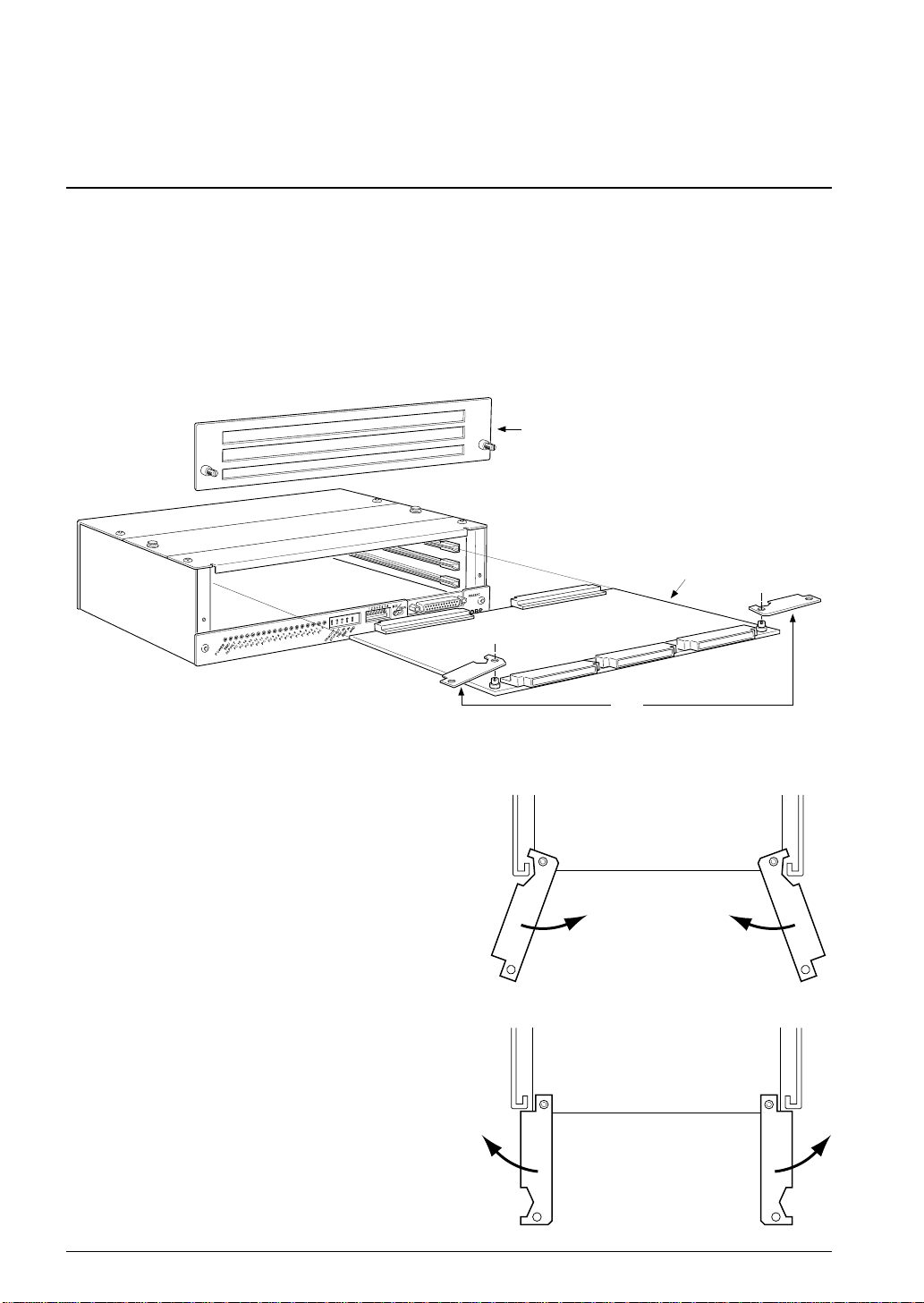

Fig. 2.1.1 Installing the S5U1C63000P board in the ICE (S5U1C63000H1/S5U1C63000H2)
•Installing the S5U1C63000P board
Set the jig included with the ICE into position as
shown in Figure 2.1.2. Using this jig as a lever,
push it toward the inside of the board evenly on
the left and right sides. After confirming that the
S5U1C63000P board has been firmly fitted into the
internal slot of the ICE, remove the jig.
•Dismounting the S5U1C63000P board
Set the jig included with the ICE into position as
shown in Figure 2.1.3. Using this jig as a lever,
push it toward the outside of the board evenly on
the left and right sides. After confirming that the
S5U1C63000P board has been dismounted from
the backboard connector, pull the S5U1C63000P
board out of the ICE.
S5U1C63000P board
S5U1C63000P board
Fig. 2.1.2
Installing the S5U1C63000P board
Fig. 2.1.3
Dismounting the S5U1C63000P board
CHAPTER 2: SETTING UP THE S5U1C63000P
S5U1C63000P MANUAL EPSON 3
(S1C63 FAMILY PERIPHERAL CIRCUIT BOARD)
2.2 Downloading Circuit Data 1 – when new ICE (S5U1C63000H2) is used
This board (S5U1C63000P) comes with the FPGAthat contains factory inspection data, therefore the
circuit data for the model to be used should be downloaded. The following explains the downloading
procedure.
1) Remove the ICE top cover and then set the DIP switch "IOSEL2" on this board to the "E" position.
2) Connect the ICE to the host PC. Then turn the host PC and ICE on.
3) Invoke the debugger included in the assembler package (ver. 5 or later). For how to use the ICE and
debugger, refer to the manuals supplied with the ICE and assembler package.
4) Download the circuit data file (.mot) corresponding to the model by entering the following commands
in the command window.
>XFER (erase all)
>XFWR <file name> (download the specified file)*
>XFCP <file name> (compare the specified file and downloaded data)
∗The downloading takes about 15 minutes.
5) Terminate the debugger and then turn the ICE off.
6) Set the DIP switch "IOSEL2" on this board to the "D" position.
7) Turn the ICE on and invoke the debugger again. Debugging can be started here.
2.3 Downloading Circuit Data 2 – when previous ICE (S5U1C63000H1) is used
The standard ICE (S5U1C63000H1, previous model) did not support the circuit data download function
for this board. To use the download function, update the ICE firmware according to the following
procedure.
1) Set the baud rate of the ICE to 9600 bps. Refer to the manual supplied with the ICE for setting the DIP
switch.
2) Connect the ICE to the host PC and then start up the host PC in DOS. When Windows is running,
restart in DOS mode.
Note: Do not use the DOS prompt of Windows.
3) Turn the ICE on.
4) Configure the RS232C parameters for the host PC as follows:
C:\>MODE COM1:9600,n,8,1,p (9600 bps, 8-bit data, 1 stop bit, no parity)
5) Copy the following files included in the assembler package (ver. 5 or later) to a directory on the hard disk.
tm63.exe, ice63.com, i63com.o, i63par
6) Move to the directory in Step 5, run the TM63. TM63 enters command ready status after invocation,
enter a command as follows:
________
C:\>tm63 xat
TM63 start on IBM PC
TM63 start V01.01
________________________________
>dlf ice63.com i63com.o i63par 0b
...
_
>q
7) Enter "q" to terminate TM63 after the prompt mark is displayed.
8) The ICE firmware is now updated. Turn the ICE off and then download the circuit data by the proce-
dure described in Section 2.2.
CHAPTER 3: PRODUCT SPECIFICATIONS
4EPSON S5U1C63000P MANUAL
(S1C63 FAMILY PERIPHERAL CIRCUIT BOARD)
CHAPTER 3PRODUCT SPECIFICATIONS
The specifications of the S5U1C63000P are listed below.
S5U1C63000P
Dimension: 254 mm (wide) ×144.8 mm (depth) ×13 mm (height) (including screws)
Weight: Approx. 300 g
Power supply: DC 5 V ± 5%, less than 1 A (supplied from ICE main unit)
I/O connection cable (80-pin)
S5U1C63000P connector: KEL8830E-080-170L
Cable connector (80-pin): KEL8822E-080-171
Cable connector (40-pin): 3M7940-6500SC 1 pair
Cable: 40-pin flat cable 1 pair
Interface: CMOS interface (3.3 V)
Length: Approx. 40 cm
I/O connection cable (100-pin)
S5U1C63000P connector: KEL8830E-100-170L
Cable connector (100-pin): KEL8822E-100-171
Cable connector (50-pin): 3M7950-6500SC 1 pair
Cable: 50-pin flat cable 1 pair
Interface: CMOS interface (3.3 V)
Length: Approx. 40 cm
Accessories
40-pin connector for connecting to target system:
3M3432-6002LCSC ×2
50-pin connector for connecting to target system:
3M3433-6002LCSC ×2
