VENTILATION UNIT INSTALLATION GUIDE

AFTER INSTALLATION THE END USER SHOULD

KEEP THIS GUIDE FOR FUTURE REFERENCE

DO NOT THROW AWAY

SHOULD YOU ENCOUNTER ANY PROBLEMS

INSTALLING THIS UNIT, CONTACT YOUR SUPPLIER

Damp Pro

AFTER INSTALLATION THE END USER SHOULD

KEEP THIS GUIDE FOR FUTURE REFERENCE

DO NOT

THROW AWAY Damp Pro 1

Safety

Read and understand these instructions before beginning

installation. The unit should be installed by a competent person.

Location

Check there is space for the unit in your chosen location. The unit

must not affect the operation of open-ﬂue appliances. Consult local

regulations or a qualiﬁed gas engineer. For inline units consider the

external vent location in relation to open-ﬂues from appliances e.g.

boilers. You must ensure the vent is positioned a minimum of 300mm

away in all directions.

The open sides of the diffuser must face a minimum 1m unobstructed

path away from any smoke detectors. If the diffuser cannot be

repositioned, up to two sides can be closed using the plastic

blanking plates. In this conﬁguration the open sides must face a

minimum 1.5m unobstructed path away from any smoke detectors.

In properties with a ﬂoor above 4.5m ﬁre diffusers must be ﬁtted

a minimum of 1m away from the smoke detectors instead of the

included plastic diffusers.

Partition walls between buildings must be complete with any breaks ﬁlled.

In properties with a ﬂoor more than 4.5m above ground level the unit

must be wired into a smoke alarm (see page 12 for wiring information)

The appliance is considered suitable for use in countries with a warm

damp equable climate, but may also be used in other countries.

Damp Pro

SHOULD YOU ENCOUNTER ANY PROBLEMS

INSTALLING THIS UNIT, CONTACT YOUR SUPPLIER

Wiring Regulations

All wiring must comply with Building Regulations and the current IET

Wiring Regulations (BS7671 in the UK) or equivalent standards for other

countries. The ﬁnal installation should be examined and tested by a

qualiﬁed electrician.

This product is not suitable for use with a Type AC RCD

Electrical Connection

The unit requires a continuous electrical power supply through a residual

current device (RCD) having a rated residual operating current not exceeding

30mA. Connection to the ﬁxed wiring must be made outside the unit in a

suitable location. The unit must be earthed and a double pole switch with a

minimum contact separation of 3.0mm must be used to provide insulation

for the unit. The unit must be able to be disconnected from the mains

supply after installation. When wiring the unit, the included unswitched

fuse spur should be incorporated in the ﬁxed wiring.

The power supply cable running into the unit must remain the supplied

ﬂexible cable (not a solid core lighting cable). If the power supply cable

becomes damaged, it must be replaced by EnviroVent, an authorised

service agent for your region/country, or a similarly qualiﬁed person in

order to avoid a hazard. Do not remove or tamper with any electronic

components inside the product.

Users

The unit is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities or lack of experience and

knowledge, unless they have been given supervision and usage instruction

by a person responsible for their safety. Children should be supervised

to ensure they do not play with the unit. Cleaning and user maintenance

must not be performed by children.

AFTER INSTALLATION THE END USER SHOULD

KEEP THIS GUIDE FOR FUTURE REFERENCE

DO NOT

THROW AWAY Damp Pro 3

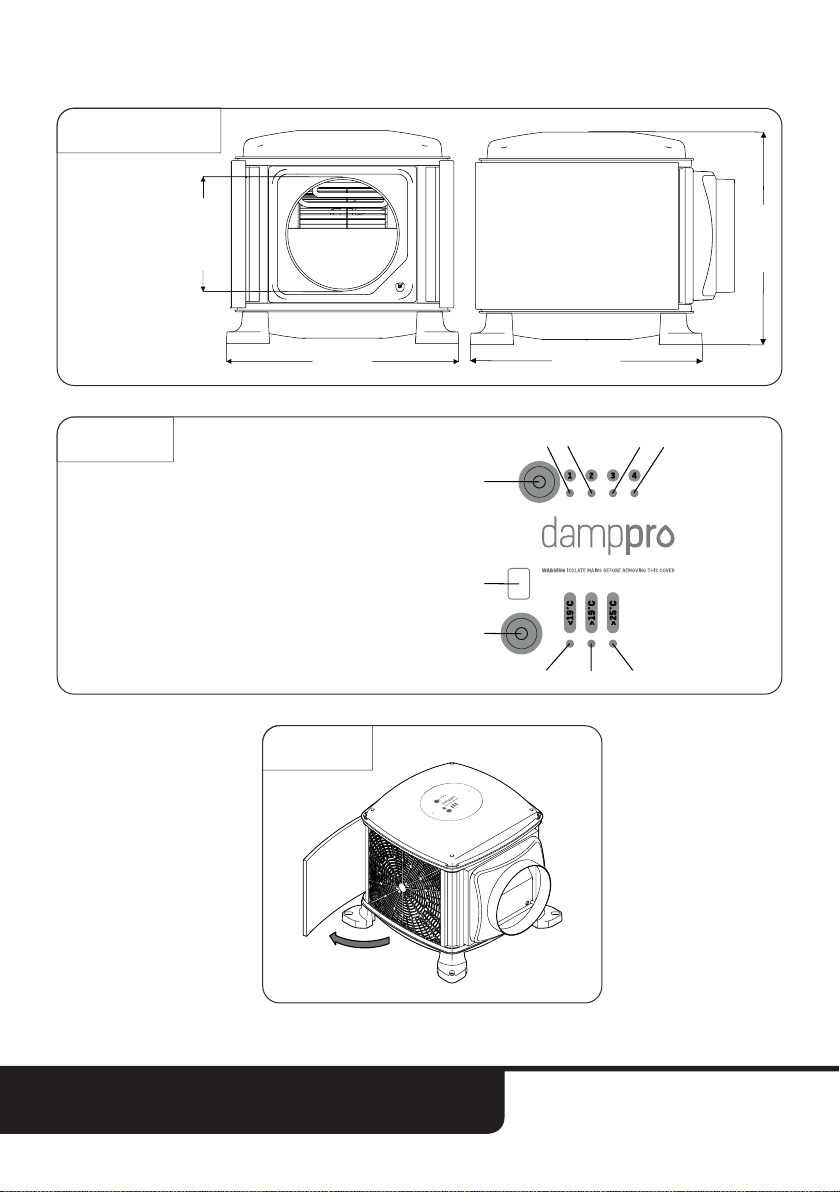

Diagrams

FILTER

DIMENSIONS

ø200 mm

406 mm 406 mm

373 mm

1 - Airﬂow 1

2 - Airﬂow 2

3 - Airﬂow 3

4 - Airﬂow 4

5 - Temperature <190C

6 - Temperature >190C

7 - Temperature >250C

8 - Top button

9 - Numeric Display

10 - Bottom button

KEYPAD 21 3 4

65 7

Damp Pro

SHOULD YOU ENCOUNTER ANY PROBLEMS

INSTALLING THIS UNIT, CONTACT YOUR SUPPLIER

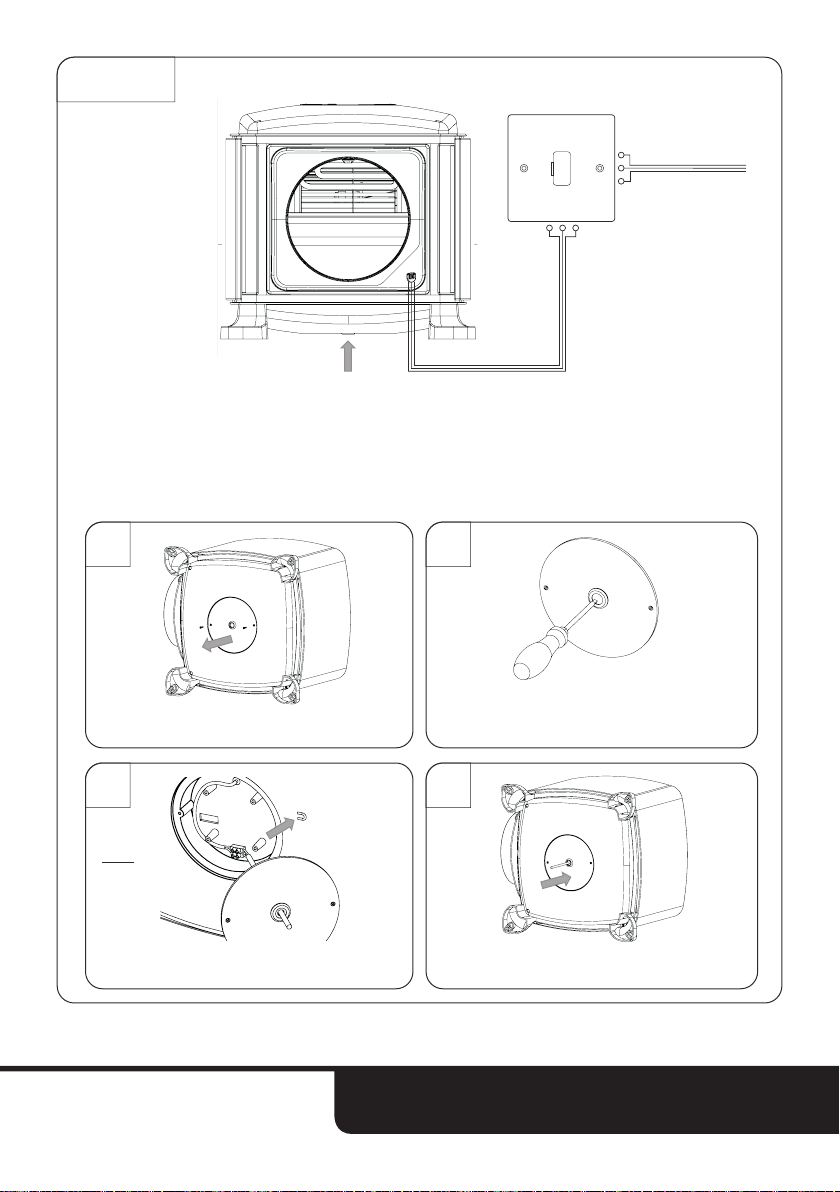

WIRING

TO CONNECT OPTIONAL 0-10V (RF AND APP UNITS

ONLY) OR HEATER ENABLE CABLE SEE STEP 1 TO 4

VENTILATION UNIT

The local isolator must be connected to the mains as part of the ﬁxed

wiring. Connect the N, L and E cores of the power cable to the matching

terminals on the local isolator.

Make small hole in grommet

and thread 2 core cable through

Remove base cap (two screws)

Remove link and wire in 2 core cable Replace base cap (two screws)

A A

B B

C C

D D

E E

F F

A A

B B

C C

D D

E E

F F

A A

B B

C C

D D

E E

F F

LOCAL ISOLATOR

MAINS SUPPLY

230V 50/60HZ

POWER CABLE

N E L

0-10V

Red=+V

Blue=0V

AFTER INSTALLATION THE END USER SHOULD

KEEP THIS GUIDE FOR FUTURE REFERENCE

DO NOT

THROW AWAY 5Damp Pro

Box contents

• 1x Ventilation unit

• 1x 200mm diffuser (+ 2x blanking plates)

• 1x Instruction guide

• 1x Diffuser mounting template

• 1x Flexible duct (1m x 200mm dia.)

• 1x Unswitched fuse spur

• 8x Foam pads

• 4x Washers

• 4x Screws 10g x 3”

• 4x Screws 10g x 1.5”

• 4x Screws 8g x 1.5”

• 4x Screws 8g x 1”

• 4x Plasterboard plugs

• 1x Roll of ﬁxing tape

Damp Pro

SHOULD YOU ENCOUNTER ANY PROBLEMS

INSTALLING THIS UNIT, CONTACT YOUR SUPPLIER

Pre - Installation Checklist

• Does the unit ﬁt through the loft hatch?

• Check there are no obstructions in the hallway or landing where the

diffuser is to be ﬁtted and in the loft space above.

• Ensure the loft has adequate cross-ﬂow ventilation to provide a

supply of fresh air to the unit.

• Check that all partition walls are intact. Seek building advice if any

are missing or broken.

• Check for ﬂued appliances drawing air from the loft, the user should

be made aware of any of these.

• Check that any ﬂue passing through the loft is undamaged. Seek

building advice if any are damaged or broken.

• Repair any ceiling gaps which allow air leakage into the loft.

• Ensure any loft water storage tanks are covered and sealed.

About the ventilation unit

The damppro loft unit is a Positive Input Ventilation (PIV) unit which

creates fresh and healthy living environments by supplying ﬁltered air

into a property at a continuous rate through a ceiling mounted diffuser.

The diffuser is normally installed in a hallway or landing area.

The units have been developed to improve indoor air quality and resolve

condensation and mould problems. They are designed to operate

continuously for 5 years with no requirement for maintenance other

than general cleaning the ﬁlter must be replaced after 5 years usage.

In conditions between 19°C - 25°C the units will increase air ﬂow rate

by 10%. In hot conditions above 25°C the units will temporarily switch

off to avoid bringing hot air into the property from the loft space.

AFTER INSTALLATION THE END USER SHOULD

KEEP THIS GUIDE FOR FUTURE REFERENCE

DO NOT

THROW AWAY Damp Pro 7

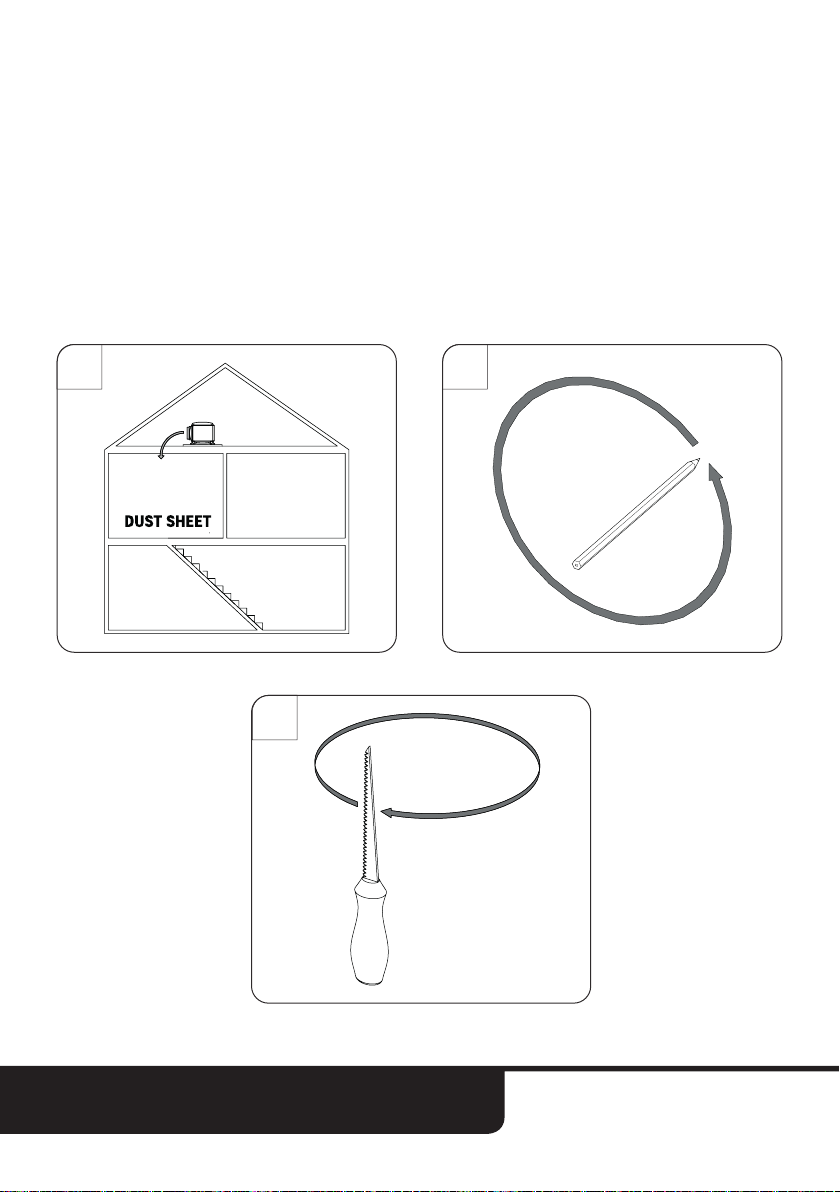

Installation

1. Place a dust sheet below the required ceiling diffuser position and

check the ceiling below and loft space above are unobstructed.

2. Mark a 222mm diffuser hole using the template.

3. Wearing a dust mask and eye protection, cut out the hole.

Damp Pro

SHOULD YOU ENCOUNTER ANY PROBLEMS

INSTALLING THIS UNIT, CONTACT YOUR SUPPLIER

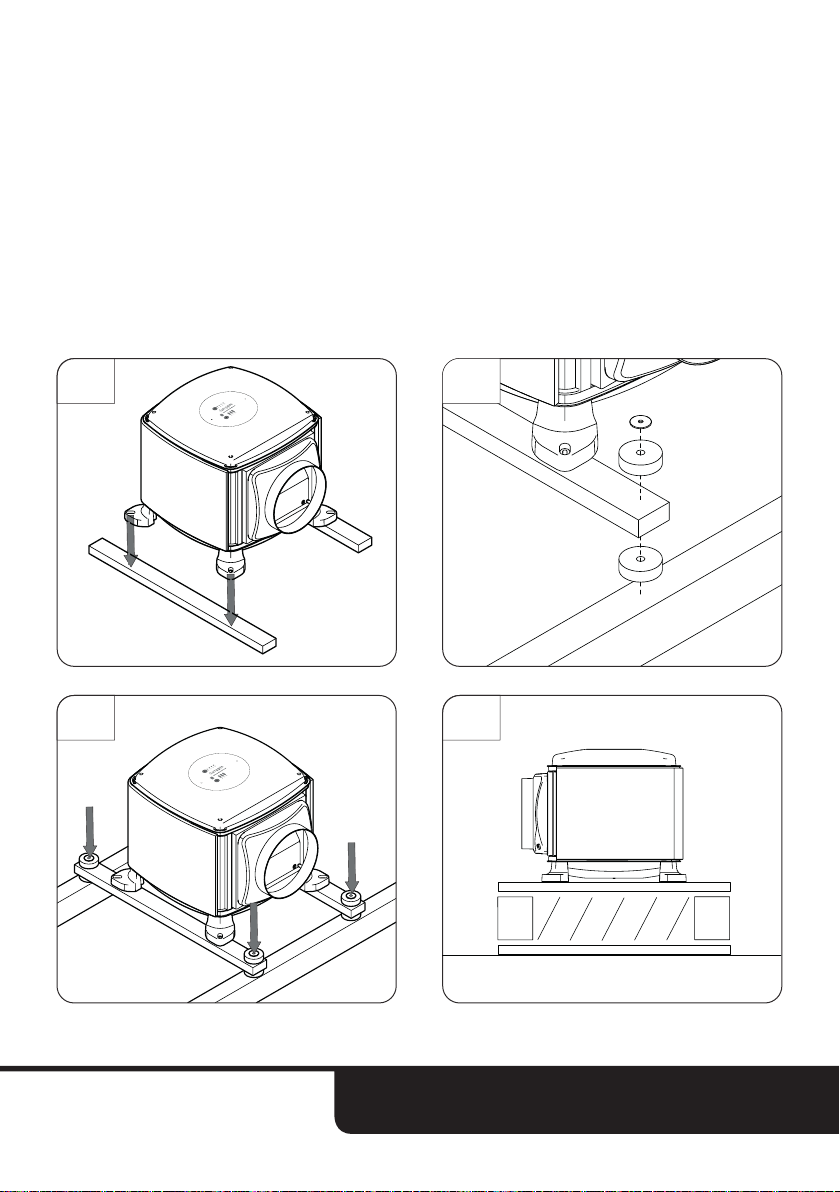

4. a) Screw the feet of the unit onto two 25mm x 50mm wood battens

using the four 10g x 1.5” screws. (Battens not supplied).

4. b) Position the unit with anti-vibration pads and washers onto the

loft ceiling joists as in the diagram.

4. c) Screw the unit to the ceiling joists using the four 10g x 3”

screws.

4.d) If the loft insulation sits above the joists and impedes the unit,

create a raised wooden platform to mount onto.

4a 4b

4c 4d
