Endress+Hauser Flowphant T DTT31 Manuel utilisateur

BA235R/09/en/13.10

71098494

Release

01.00

Operating Instructions

Flowphant®T DTT31, DTT35

Flow Switch

Brief overview

For quick and easy commissioning:

Safety instructions →Page 4

Installation →Page 6

Wiring →Page 11

Operation →Page 12

Display and operating elements

Onsite operation

Operation with PC and configuration software

Troubleshooting →Page 29

Endress+Hauser 3

DTT31, DTT35

Table of contents

1 Safety instructions . . . . . . . . . . 4

1. 1 Designated use . . . . . . . . . . . . . . . . . . . . . 4

1. 2 Installation, commissioning and operation . 4

1. 3 Operational safety . . . . . . . . . . . . . . . . . . . 4

1. 4 Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

2 Device identification. . . . . . . . . 5

2. 1 Nameplate . . . . . . . . . . . . . . . . . . . . . . . . . 5

2.2 Certificates and approvals . . . . . . . . . . . . . 5

3 Installation . . . . . . . . . . . . . . . . 6

3. 1 Incoming acceptance, storage . . . . . . . . . . 6

3. 2 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 6

3. 3 Process connection . . . . . . . . . . . . . . . . . . 7

3. 4 Installation instructions . . . . . . . . . . . . . . . 9

4 Wiring. . . . . . . . . . . . . . . . . . . 11

4. 1 DC voltage version with

M12x1 connector . . . . . . . . . . . . . . . . . 11

4. 2 DC voltage version with valve connector . 12

5 Operation . . . . . . . . . . . . . . . . 12

5. 1 Onsite operation . . . . . . . . . . . . . . . . . . . 12

5. 2 Operation with PC and

configuration software . . . . . . . . . . . . . . . 24

6 Maintenance. . . . . . . . . . . . . . 25

7 Accessories. . . . . . . . . . . . . . . 25

7. 1 Welding bosses and coupling . . . . . . . . . 25

7. 2 Electrical connection . . . . . . . . . . . . . . . . 27

7. 3 Configuration kit . . . . . . . . . . . . . . . . . . . 28

7. 4 Configuration software . . . . . . . . . . . . . . 28

8 Troubleshooting . . . . . . . . . . . 29

8. 1 Error messages and warning messages . . . 29

8. 2 Repair . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

8. 3 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . 30

8. 4 Change status (release) . . . . . . . . . . . . . . 31

8. 5 Software history . . . . . . . . . . . . . . . . . . . 31

9 Technical data . . . . . . . . . . . . .32

9. 1 Power supply . . . . . . . . . . . . . . . . . . . . . 32

9. 2 Output . . . . . . . . . . . . . . . . . . . . . . . . . . 32

9. 3 Operating conditions . . . . . . . . . . . . . . . . 33

Safety instructions DTT31, DTT35

4Endress+Hauser

1 Safety instructions

1. 1 Designated use

The Flowphant®T is a flow switch for monitoring mass flow rates in industrial processes. The

device is designed to meet state-of-the-art safety requirements and conforms to applicable stan-

dards and EC regulations. It can, however, be a source of danger if used incorrectly or for any-

thing other than the designated use.

1. 2 Installation, commissioning and operation

Installation, electrical connection, commissioning, operation and maintenance of the measuring

system must be carried out by trained, qualified specialists authorized to perform such work by

the facility's owner-operator. The specialist must have read and understood these Operating

Instructions and must follow the instructions they contain. The device may only be modified and

repair work carried out if this is explicitly permitted in the Operating Instructions. Damaged

devices which could be a source of danger may not be commissioned and must be labeled and

identified as defective.

1. 3 Operational safety

• Functional safety

The Flowphant®T flow switch has been developed in accordance with the IEC 61508 and

IEC 61511-1 (FDIS) standards. The device version with a PNP switch output and additional

analog output is equipped with features for detecting and preventing errors within the elec-

tronics and software.

•Ex-area

The Flowphant®T is not approved for use in Ex-areas.

1. 4 Return

The following procedures must be carried out before a device is returned to Endress+Hauser:

• Always enclose a fully completed “Declaration of Contamination” form with the device. Only

then can Endress+Hauser transport and examine a returned device. A copy of the “Declara-

tion of Contamination” can be found on the second last page of these Operating Instructions.

• Remove all fluid residues. This is particularly important if the fluid is hazardous to health, e.g.

flammable, toxic, caustic, carcinogenic, etc.

#Warning!

Do not return a device if you are not absolutely certain that all traces of hazardous substances

have been removed, e.g. substances which have penetrated crevices or diffused through plastic.

DTT31, DTT35 Device identification

Endress+Hauser 5

2 Device identification

2.1 Nameplate

To identify your device, compare the complete order code and the version information on the

delivery papers with the data on the nameplate.

a0006981

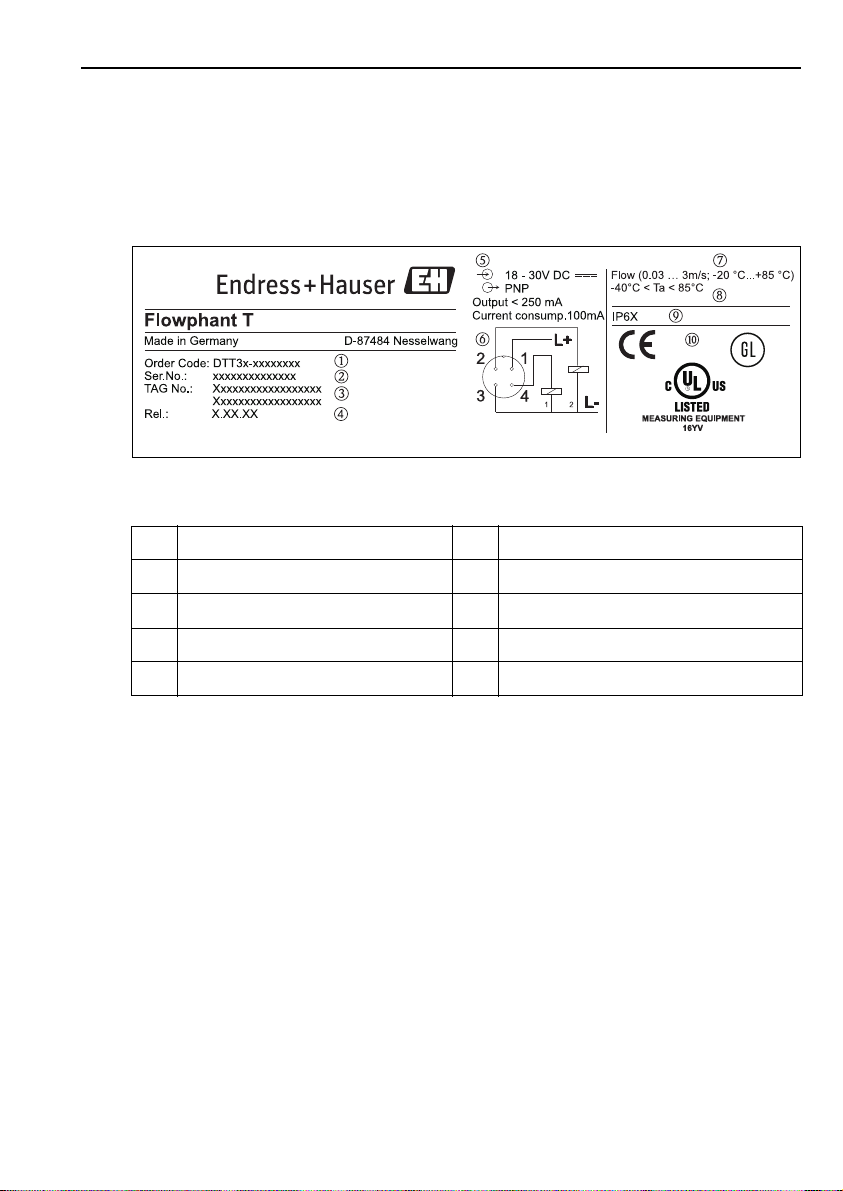

Fig. 1: Nameplate for device identification (as example)

!Note!

The release number indicates the change status of the device. A change in the last two figures

does not have any affect on the compatibility, Chap. 8.4.

2.2 Certificates and approvals

CE mark, declaration of conformity

On leaving the factory, the device was in perfect condition from the point of view of safety. It

complies with the standards EN 61010 -1 "Protection Measures for Electrical Equipment for

Measurement, Control, Regulation and Laboratory Procedures" and with the EMC requirements

of IEC/EN 61326. The device meets the legal requirements of the EU Directives. The manufac-

turer confirms a positive completion of all tests by fitting the unit with a CE mark.

Hygiene standard

The DTT35 flow switch meets the requirements of Sanitary Standard no. 74-03. Endress+Hau-

ser confirms this by applying the 3–A symbol (not valid for process connection conical

metal-metal).

m Order code r Connection diagram

n Serial number s Measuring range

o TAG number t Ambient temperature range

p Release number (change status) u Degree of protection

q Connection values v Approvals

Installation DTT31, DTT35

6Endress+Hauser

UL listed for Canada and USA

The device was examined by Underwriters Laboratories Inc. (UL) in accordance with the

standards UL 61010B-1 and CSA C22.2 No. 1010.1-92 and listed under the number E225237

UL.

3 Installation

3. 1 Incoming acceptance, storage

• Incoming acceptance:

Check the packaging and the device for damage. Check that the goods delivered are complete

and nothing is missing.

• Storage:

Storage temperature -40 °C to +85 °C (-40 °F to 185 °F).

3. 2 Dimensions

A0005279

Fig. 2: Dimensions in mm (inch)

Version L with 30 and 100 mm (1.18 and 3.94 in) for DTT31

Version L with 30, 50 and 100 mm (1.18, 1.97 and 3.94 in) for DTT35

M12x1 connector as per IEC 60947-5-2

M16x1.5 or NPT ½" valve connector as per DIN 43650A/ISO 4400

DTT31, DTT35 Installation

Endress+Hauser 7

3. 3 Process connection

3.3.1 DTT31 design, dimensions of the process connections

T09-TTR31xxx-17-xx-xx-en-000

Fig. 3: Process connection versions of DTT31

Item

no.

Version Insertion

length L

Thread length L1Thread length L2

A Without process connection. For suitable

welding boss and coupling see chapter

’accessories’.

30 or 100 mm

(1.18 or

3.94 in)

B Thread process connection:

• ANSI NPT ¼" (m= AF14)

• ANSI NPT ½" (m= AF27)

• 14.3 mm (0.56")

• 19 mm (0.75")

• 5.8 mm (0.23")

• 8.1 mm (0.32")

C Thread process connection cylindrical as

per ISO 228:

• G¼" (n= AF14)

• G½" (n= AF27)

• 12 mm (0.47")

• 14 mm (0.55")

Installation DTT31, DTT35

8Endress+Hauser

3.3.2 DTT35 design, dimensions of the process connections

a00011776

Fig. 4: Hygienic process connections. All dimensions in mm (inch)

L = Insertion length L

!Note!

The maximum process pressure for the conical metal-metal process connection (→Fig. 4,

item MB) is 16 bar!

Item no. Process connection versions DTT35

Insertion length L = 30, 50 or 100 mm (1.18, 1.97 or 3.94 in)

MB Conical metal-metal for hygienic processes, G½" thread, thread length L1 = 14 mm (0.55").

Suitable welding boss available as accessory.

DB Clamp 1"...1½" (ISO 2852) or DN 25...DN 40 (DIN 32676)

DL Clamp 2" (ISO 2852) or DN 50 (DIN 32676)

LB Varivent F DN25-32, PN 40

LL Varivent N DN40-162, PN 40

HL APV-Inline, DN50, PN40, 316L, B = bores 6 x Ø8.6 (0.34") + 2 x thread M8

PL DIN 11851, DN50, PN40 (including coupling nut)

PG DIN 11851, DN25, PN40 (including coupling nut)

PH DIN 11851, DN40, PN40 (including coupling nut)

DTT31, DTT35 Installation

Endress+Hauser 9

3. 4 Installation instructions

3.4.1 Installation conditions

!Note!

The sensor requires a fully developed flow profile for correct monitoring. For this reason,

steadying sections (5x DN) must be provided in the pipe after a pump, pipe bend, internal fittings

and cross-sectional changes.

"Caution!

Do not turn the device into the process connection thread at the housing. Always install the

device at the spanner flats (Fig. 5, item 1). Use a suitable open-ended wrench for this task (see

Table →Chap. 3.3.1).

• The onsite display can be rotated electronically 180°, →Chap. 5. 1 "Onsite operation".

• The upper housing section can be rotated mechanically up to 310°.

• The sensor tip should be completely surrounded by medium.

• Position the sensor tip in the area of maximum fluid velocity (pipe

center).

• Minimum sensor immersion length: Li ≥10 mm.

A0006976

Fig. 5: Installation conditions

Orientation

• For horizontal pipes: lateral installation.

!Note!

Installation from above(see Fig. 5) only if the pipe is completely

filled with medium during operation.

• For vertical pipes: installation in the ascending pipeline.

• Installation of DTT35 by min. 3° inclination, because of self

draining.

A0006977

Fig. 6: Correct orientation

Installation DTT31, DTT35

10 Endress+Hauser

3.4.2 Mounting instructions for installation in hygienic processes

a0011673-en

Fig. 8: Installation in hygienic processes

A Milk pipe connection as per DIN 11851 (connection PL, PG, PH), only in linkage with EHEDG

certified and self centering ring

B Varivent and APV-Inline (connection LB, LL, HL)

C Clamp as per ISO 2852 (connection DB, DL)

"Caution!

• Do not install in down pipes open towards the end.

• The sensor tip should never touch the pipe wall.

A0006978

Fig. 7: Incorrect installation!

Autres manuels pour Flowphant T DTT31

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Endress+Hauser Changer

Endress+Hauser

Endress+Hauser Nivotester FTL 375 N 3 Series Manuel utilisateur

Endress+Hauser

Endress+Hauser Flowphant T DTT31 Manuel utilisateur

Endress+Hauser

Endress+Hauser RTA421 Manuel utilisateur

Endress+Hauser

Endress+Hauser soliphant II FTM 30 DR Manuel utilisateur

Endress+Hauser

Endress+Hauser Flowphant T DTT31 Flowphant T DTT35 Manuel utilisateur

Endress+Hauser

Endress+Hauser Liquiphant FTL41 Caractéristiques techniques

Endress+Hauser

Endress+Hauser Flowphant T DTT31 Manuel utilisateur

Endress+Hauser

Endress+Hauser Liquiphant T FTL20 Manuel utilisateur

Endress+Hauser

Endress+Hauser Soliphant M FTM50 Manuel

Endress+Hauser

Endress+Hauser Liquiphant FTL33 IO-Link Caractéristiques techniques

Endress+Hauser

Endress+Hauser t-switch Manuel

Endress+Hauser

Endress+Hauser Liquicap M FTI51 Manuel utilisateur

Endress+Hauser

Endress+Hauser Soliphant M FTM52 Manuel utilisateur

Endress+Hauser

Endress+Hauser Liquiphant FTL64 Manuel utilisateur

Endress+Hauser

Endress+Hauser nivotester FTL 375 P-1 Series Manuel utilisateur

Endress+Hauser

Endress+Hauser Solicap M FTI55 Manuel utilisateur

Endress+Hauser

Endress+Hauser Liquipoint FTW 31 Manuel utilisateur

Endress+Hauser

Endress+Hauser nivocompact FTC 831 Manuel utilisateur

Endress+Hauser

Endress+Hauser nivocompact FTC 731 Manuel utilisateur

Endress+Hauser

Endress+Hauser Liquiphant FTL51B Manuel utilisateur

Endress+Hauser

Endress+Hauser Nivotester FTR325 Manuel utilisateur

Endress+Hauser

Endress+Hauser prosonic T FTU 230 Manuel utilisateur

Endress+Hauser

Endress+Hauser Nivotester FTC 422 Manuel utilisateur

Endress+Hauser

Endress+Hauser Soliphant M FTM50 Manuel utilisateur

Manuels Changer populaires d'autres marques

URC

URC Total Control MFS-8 Manuel utilisateur

Azbil

Azbil HPQ-D11 Manuel utilisateur

Sony

Sony DFS-900M Manuel utilisateur

SICK

SICK i17S Manuel utilisateur

F&F

F&F SZR-277 Manuel utilisateur

Shure

Shure UAMS/BK Manuel utilisateur

Dräger

Dräger X-zone Switch Off Manuel utilisateur

Asco

Asco Joucomatic 349 Series Manuel utilisateur

BT Mini Hub Manuel utilisateur

D-Link

D-Link DES-1226G Manuel utilisateur

Johnson Controls

Johnson Controls FS80-C Manuel utilisateur

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuel utilisateur

MicroNet

MicroNet SP1200A Manuel utilisateur

Ruijie

Ruijie RG-PF2920 Series Manuel d'installation et d'exploitation

Altinex

Altinex DA1914SX Manuel utilisateur

MiLAN

MiLAN MIL-SM2401M Manuel utilisateur

RJM

RJM MASTERMIND PBC/6X Manuel utilisateur

Atlas

Atlas MMK-KVM8 Manuel utilisateur
