Brief Operating Instructions

RIA45

Process indicator

These Brief Operating Instructions are not a substitute for the

Operating Instructions pertaining to the device.

Detailed information is provided in the Operating Instructions

and other documentation.

Available for all device versions via:

• Internet: www.endress.com/deviceviewer

• Smartphone/tablet: Endress+Hauser Operations app

KA00271R/09/EN/17.22-00

71573626

2022-06-30

RIA45

2 Endress+Hauser

Order code:

Ext. ord. cd.:

Ser. no.:

www.endress.com/deviceviewer Endress+Hauser

Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0023555

RIA45 Table of contents

Endress+Hauser 3

Table of contents

1 About this document .............................................................. 3

1.1 Symbols ............................................................................. 3

2 Safety instructions ................................................................ 5

2.1 Requirements for the personnel ............................................................ 5

2.2 Intended use .......................................................................... 5

2.3 Workplace safety ...................................................................... 5

2.4 Operational safety ......................................................................5

2.5 Product safety ......................................................................... 6

3 Incoming acceptance and product identification ................................... 6

3.1 Incoming acceptance .................................................................... 6

3.2 Product identification ................................................................... 6

3.3 Certificates and approvals ................................................................ 6

3.4 Storage and transport ................................................................... 7

4 Mounting ......................................................................... 7

4.1 Installation requirements ................................................................ 7

4.2 Dimensions ...........................................................................7

4.3 Mounting procedure .................................................................... 8

4.4 Post-installation check .................................................................. 9

5 Wiring ............................................................................ 9

5.1 Electrical connection .................................................................... 9

5.2 Post-connection check ..................................................................12

6 Operation ....................................................................... 13

6.1 Operating elements ....................................................................13

6.2 Display and device status indicator / LED .................................................... 15

6.3 Symbols ............................................................................ 16

6.4 Device configuration ................................................................... 17

1 About this document

1.1 Symbols

1.1.1 Safety symbols

DANGER

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

serious or fatal injury.

WARNING

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

serious or fatal injury.

CAUTION

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minor or medium injury.

About this document RIA45

4 Endress+Hauser

NOTICE

This symbol contains information on procedures and other facts which do not result in

personal injury.

1.1.2 Electrical symbols

Symbol Meaning Symbol Meaning

Direct current Alternating current

Direct current and alternating current Ground connection

A grounded terminal which, as far as

the operator is concerned, is grounded

via a grounding system.

Symbol Meaning

Potential equalization connection (PE: protective earth)

Ground terminals that must be connected to ground prior to establishing any other connections.

The ground terminals are located on the interior and exterior of the device:

• Interior ground terminal: potential equalization is connected to the supply network.

• Exterior ground terminal: device is connected to the plant grounding system.

1.1.3 Symbols for certain types of information

Symbol Meaning Symbol Meaning

Permitted

Procedures, processes or actions that

are permitted.

Preferred

Procedures, processes or actions that

are preferred.

Forbidden

Procedures, processes or actions that

are forbidden.

Tip

Indicates additional information.

Reference to documentation

Reference to page

Reference to graphic

… Series of steps

Result of a step Visual inspection

RIA45 Safety instructions

Endress+Hauser 5

1.1.4 Symbols in graphics

Symbol Meaning Symbol Meaning

1, 2, 3,... Item numbers

… Series of steps

A, B, C, ... Views A-A, B-B, C-C, ... Sections

Hazardous area

Safe area (non-hazardous area)

2 Safety instructions

2.1 Requirements for the personnel

The personnel must fulfill the following requirements for its tasks:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task.

‣Are authorized by the plant owner/operator.

‣Are familiar with federal/national regulations.

‣Before starting work, read and understand the instructions in the manual and

supplementary documentation as well as the certificates (depending on the application).

‣Follow instructions and comply with basic conditions.

2.2 Intended use

The process indicator evaluates analog process variables and displays them on its multicolored

screen. Processes can be monitored and controlled with the device's outputs and limit relays.

The device is equipped with a wide array of software functions for this purpose. Power can be

supplied to 2-wire sensors with the integrated loop power supply.

• The device is an associated apparatus and may not be installed in the hazardous area.

• The manufacturer accepts no liability for damages resulting from incorrect use or use other

than that intended. It is not permitted to convert or modify the device in any way.

• The device is designed for installation in a panel and must only be operated in an installed

state.

2.3 Workplace safety

When working on and with the device:

‣Wear the required personal protective equipment as per national regulations.

2.4 Operational safety

Risk of injury!

‣Operate the device only if it is in proper technical condition, free from errors and faults.

‣The operator is responsible for the interference-free operation of the device.

Incoming acceptance and product identification RIA45

6 Endress+Hauser

2.5 Product safety

This product is designed in accordance with good engineering practice to meet state-of-the-

art safety requirements and has been tested and left the factory in a condition in which it is

safe to operate.

3 Incoming acceptance and product identification

3.1 Incoming acceptance

Proceed as follows on receipt of the device:

1. Check whether the packaging is intact.

2. If damage is discovered:

Report all damage immediately to the manufacturer.

3. Do not install damaged material, as the manufacturer cannot otherwise guarantee

compliance with the safety requirements and cannot be held responsible for the

consequences that may result.

4. Compare the scope of delivery to the contents of the order.

5. Remove all the packaging material used for transportation.

3.2 Product identification

The following options are available for identification of the device:

• Nameplate specifications

• Extended order code with breakdown of the device features on the delivery note

3.2.1 Name and address of manufacturer

Name of manufacturer: Endress+Hauser Wetzer GmbH + Co. KG

Address of manufacturer: Obere Wank 1, D-87484 Nesselwang

Model/type reference: RIA45

3.3 Certificates and approvals

For certificates and approvals valid for the device: see the data on the nameplate

Approval-related data and documents: www.endress.com/deviceviewer → (enter the

serial number)

RIA45 Mounting

Endress+Hauser 7

3.3.1 Other standards and guidelines

• IEC 60529:

Degrees of protection provided by enclosures (IP code)

• IEC 61010-1:

Safety requirements for electrical equipment for measurement, control and laboratory use

• EN 60079-11:

Explosive atmospheres - Part 11: Equipment protection by intrinsic safety "I" (optional)

3.4 Storage and transport

Please note the following:

The permitted storage temperature is –40 to 85 °C (–40 to 185 °F); it is possible to store the

device at borderline temperatures for a limited period (48 hours maximum).

Pack the device for storage and transportation in such a way that it is reliably protected

against impact and external influences. The original packaging offers the best protection.

Avoid the following environmental influences during storage and transport:

• Direct sunlight

• Vibration

• Aggressive media

4 Mounting

4.1 Installation requirements

NOTICE

High temperatures reduce the life-time of the display.

‣To avoid heat accumulation, ensure the device is sufficiently cooled.

‣Do not operate the device in the upper temperature range over a longer period of time.

The process indicator is designed for use in a panel.

The orientation is determined by the legibility of the display. The connections and outputs are

provided on the rear. The cables are connected via coded terminals.

Operating temperature range:

Non-Ex/Ex devices: –20 to 60 °C (–4 to 140 °F)

UL devices: –20 to 50 °C (–4 to 122 °F)

4.2 Dimensions

Observe the installation depth of approx. 150 mm (5.91 in) for the device incl. terminals and

fastening clips.

In the case of devices with an Ex approval, the Ex frame is required and an installation depth

of 175 mm (6.89 in) must be taken into consideration. For more dimensions please refer to

the "Technical data" section in the Operating Instructions.

Mounting RIA45

8 Endress+Hauser

• Panel cutout: 92 mm (3.62 in) x 45 mm (1.77 in).

• Panel thickness: max. 26 mm (1 in).

• Max. viewing angle range: 45° to the left and right from the central display axis.

• If the devices are arranged horizontally beside one another in the X-direction, or arranged

vertically on top of one another in the Y-direction, the mechanical distance (specified by the

housing and front section) must be observed.

4.3 Mounting procedure

The necessary panel cutout is 92 mm (3.62 in) x 45 mm (1.77 in)

114

A0010404

 1 Installation in a panel

1. Screw the threaded rods (item 1) into the positions provided on the mounting frame

(item 2). Four opposing screw positions (item 3/4) are available for this purpose.

2. Push the device through the panel cutout from the front.

3. To secure the casing in the panel, hold the device level and push the mounting frame

(item 2), with the threaded rods screwed in, over the casing until the frame locks into

position (1).

4. Then tighten the threaded rods to fix the device in place (2.).

5. For the Ex option, mount the spacer (item 6) for the terminals.

To remove the device, the mounting frame can be unlocked at the locking elements (item 5)

and then removed.

RIA45 Wiring

Endress+Hauser 9

4.4 Post-installation check

• Is the seal undamaged?

• Is the mounting frame securely fastened on the housing of the device?

• Are the threaded rods properly tightened?

• Is the device located in the center of the panel cutout?

• Is the spacer mounted (Ex option)?

5 Wiring

LWARNING

Danger! Electric voltage!

‣The entire connection of the device must take place while the device is de-energized.

‣The protective ground connection must be established before all other connections. If the

protective ground is disconnected, this can be a source of danger.

‣Before commissioning the device, make sure that the supply voltage matches the voltage

specifications on the nameplate.

‣Provide suitable switch or circuit breaker in building installation. This switch must be

provided close to the device (within easy reach) and marked as a circuit breaker.

‣An overcurrent protection element (rated current ≤ 10 A) is required for the power cable.

• Observe the terminal designation on the front of the device.

• The mixed connection of safety extra-low voltage and dangerous contact voltage to the

relay is permitted.

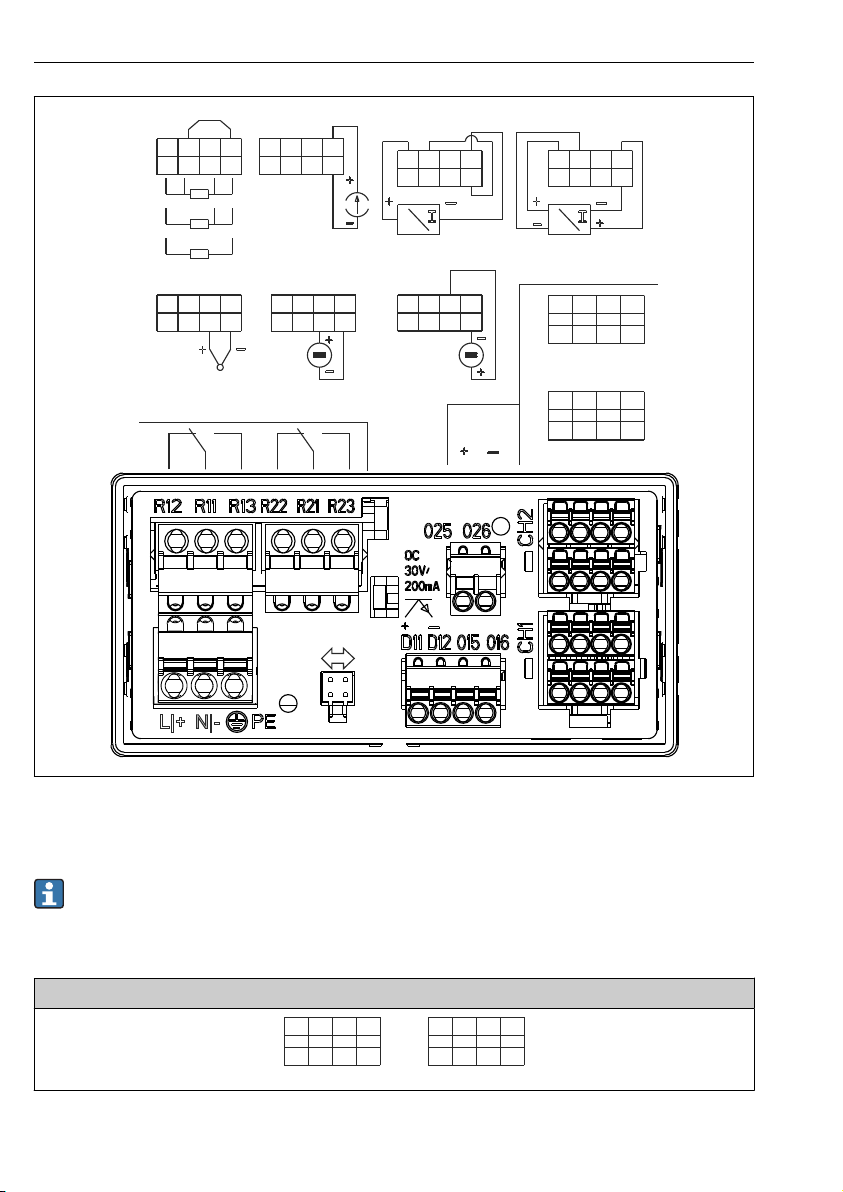

5.1 Electrical connection

A loop power supply (LPS) is provided for every input. The loop power supply is primarily

designed to supply power to 2-wire sensors and is galvanically isolated from the system and

the outputs.

Wiring RIA45

10 Endress+Hauser

RTD ILPS 2-W LPS 4-W

TC U<=1V U>1V

CH1 CH2

Typ J,K,T,N...

±100mV...±1V

4-W

3-W

2-W

0/4...20mA

0...10V

0/1...5V

±10V

±30V

4...20mA 0/4...20mA

Analog Out

4...20mA

x2 x4

x8x7x6x5 x4

x2x1 x4

x2x1

x8x7 x8x7 x8

x3 232221

25 26 27 28

131211

15 16 17 18

R12 R11 R13 R22 R21 R23

L|+ N|-

A0010228

 2 Terminal assignment of device (channel 2 and relays optional). Note: Illustrated contact position

of the relays if the power supply fails.

We recommend you connect a suitable surge arrester upstream if high-energy transients

can be expected on long signal cables.

5.1.1 Overview of possible connections on the process indicator

Terminal assignment of analog inputs, channel 1 and 2 (optional)

CH2

232221

25 26 27 28

CH1

131211

15 16 17 18

A0010406

Autres manuels pour ria45

Table des matières

Autres manuels Endress+Hauser Instrument de mesure

Endress+Hauser

Endress+Hauser Liquiline CA80SI Manuel utilisateur

Endress+Hauser

Endress+Hauser LPGmass Manuel utilisateur

Endress+Hauser

Endress+Hauser Levelflex FMP50 Manuel utilisateur

Endress+Hauser

Endress+Hauser analytikjena Biometra TMS Manuel utilisateur

Endress+Hauser

Endress+Hauser analytikjena Biometra TMS Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag W 800 Manuel

Endress+Hauser

Endress+Hauser Proline Promass H 300 PROFINET Manuel utilisateur

Endress+Hauser

Endress+Hauser Nivotester FTC325 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltapilot S FMB70 Manuel utilisateur

Endress+Hauser

Endress+Hauser FMU 40 Manuel de la liste des pièces

Endress+Hauser

Endress+Hauser Deltabar S PMD75 Caractéristiques techniques

Endress+Hauser

Endress+Hauser Proline Prowirl 72 Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar FMD71 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 55 Manuel utilisateur

Endress+Hauser

Endress+Hauser Liquicap T FMI21 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promag 300 Guide d'application

Endress+Hauser

Endress+Hauser CNGmass DCI Manuel utilisateur

Endress+Hauser

Endress+Hauser Deltabar S PMD75 Manuel

Endress+Hauser

Endress+Hauser Proline Prosonic Flow 93T Portable Manuel utilisateur

Endress+Hauser

Endress+Hauser RIA16 Caractéristiques techniques

Endress+Hauser

Endress+Hauser Proline Promass 40E Manuel

Endress+Hauser

Endress+Hauser Liquistation CSF48 Manuel utilisateur

Endress+Hauser

Endress+Hauser Silopilot FMM50 Manuel utilisateur

Endress+Hauser

Endress+Hauser Memograph M Caractéristiques techniques

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur

Acterna

Acterna MS1400 Manuel utilisateur

R&S

R&S ZPH Manuel utilisateur

Endress+Hauser ria45 Caractéristiques techniques

Manuels Instrument de mesure populaires d'autres marques
