Brief Operating Instructions

Cerabar M PMC51, PMP51,

PMP55

Process pressure measurement

IO-Link

Pressure transmitter

These Brief Operating Instructions are not a substitute for the

Operating Instructions pertaining to the device.

Detailed information about the device can be found in the

Operating Instructions and the additional documentation.

Available for all device versions via

• Internet: www.endress.com/deviceviewer

• Smartphone/tablet: Endress+Hauser Operations app

KA01522P/00/EN/02.22-00

71581314

2022-07-27

Associated documentation Cerabar M PMC51, PMP51, PMP55 IO-Link

2 Endress+Hauser

1 Associated documentation

Order code:

Ext. ord. cd.:

Ser. no.:

www.endress.com/deviceviewer Endress+Hauser

Operations App

XXXXXXXXXXXX

XXXXX-XXXXXX

XXX.XXXX.XX

Serial number

A0023555

2 About this document

2.1 Document function

The Brief Operating Instructions contain all the essential information from incoming

acceptance to initial commissioning.

Cerabar M PMC51, PMP51, PMP55 IO-Link About this document

Endress+Hauser 3

2.2 Symbols used

2.2.1 Safety symbols

Symbol Meaning

DANGER

DANGER!

This symbol alerts you to a dangerous situation. Failure to avoid this situation will result in

seriousor fatal injury.

WARNING

WARNING!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

seriousor fatal injury.

CAUTION

CAUTION!

This symbol alerts you to a dangerous situation. Failure to avoid this situation can result in

minoror medium injury.

NOTICE

NOTICE!

This symbol contains information on procedures and other facts which do not result in

personalinjury.

2.2.2 Electrical symbols

Symbol Meaning Symbol Meaning

Protective ground connection

A terminal which must be connected to

ground prior to establishing any other

connections.

Ground connection

A grounded terminal which, as far as

the operator is concerned, is grounded

via a grounding system.

2.2.3 Tool symbols

Symbol Meaning

A0011221

Allen key

A0011222

Open-ended wrench

2.2.4 Symbols for certain types of information

Symbol Meaning

Permitted

Procedures, processes or actions that are permitted.

Forbidden

Procedures, processes or actions that are forbidden.

Basic safety instructions Cerabar M PMC51, PMP51, PMP55 IO-Link

4 Endress+Hauser

Symbol Meaning

Tip

Indicates additional information.

Visual inspection

2.2.5 Symbols in graphics

Symbol Meaning

1, 2, 3 ... Item numbers

,…

1. 2. 3.

Series of steps

A, B, C, ... Views

A-A, B-B, C-C, ... Sections

2.2.6 Symbols at the device

Symbol Meaning

A0019159

Safety instructions

Observe the safety instructions contained in the associated Operating Instructions.

t 85°C>

A0029423

Connecting cable immunity to temperature change

Indicates that the connecting cables have to withstand a temperature of 85°C at least.

2.3 Registered trademarks

• KALREZ®

Registered label of E.I. Du Pont de Nemours & Co., Wilmington, USA

• TRI-CLAMP®

Registered label of Ladish & Co., Inc., Kenosha, USA

•

Registered trademark of the IO-Link Community.

• GORE-TEX® trademark of W.L. Gore & Associates, Inc., USA

3 Basic safety instructions

3.1 Requirements for personnel

Personnel must meet the following requirements for their tasks:

‣Trained, qualified specialists must have a relevant qualification for this specific function

and task

Cerabar M PMC51, PMP51, PMP55 IO-Link Basic safety instructions

Endress+Hauser 5

‣Are authorized by the plant owner/operator

‣Are familiar with federal/national regulations

‣Before starting work, read and understand the instructions in the manual and

supplementary documentation as well as the certificates (depending on the application)

‣Follow instructions and comply with basic conditions

3.2 Designated use

The Cerabar M is a pressure transmitter for measuring level and pressure.

3.2.1 Incorrect use

The manufacturer is not liable for damage caused by improper or non-designated use.

Verification for borderline cases:

‣For special fluids and fluids for cleaning, Endress+Hauser is glad to provide assistance in

verifying the corrosion resistance of fluid-wetted materials, but does not accept any

warranty or liability.

3.3 Workplace safety

For work on and with the device:

‣Wear the required personal protective equipment according to federal/national

regulations.

‣Switch off the supply voltage before connecting the device.

3.4 Operational safety

Risk of injury!

‣Operate the device in proper technical condition and fail-safe condition only.

‣The operator is responsible for interference-free operation of the device.

Conversions to the device

Unauthorized modifications to the device are not permitted and can lead to unforeseeable

dangers:

‣If, despite this, modifications are required, consult with Endress+Hauser.

Repair

To ensure continued operational safety and reliability:

‣Carry out repairs on the device only if they are expressly permitted.

‣Observe federal/national regulations pertaining to repair of an electrical device.

‣Use original spare parts and accessories from Endress+Hauser only.

Hazardous area

To eliminate a danger for persons or for the facility when the device is used in the hazardous

area (e.g. explosion protection, pressure vessel safety):

‣Based on the nameplate, check whether the ordered device is permitted for the intended

use in the hazardous area.

‣Observe the specifications in the separate supplementary documentation that is an integral

part of these Instructions.

Incoming acceptance and product identification Cerabar M PMC51, PMP51, PMP55 IO-Link

6 Endress+Hauser

3.5 Product safety

This measuring device is designed in accordance with good engineering practice to meet state-

of-the- art safety requirements, has been tested, and left the factory in a condition in which

they are safe to operate.

It fulfills general safety requirements and legal requirements. It also conforms to the EC

directives listed in the device-specific EC declaration of conformity. Endress+Hauser confirms

this fact by applying the CE mark.

4 Incoming acceptance and product identification

4.1 Incoming acceptance

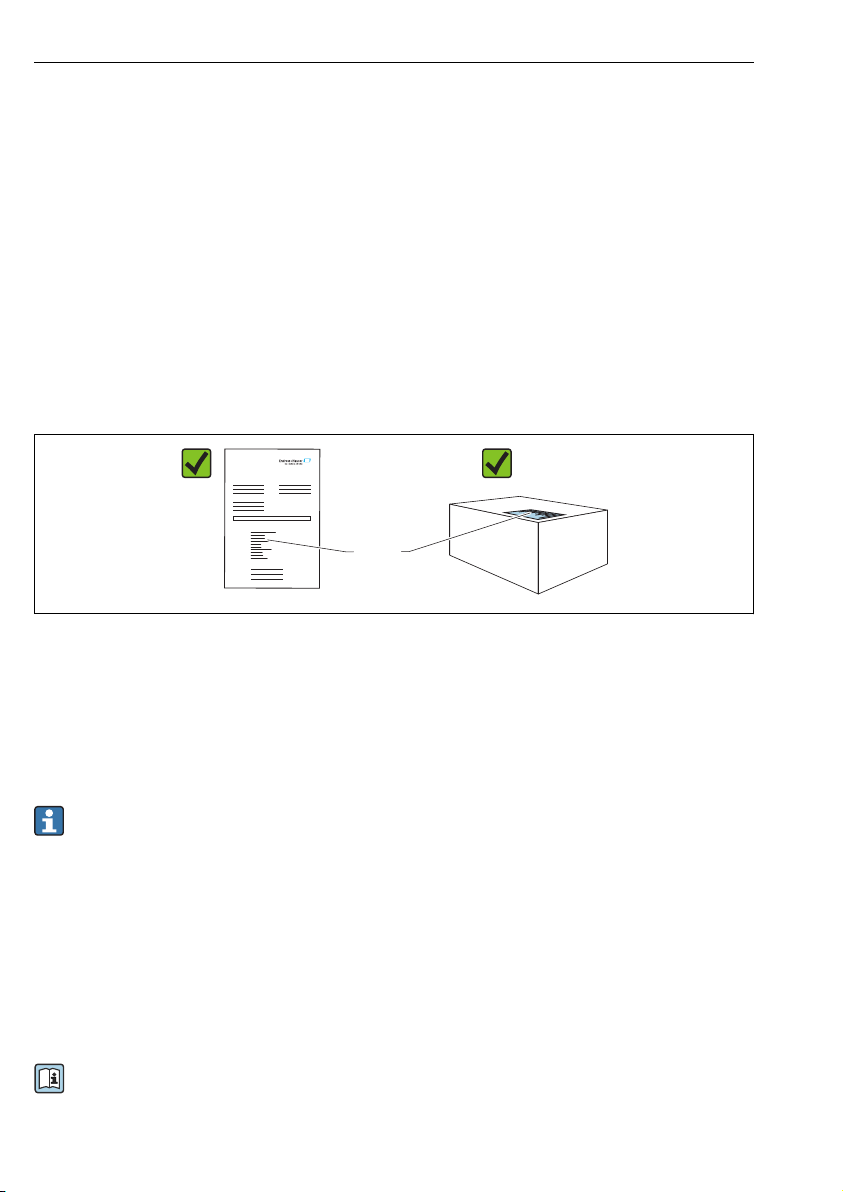

DELIVERY NOTE

1 = 2

A0016870

• Is the order code on the delivery note (1) identical to the order code on the product sticker

(2)?

• Are the goods undamaged?

• Do the data on the nameplate correspond to the order specifications and the delivery note?

• Is the documentation available?

• If required (see nameplate): Are the safety instructions (XA) present?

If one of these conditions is not fulfilled, please contact your Endress+Hauser sales office.

4.2 Storage and transport

4.2.1 Storage conditions

Use original packaging.

Store the measuring device in clean and dry conditions and protect from damage caused by

shocks (EN 837-2).

Storage temperature range

See the "Technical Information" document: www.endress.com → Download

Cerabar M PMC51, PMP51, PMP55 IO-Link Installation

Endress+Hauser 7

4.2.2 Transporting the product to the measuring point

LWARNING

Incorrect transport!

Housing and membrane may become damaged, and there is a risk of injury!

‣Transport the measuring device to the measuring point in its original packaging or by the

process connection.

‣Follow the safety instructions and transport conditions for devices weighing more than 18

kg (39.6 lbs).

‣Do not use capillaries as a carrying aid for the diaphragm seals.

5 Installation

5.1 Mounting requirements

5.1.1 General installation instructions

• Devices with a G 1 1/2 thread:

When screwing the device into the tank, the flat seal has to be positioned on the sealing

surface of the process connection. To avoid additional strain on the process membrane, the

thread should never be sealed with hemp or similar materials.

• Devices with NPT threads:

• Wrap Teflon tape around the thread to seal it.

• Tighten the device at the hexagonal bolt only. Do not turn at the housing.

• Do not overtighten the thread when screwing. Max. tightening torque:

20 to 30 Nm (14.75 to 22.13 lbf ft)

• For the following process connections, a tightening torque of max. 40 Nm (29.50 lbf ft) is

specified:

• Thread ISO228 G1/2 (Order option "GRC" or "GRJ" or "G0J")

• Thread DIN13 M20 x 1.5 (Order option "G7J" or "G8J")

5.1.2 Mounting measuring cell modules with PVDF thread

LWARNING

Risk of damage to process connection!

Risk of injury!

‣Measuring cell modules with PVDF thread must be installed with the mounting bracket

provided!

LWARNING

Material fatigue from pressure and temperature!

Risk of injury if parts burst! The thread can become loose if exposed to high pressure and

temperature loads.

‣The integrity of the thread must be checked regularly. Also, the thread may need to be re-

tightened with the maximum tightening torque of 7 Nm (5.16 lbf ft). Teflon tape is

recommended for sealing the ½" NPT thread.

Installation Cerabar M PMC51, PMP51, PMP55 IO-Link

8 Endress+Hauser

5.2 Installation instructions for devices without diaphragm seals –

PMP51, PMC51

NOTICE

Damage to the device!

If a heated device is cooled during a cleaning process (e.g. by cold water), a vacuum develops

for a short time and, as a result, moisture can enter the measuring cell through the pressure

compensation element (1).

‣Mount the device as follows.

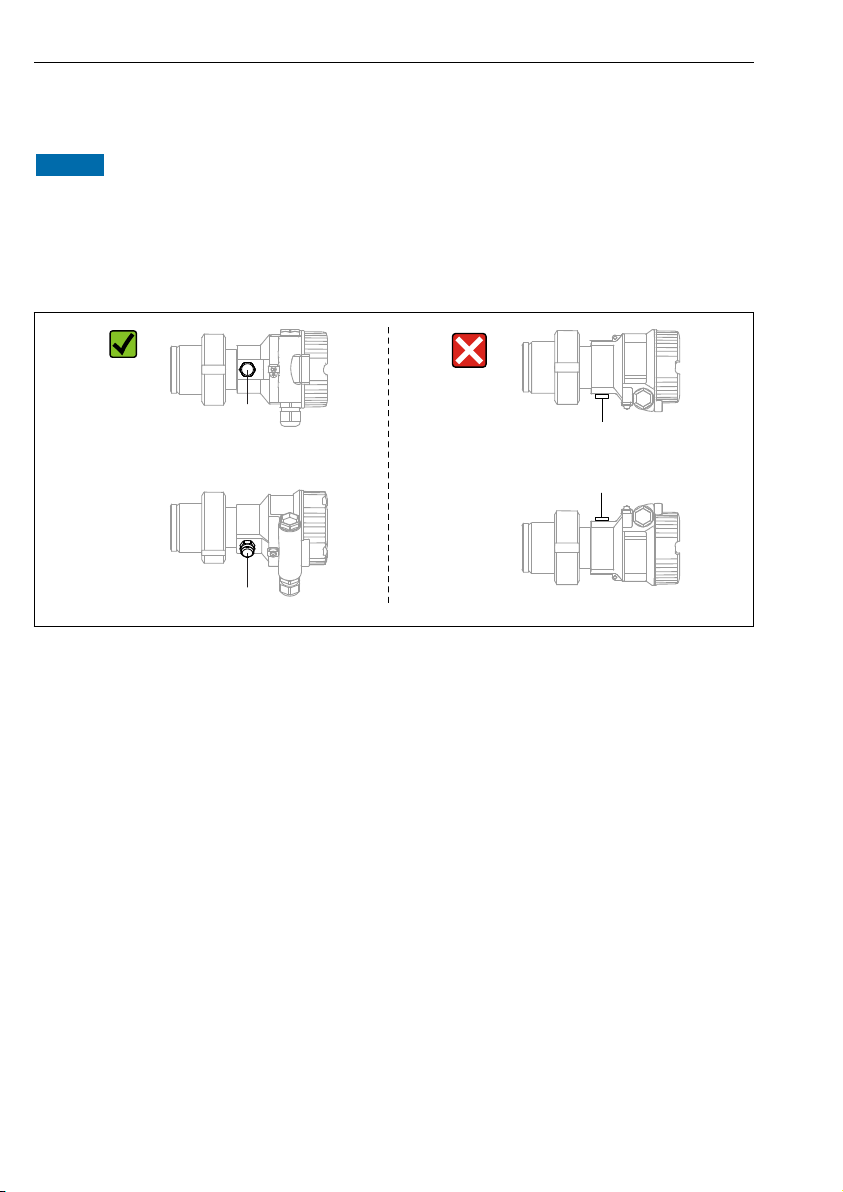

A0028471

• Keep the pressure compensation and GORE-TEX® filter (1) free from contamination.

• Cerabar M transmitters without diaphragm seals are mounted as per the norms for a

manometer (DIN EN 837-2). We recommend the use of shutoff devices and water pocket

pipes. The orientation depends on the measuring application.

• Do not clean or touch the membrane with hard or pointed objects.

• The device must be installed as follows in order to comply with the cleanability

requirements of the ASME-BPE (Part SD Cleanability):

Cerabar M PMC51, PMP51, PMP55 IO-Link Installation

Endress+Hauser 9

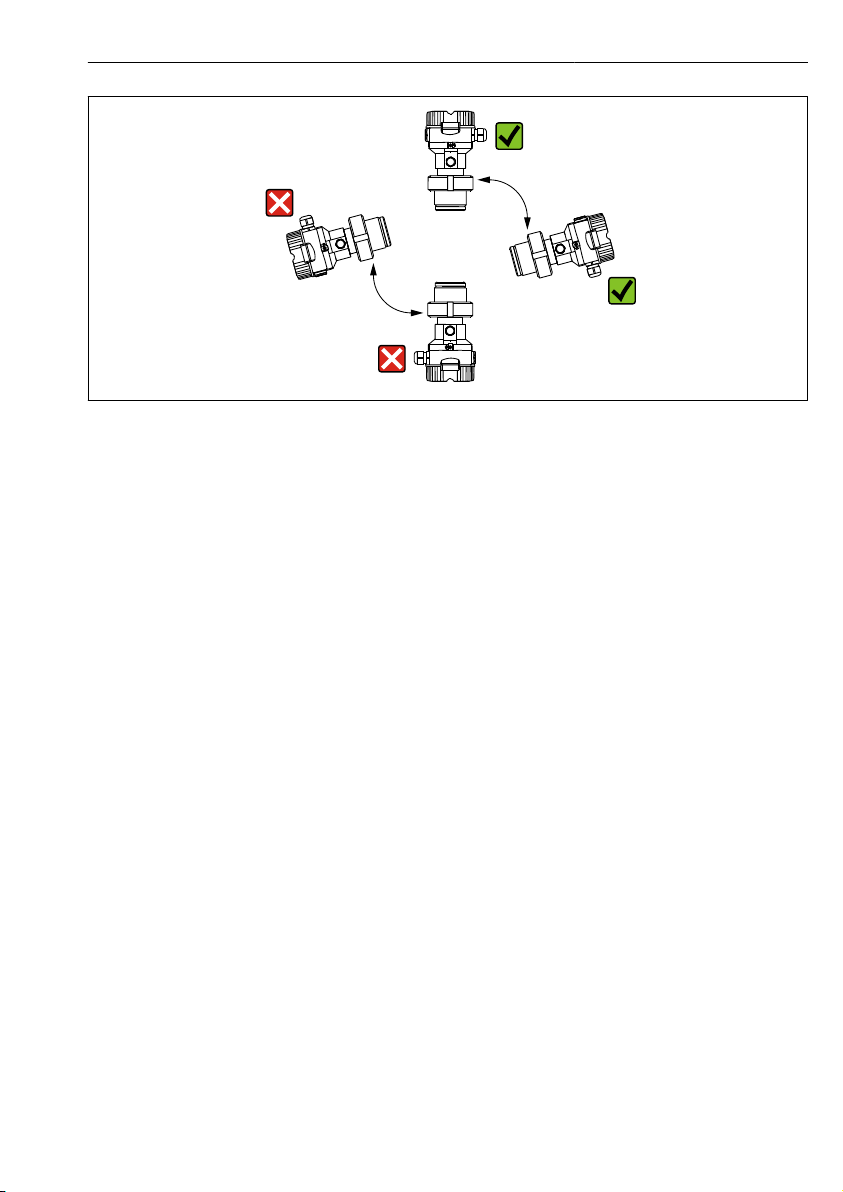

A0028472

5.2.1 Pressure measurement in gases

Mount the Cerabar M with the shutoff device above the tapping point so that any condensate

can flow into the process.

5.2.2 Pressure measurement in vapors

• Mount the Cerabar M with the water pocket pipe below the tapping point.

• Fill the water pocket pipe with liquid before commissioning. The water pocket pipe reduces

the temperature to almost ambient temperature.

5.2.3 Pressure measurement in liquids

Mount the Cerabar M with the shutoff device below or at the same level as the tapping point.

5.2.4 Level measurement

• Always install the device below the lowest measuring point.

• Do not install the device at the following positions:

• in the filling curtain

• in the tank outlet

• in the suction area of a pump

• at a point in the tank which could be affected by pressure pulses from the agitator

• The calibration and functional test can be carried out more easily if you mount the device

downstream of a shutoff device.

Installation Cerabar M PMC51, PMP51, PMP55 IO-Link

10 Endress+Hauser

5.3 Installation instructions for devices with diaphragm seals –

PMP55

• Cerabar M devices with diaphragm seals are screwed in, flanged or clamped, depending on

the type of diaphragm seal.

• Please note that the hydrostatic pressure of the liquid columns in the capillaries can cause

zero point shift. The zero point shift can be corrected.

• Do not clean or touch the process membrane of the diaphragm seal with hard or pointed

objects.

• Do not remove the protection on the process membrane until just before installation.

NOTICE

Incorrect handling!

Damage to the device!

‣A diaphragm seal and the pressure transmitter together form a closed, oil-filled calibrated

system. The fill fluid hole is sealed and may not be opened.

‣If a mounting bracket is used, sufficient strain relief must be ensured for the capillaries in

order to prevent them from buckling (bending radius ≥ 100 mm (3.94 in)).

‣Please observe the application limits of the diaphragm seal filling oil as detailed in the

Technical Information for Cerabar M TI00436P, "Planning instructions for diaphragm seal

systems" section.

NOTICE

In order to obtain more precise measurement results and to avoid a defect in the device,

mount the capillaries as follows:

‣Vibration-free (in order to avoid additional pressure fluctuations)

‣Not in the vicinity of heating or cooling lines

‣Insulate if the ambient temperature is below or above the reference temperature

‣Mount with a bending radius ≥ 100 mm (3.94 in)!

‣Do not use the capillaries as a carrying aid for the diaphragm seals!

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Endress+Hauser Instrument de mesure

Endress+Hauser

Endress+Hauser Proline Promass 80 HART Series Instructions d'installation

Endress+Hauser

Endress+Hauser analytikjena multi N/C pharma HT Manuel utilisateur

Endress+Hauser

Endress+Hauser Micropilot FMR51 Caractéristiques techniques

Endress+Hauser

Endress+Hauser FQG60 Manuel de l'opérateur

Endress+Hauser

Endress+Hauser EngyCal RH33 Caractéristiques techniques

Endress+Hauser

Endress+Hauser Memograph M Caractéristiques techniques

Endress+Hauser

Endress+Hauser FMU 40 Manuel de la liste des pièces

Endress+Hauser

Endress+Hauser FQG60 Manuel

Endress+Hauser

Endress+Hauser Proline Promass A 300 PROFINET Manuel utilisateur

Endress+Hauser

Endress+Hauser Teqwave H Caractéristiques techniques

Endress+Hauser

Endress+Hauser Proline Prowirl R 200 Caractéristiques techniques

Endress+Hauser

Endress+Hauser Proline Prosonic Flow 93T Portable Manuel utilisateur

Endress+Hauser

Endress+Hauser Levelflex FMP56 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promass E 200 Caractéristiques techniques

Endress+Hauser

Endress+Hauser RID14 Caractéristiques techniques

Endress+Hauser

Endress+Hauser FMB70 Manuel utilisateur

Endress+Hauser

Endress+Hauser Gammapilot M FMG60 Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promass E 100 Manuel utilisateur

Endress+Hauser

Endress+Hauser Liquiline System CA80AM Caractéristiques techniques

Endress+Hauser

Endress+Hauser Waterpilot FMX167 Manuel utilisateur

Endress+Hauser

Endress+Hauser PROline promag 53 Manuel utilisateur

Endress+Hauser

Endress+Hauser SpectraSensors SS2100r Manuel utilisateur

Endress+Hauser

Endress+Hauser Proline Promass F 200 HART Manuel utilisateur

Endress+Hauser

Endress+Hauser Prosonic M FMU40 Manuel utilisateur

Manuels Instrument de mesure populaires d'autres marques

Suaoki

Suaoki D40 Manuel utilisateur

Elster

Elster BK-G1.6 Manuel utilisateur

Duratool

Duratool D03128 Manuel utilisateur

Vega

Vega VEGAPULS 65 Manuel utilisateur

Tonghui

Tonghui TH2618B Manuel utilisateur

Tenmars

Tenmars TM-801 Manuel utilisateur

MSR

MSR 145 Manuel utilisateur

TPS

TPS WP-82 Manuel utilisateur

ELMETRON

ELMETRON CP-511 Manuel utilisateur

PCB Piezotronics

PCB Piezotronics 003C30 Manuel utilisateur

Tenma

Tenma 72-10465 Manuel utilisateur

Siemens

Siemens SITRANS F Coriolis FCT030 Manuel de la liste des pièces

KLINGER

KLINGER CMF V Series Manuel utilisateur

EXFO

EXFO FTB-2 Manuel d'exploitation et d'entretien

Keysight

Keysight M8290A Manuel utilisateur

ADTEK

ADTEK MW-5 Manuel utilisateur

Acterna

Acterna MS1400 Manuel utilisateur

R&S

R&S ZPH Manuel utilisateur
