ES-800 and ES-900 Series Vent Valves

Instruction Manual

D103855X012

April 2020

Table of Contents

Introduction..................................................................1

Specifications .............................................................. 2

Principle of Operation.................................................. 2

Model Identification...................................................... 2

Installation ...................................................................2

Maintenance................................................................5

Parts Ordering ............................................................. 6

Parts List......................................................................6

WARNING

Failure to follow these instructions or

to properly install and maintain this

equipment could result in an explosion,

re and/or chemical contamination

causing property damage and personal

injury or death.

Enardo™ vent valves must be installed,

operated and maintained in accordance

with federal, state and local codes, rules

and regulations, and Emerson Process

Management Regulator Technologies

Tulsa, LLC instructions.

Failure to correct trouble could result in

a hazardous condition. Call a qualied

service person to service the unit.

Installation, operation and maintenance

procedures performed by unqualied

person may result in improper adjustment

and unsafe operation. Either condition may

result in equipment damage or personal

injury. Only a qualied person shall install

or service the vent valves.

Introduction

Scope of the Manual

This Instruction Manual provides instructions for

installation, maintenance and parts ordering guide for

the ES-800 and ES-900 Series vent valves.

Product Description

ES-800 and ES-900 Series vent valves represent the

latest development in high-performance, tight-sealing tank

venting products, and complement Enardo’s industry-

leading ES-600 Series thief hatch product line. With a

leakage rate of no more than 1 SCFH at 90% of set point,

the ES-800 and ES-900 Series o󰀨ers unparalleled vent

valve performance.

Model ES-800-SO – is an In-line vent valve. It is

installed directly into the vent line exhaust. The

Model ES-800-SO has both pressure and vacuum

relief capability.

Figure 2. Typical ES-900 Series End-of-Line Vent Valve

Figure 1. Typical ES-800 Series In-Line Vent Valve

ES-800 and ES-900 Series

North America Only

ES 8 20 PSO

Model ES-800-PSO –is a pressure only vent valve

designed to relieve pressure only through the vent

line. It is designed the same as the Model ES-800-SO

pressure/vacuum except they omit the vacuum side of

the valve that eliminates the possibility of two way ow.

Model ES-900-SO –is an end-of-line vent valve. The

end-of-line vent valve is installed directly on the end of

the vent line exhaust. The Model ES-900-SO has both

pressure and vacuum relief capability.

Model ES-900-PSO –is an end-of-line vent valve. The

end-of-line vent valve is installed directly on the end

of the vent line exhaust. The Model ES-900-PSO only

has pressure relief capability.

Principle of Operation

ES-800 and ES-900 Series vent valves are designed

to prevent the escape of light ends of crude by

maintaining presssure in the storage tank.

The vent valve opens when the system pressure or

vacuum exceeds the set pressure of the valve. When

over pressure occurs, the pallet lifts, breaking the seal

between the seat and pallet, allowing vapors to pass

through the valve orice and relieving the pressure

or vacuum buildup. The valve closes once the tank

pressure goes below the set pressure.

Model Identication

Tagging Information

For ES-800 Series, the nameplate is located on the

unit’s lid and for ES-900 Series, the nameplate is

located on the unit’s hood. Actual layout of nameplate

may vary.

WARNING

Installation

Wear protective gloves and clothing

to prevent skin contact when handling

lead weights. Wear eye protection.

Avoid breathing dust/fumes/mist/vapors/

spray. Do not eat, drink or smoke while

using the product. Avoid release to the

environment. Wash hands with soap and

water after handling. Keep away from

excessive heat and open ames.

Specications

The Specications section on this page provides specications for the ES-800 and ES-900 Series vent valves.

Specications such as model number, connection size, date of manufacture, valve type, seal materials and

pressure/vacuum settings are stamped on the nameplate attached to the vent valve. Weights are keyed to the

pallet stem. Every weight is stamped with the setting (oz.), the valve size and the part number.

Available Construction

See Figure 3

Available Sizes

2 through 4 in. / 50 through 100 mm

Set Pressure/Vacuum(1)

See Table 1

Construction Materials

See Table 2

Approximate Weight

ES-800 Series Vent Valve

2 In. / 50 mm body: 12 lbs. / 5 kg

3 In. / 80 mm body: 17 lbs. / 8 kg

4 In. / 100 mm body: 23 lbs. / 10 kg

ES-900 Series Vent Valve

2 In. / 50 mm body: 11 lbs. / 5 kg

3 In. / 80 mm body: 15 lbs. / 7 kg

4 In. / 100 mm body: 19 lbs. / 9 kg

1. The pressure limits in this Instruction Manual and any applicable standard or code limitation should not be exceeded.

Figure 3. Model Number Identification

Series

8 = 800

9 = 900

Size

20 = 2 in.

30 = 3 in.

40 = 4 in.

Pressure Type

SO = Pressure and Vacuum

PSO = Pressure Only

ES-800 and ES-900 Series

North America Only

Viton®is a mark owned by E. I. du Pont de Nemours and Company.

ES-900 SERIES NAMEPLATE LOCATIONES-800 SERIES NAMEPLATE LOCATION

Figure 4. Nameplate Location

Figure 5. ES-800 and ES-900 Series Weights Figure 6. Nameplate Example

Table 1. Vent Setting Range

MODEL SIZE PRESSURE VACUUM

ES-800-SO

2 through 4 in. / 50 through 100 mm 1.0 to 16.0 oz./sq. in. / 4.3 to 6.90 mbar

(0.5 oz./sq. in. / 2 mbar increments)

0.4 oz./sq. in. / 1.7 mbar

ES-800-PSO N/A

ES-900-SO 0.4 oz./sq. in. / 1.7 mbar

ES-900-PSO N/A

Table 2. Construction Materials

MODEL HOUSING SEAT / PALLET PALLET SEAL HARDWARE WEIGHTS GASKETS

ES-800-SO

Cast Aluminum

Aluminum

Buna-N or Viton®Zinc-plated carbon steel

Zinc-plated carbon steel

(to 12 oz./sq. in.)

Lead

Buna-N or Viton®

ES-800-PSO Polyphenylene Sulde (PPS)

ES-900-SO Aluminum

ES-900-PSO Aluminum

ES-800 and ES-900 Series

North America Only

The valve and its pallet assembly are

shipped separately. The pallet assembly

may be heavy and can cause personal

injury or damage to the unit if not

handled with care.

Prior to installation, remove the unit from its packaging

and discard any protective coverings. Below is a list of

instructions that are recommended for the installation

of an Enardo™ vent valve.

WARNING

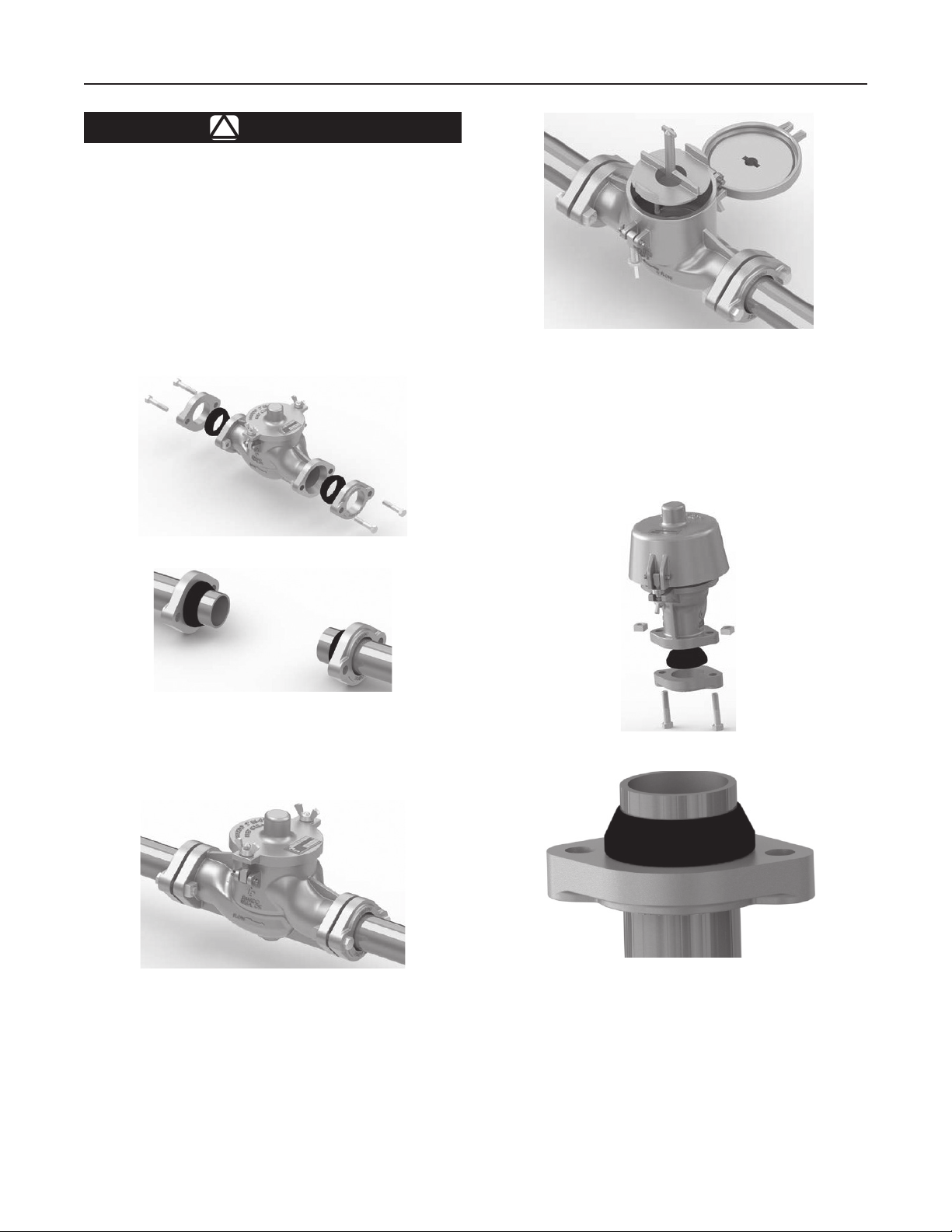

ES-800 Series In-Line Vent Valve

1. Unbolt and remove the anges from the body.

2. Slide the ange onto the receiving pipe. Then

slide the slip-on gasket onto the pipe. The tapered

section of the gasket points away from the ange

and towards the valve. Repeat on the other pipe

using the second ange.

3. Reinstall the ange bolts and nuts, one on each

side. Tighten bolts until anges are ushed against

the body.

4. Install the pallet assembly. The center rib of the

pallet should be in-line with the rib on the body.

Then close the lid and tighten the wing-nuts on

both sides. Check for proper alignment between

the lid and pallet stem. If the pallet is not installed

correctly, the lid would not close.

ES-900 Series End-of-Line Vent Valve

1. Unbolt and remove the anges from the body.

2. Slide the ange onto the receiving pipe. Then

slide the slip-on gasket onto the pipe. The tapered

section of the gasket points away from the ange

and towards the valve (up).

ES-800 and ES-900 Series

North America Only

WARNING

3. Reinstall the ange bolts and nuts, one on each

side of the ange. Tighten bolts until ange is

ushed against the body.

4. Install the pallet assembly. The notch in the center

rib of the pallet should be in-line with the front

guide rod. Check for proper alignment between

the lid and pallet stem. Then close the hood and

tighten the wing-nut. If the pallet is not installed

correctly, the hood would not close.

Maintenance

Ensure the tank is at atmospheric

pressure before opening. A pressure

build-up inside the tank can cause a

spray to be emitted from the vent valve if

opened under pressure.

Do not use greases or oils on guide

rods. These will not allow the vacuum

assembly to work properly.

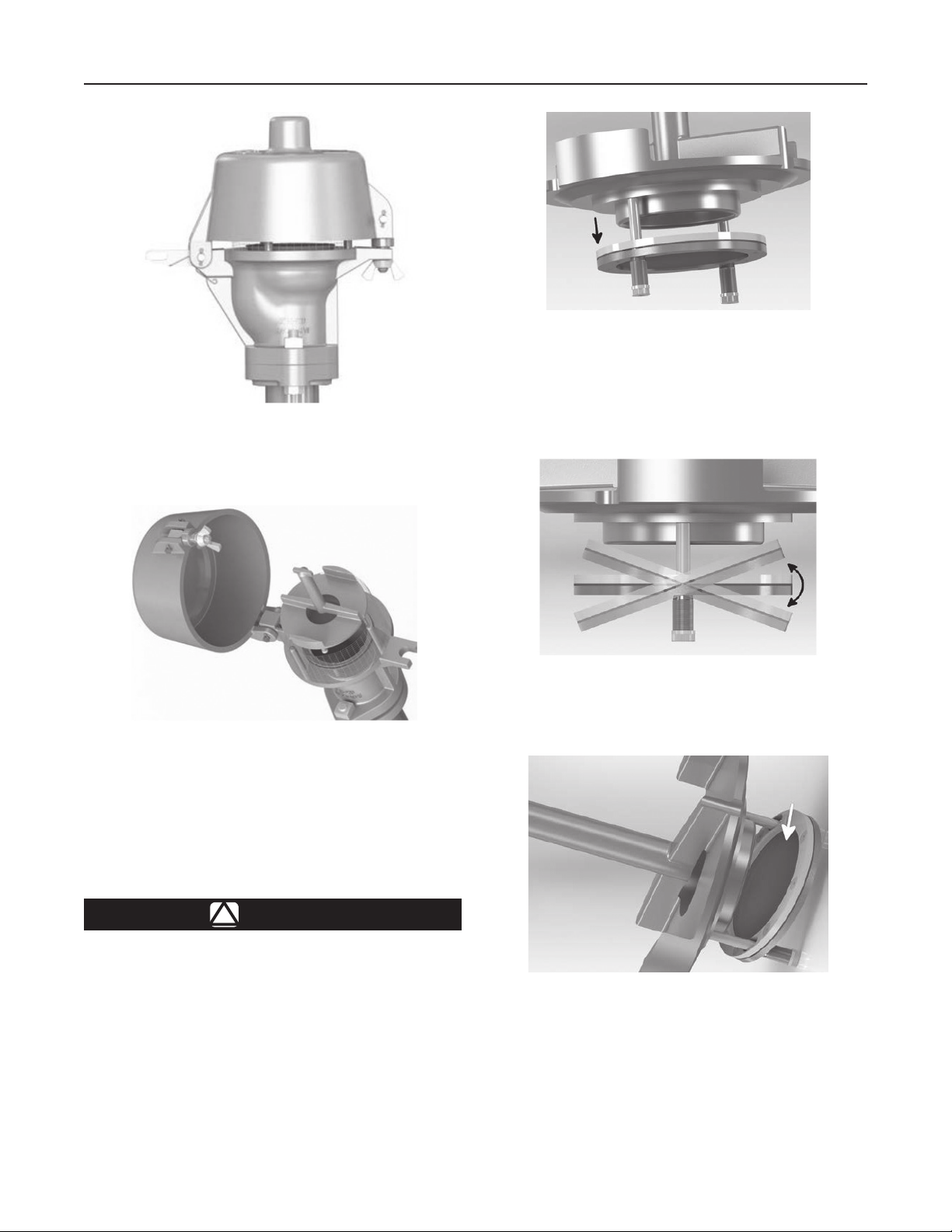

1. Remove the pallet assembly from the valve. Pull

the vacuum disk down until it stops and release it.

If the vacuum disk does not return to the closed

position, clean the rods with a mild solvent and

apply a graphite lubricant. If cleaning does not x the

problem, replace the pallet assembly immediately.

2. Check the vacuum disk for proper opening. Pull the

vacuum disk down until it stops and then rotate the

disk in both directions. If the vacuum disk does not

rotate freely, replace the pallet assembly immediately.

3. Inspect the vacuum gasket. Remove any debris on

this gasket. If there are any tears or holes in the

gasket, replace the pallet assembly immediately.

ES-800 and ES-900 Series

North America Only

WARNING

4. Inspect the pressure seal. Remove any debris on

this seal. If there are any tears or cracks in the

seal, replace the pressure seal immediately.

V-ring Replacement

Ensure the tank is at atmospheric

pressure before opening. A pressure

build-up inside the tank can cause a

spray to be emitted from the vent valve if

opened under pressure.

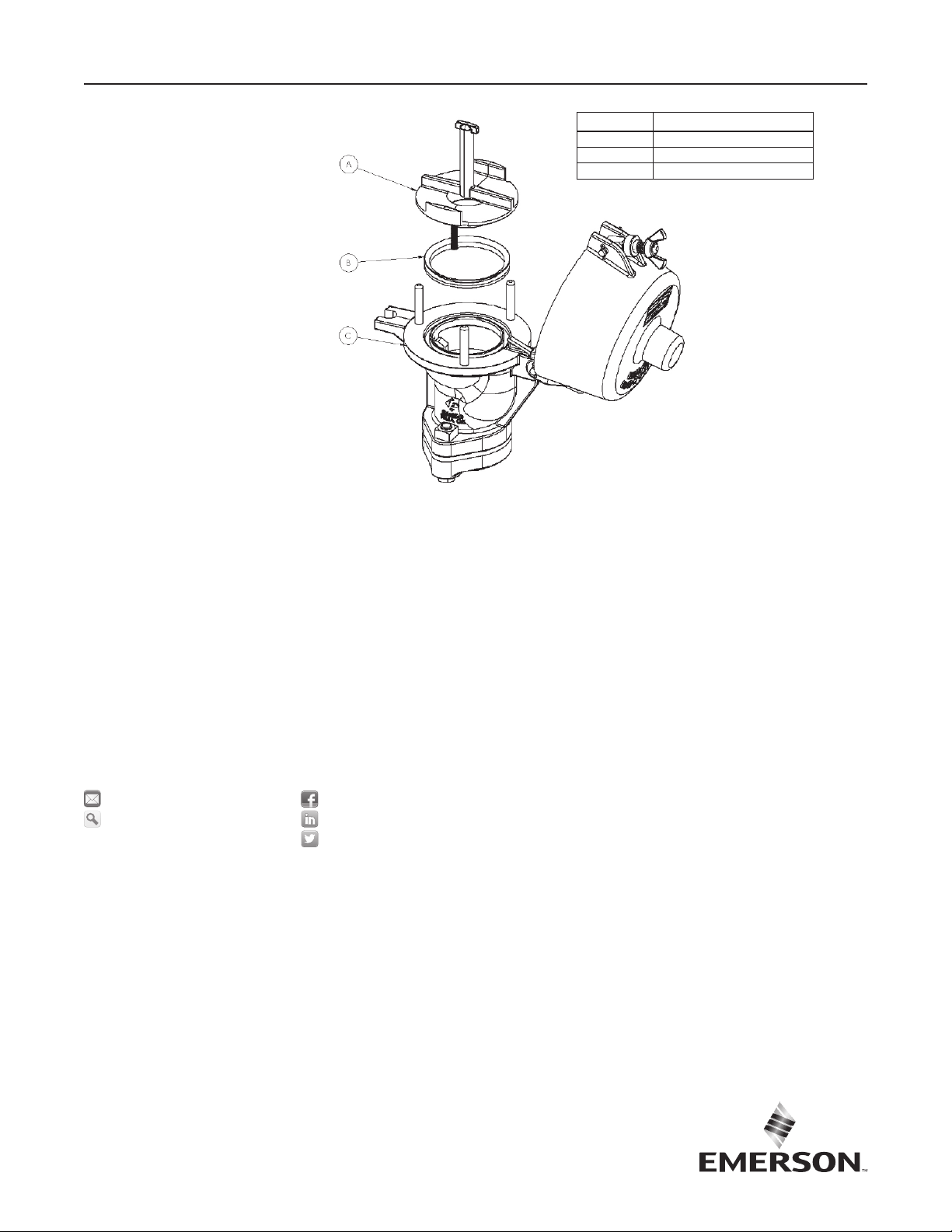

1. Remove the pallet assembly. Grasp the pressure

seal rmly by the lip and pull out.

2. Insert the new seal. Use a nger, wrench or other

smooth edge to apply a rm pressure while sliding

around the entire seal several times. When the

seal is completely seated, there will be no humps

or waves in the lip.

Parts Ordering

When corresponding with your local Sales O󰀩ce about

this equipment, always reference the equipment serial

number that can be found etched on the body.

When ordering replacement parts, specify the

complete 7-character part number of each required

part as found in the following parts list.

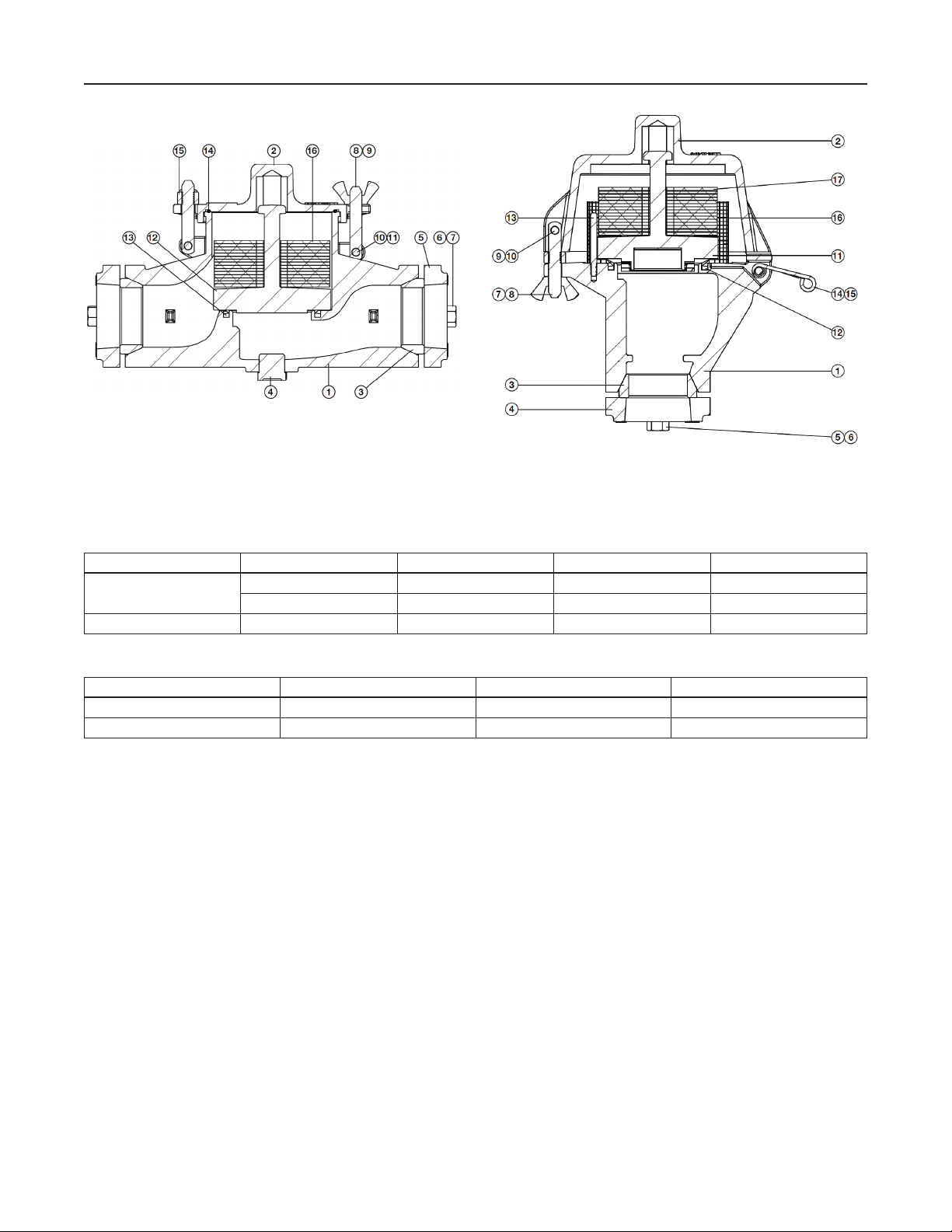

Parts List

ES-800 Series In-line Vent Valve

Key Description Part Number

1 Valve Body

2 in. / 50 mm 3514261

3 in. / 80 mm 3514297

4 in. / 100 mm 3514321

2 Lid

2 in. / 50 mm 3514264

3 in. / 80 mm 3514300

4 in. / 100 mm 3514335

3 Flange Gasket

2 in. / 50 mm 3505501

3 in. / 80 mm 3505502

4 in. / 100 mm 3505503

4 Pipe Plug 2023802

5 Slip-on Flange

2 in. / 50 mm 3508901

3 in. / 80 mm 3508902

4 in. / 100 mm 3508903

6 Hex Bolt

2 in. / 50 mm 2021203

3 in. / 80 mm 2021200

4 in. / 100 mm 2021200

7 Square Nut 2021901

8 Eyebolt 3505601

9 Wing Nut 2001002

10 Latch Pin 4505103

11 Latch Clip (HPC-148) 2027100

12 Pallet Assembly See Table 3

13 V-ring Seal See Table 4

14 Lid O-ring

Buna-N

2 in. / 50 mm 3514285

3 in. / 80 mm 3514318

4 in. / 100 mm 3514365

Viton®

2 in. / 50 mm 3514314

3 in. / 80 mm 3514319

4 in. / 100 mm 3514372

15 Nylock Nut 1/2-13

16 Pressure Weight (as required) - - - - - - -

Viton®is a mark owned by E. I. du Pont de Nemours and Company.

ES-800 and ES-900 Series

North America Only

ES-900 Series In-line Vent Valve

Key Description Part Number

1 Valve Body

2 in. / 50 mm 3514326

3 in. / 80 mm 3514337

4 in. / 100 mm 3514341

2 Hood

2 in. / 50 mm 3514329

3 in. / 80 mm 3514339

4 in. / 100 mm 3514343

3 Flange Gasket

2 in. / 50 mm 3505501

3 in. / 80 mm 3505502

4 in. / 100 mm 3505503

4 Slip-on Flange

2 in. / 50 mm 3508901

3 in. / 80 mm 3508902

4 in. / 100 mm 3508903

5 Hex Bolt

2 in. / 50 mm 2021203

3 in. / 80 mm 2021200

4 in. / 100 mm 2021200

Key Description Part Number

6 Square Nut 2021901

7 Eyebolt 3505601

8 Wing Nut 2001002

9 Latch Pin 4505103

10 Latch Clip (HPC-148) 2027100

11 Pallet Assembly See Table 3

12 V-ring Seal See Table 4

13 Guide Rod

2 in. / 50 mm 3514344

3 in. / 80 mm 3514345

4 in. / 100 mm 3514346

14 Lever 3514350

15 Lever Spring 3514351

16 Screen

2 in. / 50 mm 3514330

3 in. / 80 mm 3514347

4 in. / 100 mm 3514348

17 Pressure Weight (as required) - - - - - - -

Viton®is a mark owned by E. I. du Pont de Nemours and Company.

ES-800 SERIES ES-900 SERIES

NOTE: TOP LID AREA IS ROTATED 90 DEGREES

Figure 7. ES-800 and ES-900 Series Assembly Drawing

Table 3. Pallet Assembly Options

MODEL MATERIAL 2 In. / 50 mm 3 In. / 80 mm 4 In. / 100 mm

ES-800-SO or ES-900-SO Buna-N 3514269 3514271 3514273

Viton®3514270 3514272 3514274

ES-800-PSO or ES-900-PSO - - - - 3514268 3514294 3514333

Table 4. V-Ring Seal - Pressure Seal Options

MATERIAL 2 In. / 50 mm 3 In. / 80 mm 4 In. / 100 mm

Buna-N 3514286 3514316 3514323

Viton®3514313 3514317 3514324

ES-800 and ES-900 Series

North America Only

The Emerson logo is a trademark and service mark of Emerson

Electric Co. All other marks are the property of their prospective owners.

Enardo™ is a mark owned by Regulator Technologies Tulsa, LLC, a

business of Emerson Automation Solutions.

The contents of this publication are presented for informational purposes

only, and while every e󰀨ort has been made to ensure their accuracy,

they are not to be construed as warranties or guarantees, express or

implied, regardingthe products or services described herein or their use

or applicability. All sales are governed by our terms and conditions, which

are available upon request. We reserve the right to modify or improve the

designs or specications of such products at any time without notice.

Emerson Process Management Regulator Technologies, Inc does not

assume responsibility for the selection, use or maintenance of any

product. Responsibility for proper selection, use and maintenance of any

Emerson Process Management Regulator Technologies, Inc. product

remains solely with the purchaser.

Figure 8. ES-900 Series Assembly Drawing

NOTE: PARTS A AND B ABOVE ARE USED IN BOTH

ES-800 AND ES-900 SERIES. PART C VARIES

BASED ON THE MODEL.

ITEM ID DESCRIPTION

A Pallet assembly

B Pressure seal

C Valve body assembly

ES-800 and ES-900 Series

Facebook.com/EmersonAutomationSolutions

LinkedIn.com/company/emerson-automation-solutions

Twitter.com/emr_automation

[email protected]

Enardo.com

North America Only

Emerson Automation Solutions

Americas

McKinney, Texas 75070 USA

T +1 800 558 5853

+1 972 548 3574

Tulsa, OK 74146 USA

T +1 918 662 6161

Europe

Bologna 40013, Italy

T +39 051 419 0611

Asia Pacic

Singapore 128461, Singapore

T +65 6770 8337

Middle East and Africa

Dubai, United Arab Emirates

T +971 4 811 8100

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Emerson Unité de contrôle

Emerson

Emerson Fisher Baumann 26000 Manuel utilisateur

Emerson

Emerson CASH VALVE C776 Manuel utilisateur

Emerson

Emerson AVENTICS 501 Series Manuel utilisateur

Emerson

Emerson Fisher F Series Manuel utilisateur

Emerson

Emerson Fisher POSI-SEAL A31A Manuel utilisateur

Emerson

Emerson Alco Controls 110RB Manuel utilisateur

Emerson

Emerson ACE97 Manuel utilisateur

Emerson

Emerson CROSBY STYLE HC ISOFLEX Mode d’emploi

Emerson

Emerson Keystone K-Lok 360 Series Mode d'emploi

Emerson

Emerson KTM 2-WAY Manuel

Emerson

Emerson EXD-U02 Manuel utilisateur

Emerson

Emerson Type E Manuel utilisateur

Emerson

Emerson Alco Controls M36 Series Manuel utilisateur

Emerson

Emerson Keystone Figure 221 Series Manuel utilisateur

Emerson

Emerson Keystone PED Guide rapide

Emerson

Emerson RSTi-OM Manuel utilisateur

Emerson

Emerson ANDERSON GREENWOOD 4142HF Manuel

Emerson

Emerson Fisher DSV1000 Manuel utilisateur

Emerson

Emerson Fisher C407-10 Manuel utilisateur

Emerson

Emerson Anderson Greenwood 93 Series Manuel utilisateur

Emerson

Emerson YARWAY GS-1 Manuel utilisateur

Emerson

Emerson CSI 6500 Manuel utilisateur

Emerson

Emerson FASANI Manuel utilisateur

Emerson

Emerson Sempell series Manuel utilisateur

Manuels Unité de contrôle populaires d'autres marques

Festo

Festo Compact Performance CP-FB6-E Manuel de la liste des pièces

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuel utilisateur

JS Automation

JS Automation MPC3034A Manuel utilisateur

JAUDT

JAUDT SW GII 6406 Series Guide rapide

Spektrum

Spektrum Air Module System Manuel utilisateur

BOC Edwards

BOC Edwards Q Series Manuel utilisateur

KHADAS

KHADAS BT Magic Manuel utilisateur

Etherma

Etherma eNEXHO-IL Manuel utilisateur

PMFoundations

PMFoundations Attenuverter Manuel utilisateur

GEA

GEA VARIVENT Manuel utilisateur

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuel utilisateur

Altronix

Altronix LINQ8PD Instructions de montage

Eaton

Eaton Powerware Series Manuel utilisateur

WAGO

WAGO 750-407/040-000 Manuel utilisateur

Sony

Sony CCU-590 Manuel utilisateur

Graco

Graco 25D614 Manuel utilisateur

Task Force Tips

Task Force Tips YE-RF-900 Manuel de programmation

Shini

Shini SPV-U Series Manuel utilisateur
