P/N 300-011-668 Rev A01

Installation Guide

EMC®VNX5300™System

EMC believes the information in this publication is accurate as of its publication date. The information is

subject to change without notice.

THE INFORMATION IN THIS PUBLICATION IS PROVIDED “AS IS.” EMC CORPORATION

MAKES NO REPRESENTATIONS OR WARRANTIES OF ANY KIND WITH RESPECT TO THE

INFORMATION IN THIS PUBLICATION,AND SPECIFICALLY DISCLAIMS IMPLIED WARRANTIES

OF MERCHANTABILITY OR FITNESS FORAPARTICULAR PURPOSE.

Use, copying, and distribution of any EMC software described in this publication requires an applicable

software license.

For the most up-to-date regulatory document for your product line, go to the Technical Documentation

and Advisories section on EMC Online Support site.

For the most up-to-date listing of EMC product names, see EMC Corporation Trademarks on

EMC.com. All other trademarks used herein are the property of their respective owners.

Your Comments

Your suggestions will help us continue to improve the accuracy, organization, and overall

quality of the user publications

Please send your opinions of this document to:

[email protected]

About this book

The EMC VNX5300™and its conﬁgurations

The VNX5300 system has three conﬁgurations--different combinations of hardware, software, and

resulting capabilities. They are Block, File, and Uniﬁed (explained and illustrated below). The

conﬁguration of your system should be indicated on the EMC Unisphere™ license in your order.

For hardware installation and conﬁguration, there is little difference between the File conﬁguration and the

Uniﬁed conﬁguration. As a result, in this book they have been combined.

This installation guide covers both the Block conﬁguration (starting on page 5) and the File/Uniﬁed

conﬁguration (starting on page 39). Please review the contents applicable to your conﬁguration before

starting your installation. This book includes planning worksheets, directions for unpacking, racking, and

cabling the hardware, and then instructions for initializing and conﬁguring the system. It also contains

references for ﬁnding additional resources.

The VNX5300 Block system utilizes a Standby Power Supply and a Disk Processor Enclosure with

dual Storage Processors. The Disk Processor Enclosure can be either a 15-disk enclosure or a 25-disk

enclosure. It can (optionally) include disk-array enclosures for additional storage capacity. Its operating

environment sets up the system for Block storage.

Standby power supply

Disk processor

enclosure 3U, 15 disk processor enclosure front

3U, 25 disk processor front

12345678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24

Caution: Array Software on drives 0-4. Removing or relocating them

Will Make the Array Unusable

Caution: Array Software on drives 0-4. Removing or relocating them

About this book

The VNX5300 File system utilizes the Standby Power Supply and Disk Processor Enclosure and includes

one or two Control Stations and one or two Data Movers. Like the Block system, additional disk-array

enclosures can be included for additional storage. The VNX5300 operating environment sets up its system

for File storage.

DVD

Control Station 1

DVD

Control Station 0

Standby power supply

Disk processor

enclosure

Control Station 0

Control Station 1

(optional)

PS B0 PS B1

CPU B

PS A0 PS A1

CPU A

AC AC AC AC

Blade enclosure

As with the Block conﬁguration, the File and Uniﬁed conﬁgurations can include either the 3U 15-disk DPE

(shown) or the 3U 25-disk DPE.

The VNX5300 Uniﬁed system includes the same hardware components as the VNX5300 File system.

They are installed in exactly the same order and in the same positions as the File system. There may be

additional I/O modules in the Uniﬁed system’s storage processors. In addition, the Uniﬁed conﬁguration

includes software that enables both Block and File storage.

The installation of all these conﬁgurations is covered in this manual, although you should only need to

follow the section that applies to your conﬁguration.

However, since the VNX5300 Block and the VNX5300 File can be upgraded to the Uniﬁed system, and

thus allow you to move from either Block storage or File storage to a Uniﬁed system in the future, we urge

you to plan the installation carefully. If you want to move from a Block system to a Uniﬁed system, for

example, reserve 4U of cabinet space above the DPE for the additional hardware components. Moving

from a File system to a Uniﬁed system does not require any additional cabinet space unless additional

drives and DAEs are to be added for providing block storage.

Before you begin

VNX Block Conﬁguration

Welcome

If you do not already have a Product Support account, go to https://support.emc.com/products/

VNX5300 and set one up immediately. You will need a support account for access to the latest

documentation and troubleshooting information, online chat, installation/maintenance videos, and

utilities and wizards.

Software upgrade

If you bought a software maintenance contract, you are entitled to software upgrades only

after the installation and registration have successfully completed.

Site preparation

Make sure your site includes the following resource requirements:

AC power

• For high availability: At least two 110 or 240 V AC circuits are required.

Network connections

• Two 1-Gigabit Ethernet management connections

• Cabinet vertical space 3U (5.25 inches, 13.33 cm) for disk processor enclosure (DPE)

and 1U for the standby power supply (SPS). A total of 4U minimum vertical space is required,

plus space for any DAEs.

• Space for each optional DAE

A Windows-based computer to initialize the VNX5300 Block system with:

• At least 100 MB of free space

• Connection on same physical subnet as your VNX5300 system

• SMTP server network connection to the VNX5300 and the management host (recommended)

Planning Worksheet

With your network administrator, determine the IP addresses and network parameters you plan to use

with the storage system, and record the information on the following worksheet. You must have this

information to set up and initialize the system.

You manage the storage system through a dedicated LAN port on each storage processor. These ports

must share a subnet with the host you use to initialize the system. After initialization, any host on the

same network and with a supported browser can manage the system through the management ports.

In a server with multiple NICs or iSCSI HBAs that are connected directly to the storage system, or that

are on a dedicated iSCSI network, each initiator port must be on a separate subnet.

Record network information for your system on the worksheet on the next pages. Your network

administrator should provide most of this information. For more information, refer to your conﬁguration

planning guide.

IPv4 Management Port Information:

IPAddress Subnet Mask Gateway

SP A:

SP B:

IPv6 Management Port Information (manual conﬁguration only):

Global preﬁx:

Gateway:

NOTE: Do not use 128.221.1.248 through 128.221.1.255, 192.168.1.1, or 192.168.1.2 for an IPv4

IP address.

Username:

Password:

Storage-system serial number:

Scope:

NOTE: The storage-system serial number is located on the PSN tag hanging from the rear of the

chassis. The number is identiﬁed as SN/Product ID.

Planning Worksheet

IPv4 address for iSCSI targets:

SP, slot, and port Local port

number Target Port IP

address Subnet mask Gateway

SPA, slot __, port 0

SPA, slot __, port 1

SPB, slot __, port 0

SPB, slot __, port 1

SPA, slot __, port 0

SPA, slot __, port 1

SPB, slot __, port 0

SPB, slot __, port 1

SPA, slot __, port 0

SPA, slot __, port 1

SPB, slot __, port 0

SPB, slot __, port 1

SPA, slot __, port 0

SPA, slot __, port 1

SPB, slot __, port 0

SPB, slot __, port 1

Planning Worksheet

IP address for each iSCSI NIC or HBA port (iSCSI initiator):

Server and port Initiator IP address Subnet mask Default gateway

SPS

DPE

DAE

(optional)

DAE

(optional)

Will Make the Array Unusable

Caution: Array Software on drives 0-4. Removing or relocating them

VNX5300 Assembly

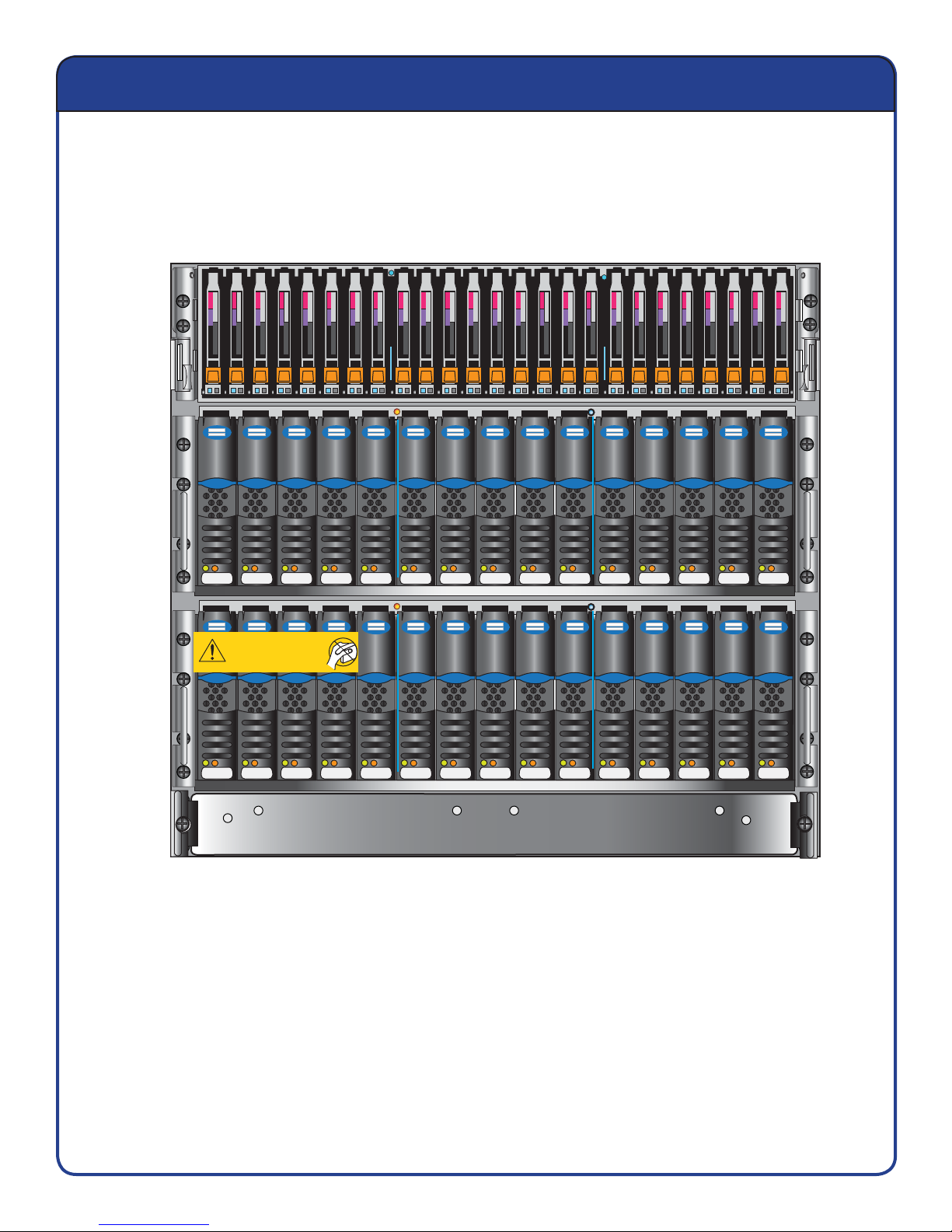

Front view of an assembled VNX5300, shown here with a 15-disk DPE and 2 DAEs.

Step 5. Configure the system, provision storage,

and connect to storage resources from hosts.

Step 2. Assemble and cable

Disk-array is optional.

Step 1. Unpack and

prepare the site.

Step 3. Power up the system

EMC

Step 4. Register your system

Will Make the Array Unusable

Caution:Array Software on drives 0-4. Removing or relocating them

Installation overview steps
