EMC VNXe3200 Manuel utilisateur
EMC® VNXe2 Series
VNXe3200 Installation Guide
P/N 300-015-331
REV 03
Copyright © 2014-2015 EMC Corporation. All rights reserved. Published in USA.
Published November, 2015
EMC believes the information in this publication is accurate as of its publication date. The information is subject to change
without notice.
The information in this publication is provided as is. EMC Corporation makes no representations or warranties of any kind with
respect to the information in this publication, and specifically disclaims implied warranties of merchantability or fitness for a
particular purpose. Use, copying, and distribution of any EMC software described in this publication requires an applicable
software license.
EMC², EMC, and the EMC logo are registered trademarks or trademarks of EMC Corporation in the United States and other
countries. All other trademarks used herein are the property of their respective owners.
For the most up-to-date regulatory document for your product line, go to EMC Online Support (https://support.emc.com).
EMC Corporation
Hopkinton, Massachusetts 01748-9103
1-508-435-1000 In North America 1-866-464-7381
www.EMC.com
2EMC VNXe2 Series VNXe3200 Installation Guide
Unpack your system 5
Unpack the disk processor enclosure.............................................................. 6
Unpack [optional] disk-array enclosures..........................................................7
Prepare your system 11
Before you begin........................................................................................... 12
Installation requirements.............................................................................. 12
Rack and install 15
Install the DPE rails....................................................................................... 16
Installing the DPE adjustable rails.................................................... 16
Installing Snap-in Rails.................................................................... 17
Install the disk processor enclosure.............................................................. 20
Installing the disk processor enclosure......................................................... 21
Install the DAE rails....................................................................................... 22
Install 2U DAE rails...........................................................................22
Installing Snap-in Rails.................................................................... 23
Install the disk array enclosure......................................................................26
Install the 2U DAE............................................................................ 26
Cabling the DPE to a DAE...............................................................................27
Cable the DPE to DAE.....................................................................................28
Attach the storage processors to the network................................................ 31
Power up.......................................................................................................32
Verify status LEDs..........................................................................................35
Attach the bezels.......................................................................................... 37
Connect 41
Connect a management station..................................................................... 42
Automatically Assigning a Dynamic VNXe Management Port IP Address.........42
Manually Assigning a Static VNXe Management Port IP Address.................... 43
Chapter 1
Chapter 2
Chapter 3
Chapter 4
CONTENTS
EMC VNXe2 Series VNXe3200 Installation Guide 3
CONTENTS
4EMC VNXe2 Series VNXe3200 Installation Guide
CHAPTER 1
Unpack your system
Unpack and install the system components. Verify that you have everything that you need
to assemble and cable the system.
lUnpack the disk processor enclosure...................................................................... 6
lUnpack [optional] disk-array enclosures..................................................................7
Unpack your system 5
Unpack the disk processor enclosure
The disk processor enclosure (DPE) is a 2U component with either twelve 3.5" drive slots
or twenty-five 2.5" drive slots. Verify that you have received all of the DPE components,
including cables, bezel, rail kit, and mounting screws.
Table 1 DPE container contents
Item
Disk processor enclosure
(DPE) - 2U component with
either
12 3.5" drive slots
or
25 2.5" drive slots
Twelve 3.5" drive slots
Installation
Removing these drives will
make the array unusable
SPD
Removing these drives will
make the array unusable
SPD
Removing these drives will
make the array unusable
SPD
Removing these drives will
make the array unusable
SPD
1
Twenty-five 2.5" drive slots
e0 e1 e2 e3
2345
AC
DC
HDMI
X4
6Gb SAS 1GbE
2/4Gb 8Gb
10GbE
1
0
e0 e1 e2 e3
2345
AC
DC
HDMI
X4
6Gb SAS 1GbE
2/4Gb 8Gb
10GbE
1
0
Will Make the Array Unusable
Caution:Array Software on drives 0-3. Removing or relocating them
Rail kit, including
Adjustable rails (2)
Adjustable rails and DPE
mounting screws (10)
or
Snap-in rails (2)
Snap-in rails and DPE
mounting screws (6)
Adjustable rails
Unpack your system
6EMC VNXe2 Series VNXe3200 Installation Guide

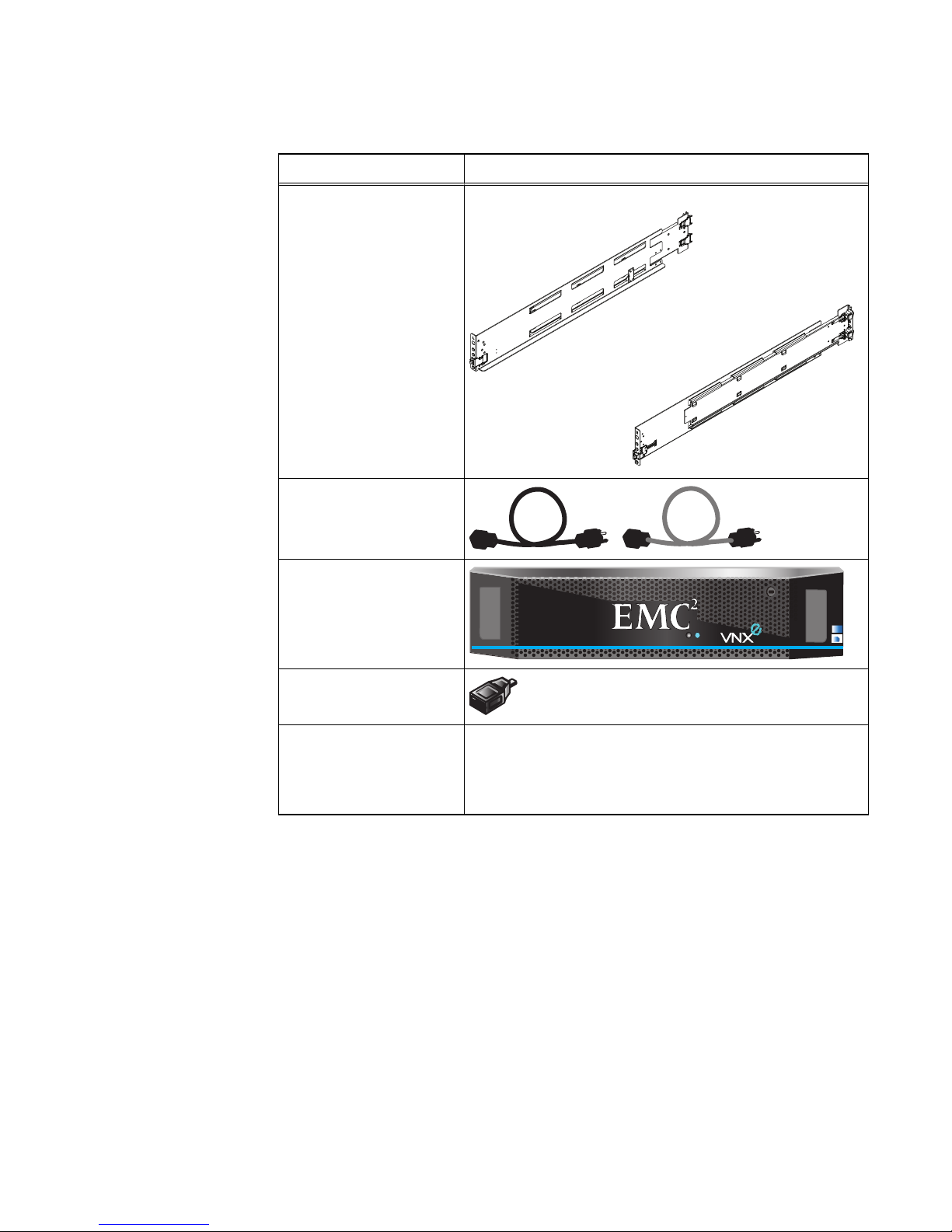

Table 1 DPE container contents (continued)
Item
Snap-in rails
CL5583
Power cables (2)
Bezel (1), with key
Mini-USB adaptor (1)
Documentation kit Quick Start document
Configuration Worksheet
Environmental information
Unpack [optional] disk-array enclosures
Disk-array enclosures (DAEs) provide additional storage. The VNXe3200 can utilize either
of two DAEs. One is a 2U twelve disk 3.5" drive DAE. The other is a 2U twenty-five disk
2.5" drive DAE. DAEs are optional. If you have one or more DAE in the system, verify that
you have received all of the DAE components, including cables, bezel, rail kit, and
mounting screws.
Unpack your system
Unpack [optional] disk-array enclosures 7
Table 2 DAE container contents
Item
Disk-array enclosure (DAE) - 2U
component with either
12 3.5" disks
or
25 2.5" disks
DAE with twelve 3.5" disks
Installation
X4
6Gb SAS
1
#
X4
6Gb SAS
X4
6Gb SAS
1
#
X4
6Gb SAS
DAE with twenty-five 2.5" disks
6 Gb
SAS
X4
#
6 Gb
SAS
X4
#
Mounting screws (4)
Rail kit, including
Adjustable rails (2)
Screws (3 per rail)
or
Snap-in rails (2)
Screws (3 per rail)
Adjustable rails
Unpack your system
8EMC VNXe2 Series VNXe3200 Installation Guide
Table 2 DAE container contents (continued)
Item
Snap-in rails
CL5583
Power cables (2)
SAS cables (2)
mini-SAS to mini-SAS
connectors
DAE to DAE connections
cable label sheet
SAS cables (2)
mini-SAS HD to mini-SAS
connectors
DPE to DAE connections
cable label sheet
Bezel (1), with key
Unpack your system
Unpack [optional] disk-array enclosures 9
Unpack your system
10 EMC VNXe2 Series VNXe3200 Installation Guide
