Elo TouchSystems X-Series Manuel utilisateur

www.elotouch.com

Elo Touch Solutions Technical Support

Online self-help: www.elotouch.com/go/websupport

Technical Support contacts in your region:

www.elotouch.com/go/contactsupport

The information in this document is subject to change without notice. Elo Touch Solutions, Inc. and its Afliates (collectively “Elo”) makes

no representations or warranties with respect to the contents herein, and specically disclaims any implied warranties of merchantability or

tness for a particular purpose. Elo reserves the right to revise this publication and to make changes from time to time in the content hereof

without obligation of Elo to notify any person of such revisions or changes.

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or

computer language, in any form or by any means, including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise

without prior written permission of Elo Touch Solutions, Inc.

Elo (logo) and Elo Touch Solutions are trademarks of Elo and its Afliates.

North America

Elo Touch Solutions

1033 McCarthy Boulevard

Milpitas, CA 95035

800-ELO-TOUCH

Tel +1 408 597 8000

Fax +1 408 597 8050

[email protected]

Europe

Tel +32 (0)16 70 45 00

Fax +32 (0)16 70 45 49

[email protected]

Asia-Pacic

Tel +86 (21) 3329 1385

Fax +86 (21) 3329 1400

www.elotouch.com.cn

Latin America

Tel 786-923-0251

Fax 305-931-0124

www.elotouch.com

Revision A

P/N E001016

Quick Installation Guide

X-Series

All-in-One TouchComputer

Included items:

1x X-Series Touchcomputer

1x US Power Cable

1x European Power Cable

1x Power Brick

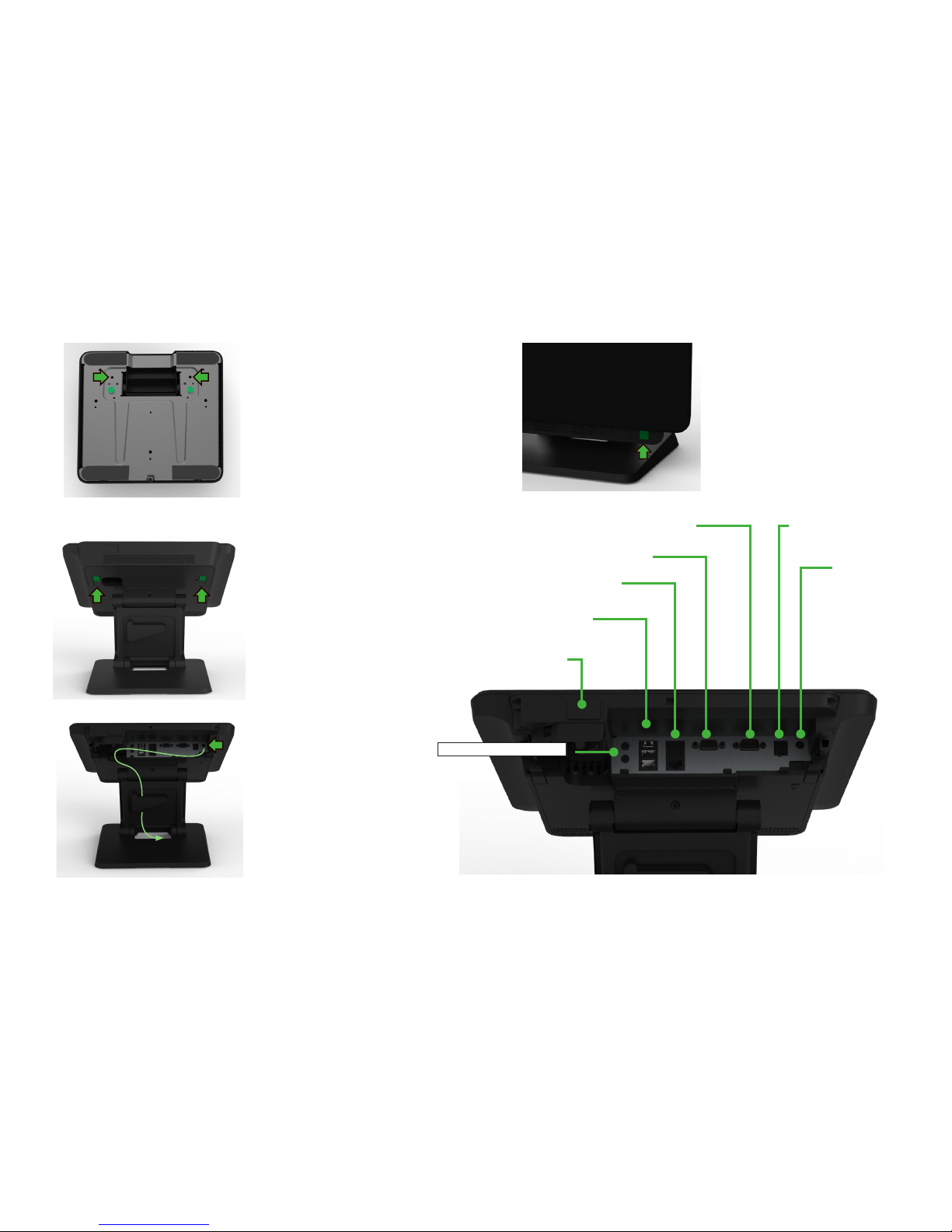

The stand supports both

upright and lowered

orientations. The stand is

set to the lowered postion

from the factory. Change

the orientation to upright by

removing the green colored

screws from the bottom of

the stand and install them in

the location marked by the

arrows

Go to www.elotouch.com/support to download user manual.

Tilt the display back to

access the I/O connections

and remove the cable cover.

Connect the power cable to

the DC power jack marked

by the arrow. Then route the

cable through the cable clips

and through the bottom of the

stand.

The power button is located at

the bottom as shown.

RS-232 and

USB X2

Ethernet and

USB X2

+24V PUSB

(X3/X5/X7 models only)

DC Power

Input

VGA

Serial RS-0232

Mic / headphone out
