Elo TouchSystems Elo 1000 Series 1715L Manuel utilisateur
Touchmonitor User Guide
1715L 17¨ LCD Desktop Touchmonitor
1000 Series
User Guide
17"LCD Desktop
ET1715L Series
Revision C
P/N E183495
Copyright © 2008 Tyco Electronics.All Rights Reserved.
No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval
system, or translated into any language or computer language, in any form or by any means,
including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise with-
out prior written permission of Elo TouchSystems.
Disclaimer
The information in this document is subject to change without notice. EloTouchSystems makes no
representations or warranties with respect to the contents hereof, and specifically disclaims any
implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems re-
serves the right to revise this publication and to make changes from time to time in the content
hereof without obligation of Elo TouchSystems to notify any person of such revisions or changes.
Trademark Acknowledgments
IntelliTouch, SecureTouch,AccuTouch, and MonitorMouse are trademarks of Elo TouchSystems.
Other product names mentioned herein may be trademarks or registered trademarks of their
respective companies. Elo TouchSystems claims no interest in trademarks other than its own.
iii
Table of Contents
Chapter1
Introduction 7
Product Description ...................................................7
Precautions ................................................................7
Chapter2
Installation and Setup .................................... 9
Unpacking Your Touchmonitor...................................9
Product Overview ......................................................10
Main Unit ..............................................................10
Rear View ............................................................10
Touch Interface Connection .......................................11
Installing the Driver Software .....................................12
Installing the Serial Touch Driver .........................13
Installing the Serial Touch Driver for Windows
XP, Windows 2000, Me, 95/98 and NT 4.0 .....13
Installing the Serial Touch Driver for MS-DOS
and Windows 3.1..................................................14
Installing the USB Touch Driver...........................15
Installing the USB Touch Driver for Windows
XP, Windows 2000, Me, 95/98 and NT 4.0 .....15
Installing APR USB Touch Driver for
Windows XP ........................................................16
Chapter3
Operation 17
About Touchmonitor Adjustments ..............................17
Front Panel Controls ............................................18
Controls and Adjustment ............................................19
OSD Menu Functions ..........................................19
OSD Control Options ...........................................20
Preset Modes.......................................................21
Power Management System ................................22
Display Angle .............................................................22
Chapter4
Troubleshooting 23
Solutions to Common Problems .................................23
AppendixA
Native Resolution .......................................................25
AppendixB
Care and Handling of Your Touchmonitor ..................28
v
AppendixC
Touchmonitor Specifications ......................................30
IntelliTouch Touchmonitor Specifications .............31
AccuTouch Touchmonitor Specifications.............32
Surface Capacity Touchscreen
Specifications.......................................................33
Acoustic Pulse Recognition Specifications ..........34
17" LCD Touchmonitor (ET1715L-XXWA-1-G)
Dimensions ................................................................35
Regulatory Information ............................... 37
Warranty ...................................................... 39
Index ......................................................................42
C H A P T E R
1
INTRODUCTION
Product Description
Your new touchmonitor combines the reliable performance of touch technology with the latest
advances in LCDdisplay design.This combination of features creates a natural flow of information
between a user and your touchmonitor.
This LCD monitor incorporates 17” color active matrix thin-film-transistor (TFT) liquid crystal
display to provide superior display performance. A maximum resolution of SXGA1280 x 1024 is
ideal for displaying graphics and images. Other outstanding designs that enhance this LCDmonitor’s
performance are Plug & Play compatibility, and OSD(On ScreenDisplay) controls.
Precautions
Follow all warnings, precautions and maintenance as recommended in this user’s manual to
maximize the life of your unit. SeeAppendix B for more information on touchmonitor safety.
1-7
About the Product
Your LCDDesktop Touchmonitor is a 17” SXGATFT color display with the following features:
• The internal microprocessor digitally controls auto-scanning, for horizontal scan frequencies
between 31.5 KHz and 80 KHz, and vertical scan frequencies between 56.3 Hz and 75.0 Hz. In
each frequency mode, the microprocessor-based circuitry allows the monitor to function at the
precision-of a fixed frequency.
• High contrast color TFT LCDdisplay supports resolutions up to SXGA1280 x 1024. It is
Compatable withVGA,SVGA,XGA,SXGA(non-interlaced)andmostMacintoshcompatiblecolor
video cards.
• Power management system conforms to VESADPMS standard.
• SupportsDDC1/2B for Plug & Play compatibility.
• Advanced OSDcontrol for picture quality adjustment.
• Detachable stand for wall-mounting application.
• Integrated touch screen function.
For full Product Specifications refer toAppendix C.
1-8 Elo Touchmonitor User Guide
C H A P T E R
2
INSTALLATION AND SETUP
This chapter discusses how to install your LCDtouchmonitor and how to install the driver software.
Unpacking Your Touchmonitor

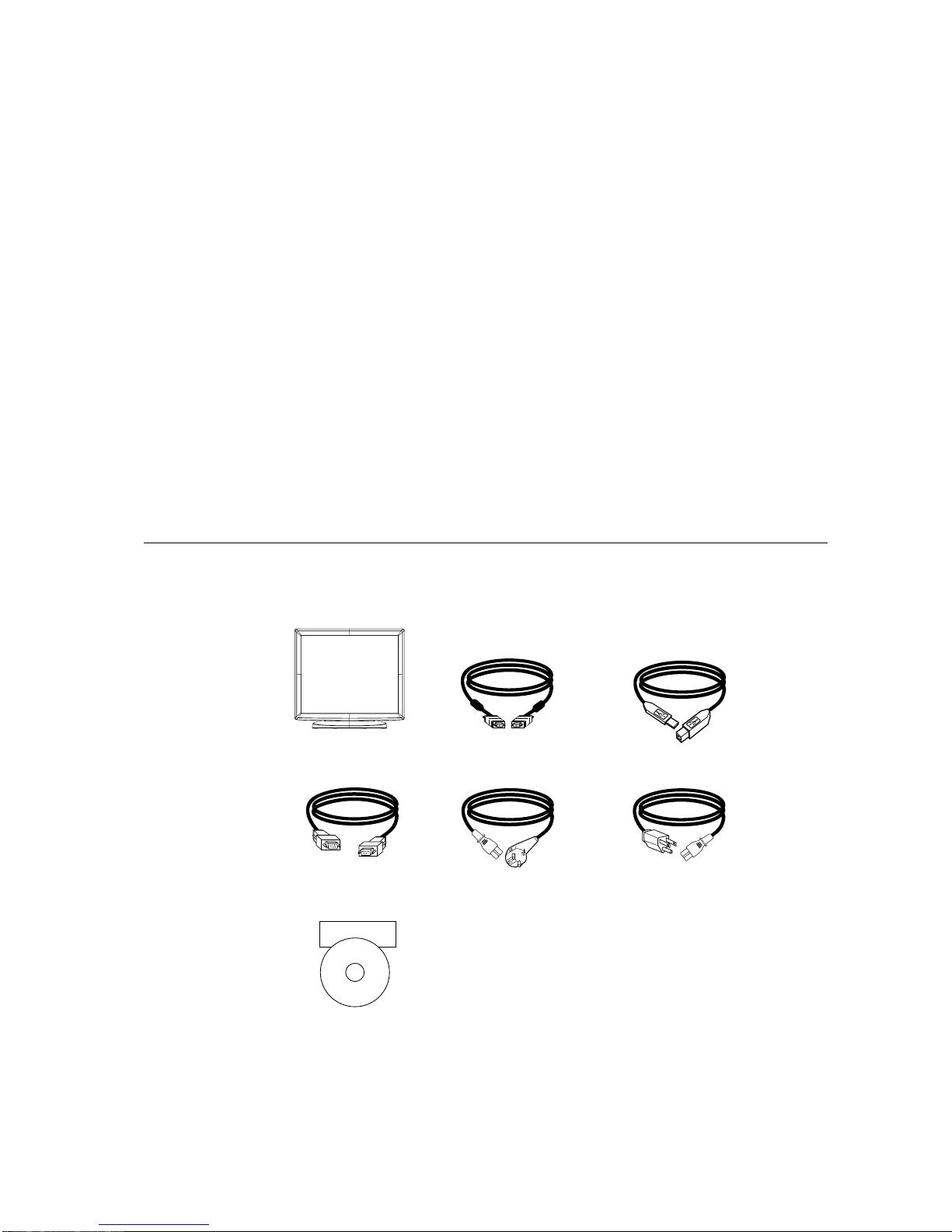

Check that the following 8 items are present and in good condition:
LCD monitor VGAcable USB cable
Serial Cable European power cable Power cable US/Canada
CDand Quick InstallGuide
2-9
Elo QuickStart
CD
Software
Touch Interface Connection
Note: Before connecting the cables to your touchmonitor and PC, be sure that the computer and
touchmonitor are turned off.
DC JACK
DC JACK
1. Connect one end of the power cord to the monitor and the other end to the outlet.
2. Connect one end of either the touchscreen serial(RS232) cable or the touch screen USB cable
(but not both) to the rear side of the computer and the other end to the LCDmonitor. Tighten by
turning the two thumb screws clockwise to ensure proper grounding(USB cable does not have
thumb screws)
3. Connect one end of the video cable to the rear side of computer and the other to the LCDmonitor.
Tighten by turning the two thumb screws clockwise to ensure proper grounding.
4. Press the power button on the front panel to turn the monitor power on.
2-10 Elo Touchmonitor User Guide
1
3
2
2
Power Cord Video CableUSB Cable Serial Cable
1
3
2
Power Cord Video CableUSB Cable
For APR model only
Product Overview
Main Unit
Rear View
2-11
Installing the Driver Software
Elo TouchSystems provides driver software that allows your touchmonitor to work with your
computer.Drivers are located on the enclosed CD-ROM for the following operating systems:
• WindowsXP
• Windows 2000
• Windows Me
• Windows 98
• Windows 95
• WindowsNT4.0
Additional drivers and driver information for other operating systems are available on the Elo
TouchSystems web site at www.elotouch.com.
Your Elo touchmonitor is plug-and-play compliant. Information on the video capabilities of your
touchmonitor is sent to your video display adapter when Windows starts. If Windows detects your
touchmonitor, follow the instructions on the screen to install a generic plug-and-play monitor.
Refer to the appropriate following section for driver installation instructions.
Depending upon whether you connected the serial communication cable or the USB
communication cable, you should install only the serial driver or the USB driver.
2-12 Elo Touchmonitor User Guide
