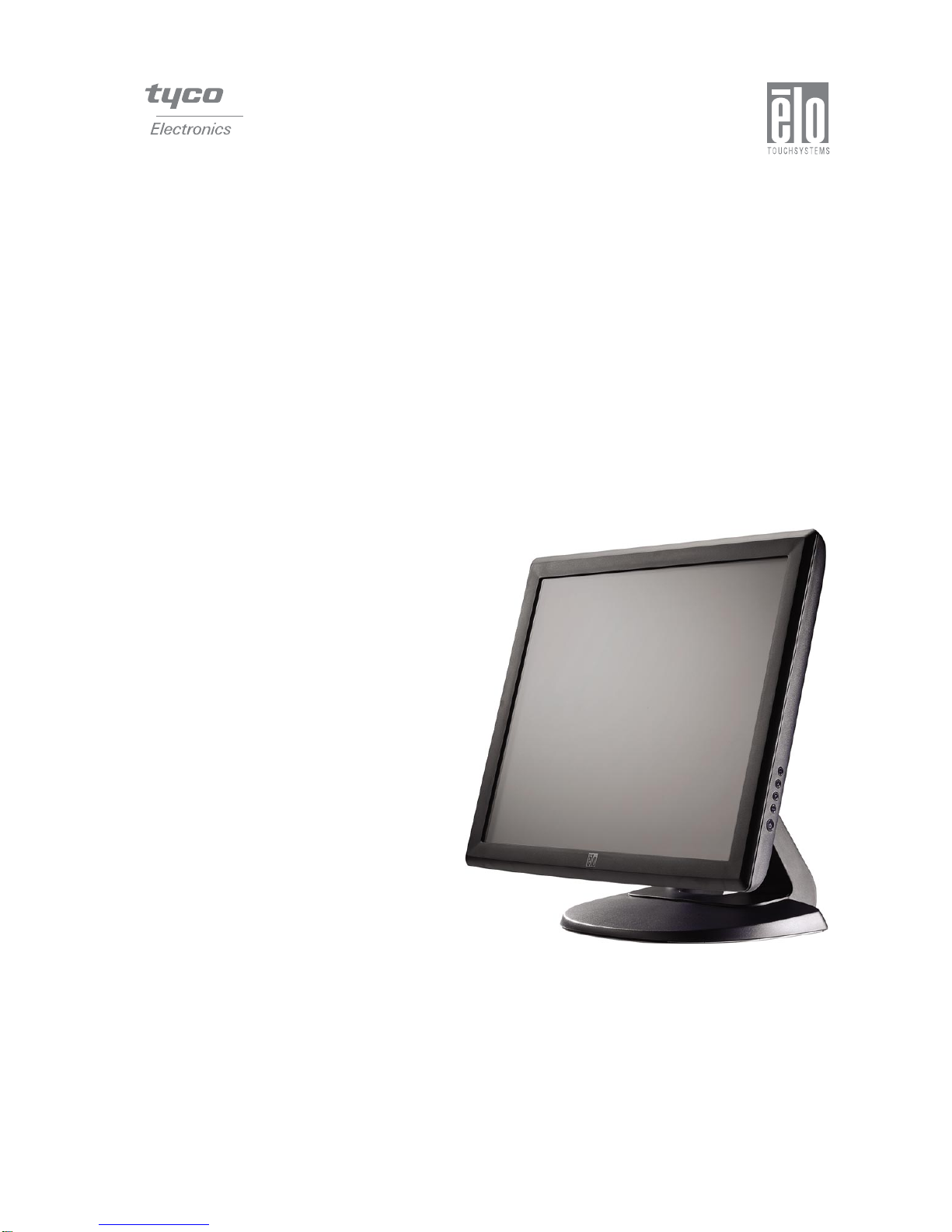

Elo TouchSystems 5000 Series Manuel utilisateur

Touchmonitor User Guide

1928L 19” LCD Desktop Touchmonitor

5000 Series

Revision B

User Guide

1928L 19” LCD Desktop Touchmonitor

Revision B

P/N E116103

No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval

system, or translated into any language or computer language, in any form or by any means,

including, but not limited to, electronic, magnetic, optical, chemical, manual, or otherwise with-

out prior written permission of Elo TouchSystems.

Disclaimer

The information in this document is subject to change without notice. Elo TouchSystems makes

no representations or warranties with respect to the contents hereof, and specifically disclaims

any implied warranties of merchantability or fitness for a particular purpose. Elo TouchSystems

reserves the right to revise this publication and to make changes from time to time in the content

hereof without obligation of Elo TouchSystems to notify any person of such revisions or changes.

Trademark Acknowledgments

Elo Touchsystems AccuTouch and IntelliTouch are trademarks of Tyco Electronics Corporation.

Other product names mentioned herein may be trademarks or registered trademarks of their re-

spective companies.

iii

Warnings and Cautions

Warning

• Danger - Explosion hazard. Do not use in the presence of flammable anesthetics, and other

flammable materials.

• To prevent fire or shock hazards, do not immerse the unit in water or expose it to rain or

moisture.

• Do not use the unit with an extension cord receptacle or other outlets unless the prongs of the

power cord can be fully inserted.

• RISK OF ELECTRICAL SHOCK - DO NOT OPEN. To reduce the risk of electrical shock,

DO NOT remove the back of the equipment or open the enclosure. No user-serviceable parts

are inside. Refer servicing to qualified field service engineers only.

• Uninsulated voltage within the unit may have sufficient magnitude to cause electrical shock.

Avoid contact with any part inside the unit.

Caution

• Power cord is used as a disconnection device. To de-energize equipment, disconnect the

power cord.

• This unit must follow the national requirement, and local state laws to dispose unit.

• Before connecting the cables to your Elo touchmonitor, make sure all components are

powered OFF.

• The use of ACCESSORY equipment not complying with the equivalent safety requirements

of this equipment may lead to a reduced safety of the resulting system. Consideration

relating to the choices of accessory equipment should include:

• Use of accessory in the patient vicinity.

• Evidence that the safety certification of the accessory has been performed in accordance

to the appropriate IEC 60601-1 and/or IEC 60601-1-1 harmonized national standard.

• For continued safety -

- This unit only complies to the above standards if used with a medical grade power cord.

-A medical grade power supply, such as the one specified, is required for use in a medical

application.

Note:

• This symbol alerts the user to important information concerning the operation and

maintenance of this unit, which should be read carefully to avoid problems.

• This symbol means DC Current.

• This symbol means ON/OFF stand-by switch.

! CAUTION-Life Support

Care must be taken when this touchmonitor is a critical component of a life support system or

device. In case of failure of this touchmonitor, appropriate redundant systems should be incorpo-

rated into the system or device to prevent injury to the user or patient.

The following should be an integral part of the safety design of a life support system or device

using this touchmonitor for a critical function.

• An alternate interface or fail-safe must be available should the touchscreen fail to operate.

• The touchscreen interface must not be the only means of control of a critical function.

• An alternate video display should be incorporated into the safety design if used to monitor a

critical function.

• The internal speakers of this touchscreen monitor must not be the sole method of warning of

a critical function.

Critical functions are:

1. Life support devices or systems are devices or systems which, (a) are intended for surgical

implant into the body, or (b) support or sustain life, or (c) whose failure to perform when

properly used in accordance with instructions for use provided in the labeling, can be reason

ably expected to result in significant injury to the user.

2. A critical component is any component of a life support device or system whose failure to

perform can be reasonably expected to cause the failure of the life support device or system,

or to affect its safety or effectiveness.

Classification

With respect to electrical shock, fire in accordance with UL60601-1 and CAN/CSA C22.2 No.

60601-1

This monitor is a CLASS 1 (GROUNDED) DEVICE.

These displays are classified NO APPLIED PARTS EQUIPMENT.

Protection against harmful ingress of water:

INGRESS PROTECTION(IPX1)

This monitor shall be classified as ORDINARY EQUIPMENT, not intended or evaluated for use

in the presence of flammable anesthetic mixture with air, oxygen, or nitrous oxide.

Mode of Operation: CONTINUOUS OPERATION.

Environmental conditions for transport and storage

Temp. Operating C to 40oC

Storage / Transportation -20oC to +60oC

Humidity (non-condensing)

Operating 30% to 70%

Storage / Transportation 10% to 90%

Altitude Operating 1060hpa.

Storage / Transportation 0 to 40,000ft(12,192m)

Equivalent to 1013-303 hP.A

(14.7 to 4.4 psia)

For full Product Specifications refer to Appendix C

vii

Table of Contents

Warnings and Cautions................................................. iv

Caution-Life Support ......................................................v

Classification .............................................................. vi

Chapter 1

INTRODUCTION 1

Product Description ................................................1

LCD Display Performance Features .......................2

19 inch TFT LCD Display Panel ......................2

External Medical Grade Power Supply............2

Chapter 2

INSTALLATION AND SETUP 3

Unpacking Your Touchmonitor ...............................3

Product Overview ........................................... 4

Main Unit .........................................................4

Back Unit .........................................................4

Side View.........................................................4

Base Bottom View ...........................................5

KensingtonTM Lock.........................................5

Touch Interface Connection....................................6

Step 1 Connecting the Video Cable ................6

Step 2 Connecting the Serial/USB Cable........7

Step 3 Connecting the Speaker Cable ............8

Step 4 Connecting the Power Cable ...............9

Optimizing the LCD Display..................................10

Installing the Touch Driver Software.....................10

Chapter 3

OPERATION 11

About Touchmonitor Adjustments................................11

Front Panel Controls .....................................12

Controls and Adjustment ......................................13

OSD Menu Functions ....................................13

OSD Control Options.....................................14

Power LED Display & Power Saving ....................15

General Power Saving Mode ........................15

Display Angle.................................................15

Chapter 4

TROUBLESHOOTING 17

Solutions to Common Problems ................................. 17

Appendix A

NATIVE RESOLUTION 19

Appendix B

TOUCHMONITOR SAFETY 21

Care and Handling of Your Touchmonitor ...................22

Appendix C

TECHNICAL SPECIFICATIONS 23

Display Modes .............................................................23

Touchmonitor Specifications........................................24

Power Supply Cord Selection ......................................25

North America.......................................................25

Cord selection for other than North America ........26

AccuTouch (resistive) Touchscreen Specifications .....28

IntelliTouch (resistive) Touchscreen Specifications .....29

Appendix D

CONTACT ELO 31

Contact Elo .............................................................31

Replacement Parts ..................................................... 31

REGULATORY INFORMATION 33

WARRANTY 35

INDEX 37

C H A P T E R

INTRODUCTION

Product Description

The 1928L is a medical display designed to present information to the operator and the customer.

The 1928L is available in serial and USB(combo) touch interface as well as no touch. The 1928L

functionally consists of a 19” LCD main display with a touchscreen. The main display element

is a 19” diagonal SXGA resolution (1280 x 1024) LCD display. The display consists of an LCD

display and touchscreen. The 1928L is powered by 12 VDC from an external medical grade

power source.

1-1

LCD Display Performance Features

19” TFT LCD Display Panel

Display format 1280 x 1024

Display area 376.32 mm (H) x 301.056 mm (V)

Pixel pitch 0.294 mm (H) x 0.294 mm (V)

Contrast Ratio 1300:1( typical)

Brightness

LCD 300 cd/m2(typical)

AccuTouch 246 cd/m2(typical)

IntelliTouch 276 cd/m2(typical)

Accutouch transmission 82% (typical)

Intellitouch transmission 92% (typical)

Response time Tr = 15 msec / Tf = 5 msec typical;

12 ms gray to gray response

Display color 16.7 million colors

Typical vertical viewing angle 89 deg (down) / 89 deg ( up)

Typical horizontal viewing angle 89 deg (left) / 89 deg (right)

External Medical Grade Power Supply

The 1928L is powered by an external medical grade universal input AC power source.

Power supply:

• AC power: Input voltage 100 -240 VAC, 1.0A

• Input frequency 50/60 Hz

• DC output Voltage/Current: 12 VDC/4.0A

• Load regulation: ±5% Max.

• Line regulation: ±1% Max.

1-2 Elo Touchmonitor User Guide
