User Manual

Elo TouchSystems 1541L Touchmonitor

User Manual – 1541L

SW601635 Rev A - Page 1 of 27

User Manual – 1541L

SW601635 Rev A - Page 2 of 27

No part of this publication may be reproduced, transmitted, transcribed, stored in a

retrieval system, or translated into any language or computer language, in any form

or by any means, including, but not limited to, electronic, magnetic, optical,

chemical, manual, or otherwise without prior written permission of Tyco Electronics.

Disclaimer

The information in this document is subject to change without notice. Tyco

Electronics Corporation and its Affiliates in the TE Touch Solutions business unit in

the TE Connectivity Ltd. family of companies (collectively "TE") makes no

representations or warranties with respect to the contents herein, and specifically

disclaims any implied warranties of merchantability or fitness for a particular

purpose. TE reserves the right to revise this publication and to make changes from

time to time in the content hereof without obligation of TE to notify any person of

such revisions or changes.

Trademark Acknowledgments

AccuTouch, Elo (logo), Elo TouchSystems, IntelliTouch, TE Connectivity and TE

(logo) are trademarks of the TE Connectivity Ltd. family of companies. Windows is

a trademark of the Microsoft group of companies. Other product names mentioned

herein may be trademarks or registered trademarks of their respective companies.

Tyco Electronics claims no interest in trademarks other than its own.

User Manual – 1541L

SW601635 Rev A - Page 3 of 27

Table of Contents

Chapter 1 - Introduction.................................................................... 4

Chapter 2 – Installation.....................................................................5

Chapter 3 – Mounting........................................................................14

Chapter 4 – Operation.......................................................................16

Chapter 5 – Technical Support.......................................................22

Chapter 6 – Safety & Maintenance................................................23

Chapter 7 – Regulatory Information.............................................24

Chapter 8 – Warranty Information.................................................27

User Manual – 1541L

SW601635 Rev A - Page 4 of 27

Chapter 1 - Introduction

Product Description

Your new touchmonitor combines Elo TouchSystems’ reliable performance

with the latest developments in touch technology and display design. This

combination of features creates a natural flow of information between a user

and the touchmonitor.

This widescreen touchmonitor incorporates a 24-bit color, active matrix

thin-film-transistor LCD panel to provide high quality display performance. Its

HD resolution of 1366x768 is suitable for displaying graphics and images. Its

LED backlight significantly reduces power consumption and eliminates

mercury (compared to CCFL-backlit panels). Other features that enhance

this LCD monitor’s performance are Plug & Play compatibility and on-screen

display (OSD) controls.

Precautions

Follow all warnings, precautions and maintenance as recommended in this

user manual to maximize the life of your unit and prevent risks to user safety.

See the Safety & Maintenance chapter for more information.

This manual contains information that is important for the proper setup and

maintenance of the unit. Before setting up and powering on your new

touchmonitor, read through this manual, especially the Installation, Mounting,

and Operation chapters.

Chapter 2 –Installation

Unpacking the Touchmonitor

Open the carton and verify the following items are present:

Touchmonitor with protective sheet for its face

Elo TouchTools CD & User Manuals CD

Quick Install Guide

Japanese language regulatory information pamphlet

DVI cable

VGA cable

USB cable

REMOTE OSD controller

Connector Panel & Interfaces

User Manual – 1541L

SW601635 Rev A - Page 5 of 27

User Manual – 1541L

SW601635 Rev A - Page 6 of 27

Touchmonitor Connections

1. Connect the DVI or VGA video cables between the monitor’s DVI/VGAinput

connectors and your DVI/VGA video source respectively. Tighten the video

cable’s screws with the best performance.

2. Connect the USB touch cable between the monitor’s USB connector & your

PC’s USB port.

3. Connect a 12VDC power supply to the monitor’s input power jack.

4. The touchmonitor ships in an ON state, video should be displayed on your

monitor already.

Installing the Tocuh Driver-AccuTouch Technology

Software Drivers

Some software installation is required for your touchmonitor to work with

your computer.

The drivers for the Windows 7, XP, Vista, WePOS, and 32-bit Server 2003

and 2008 operating systems are provided with your touchmonitor on a CD.

Visit the Elo TouchSystems website www.elotouch.com for:

The most up-to-date touch driver versions

Additional touch driver information

Detailed touch driver installation guides

Touch drivers for other operating systems

Insert the Elo TouchTools CD into your computer’s CD-ROM drive. The CD

should automatically run the Elo TouchTools application. Select “Install

Driver for This computer”:

User Manual – 1541L

SW601635 Rev A - Page 7 of 27

For Windows XP, Vista, Server 2003, Server 2008, and WEPOS installations, install

the “USB Touchscreen Drivers” when prompted:

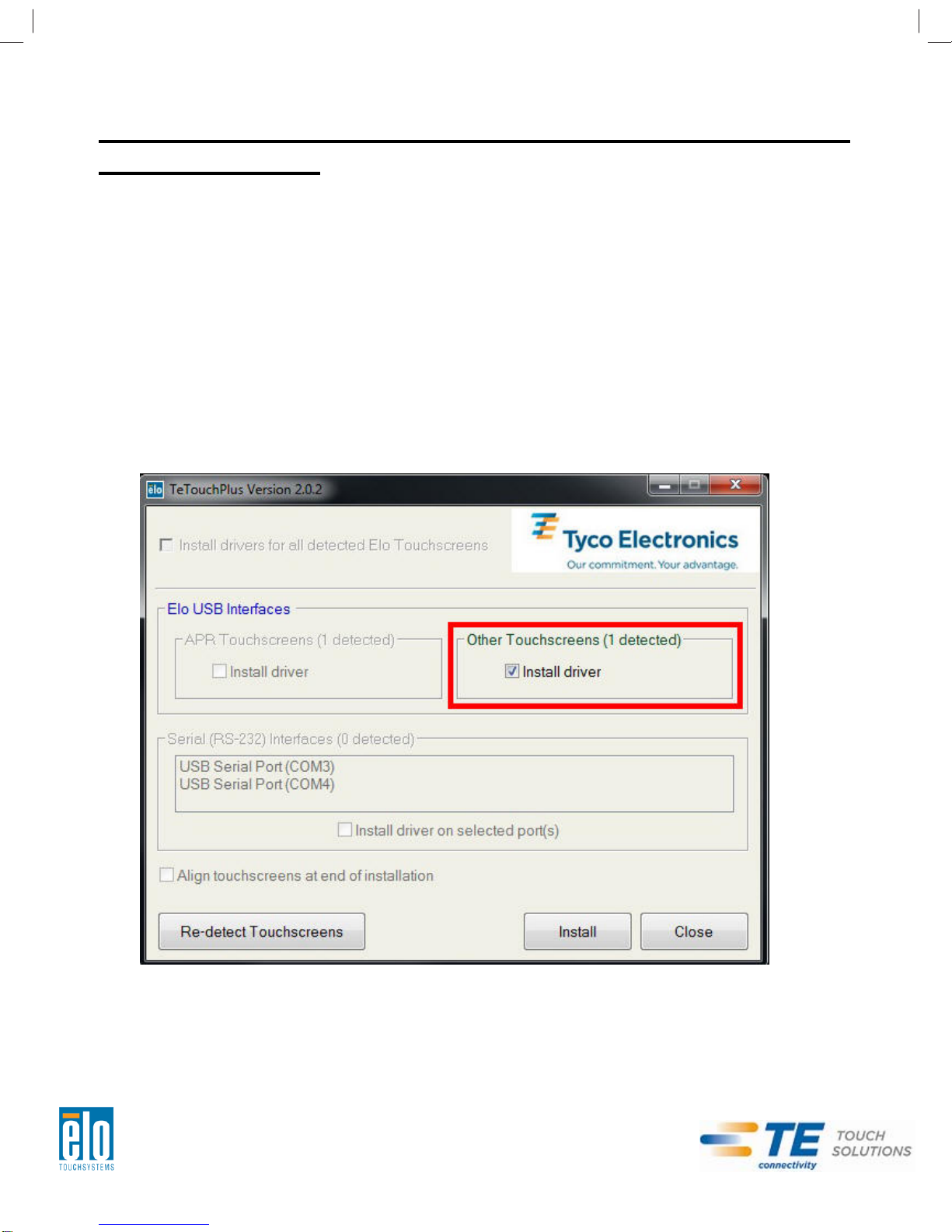

For Windows 7 installations, check the “Install driver” box under “Elo USB

Interfaces – Other Touchscreens”

User Manual – 1541L

SW601635 Rev A - Page 8 of 27

After accepting the end-user license agreement, the drivers will finish installing.

Reboot your computer after the install is complete.

User Manual – 1541L

SW601635 Rev A - Page 9 of 27

Installing the Touch Driver-IntelliTouch Plus Technology

Software Drivers

*Multi-Touch Support

*USB

*Single monitor *Windows 7

ONLY

Follow the directions on the screen to complete the driver setup

for

your Windows 7

system.

1. Insert the Elo CD-ROM in your computer’s CD-ROM

drive.

2. EloSetup

launches.

3. Click “Install Driver for This

Computer.”

4. Click “Install drivers for all other Elo USB

interfaces.”

5. Click the “Install”

button.

User Manual – 1541L

SW601635 Rev A_Template - Page 10 of 27
