Elkay VRCHD8 Series Manuel d'installation

Page 1 1000002233 (Rev. A - 11/14)

VRCHD8*2BQ, LVRCHD8*2BQ

Uses HFC-134A refrigerant

2, 3, 5

14, 17, 18

See Fig. 4

1, 4

6, 7

See Fig. 3

33, 34

23, 30

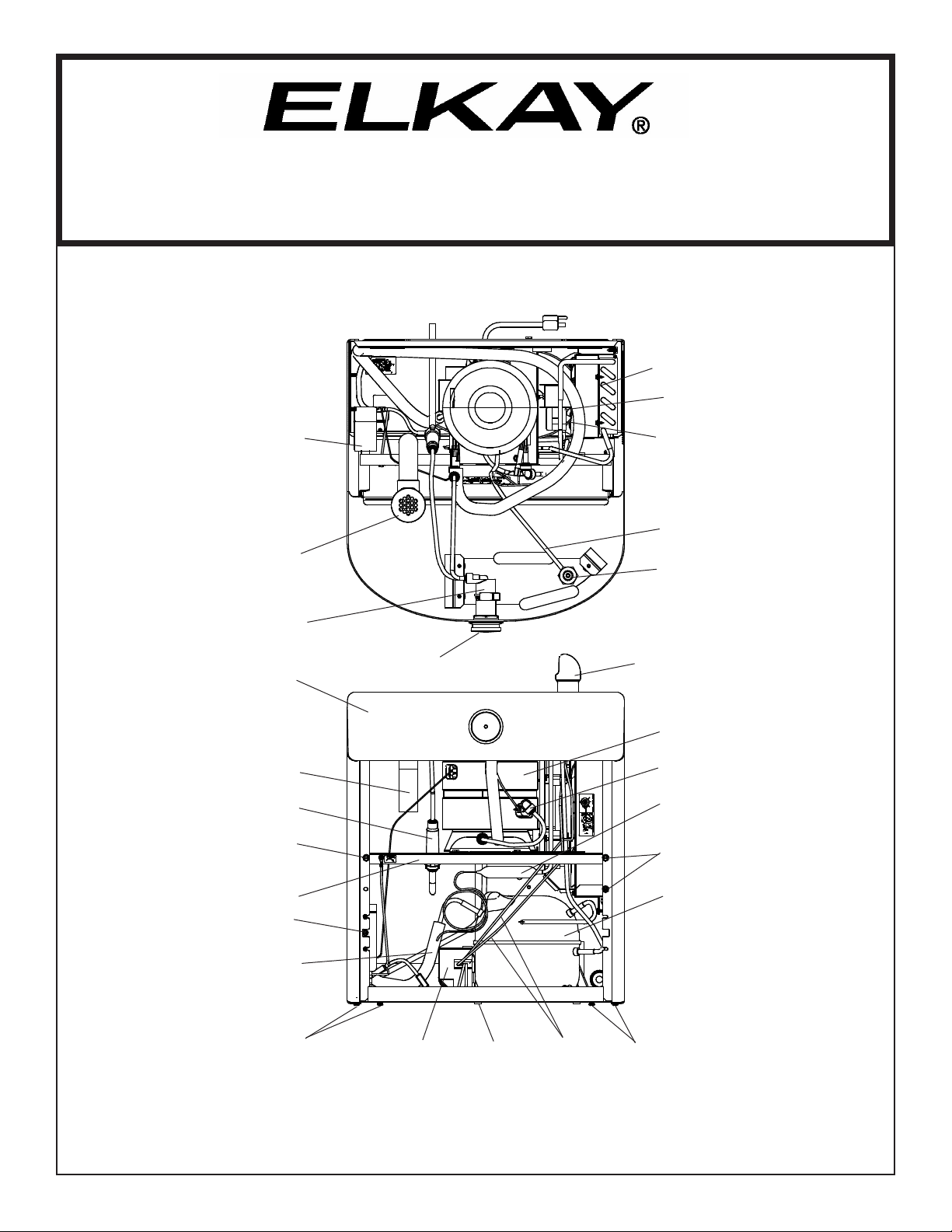

Fig. 1

INSTALLATION, CARE & USE MANUAL

VRCHD8 Series Barrier-Free Water Coolers

Page 21000002233 (Rev. A - 11/14)

VRCHD8*2BQ, LVRCHD8*2BQ

LEGEND/LEYENDA/LÉGENDE

A = RECOMMENDED WATER SUPPLY LOCATION. SHUT OFF VALVE (NOT FURNISHED) TO ACCEPT 3/8” O.D. UNPLATED

COPPER TUBE.

La UBICACION RECOMENDADA de ABASTECIMIENTO DE AGUA. APAGUE VALVULA (no AMUEBLADO) ACEPTAR 3/8 O. D.

El TUBO del COBRE de UNPLATED

L’EMPLACEMENT DE PROVISION D’EAU RECOMMANDE. ETEINDRE LA SOUPAPE (PAS FOURNI) ACCEPTER 3/8 O.D. LE TUBE DE

CUIVRE DE UNPLATED.

B = RECOMMENDED LOCATION FOR WASTE OUTLET 1-1/4” O.D. DRAIN

UBICACIÓN RECOMENDADA PARA EL DRENAJE DE SALIDA DE AGUA, DE 1¼” DE DIÁMETRO.

EMPLACEMENT RECOMMANDÉ POUR LE DRAIN DE D.E. 1-1/4” DE SORTIE D’EAU.

C = 1-1/4 TRAP NOT FURNISHED**

PURGADOR DE 1¼ NO PROPORCIONADO**

SIPHON 1-1/4 NON FOURNI**

D = ELECTRICAL SUPPLY (3) WIRE RECESSED BOX

CAJA RECESIVA DE ALAMBRES (3) DE SUMINISTRO ELÉCTRICO

BOÎTE ENCASTRÉE D’ALIMENTATION ÉLECTRIQUE (3) FILS

E = INSURE PROPER VENTILATION BY MAINTAINING 6” (152 mm) (MIN.) CLEARANCE FROM CABINET LOUVERS TO WALL.

ASEGURE UNA VENTILACIÓN ADECUADA MANTENIENDO UN ESPACIO E 6” (152 mm) (MÍN.) DE HOLGURA ENTRE LA REJILLA DE VENTI-

LACIÓN DEL MUEBLE Y LA PARED

ASSUREZ-VOUS UNE BONNE VENTILATION EN GARDANT 6” (152 mm) (MIN.) ENTRE LES ÉVENTS DE L’ENCEINTE ET LE MUR.

F = 5/16 BOLT HOLES FOR FASTENING UNIT TO WALL

AGUJEROS DE LAS TUERCAS DE 5/16 PARA SUJETAR LA UNIDAD A LA PARED

TROUS D’ÉCROUS 5/16 POUR FIXER L’APPAREIL AU MUR

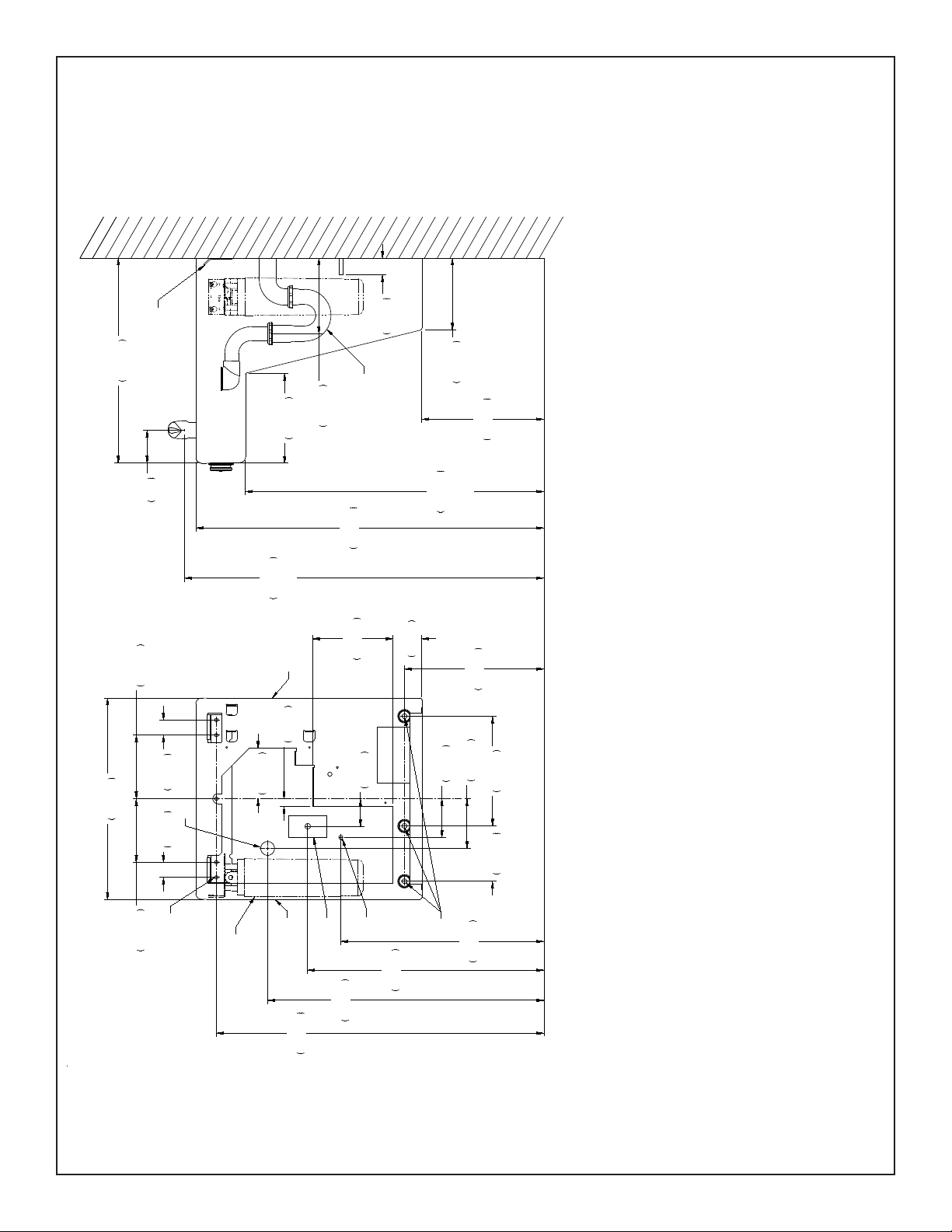

Fig. 2

* ADA REQUIREMENT

REDUCE HEIGHT BY 3” FOR INSTALLATION OF CHILDRENS ADA COOLER

18 9/16"

471mm

6 13/16"

173mm

1 1/2"

38mm

27" *

686mm

31 1/2"

800mm

(3")

FINISHED FLOOR

12 5/8"

320mm

2 5/8"

67mm

2 1/2"

63mm

11/16"

18mm

4 9/16"

116mm

7 1/4"

185mm

3 1/2"

89mm

4 1/2"

114mm

127mm 9 15/16"

252mm

18 3/8"

467mm

21 3/8"

543mm

25"

635mm

29 5/8"

753mm

1 3/8"

35mm 1 3/8"

35mm

5 3/4"

146mm 5 3/4"

146mm

5/16" ( 8 mm ) DIA. (5 HOLES)

32 9/16"

827mm

FILTER

6 1/2"

165mm

11 1/16"

280mm

HANGER BRACKET

8 1/8"

206mm

RIM HEIGHT

ORIFICE HEIGHT

18 3/16"

463mm

ADA

REQUIREMENT

Page 3 1000002233 (Rev. A - 11/14)

VRCHD8*2BQ, LVRCHD8*2BQ

IMPORTANT

ALL SERVICE TO BE PERFORMED BY AN

AUTHORIZED SERVICE PERSON

HANGER BRACKETS & TRAP

INSTALLATION

1) Remove hanger bracket fastened to back of

cooler by removing one (1) screw.

2) Mount the hanger bracket and trap as shown

in Figure 2.

NOTE: Hanger Bracket MUST be supported

securely. Add xture support carrier if wall will

not provide adequate support.

IMPORTANT:

 6-13/16 in. (173mm) dimension from wall to

centerline of trap must be maintained for proper

t.

 Anchor hanger securely to wall using all ve

(5) 5/16 in. dia. mounting holes.

3) Install straight valve for 3/8” O.D. tube.

INSTALLATION OF COOLER

4) Hang the cooler on the hanger bracket. Be

certain the hanger bracket is engaged properly

in the slots on the cooler back as shown in Figure

5) Loosen the two (2) screws holding the lower

front panel at the bottom of cooler base (Use

torx bits sold separately). Remove the front

panel and set aside.

6) Connect water inlet line--See Note 4 of General

Instructions.

7) Remove the slip nut and gasket from the trap

and install them on the cooler waste line mak-

ing sure that the end of the waste line ts into

the trap. Assemble the slip nut and gasket to

the trap and tighten securely. Recommend

fastening cooler to wall using 5/16” bolt holes.

(see g.2, “F”)

START UP

Also See General Instructions

8) Stream height is factory set at 45-50 PSI. If

supply pressure varies greatly from this, adjust

screw using the access hole in the pushbutton

(insert screwdriver). CW adjustment will raise

stream and CCW adjustment will lower stream.

For best adjustment, stream should hit basin

approximately 6-1/2” (165mm) from bubbler.

CLEANING

9) Recommended: Elkay’s Stainless Butler

Cleaner (Item LKSB16EA).

Warm, soapy water or mild household

cleaning products can be used to clean

the exterior with a clean, soft cloth. Use

of harsh chemicals, petroleum based or

abrasive cleaners will void the warranty.

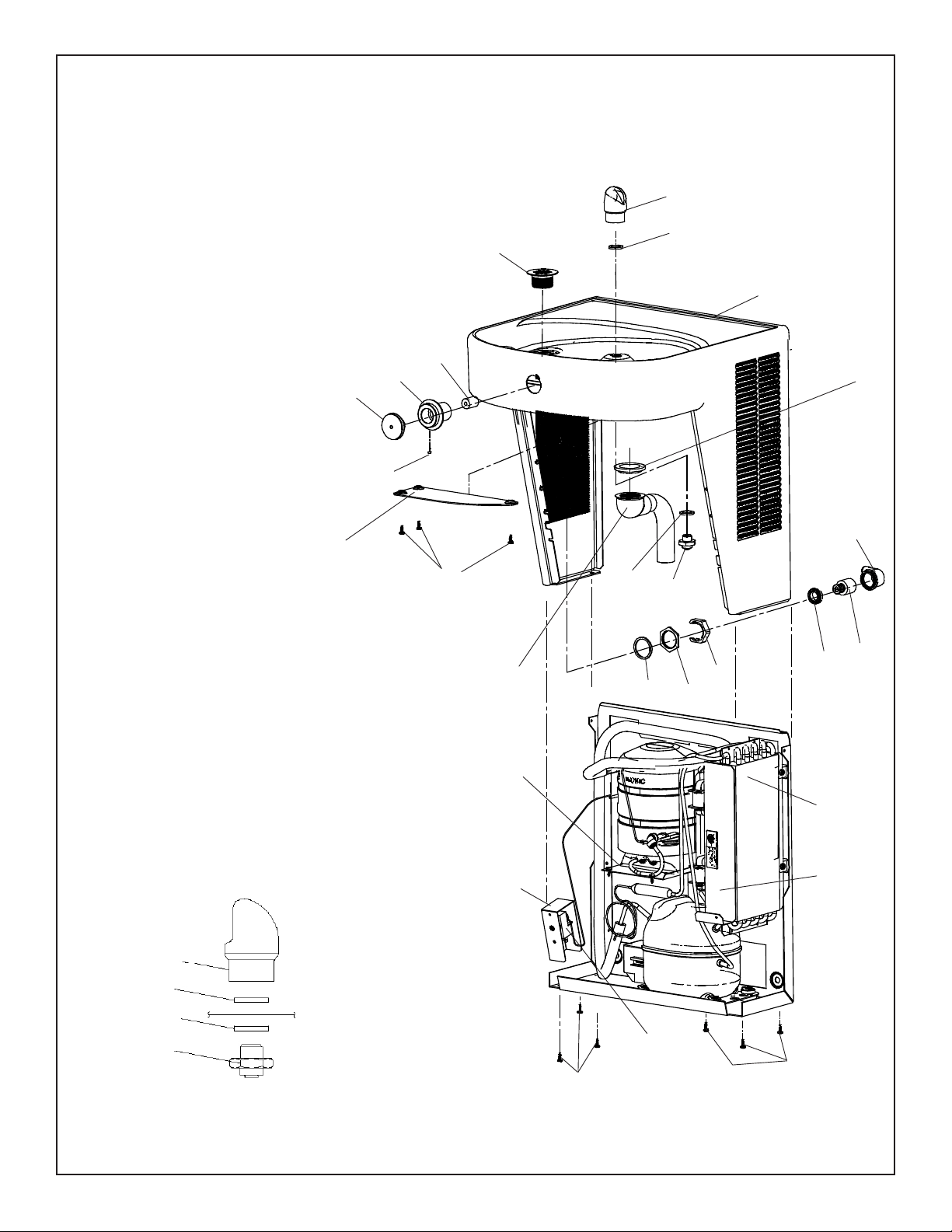

Fig. 4

Fig. 3

VANDAL RESISTANT BUBBLER DETAIL

Basin

Estanque

Bassin

Page 41000002233 (Rev. A - 11/14)

VRCHD8*2BQ, LVRCHD8*2BQ

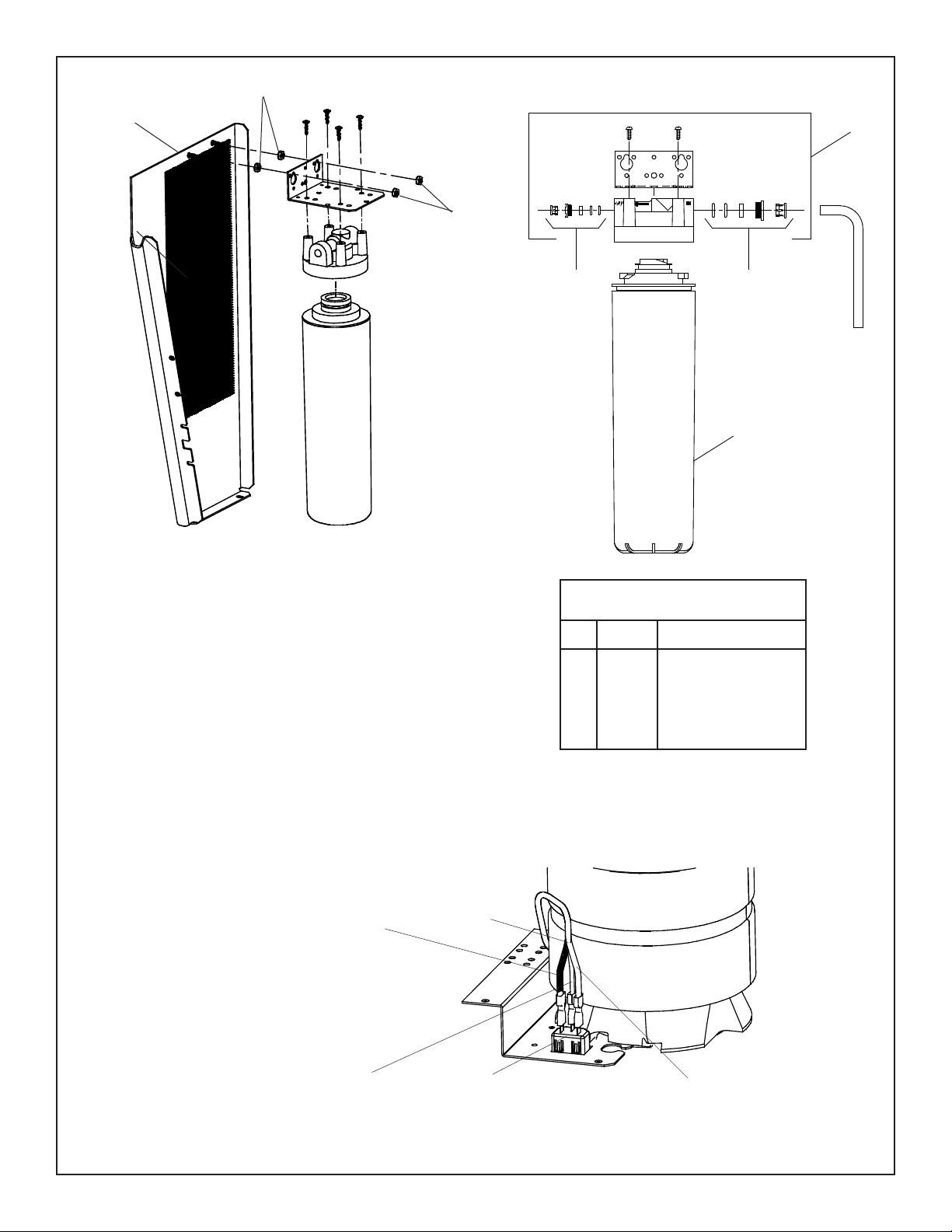

Fig. 5

Filter Installation Detail

Fig. 6

Fig. 7

220V/240V POWER INLET DETAIL

TO “N” TERMINAL

ON POWER INLET

(RIBBED SIDE)

TO GROUND TERMINAL

ON POWER INLET

(GREEN WIRE) TO “L” TERMINAL

ON POWER INLET

(SMOOTH SIDE)

ITEM

NO.

Filter Assy-1,500 Gal.

Kit-Filter Head Fittings, includes

John Guest 3/8” elbow tting

Assy-Filter & Bracket includes

Fltr Head/Mtg Bkt/John Guest

Fittings/Screws

51299C

98926C

0000000746

DESCRIPTION

PART

NO.

FILTER PARTS LIST

(See Fig. 6)

2 2

Page 5 1000002233 (Rev. A - 11/14)

VRCHD8*2BQ, LVRCHD8*2BQ

PRINTED IN U.S.A.

FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816

ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484

REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640

56305C

100806740570

75705C

15009C

19037000

30824C

31395C

35839C

35826C

35827C

1000002194

28898C

27124C

50986C

45878C

56092C

15005C

61313C

66703C

66810C

70002C

111543043890

45768C

75583C

28870C

28876C

45662C

45738C

75672C

56163C

36282C

28893C

66762C

28875C

40045C

28878C

28877C

55996C

45736C

75739C

56087C

56033C

66661C

45888C

1000002195

75520C

28874C

Gasket - Bubbler

Grommet - Compressor Mtg.

Stud - Compressor Mtg.

Nipple - Bubbler

Clip - Compressor Mtg.

Fan Blade

Fan Motor

Cold Control

Power Inlet

Power Cord

Compressor Serv. Pak

Panel - Access

Cover - Cold Control

Holder - Regulator

Bubbler Assy.

Tubing - Poly (Cut To length)

Retaining Nut

Regulator

Drier

Evaporator Assembly

Screw - #10 x 1/2” Lg. HHSM

Nut - #6-32 Hex.

Drain Plug 1-1/2

Elbow - 5/16” x 1/4”

Cabinet - Stainless Steel

Bracket - Fan Mounting

Button - Push

Sleeve - Push Button

Cap Screw

Gasket - Drain

Wire - Fan Motor

Panel - Front Lower (NS)

Condenser

Shroud Fan

Hex Nut

Bracket - Support

Shelf - Evaporator Mounting

Strainer (See “General Instructions”)

Half Nut - Regulator

Screw - #10-24 x .50 Pinned Torx

Extension - Push Button

Washer

Heat Exchanger

Assy. Drain/Tailpipe

Kit - Elect/Relay/Cover/Overload

Torx Tool - T25

Hanger Bracket

PART NO. DESCRIPTION

ITEM NO.

*REPLACE WITH SAME COMPRESSOR USED

IN ORIGINAL ASSEMBLY.

NOTE: All correspondence pertaining to any of the above water

coolers or orders for repair parts MUST include Model No. and

Serial No. of cooler, name and part number of replacement part.

PARTS LIST 220 - 240V/50Hz
