Elkay EFWC Series Manuel d'installation

PAGE 1 97745C (Rev. G - 04/16)

EFWC16*1

INSTALLATION, CARE & USE MANUAL

EFWC™ Series Barrier-Free Water Cooler

PAGE 2

97745C (Rev. G - 04/16)

EFWC16*1

COLDER

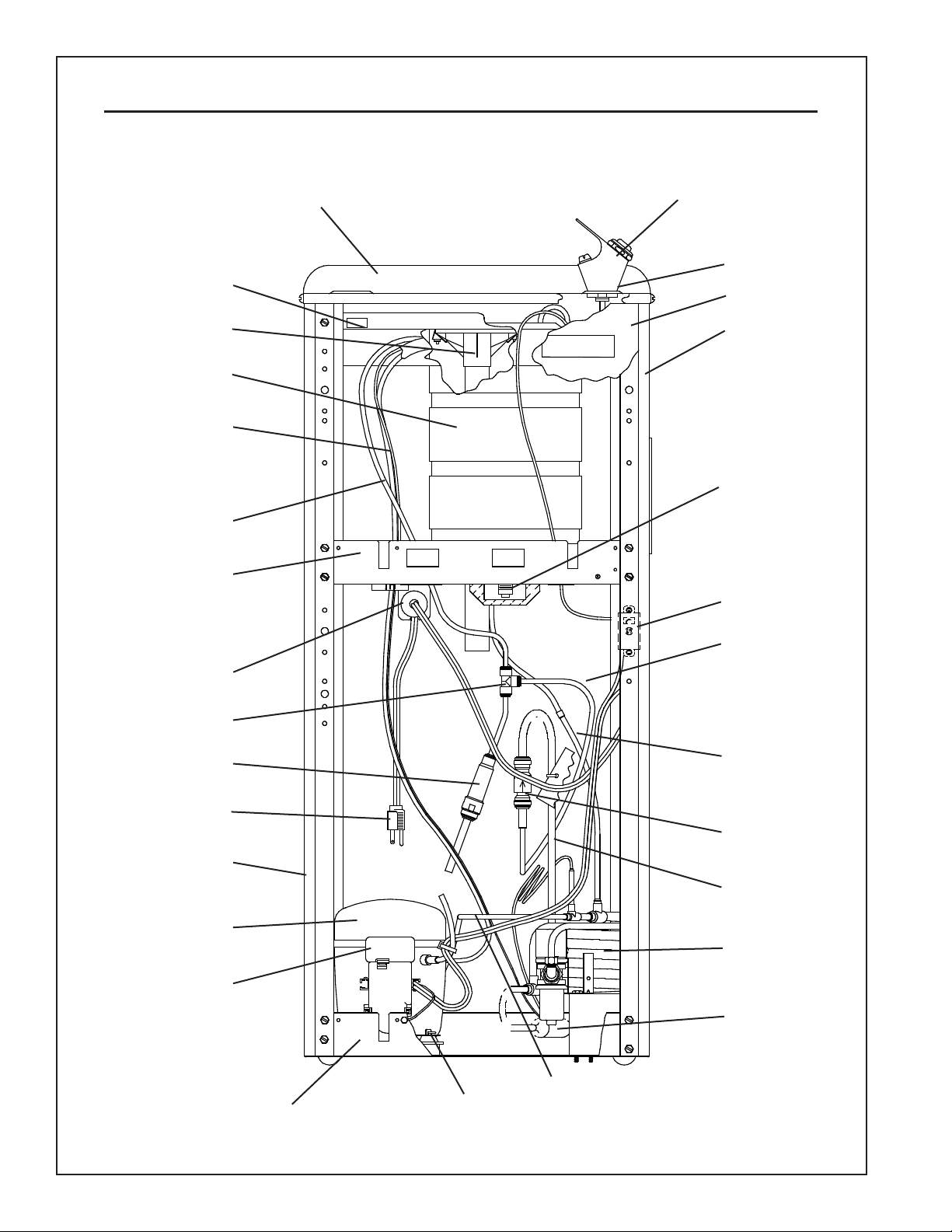

FIG. 1

SEE FIG.5

28, 29, 31, 24, 27

14, 15, 18,

19, 20, 21, 22

6, 7

4, 32

USES HFC-134A REFRIGERANT

Note: Danger! Electric shock hazard. Disconnect power before servicing unit.

PAGE 3 97745C (Rev. G - 04/16)

EFWC16*1

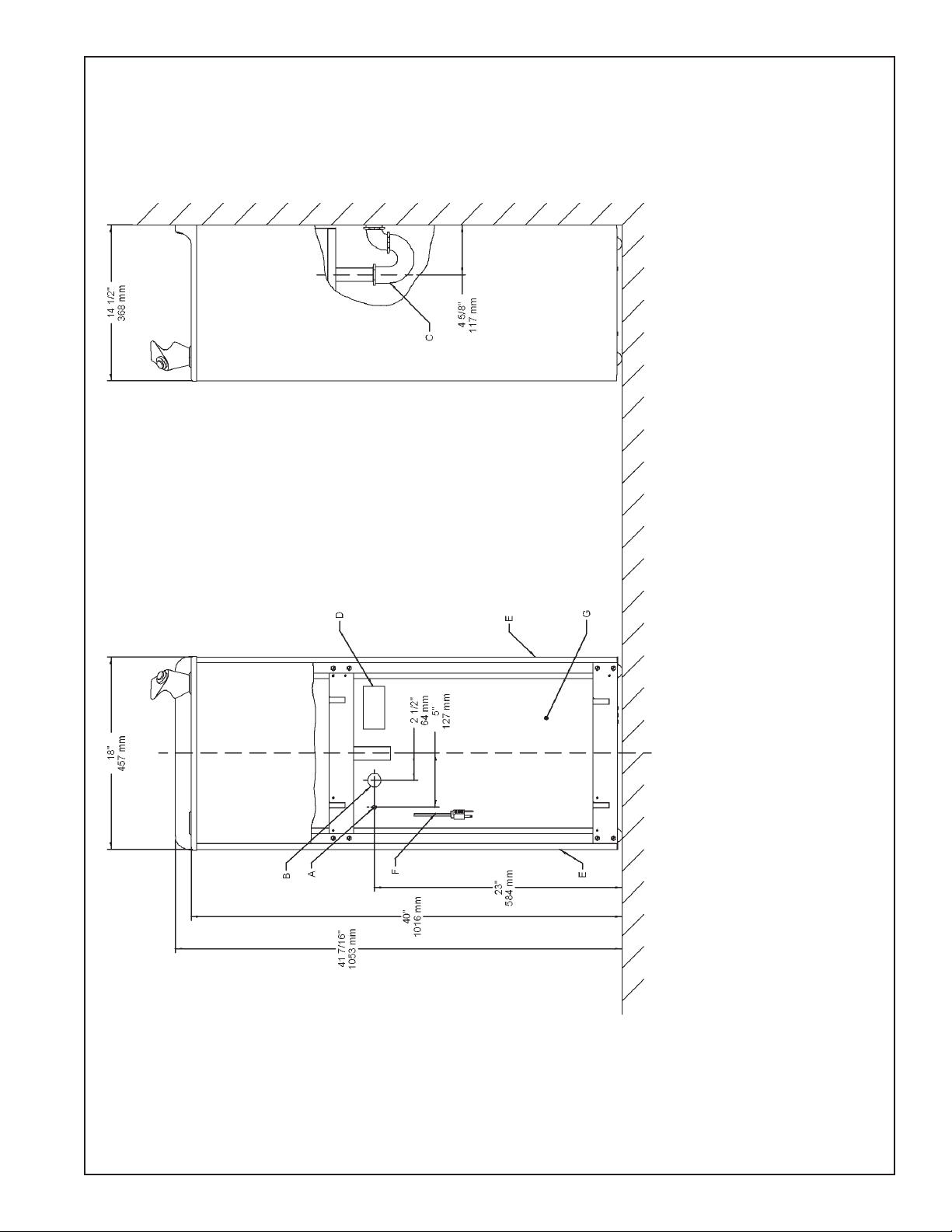

FIG. 2

FINISHED FLOOR

LEGEND/LEYENDA/LÉGENDE

A = RECOMMENDED WATER SUPPLY LOCATION 3/8 O.D. UNPLATED COPPER TUBE CONNECT STUB 1-1/2 IN. (38mm) OUT FROM WALL SHUT OFF BY OTHERS

B = RECOMMENDED LOCATION FOR WASTE OUTLET 1-1/4” O.D. DRAIN

C = 1-1/4 TRAP NOT FURNISHED**

D = ELECTRICAL OUTLET LOCATION

E = INSURE PROPER VENTILATION BY MAINTAINING 4" (102mm) (MIN.) CLEARANCE FROM CABINET LOUVERS TO WALL.

F = POWER CORD 4 FEET (1219mm) LONG

G = PLUMBING ROUGH-IN CAN BE LOCATED ANYWHERE WITHIN THIS AREA.

PAGE 4

97745C (Rev. G - 04/16)

EFWC16*1

FIG. 3

FIG. 4

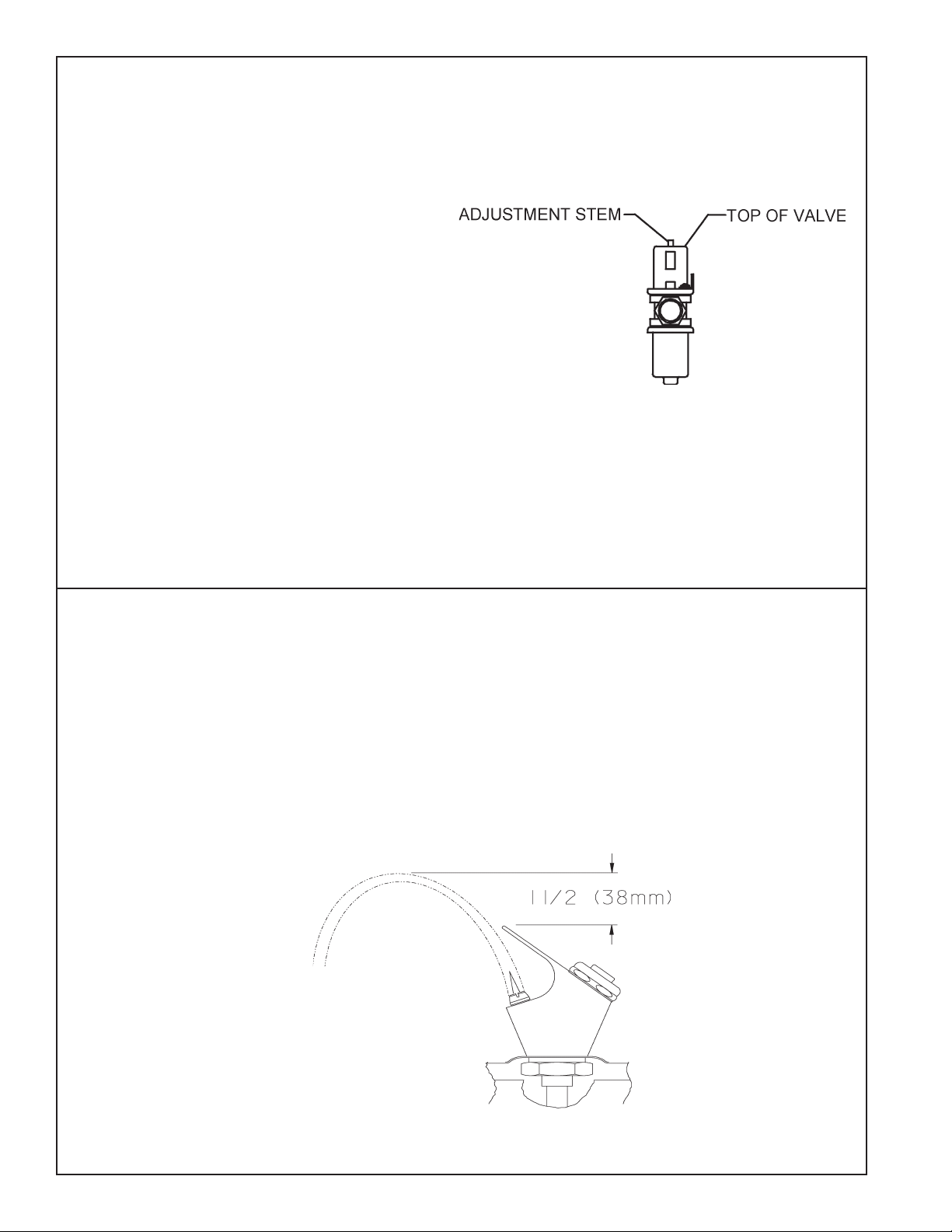

CONDENSER WATER VALVE ADJUSTMENT

The condenser water valve is factory preset for a con-

denser water outlet temperature of 95° to 105° F.

If actual temperature varies greatly from this, readjust

water ow rate at the valve using the following proce-

dures.

1. START UP COMPRESSOR

This can be accomplished by depressing the cooler

push button. Keep water running during the entire

readjustment procedure.

2. ADJUSTMENT CONDENSER WATER VALVE

Adjust valve by rotating adjustment stem. Rotating stem

clockwise will increase water ow. Counterclockwise

rotation will idecrease water ow. Increasing water

ow will result in a lower condenser outlet temperature,

while decreasing water ow will result in a higher outlet

temperature. Proper adjustment is attained when con-

denser outlet temperature is 95° to 105° F.

STREAM HEIGHT ADJUSTMENT: Stream height is factory set at

45-50 PSI. If supply pressure varies greatly from this, remove

items Cover Nut & Button (See gure 5) from bubbler assembly and

adjust the screw on the regulator (Item 35). Clockwise adjustment

will raise stream height and counterclockwise will lower the stream

height. A stream height of 1-1/2" (38mm) is recommended.

PAGE 5 97745C (Rev. G - 04/16)

EFWC16*1

FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.834.4816

ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484

PRINTED IN U.S.A.

PARTS LIST 115V

PART NO. DESCRIPTION

1000002024

45703C

15009C

70772C

27317C

28270C

28271C

28272C

28273C

28631C

28277C

28278C

28279C

35843C

35840C

36219C

35892C

35768C

35845C

35874C

35844C

36095C

36318C

70750C

1000001994

0000000253

75603C

45718C

50005C

75494C

50368C

70767C

55996C

98849C

66685C

66203C

66802C

66677C

66693C

66679C

66680C

66681C

Kit - Bubbler Pushbutton

Bubbler Assy

Nipple-Bubbler

Drain Plug

Basin

Brace-Cross Rear

Brace-Cross Front

Baseplate

Shelf

Bracket-Strain Relief

Panel-Front

Panel-LH Side

Panel-RH Side

Relay

Overload

Cord-Power

Cold Control

Cover-Relay

Cap-Capacitor

Clip-Capacitor

Capacitor

Bracket-Capacitor

Compressor Service Pak

Hose Clamp

Kit - 1/4" Tee (3-Pack)

Kit - Compressor Mtg Hardware

Nut Hex SS

Assy-Tailpipe

Gasket-Tailpipe

Check Valve

Drain Receptor

Evaporator Retaining Clip

Strainer

Kit - Heat Exchanger/Drier

Assy-Evaporator

Drier

Assy-WC Condenser

Tube-WC Condenser

Tube-Tee To Check Vlv

Tube-CU 1/4 x 30

Tube-CU 1/4 x 22

Tube-Water Vlv To Check Vlv

*INCLUDES RELAY, OVERLOAD & CAPACITOR. IF UNDER

WARRANTY, REPLACE WITH SAME COMPRESSOR USED

IN ORIGINAL ASSEMBLY.

NOTE: All correspondence pertaining to any of the above

water coolers or orders for repair parts MUST include Model

No. and Serial No. of cooler, name and part number of re-

placement part.

ITEM NO.

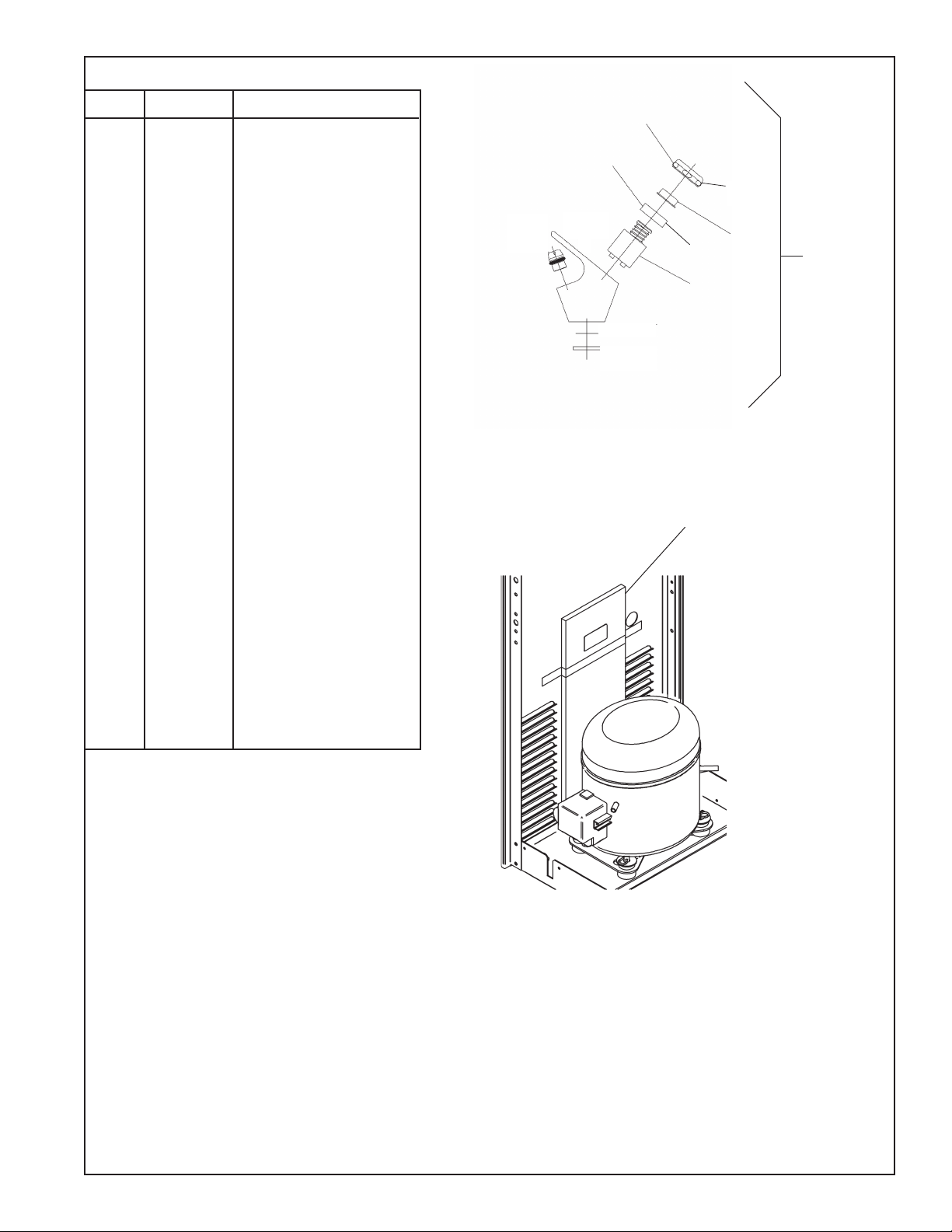

FIG. 5

BUTTON

FIG. 6

REMOVE THIS PACKING

BEFORE PUTTING UNIT

INTO SERVICE

REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640

COVER

NUT

REGULATOR

NUT
