Elkay EFOA Series Manuel d'installation

PAGE1 98115C (12/04)

EFOA8*1J

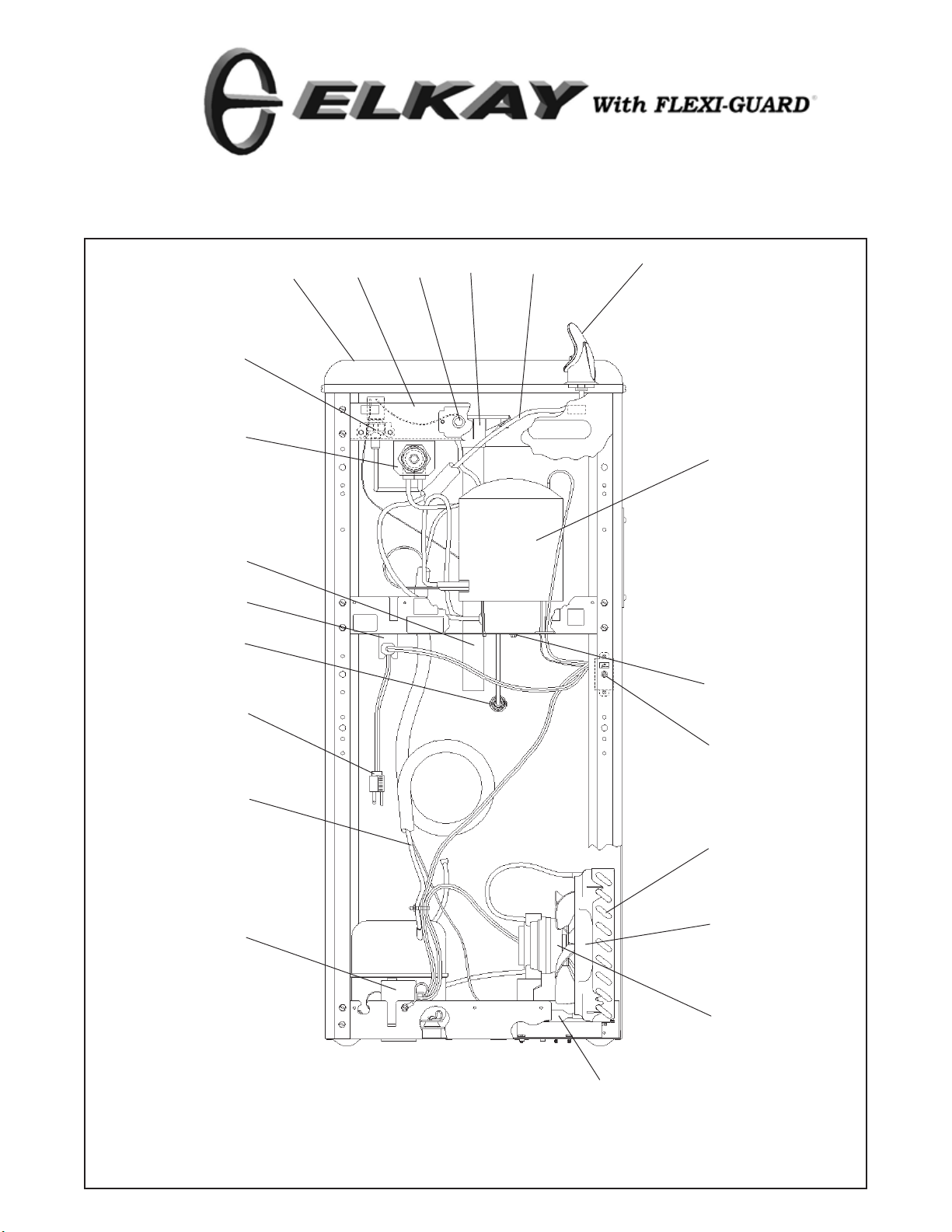

FIG. 1

SEE FIG. 4

20, 21, 23, 35

15, 16, 17, 18

31 29 22 33

EFOA Pressure Cooler

USES HFC-134A REFRIGERANT

INSTALLATION, CARE & USE MANUAL

PAGE2

98115C (12/04)

EFOA8*1J

FIG. 2

FINISHED FLOOR

PISO ACABADO

PLANCHER FINI

E = INSURE PROPER VENTILATION BY MAINTAINING 4" (102mm) (MIN.) CLEARANCE FROM CABINET LOUVERS TO WALL.

ASEGURE UNAVENTILACIÓNADECUADA MANTENIENDO UN ESPACIO E 4" (102mm) (MÍN.) DE HOLGURAENTRE LA

REJILLADEVENTILACIÓNDELMUEBLE YLAPARED

ASSUREZ-VOUSUNE BONNE VENTILATION EN GARDANT4" (102mm)(MIN.) ENTRE LES ÉVENTS DEL’ENCEINTE ET LE

MUR.

F = POWER CORD 4 FEET (1219mm) LONG

CABLEELÉCTRICODE4 PIE (1219mm), DE LARGO

CORDOND’ALIMENTATION4' (1219mm)

G = ALT. ELECTRICAL OUTLET LOCATION

UBICACIÓNALT. DE LATOMADE ELECTRICIDAD

EMPLACEMENTALTERNATIFDE LAPRISEDE COURANT

LEGEND/LEYENDA/LÉGENDE

A= RECOMMENDED WATER SUPPLY LOCATION 3/8 O.D. UNPLATED COPPER TUBE CONNECT STUB 1-1/2 IN. (38mm) OUT

FROM WALL SHUT OFF BY OTHERS

SE RECOMIENDAUBICAR ELTUBO CORTO DE CONEXIÓNALTUBO DE COBRE SIN CHAPAR DE 3/8" DE DIÁM. EXT. A1-1/2"

(38mm)FUERADELALLAVE DE PASOEN LAPARED COLOCADAPORTERCEROS.

EMPLACEMENT RECOMMANDÉ D'ALIMENTATION EN EAU PAR TUBE EN CUIVRE NON PLAQUÉ DE 3/8 PO. (9,5 mm) D.E.

CONNECTANT UNE TUYAUTERIE DE 1-1/2 PO. (38mm) DEPUIS LE ROBINET D'ARRÊTFOURNI PAR D'AUTRES.

B = RECOMMENDED LOCATION FOR WASTE OUTLET 1-1/4” O.D. DRAIN

UBICACIÓN RECOMENDADAPARAEL DRENAJE DE SALIDADEAGUA, DE 1¼” DE DIÁMETRO.

EMPLACEMENTRECOMMANDÉ POUR LE DRAINDE D.E. 1-1/4" DESORTIED’EAU.

C = 1-1/4 TRAP NOT FURNISHED**

PURGADORDE 1¼ NO PROPORCIONADO**

SIPHON1-1/4 NON FOURNI**

D = ELECTRICAL OUTLET LOCATION

UBICACIÓNDE LA TOMA DEELECTRICIDAD

EMPLACEMENTDE LA PRISE DECOURANT

PAGE3 98115C (12/04)

EFOA8*1J

NOTE:

WHEN INSTALLING REPLACEMENT

BUBBLER AND PEDESTAL, TIGHTEN

NUT (ITEM 10) ONLY TO HOLD PARTS

SNUGIN POSITION.

DO NOT OVER TIGHTEN.

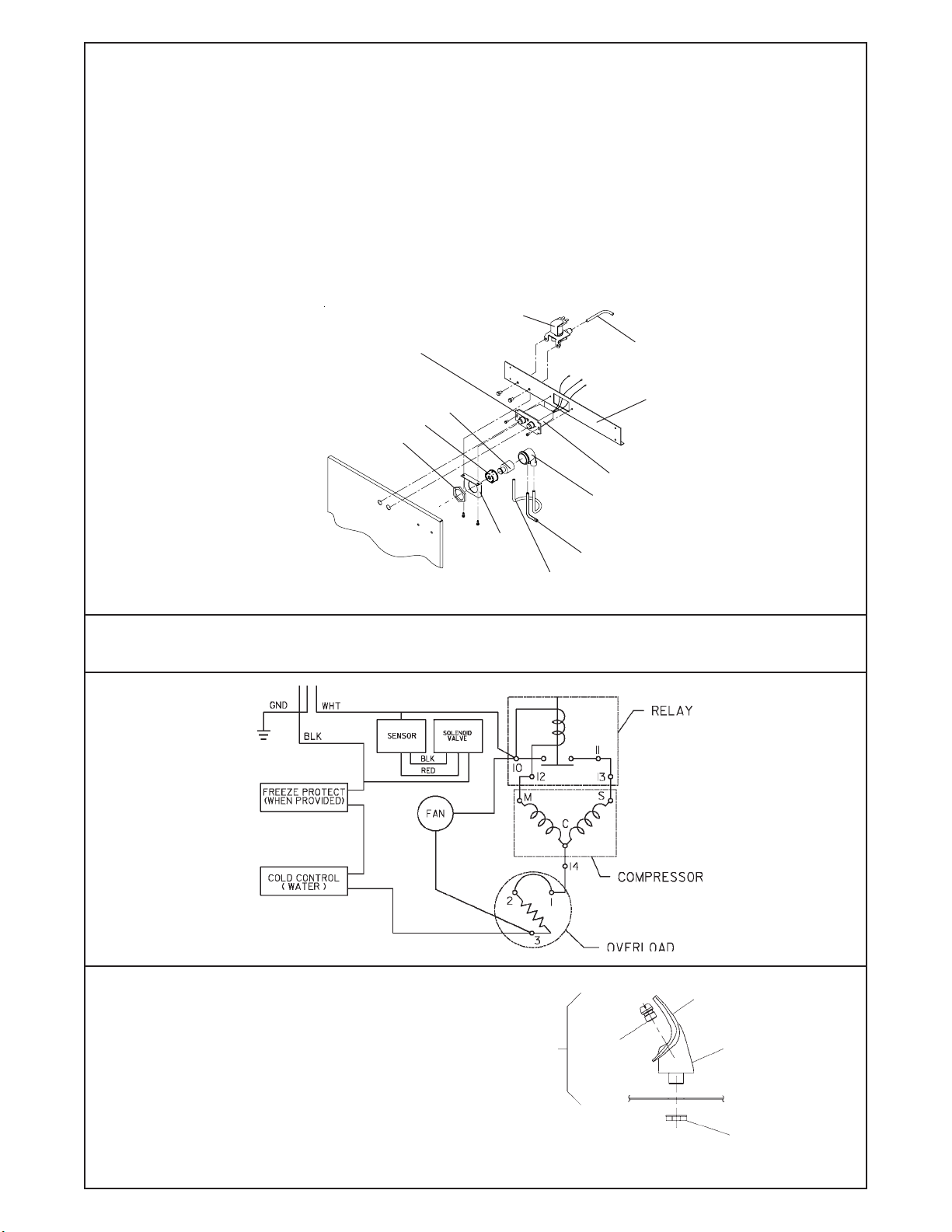

FIG. 4

BASIN

WIRING DIAGRAM

This Drawing is merely for illustrating the

components of the electrical sytem.

SENSOR RANGE ADJUSTMENT: The electronic sensor used in this cooler is factory pre-set for a "visual" range of 36

inches (914 mm). If actual range varies greatly from this or a different setting is desired, follow the range adjustment

procedure below:

A. Remove front panel of cooler.

B. Using a small tip screwdriver, rotate range adjustment screw clockwise to increase range and counterclockwise to

decrease range (See Fig. 3).

CAUTION: Complete range of sensor (24-46 inches/610-1168mm) is only one turn of the adjusting screw.

C. Replace front panel.

SENSOR CONTROL: If sensor fails to operate valve mechanism or operates erratically, check the following.

A. Ensure there are no obstructions within a 40 inch (1016mm) radius in front of cooler.

B. Check wire connections at the solenoid valve and sensor. CAUTION: Make sure unit is unplugged before checking any

wiring.

C. Ensure proper operation of solenoid valve. If there is an audible clicking sound yet no water flows, look for an obstruction

in the valve itself or elsewhere in the water supply line.

RANGE ADJUSTMENT SCREW

429

TO PRECOOLER

TOSOLENOID VALVE(ITEM32)

FIG. 3

TO EVAP. ASSY.(ITEM 29)

PAGE4

98115C (12/04)

EFOA8*1J

56082C

61313C

40045C

50986C

27316C

56073C

40322C

56011C

55997C

75580C

31513C

35890C

66743C

56237C

31490C

30664C

20282C

70018C

66703C

36094C

36158C

50368C

35959C

55996C

45702C

66576C

66534C

27278C

36028C

35891C

27279C

75568C

56092C

27961C

35768C

REPAIR SERVICE INFORMATION TOLL FREE NUMBER 1.800.260.6640

FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620

ELKAY MANUFACTURING COMPANY • 2222 CAMDEN COURT • OAK BROOK, IL 60523 • 630.574.8484

PRINTED IN U.S.A.

PARTS LIST 115V

ITEM NO. PARTNO. DESCRIPTION

20*

RIGHT

PANEL FRONT

PANEL

LEFT

PANEL

COLOR

TABLE

Gray Beige

Almond

Stainless Steel

Sandalwood

Granite

Light Gray

20622C

21460C

20624C

21458C

27165C

27166C

20623C

21461C

20625C

21459C

27168C

27169C

27272C

27273C

27270C

27274C

27271C

27275C

RegulatorRetaining Nut

Regulator

Hex Nut

Regulator Holder

Basin

Bubbler Assembly

Orifice Assembly

Housing Assembly

Pedestal

Bubbler Locknut

ColdControl

Power Cord

Condenser

Fan Shroud

Fan Motor

Fan Blade

Fan Bracket

Fan Blade Nut

Drier

Compressor Serv. Pak

Overload

Receptor-Drain

Relay

Strainer

Tailpipe Assy

Heat Exchanger

Evaporator

Regulator Bracket

Sensor (clear)

Solenoid Valve Assembly

Cross Brace

Screw-Evaporator Mtg

Poly Tubing (Cut To Length)

Brkt-Strain Relief

Relay Cover

*INCLUDESRELAY& OVERLOAD. IF UNDER WARRANTY,

REPLACEWITHSAMECOMPRESSORUSEDINORIGINALASSEMBLY.

NOTE: All correspondence pertaining to any of the above water coolers

ororders forrepair parts MUST include ModelNo. andSerial No. of cooler,

name and part number of replacement part.
