Elkay 2G Manuel d'installation

97983C (Rev. B - 8/03)

EWHA8, 14*1G, 2G

PAGE 1

With FLEXI-GUARD®

Installation/Care/Use Manual

USES HFC-134A REFRIGERANT

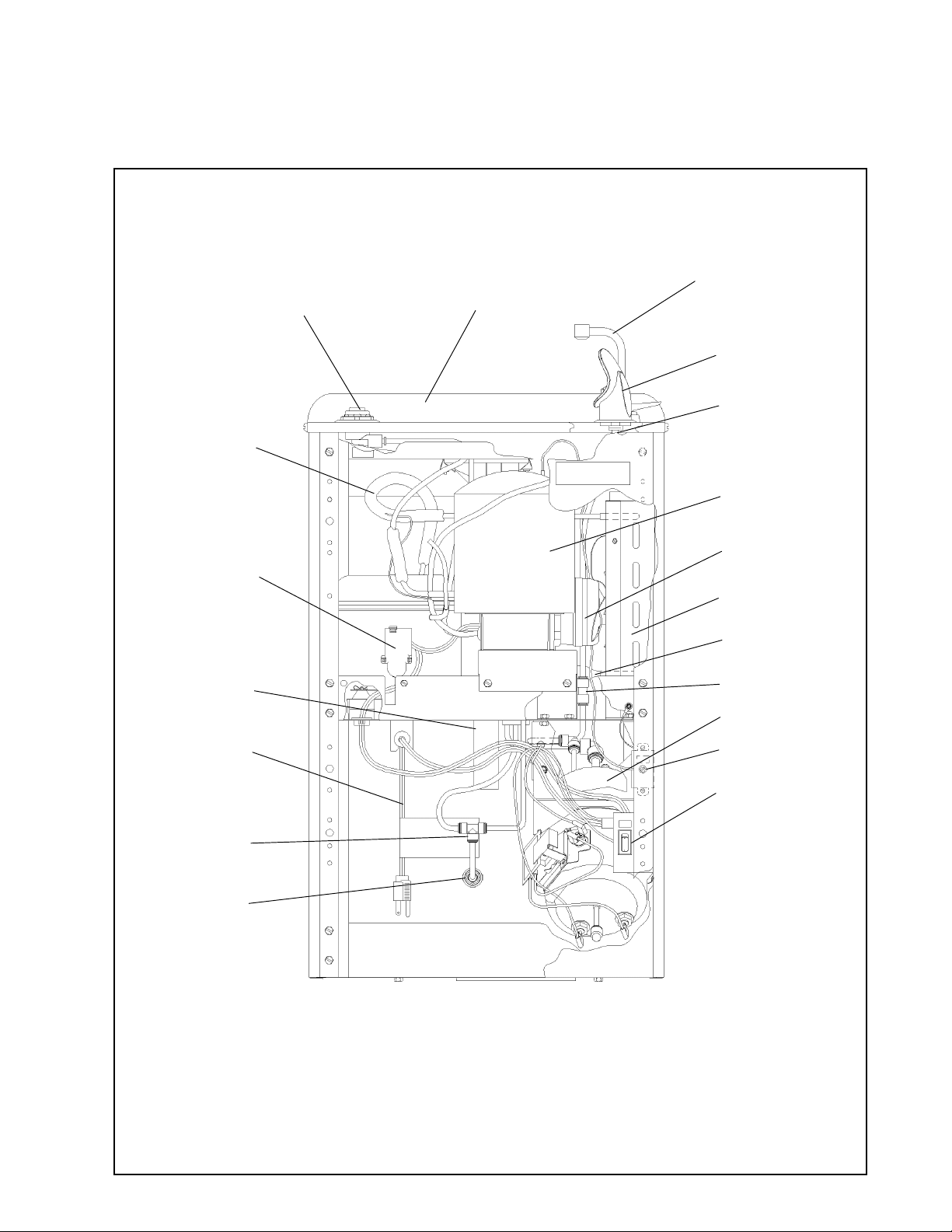

FIG. 1

34 (SEE FIG. 5)

SEE FIG. 3 7

31, 32

8 (SEE FIG. 4)

22, 23, 24,

25, 45, 46

17, 18, 19, 20

33 (SEE FIG. 6)

15, 16

27, 41, 42, 47

97983C (Rev. B - 8/03)

EWHA8, 14*1G, 2G

PAGE 2

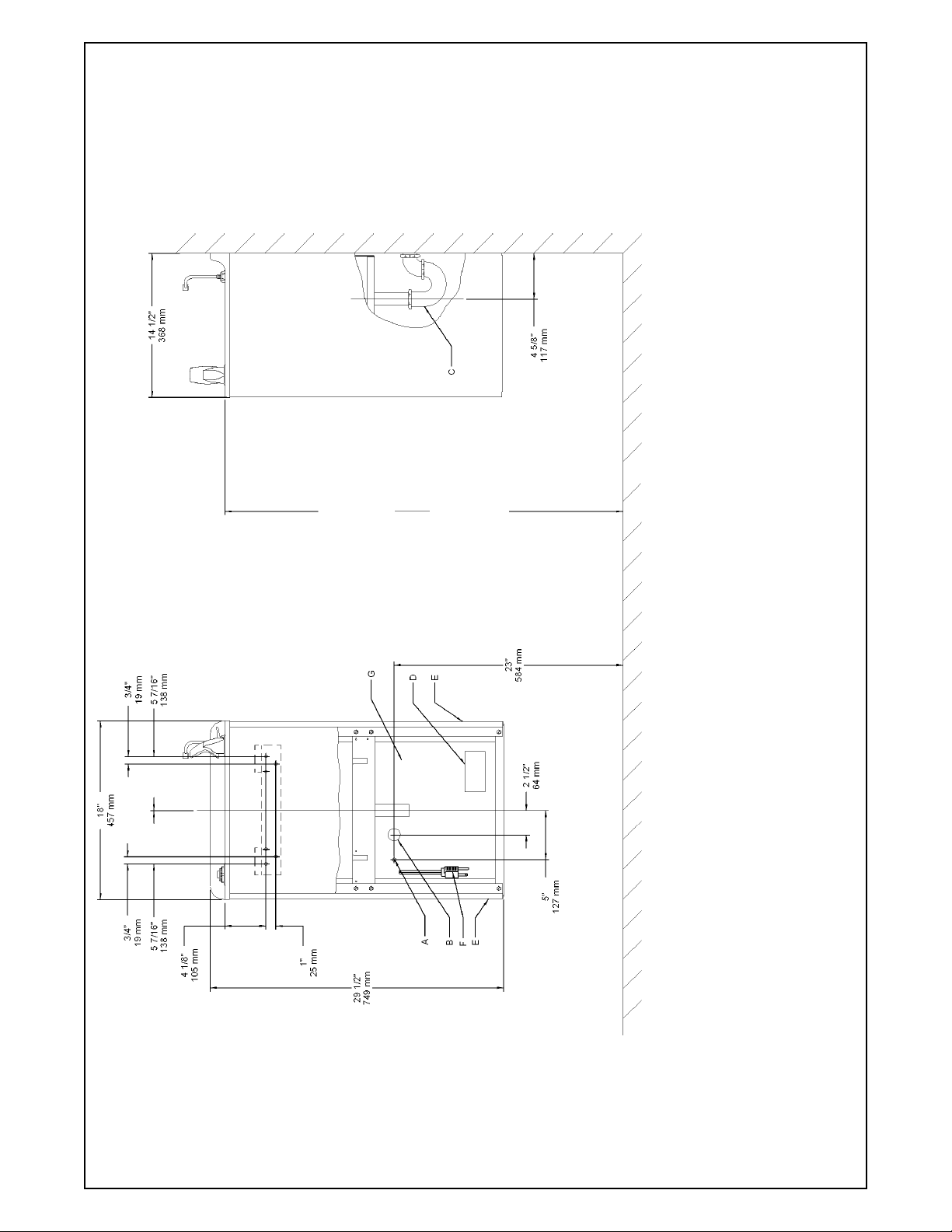

FIG. 2

E = INSURE PROPER VENTILATION BY MAINTAINING 4" (102mm) (MIN.) CLEARANCE FROM CABINET LOUVERS TO WALL.

ASEGURE UNA VENTILACIÓNADECUADA MANTENIENDO UN ESPACIO E 4" (102mm) (MÍN.) DE HOLGURA ENTRE LA

REJILLA DE VENTILACIÓN DEL MUEBLE Y LA PARED

ASSUREZ-VOUS UNE BONNE VENTILATION EN GARDANT 4" (102mm) (MIN.) ENTRE LES ÉVENTS DE LENCEINTE ET LE

MUR.

F = POWER CORD 4 FEET (1219mm) LONG

CABLE ELÉCTRICO DE 4 PIE (1219mm), DE LARGO

CORDON DALIMENTATION 4' (1219mm)

G = PLUMBING ROUGH-IN CAN BE LOCATED ANYWHERE WITHIN THIS AREA.

SE PUEDE COLOCAR EL DESBASTE DE LATUBERÍA EN CUALQUIER LUGAR DENTRO DE ESTA ÁREA.

ON PEUT PLACER LATUYAUTERIE DANS CETTE RÉGION.

40" (1016mm) RECOMMENDED

HEIGHT FOR ADULTS

ALTURA RECOMENDADA PARALOS

ADULTOS 40" (1016 mm)

HAUTEUR RECOMMANDÉE POUR

LESADULTES 40" (1016mm)

33" (838mm) RECOMMENDED

HEIGHT FOR CHILDREN

ALTURA RECOMENDADA PARA LOS

NIÑOS 33" (838 mm)

HAUTEUR RECOMMANDÉE POUR

LES ENFANTS 33" (838mm)

FINISHED FLOOR

PISO ACABADO

PLANCHER FINI

LEGEND/LEYENDA/LÉGENDE

A = RECOMMENDED WATER SUPPLY LOCATION 3/8 O.D. UNPLATED COPPER TUBE CONNECT STUB OUT 1-1/2 IN. (38mm)

FROM WALL SHUT OFF BY OTHERS

SE RECOMIENDA UBICAR ELTUBO CORTO DE CONEXIÓN AL TUBO DE COBRE SIN CHAPAR DE 3/8" DE DIÁM. EXT. A1-1/2"

(38 mm) FUERA DE LA LLAVE DE PASO EN LA PARED COLOCADAPOR TERCEROS.

EMPLACEMENT RECOMMANDÉ D'ALIMENTATION EN EAU PAR TUBE EN CUIVRE NON PLAQUÉ DE 3/8 PO. (9,5 mm) D.E.

CONNECTANT UNE TUYAUTERIE DE 1-1/2 PO. (38 mm) DEPUIS LE ROBINET D'ARRÊT FOURNI PAR D'AUTRES.

B = RECOMMENDED LOCATION FOR WASTE OUTLET 1-1/4 O.D. DRAIN

UBICACIÓN RECOMENDADA PARA EL DRENAJE DE SALIDA DE AGUA, DE 1¼ DE DIÁMETRO.

EMPLACEMENT RECOMMANDÉ POUR LE DRAIN DE D.E. 1-1/4" DE SORTIE DEAU.

C = 1-1/4 TRAP NOT FURNISHED

PURGADOR DE 1¼ NO PROPORCIONADO

SIPHON 1-1/4 NON FOURNI

D = ELECTRICAL OUTLET LOCATION

UBICACIÓN DE LA TOMA DE ELECTRICIDAD

EMPLACEMENT DE LA PRISE DE COURANT

97983C (Rev. B - 8/03)

EWHA8, 14*1G, 2G

PAGE 3

Stream height is factory set at 35 PSI. If supply pressure varies

greatly from this, remove Items 1 & 2 and adjust screw on

Item 4. Clockwise adjustment will raise stream and counter-

clockwise adjustment will lower stream. For best adjustment,

stream should hit basin approximately 6-1/2" (165mm) from

bubbler.

BASIN

FIG. 3

NOTE:

WHEN INSTALLING REPLACEMENT

BUBBLER AND PEDESTAL, TIGHTEN

NUT (ITEM 12) ONLY TO HOLD

PARTS SNUG IN POSITION.

DO NOT OVER TIGHTEN.

FIG. 4

BASIN

WIRING DIAGRAM

This Drawing is merely for illustrating the

components of the electrical system.

A54731

A54732

70793C

A54729

30511C

50226C

28365C

70606C

70302C

70836C

28366C

28367C

PART. NO. DESCRIPTIONITEM NO.

HOT TANK PARTS LIST

Hot Tank Weldment Assy. 115V

Hot Tank Weldment Assy. 220V

1/4 Elbow

Thermostat

Hot Control

Hot Control Insulator

Thermostat Bracket

Drain Plug

Screw #6-32 x 3/16" PHTC

3/8 x 1/4 Elbow

Hot Tank Mounting Bracket

Hot Tank Assy. Mntg. Bracket

FIG. 5

35 36

HOT TANK ASSEMBLY

FIG. 6

97983C (Rev. B - 8/03)

EWHA8, 14*1G, 2G

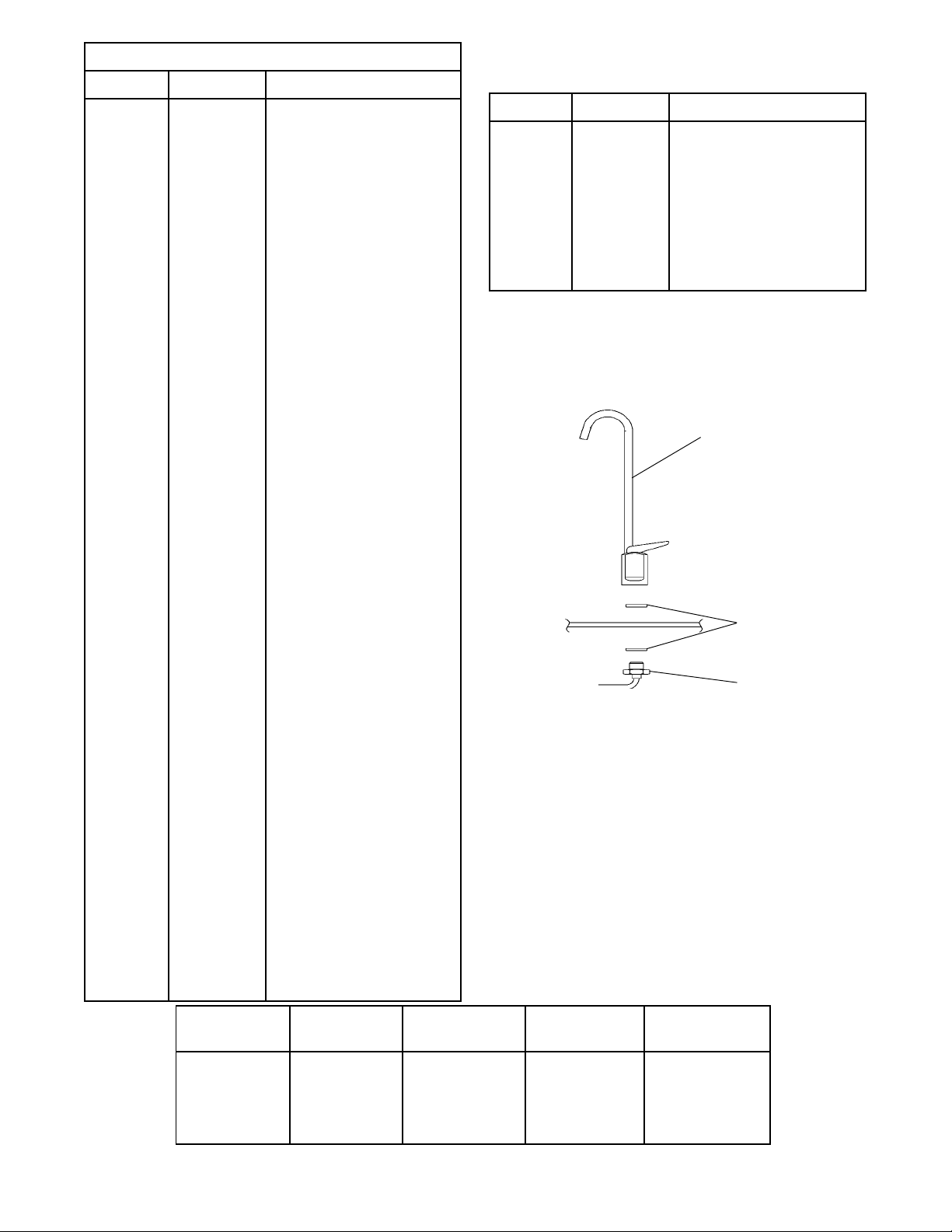

PAGE 4

FOR PARTS, CONTACT YOUR LOCAL DISTRIBUTOR OR CALL 1.800.323.0620

ELKAY MANUFACTURING COMPANY  2222 CAMDEN COURT  OAK BROOK, IL 60523  630.574.8484

PRINTED IN U.S.A.

PARTS LIST 115V

ITEM NO. PART NO. DESCRIPTION

*22

Cover

Button

Regulator Retaining Nut

Regulator

Hex Nut

Regulator Holder

Basin

Basin (GF)

Bubbler Assy

Orifice Assy

Housing Assy

Pedestal

Bubbler Locknut

Cold Control

Power Cord

Condenser (8 GPH)

Condenser (14 GPH)

Fan Shroud

Fan Motor (8 GPH)

Fan Motor (14 GPH)

Fan Blade

Fan Bracket

Fan Blade Nut

Drier (8 GPH)

Drier (14 GPH)

Compressor Serv. Pak 8 GPH

Compressor Serv. Pak 14 GPH

Overload (8 GPH)

Overload (14 GPH)

Relay Cover (8 & 14 GPH)

Electrical Shield

Strainer

Tailpipe/Vacuum Break

Poly Tubing (Cut To Length)

Heat Exchanger (8 GPH)

Heat Exchanger (14 GPH)

Evaporator (8 GPH)

Evaporator (14 GPH)

Hot Tank Switch Bracket

Hot Tank Switch

Hot Tank Assy

Hot Valve Assy

Gooseneck

Hot Valve Kit

Handle

Shroud

Mounting Nut

Body Gasket

Receptor-Drain

Clamp-Hose

Tee - 1/4 x 1/4 x 1/4

Union - 1/4

Relay (14 GPH)

Relay (8 GPH)

Capacitor (14 GPH)

Gasket - Drain

Gasket (GF)

Nipple - Bubbler (GF)

Flow Regulator Assy

40089C

40048C

15005C

61313C

40169C

50986C

21541C

21539C

56073C

40322C

56011C

55997C

75580C

31513C

36132C

66417C

66432C

21516C

36144C

31491C

30664C

27681C

70018C

66202C

66203C

35762C

35775C

36196C

35840C

35768C

194243901550

55996C

45448C

56092C

66229C

66445C

66505C

66506C

28427C

36101C

36154C

45786C

40597C

92712C

51543C

40596C

70921C

33659000

50368C

70750C

70682C

70683C

35843C

36181C

35844C

50005C

100322740560

15009C

55832C

RIGHT PANEL

(w/hole) FRONT PANEL

LEFT PANEL

COLOR TABLE

Gray Beige

Almond

Stainless Steel

Sandalwood

Granite

Light Gray Granite

20638C

21464C

20640C

21462C

27171C

27172C

21526C

21530C

21527C

21528C

27192C

N/A

20675C

20676C

20672C

21454C

27150C

21455C

*INCLUDES RELAY & OVERLOAD. IF UNDER WARRANTY, REPLACE

WITH SAME COMPRESSOR USED IN ORIGINALASSEMBLY.

NOTE: All correspondence pertaining to any of the above water

coolers or orders for repair parts MUST include Model No. and Serial

No. of cooler, name and part number of replacement part.

36131C

31430C

35789C

35764C

36168C

31028C

35768C

66452C

36155C

36164C

35826C

22*

Power Cord (8 & 14 GPH)

Fan Motor (8 & 14 GPH)

Compressor Serv. Pak (8 GPH)

Compressor Serv. Pak (14 GPH)

Overload (8 GPH)

Overload/Relay Assy. (14 GPH)

Relay Cover (8 & 14 GPH)

Heat Exchanger (8 GPH)

Hot Tank Assy (8 & 14 GPH)

Relay (8 GPH)

Power Inlet

PART. NO. DESCRIPTIONITEM NO.

230V 50/60 Hz

RIGHT PANEL

(w/o hole)

20639C

21465C

20641C

21463C

27174C

27175C

Glass Filler Shown

for Reference Only

FIG. 7
