elero VarioCom Slide 915 Mode d’emploi
FCC Documentation
VarioCom Slide 915
Technical Documentation
VarioCom Slide 915
(13 buttons handled Transmitter with Slider)
of
elero Antriebstechnik GmbH
Maybachstraße 30
73278 Schlierbach (Germany)
FCC Documentation
VarioCom Slide 915
Table of content
1. Overview......................................................................................................................................3
2. Description of the product ............................................................................................................3
3. Technical Schemes......................................................................................................................3
4. Technical specifications...............................................................................................................4
5. Instruction Manual........................................................................................................................4
6. Physical Dimensions....................................................................................................................5
7. Label............................................................................................................................................6
7.1 Type of Label........................................................................................................................6
7.2 Label of all product variants..................................................................................................6
7.2.1 VarioComSlide...............................................................................................................6
7.2.2 VarioCom.......................................................................................................................6
7.2.3 LumeroCom...................................................................................................................6
7.2.4 MonoCom Slide.............................................................................................................7
7.2.5 MonoCom......................................................................................................................7
7.3 Placement of Label...............................................................................................................7
FCC Documentation
VarioCom Slide 915
1. Overview
The product has the function to control roller shutters, venetian blinds or awning in 6 channels. To
control the actor there are push buttons or a slider. The channels are built with a different code and
not with different frequencies.
The VarioComSlide 915 consist of 13 push buttons, one slider and 8 dual Led’s. All models have the
same circuit but different components. The slider will be connected to the circuit over a connector.
The product is powered by two 1.5V alkaline battery AAA. (Included)
2. Description of the product
The circuit consists of the main elements µC and transceiver chip. The µC creates the control
messages depending on the pressed push buttons. The transceiver chip works as a transmitter and
as a receiver. After a Message is sent the transceiver will be switched into the receiver mode and
wait for ack’s. The LED’s signals when a message will be sent and also shows the result of received
ack’s.
3. Technical Schemes
Buttons, Slider,
LED‘s µC
Oscillator 4MHz
Radio Transceiver 918.3 MHz FM
HF Oscillator 26 MHz
Vcc 3V
Power Supply Battery
PCB Antenna
- Monopol
-918.3 MHz
T +49 7025 13-01
F +49 7025 13-212
www.elero.com
FCC Documentation
VarioCom Slide 915
Seite 4 von 7
elero GmbH
Maybachtraße 30
73278 Schlierbach
Deutschland/Germany
4. Technical specifications
Center frequency: 918.3 MHz
Deviation: 35 kHz
Oscillator: 26MHz
Modulation: GFSK
Data rate: 76.8 kbps
Data coding: NRZ
Code: a train of pulses lasting 7.8ms in 100ms
Radiated power (ERP): 81.9dBµV/m @ 3m
Correction average power: -22.1dB
Working temperature: from 0°C to +55°C
5. Instruction Manual
For details, please read the annex: HandsenderCOM_138220001_DE+EN+FR+IT_0918.pdf
T +49 7025 13-01
F +49 7025 13-212
www.elero.com
FCC Documentation
VarioCom Slide 915
Seite 5 von 7
elero GmbH
Maybachtraße 30
73278 Schlierbach
Deutschland/Germany
6. Physical Dimensions
T +49 7025 13-01
F +49 7025 13-212
www.elero.com
FCC Documentation
VarioCom Slide 915
Seite 6 von 7
elero GmbH
Maybachtraße 30
73278 Schlierbach
Deutschland/Germany
7. Label
7.1 Type of Label
Metal foil label 32 x 22mm

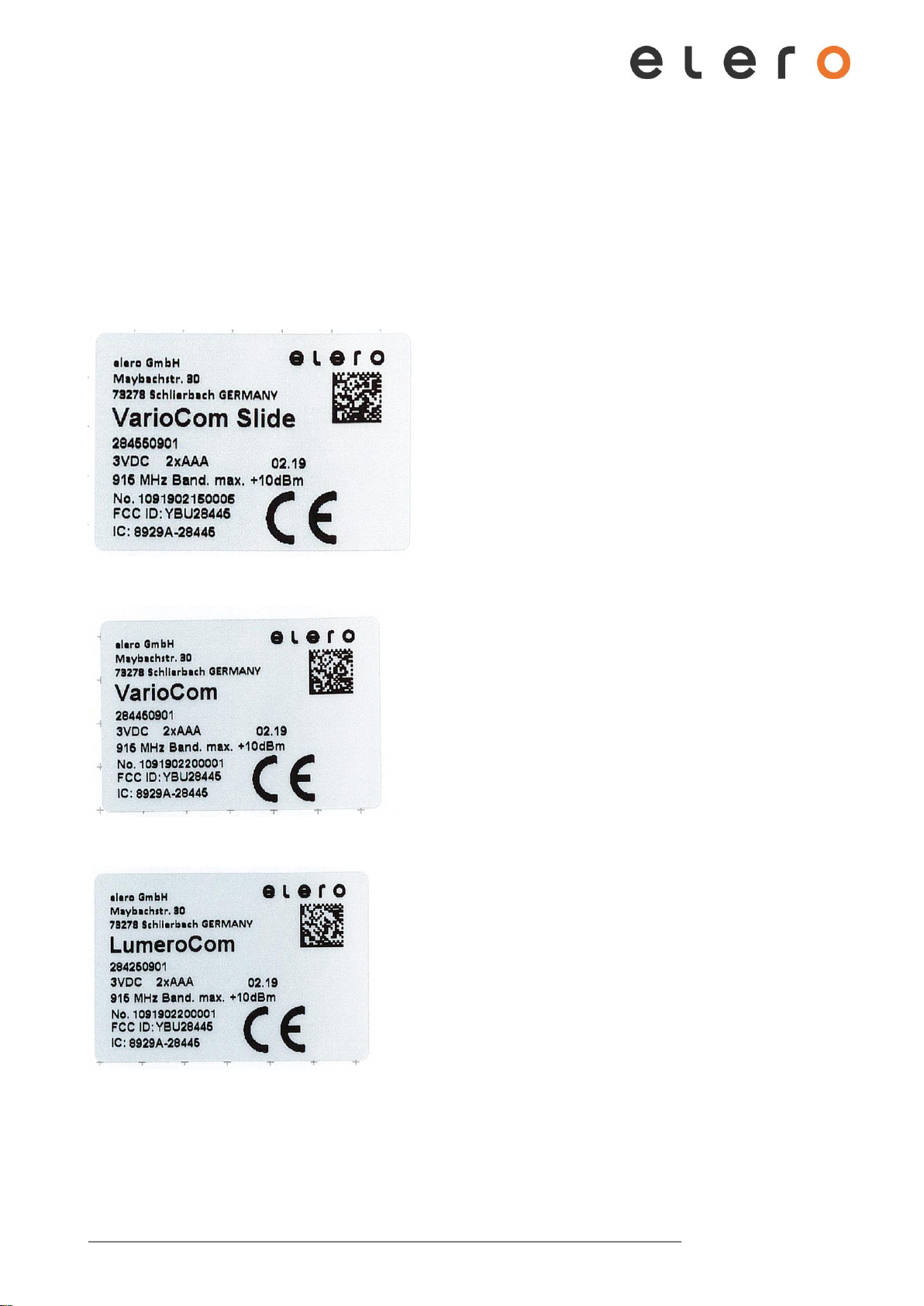

7.2 Label of all product variants
7.2.1 VarioComSlide
7.2.2 VarioCom
7.2.3 LumeroCom
T +49 7025 13-01
F +49 7025 13-212
www.elero.com
FCC Documentation
VarioCom Slide 915
Seite 7 von 7
elero GmbH
Maybachtraße 30
73278 Schlierbach
Deutschland/Germany
7.2.4 MonoCom Slide
7.2.5 MonoCom
7.3 Placement of Label
Position of Label
