EN Wine Cabinet User Manual
CONTENTS
1. SAFETY INFORMATION....................................................................................2
2. SAFETY INSTRUCTIONS..................................................................................4
3. INSTALLATION.................................................................................................. 6
4. PRODUCT DESCRIPTION................................................................................ 9
5. OPERATION.....................................................................................................10
6. DAILY USE....................................................................................................... 10
7. HINTS AND TIPS............................................................................................. 12
8. CARE AND CLEANING....................................................................................12
9. TROUBLESHOOTING......................................................................................13
10. NOISES.......................................................................................................... 15
11. TECHNICAL DATA.........................................................................................15
12. INFORMATION FOR TEST INSTITUTES......................................................15
13. ENVIRONMENTAL CONCERNS................................................................... 16
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that
brings with it decades of professional experience and innovation. Ingenious and
stylish, it has been designed with you in mind. So whenever you use it, you can
be safe in the knowledge that you’ll get great results every time.
Welcome to Electrolux.
Visit our website to:
Get usage advice, brochures, trouble shooter, service and repair information:
www.electrolux.com/support
Register your product for better service:
www.registerelectrolux.com
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
Always use original spare parts.
When contacting our Authorised Service Centre, ensure that you have the
following data available: Model, PNC, Serial Number.
The information can be found on the rating plate.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
1. SAFETY INFORMATION
Before the installation and use of the appliance, carefully
read the supplied instructions. The manufacturer is not
www.electrolux.com2
responsible for any injuries or damage that are the result
of incorrect installation or usage. Always keep the
instructions in a safe and accessible location for future
reference.
1.1 Children and vulnerable people safety
•This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
and knowledge if they have been given supervision or
instruction concerning the use of the appliance in a
safe way and understand the hazards involved.
•Children aged from 3 to 8 years are allowed to load
and unload the appliance provided that they have
been properly instructed.
•This appliance may be used by persons with very
extensive and complex disabilities provided that they
have been properly instructed.
•Children of less than 3 years of age should be kept
away from the appliance unless continuously
supervised.
•Children should be supervised to ensure that they do
not play with the appliance.
•Children shall not carry out cleaning and user
maintenance of the appliance without supervision.
•Keep all packaging away from children and dispose of
it appropriately.
1.2 General Safety
•This appliance is for storing food and baverages only.
•This appliance is designed for single household
domestic use in an indoor environment.
•This appliance may be used in, offices, hotel guest
rooms, bed & breakfast guest rooms, farm guest
houses and other similar accommodation where such
use does not exceed (average) domestic usage levels.
•Use this appliance for storage of wine only.
ENGLISH 3
•To avoid contamination of food respect the following
instructions:
–do not open the door for long periods;
–clean regularly surfaces that can come in contact
with food and accessible drainage systems;
•WARNING: Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear of
obstruction.
•WARNING: Do not use mechanical devices or other
means to accelerate the defrosting process, other than
those recommended by the manufacturer.
•WARNING: Do not damage the refrigerant circuit.
•WARNING: Do not use electrical appliances inside the
food storage compartments of the appliance, unless
they are of the type recommended by the
manufacturer.
•Do not use water spray and steam to clean the
appliance.
•Clean the appliance with a moist soft cloth. Only use
neutral detergents. Do not use abrasive products,
abrasive cleaning pads, solvents or metal objects.
•When the appliance is empty for long period, switch it
off, defrost, clean, dry and leave the door open to
prevent mould from developing within the appliance.
•Do not store explosive substances such as aerosol
cans with a flammable propellant in this appliance.
•If the supply cord is damaged, it must be replaced by
the manufacturer, its Authorised Service Centre or
similarly qualified persons in order to avoid a hazard.
2. SAFETY INSTRUCTIONS
2.1 Installation
WARNING!
Only a qualified person must
install this appliance.
• Remove all the packaging.
• Do not install or use a damaged
appliance.
• Do not use the appliance before
installing it in the built-in structure due
to safety manner.
• Follow the installation instructions
supplied with the appliance.
• Always take care when moving the
appliance as it is heavy. Always use
safety gloves and enclosed footwear.
• Make sure the air can circulate
around the appliance.
www.electrolux.com4
• At first installation or after reversing
the door wait at least 4 hours before
connecting the appliance to the power
supply. This is to allow the oil to flow
back in the compressor.
• Before carrying out any operations on
the appliance (e.g. reversing the
door), remove the plug from the
power socket.
• Do not install the appliance close to
radiators or cookers, ovens or hobs.
• Do not expose the appliance to the
rain.
• Do not install the appliance where
there is direct sunlight.
• Do not install this appliance in areas
that are too humid or too cold.
• When you move the appliance, lift it
by the front edge to avoid scratching
the floor.
• The appliance contains a bag of
desiccant. This is not a toy. This is not
food. Please dispose of it
immediately.
2.2 Electrical connection
WARNING!
Risk of fire and electric
shock.
WARNING!
When positioning the
appliance, ensure the supply
cord is not trapped or
damaged.
WARNING!
Do not use multi-plug
adapters and extension
cables.
• The appliance must be earthed.
• Make sure that the parameters on the
rating plate are compatible with the
electrical ratings of the mains power
supply.
• Always use a correctly installed
shockproof socket.
• Make sure not to cause damage to
the electrical components (e.g. mains
plug, mains cable, compressor).
Contact the Authorised Service
Centre or an electrician to change the
electrical components.
• The mains cable must stay below the
level of the mains plug.
• Connect the mains plug to the mains
socket only at the end of the
installation. Make sure that there is
access to the mains plug after the
installation.
• Do not pull the mains cable to
disconnect the appliance. Always pull
the mains plug.
2.3 Use
WARNING!
Risk of injury, burns, electric
shock or fire.
The appliance contains flammable
gas, isobutane (R600a), a natural gas
with a high level of environmental
compatibility. Be careful not to cause
damage to the refrigerant circuit
containing isobutane.
• Do not change the specification of this
appliance.
• Any use of the built-in product as free-
standing is strictly prohibited.
• Do not put electrical appliances (e.g.
ice cream makers) in the appliance
unless they are stated applicable by
the manufacturer.
• If damage occurs to the refrigerant
circuit, make sure that there are no
flames and sources of ignition in the
room. Ventilate the room.
• Do not let hot items to touch the
plastic parts of the appliance.
• Do not store flammable gas and liquid
in the appliance.
• Do not put flammable products or
items that are wet with flammable
products in, near or on the appliance.
• Do not touch the compressor or the
condenser. They are hot.
2.4 Internal lighting
WARNING!
Risk of electric shock.
• Concerning the lamp(s) inside this
product and spare part lamps sold
separately: These lamps are intended
to withstand extreme physical
conditions in household appliances,
ENGLISH 5
such as temperature, vibration,
humidity, or are intended to signal
information about the operational
status of the appliance. They are not
intended to be used in other
applications and are not suitable for
household room illumination.
2.5 Care and cleaning
WARNING!
Risk of injury or damage to
the appliance.
• Before maintenance, deactivate the
appliance and disconnect the mains
plug from the mains socket.
• This appliance contains hydrocarbons
in the cooling unit. Only a qualified
person must do the maintenance and
the recharging of the unit.
• Regularly examine the drain of the
appliance and if necessary, clean it. If
the drain is blocked, defrosted water
collects in the bottom of the
appliance.
2.6 Service
• To repair the appliance contact the
Authorised Service Centre. Use
original spare parts only.
• Please note that self-repair or non-
professional repair can have safety
consequences and might void the
guarantee.
• The following spare parts will be
available for 7 years after the model
has been discontinued: thermostats,
temperature sensors, printed circuit
boards, light sources, door handles,
door hinges, trays and baskets.
Please note that some of these spare
parts are only available to
professional repairers, and that not all
spare parts are relevant for all
models.
• Door gaskets will be available for 10
years after the model has been
discontinued.
2.7 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door to prevent children
and pets to be closed inside of the
appliance.
• The refrigerant circuit and the
insulation materials of this appliance
are ozone-friendly.
• The insulation foam contains
flammable gas. Contact your
municipal authority for information on
how to discard the appliance
correctly.
• Do not cause damage to the part of
the cooling unit that is near the heat
exchanger.
3. INSTALLATION
WARNING!
Refer to Safety chapters.
www.electrolux.com6

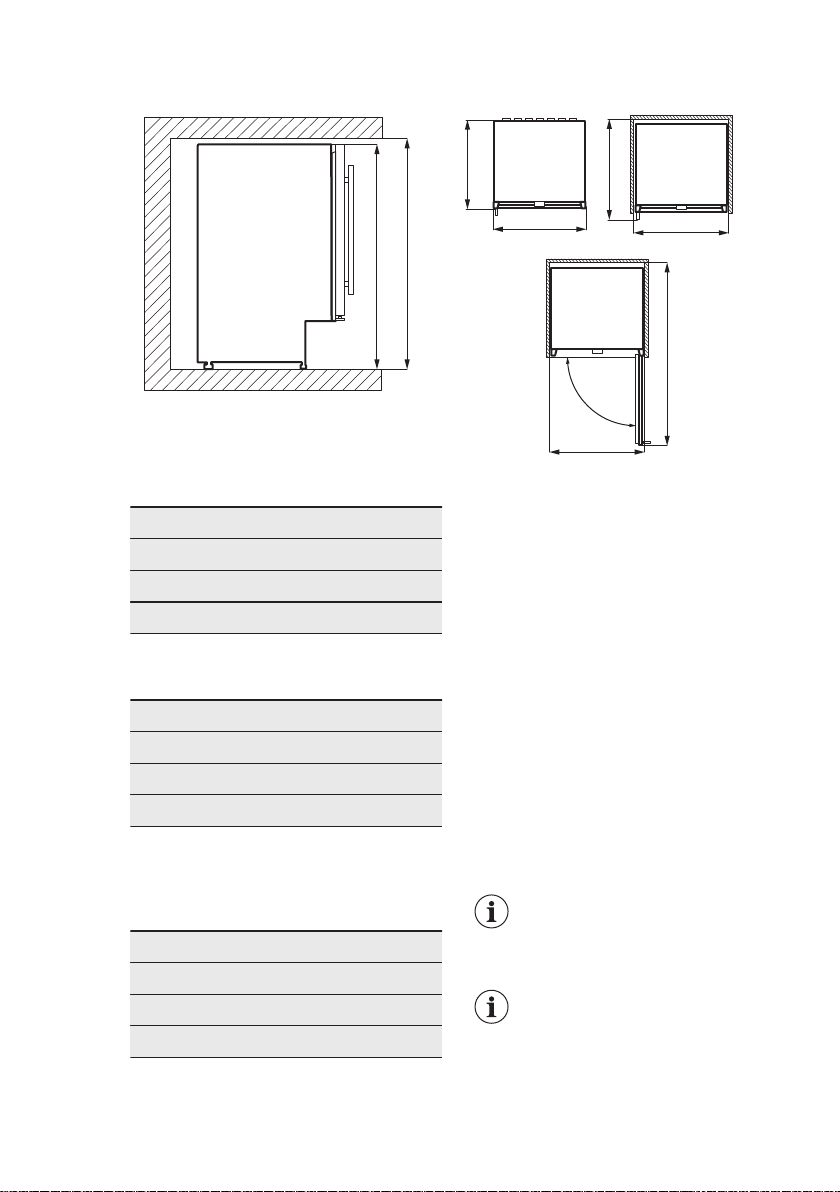

3.1 Dimensions
H1
H2
D3
W3
90°
D2
W2
D1
W1
Overall dimensions ¹
H1 mm 820
W1 mm 595
D1 mm 565
¹ the height, width and depth of the
appliance without the handle
Space required in use ²
H2 mm 822
W2 mm 600
D2 mm 648
² the height, width and depth of the
appliance including the handle, plus the
space necessary for free circulation of
the cooling air
Overall space required in use ³
H2 mm 820
W3 mm 648
D3 mm 1157
³ the height, width and depth of the
appliance including the handle, plus the
space necessary for free circulation of
the cooling air, plus the space necessary
to allow door opening to the minimum
angle permitting removal of all internal
equipment
3.2 Location
To ensure appliance's best functionality,
you should not install the appliance in the
nearby of the heat source (oven, stoves,
radiators, cookers or hobs) or in a place
with direct sunlight. Make sure that air
can circulate freely around the back of
the cabinet.
This appliance should be installed in a
dry, well ventilated indoor position.
This appliance is intended to be used at
ambient temperature ranging from 16°C
to 38°C.
The correct operation of the
appliance can only be
guaranteed within the
specified temperature range.
If you have any doubts
regarding where to install the
appliance, please turn to the
vendor, to our customer
service or to the nearest
Authorised Service Centre.
ENGLISH 7
It must be possible to
disconnect the appliance
from the mains power
supply. The plug must
therefore be easily
accessible after installation.
3.3 Electrical connection
• Before plugging in, ensure that the
voltage and frequency shown on the
rating plate correspond to your
domestic power supply.
• The appliance must be earthed. The
power supply cable plug is provided
with a contact for this purpose. If the
domestic power supply socket is not
earthed, connect the appliance to a
separate earth in compliance with
current regulations, consulting a
qualified electrician.
• The manufacturer declines all
responsibility if the above safety
precautions are not observed.
• This appliance complies with the
E.E.C. Directives.
3.4 Levelling
When placing the appliance make sure
that it stands level. This can be achieved
by two adjustable feet at the bottom in
front.

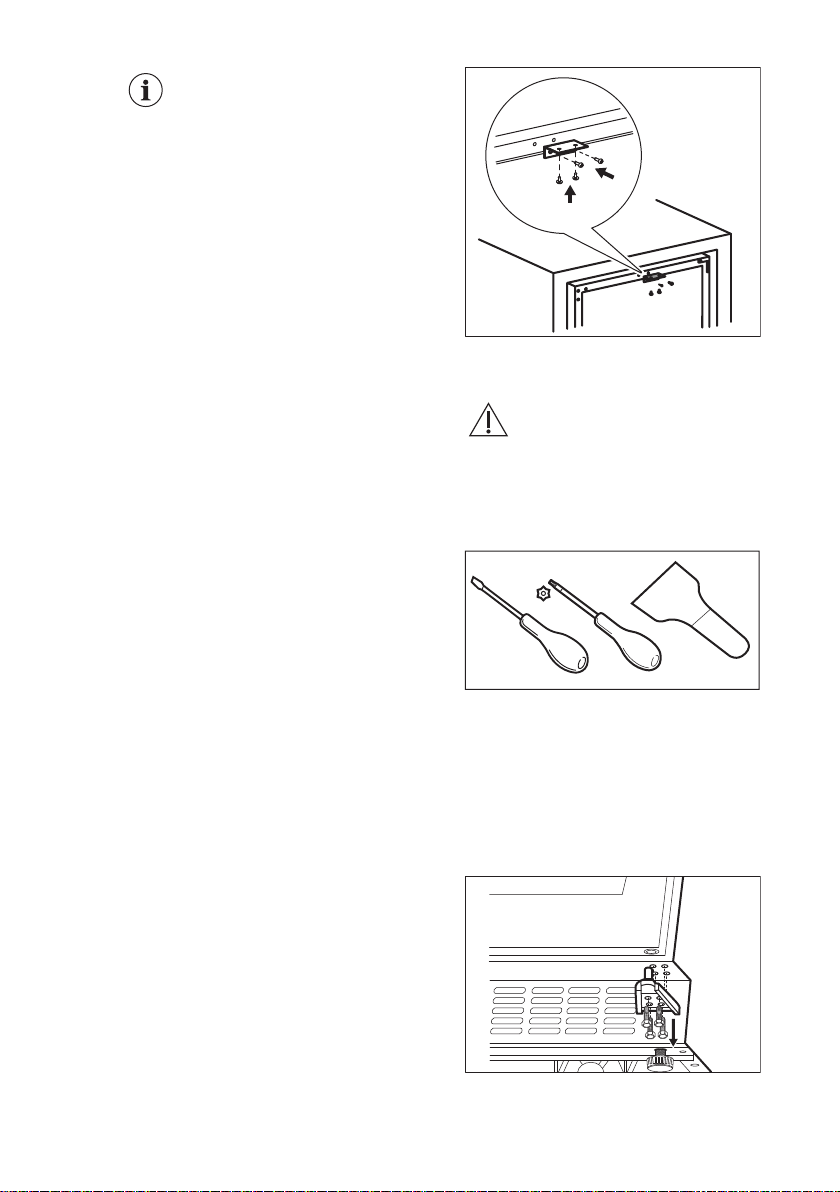

3.5 Installing the upper bracket
Fasten your appliance:
• Use two screws to install the upper
bracket on the top of the appliance.
• Put the appliance in the cupboard and
use two screws to fix the upper
bracket on the cupboard.
3.6 Door reversibility
WARNING!
Before carrying out any
operations, remove the plug
from the power socket.
Tools you need:
• cross-shaped screwdriver,
• putty knife or thin-blade screwdriver.
1. Make sure the appliance stands
upright.
2. Open the door and remove all wine
bottles from the shelves. Close the
door.
3. Unscrew the 4 screws that connect
the bottom hinge. Put the bottom
hinge in a safe place together with
the screws.
4. Remove the door and put it on a soft
surface.
www.electrolux.com8
5. Unscrew the screws that connect the
upper hinge at the top right corner of
the appliance. Put the upper hinge in
a safe place together with the
screws.
6. Use a putty knife or a thin blade
screwdriver to remove 3 screw hole
covers from the left upper corner of
the appliance. Transfer and insert the
covers to screw holes at the other
side.
7. Screw the top hinge on the left side
of the appliance.
8. Set the door into its new place.
9. Secure the lower hinge and do not
tighten the screws, until the door is in
the closed position and levelled.
10. Wait at least 4 hours before
connecting the appliance to the
power supply.
4. PRODUCT DESCRIPTION
4.1 Product overview
1
2
3
4
5
6
7
1Control panel
2Shelves
3Feet
4Decorative frame
5Tempered glass door
6Handle
7Gasket
ENGLISH 9
5. OPERATION
5.1 Control panel
1 2 3 4 5
1Power button
2Light button
3Display
4Temperature warmer button
5Temperature colder button
5.2 Switching on
1. Insert the plug into the wall socket.
2. Press the power button if the display
is off.
3. The display shows the set default
temperature (12°C).
To select a different set temperature,
refer to the "Temperature regulation"
section.
5.3 Switching off
1. Press the power button for 5
seconds.
2. The display switches off.
3. To disconnect the appliance from the
power, remove the plug from the
power socket.
5.4 Light button
To turn the light on and off, press the
light button. The light has no negative
effect on the quality of the wine.
5.5 Temperature regulation
The default set temperature
for the wine cabinet is 12°C.
The temperature can be
adjusted between +5 and
+18°C.
To set the temperature, press the
temperature regulators. The display
shows the set temperature.
To set the right temperature for each
type of wine, refer to "Daily Use" chapter.
6. DAILY USE
6.1 Wine storage
This appliance is intended to
be used exclusively for the
storage of wine.
Wine storage compartment
is the one marked (on the
rating plate) with .
The storage time for wine depends on
age, alcoholic content, type of grapes
and level of fructose and tannin in it. At
the time of purchase, check if the wine is
already aged or if it will improve over
time.
Recommended storage temperatures:
• For champagne and sparkling wines,
between +6°C and +8°C.
• For white wines, between +10°C and
+12°C.
www.electrolux.com10
Autres manuels pour EWUS052B5B
2
Table des matières
Autres manuels Electrolux Refroidisseur de vin
Electrolux
Electrolux WK4PL10CN Manuel utilisateur
Electrolux
Electrolux E24WC75HPS - Icon - Professional Series 48 Bottle Wine... Manuel utilisateur
Electrolux
Electrolux EI24BC65GS0 Manuel utilisateur
Electrolux
Electrolux EI24BC65GS - 24 Inch Beverage Center Guide de l'utilisateur
Electrolux
Electrolux ERW3313AOX Manuel utilisateur
Electrolux
Electrolux ERW3313AOX Manuel utilisateur
Electrolux
Electrolux ERW0273AOA Manuel utilisateur
Electrolux
Electrolux ERC3711WS Manuel utilisateur
Electrolux
Electrolux ENC74800 Manuel utilisateur
Electrolux
Electrolux Wine Cooler / Beverage Center Manuel utilisateur
Electrolux
Electrolux ERW3313AOX Manuel utilisateur
Electrolux
Electrolux EI24WC75HS0 Manuel utilisateur
Electrolux
Electrolux ERW1170AO Manuel utilisateur
Electrolux
Electrolux E24 WC 160 ES1 Manuel utilisateur
Electrolux
Electrolux CE 48 Manuel utilisateur
Electrolux
Electrolux EI24WL10QS Instructions d'utilisation
Electrolux
Electrolux EI24BC65GS - 24 Inch Beverage Center Manuel de service
Electrolux
Electrolux E24WC48EPS Manuel utilisateur
Electrolux
Electrolux SC361W10 Manuel utilisateur
Electrolux
Electrolux E24WC160ES - Icon Wine Coolers Manuel d'utilisation
Electrolux
Electrolux E24WC75HPS - Icon - Professional Series 48 Bottle Wine... Manuel utilisateur
Electrolux
Electrolux Wine Cooler / Beverage Center Manuel utilisateur
Electrolux
Electrolux EI24WC65GS - Wine Cellar With 46 Bottle... Guide de l'utilisateur
Electrolux
Electrolux ERT13300WK Manuel utilisateur
