Electrolux EI24WL10QS Instructions d'utilisation

ELECTROLUXAPPLIANCES.COM

SIGNATURE FEATURES

LUXURY-GLIDE®SHELVES

With a ball bearing system, shelves are so

smooth they extend effortlessly.

LUXURY-DESIGN®LIGHTING

Blue LED display is as beautiful as it is

functional, keeping your wine clearly visible.

In display mode, the lights can stay on to

display your wine collection.

PERFECT SET®

TEMPERATURE CONTROL

Keep your wine perfectly chilled with a

temperature setting between 41 and 64

degrees.

WINE COOLER 44 BOTTLES

With 5 Luxury-Glide®Shelves and a wine

display rack at the bottom, you have ample

storage for up to 44 bottles of wine.

Featuring IQ-Touch™Electronic Controls PRODUCT DIMENSIONS

Height (Adjustable) 33-3/4" – 34-3/4"

Width 23-7/8"

Depth 26-3/8"

MORE EASY-TO-USE FEATURES

LEFT-SWING DOOR MODEL

UV-FILTERED GLASS DOOR

Helps protect wine’s flavor from deterioration caused by

harmful UV rays.

INTEGRATED CONTROLS

Controls are located on the top of the door — so they’re

easy to set when needed, and hidden from view when the

door is closed.

PUREADVANTAGE®AIR FILTER

Keeps air fresh by circulating clean, filtered air throughout.

PLATINUM STAR®LIMITED WARRANTY

Our exclusive limited warranty that includes a 3-year coverage

on parts and one year on labor without charge

VERSATILE INSTALLATION OPTIONS

Use freestanding or under-counter. Doors are reversible for

either left- or right-swing operation — making placement

even easier.

REFRIGERATOR ALARM SYSTEM

Notifies you if there’s been a power failure, if a door stays

open longer than five minutes and if the interior temperature

of the wine cooler exceeds 10 degrees from set-point for more

than 60 minutes.

A.D.A. COMPLIANT

When properly installed, this model is A.D.A.-qualified based

on the United States Access Board’s A.D.A./A.B.A. Accessibility

Guidelines and the Department of Justice’s 2010 A.D.A.

Standards for Accessible Design.

Available in:

1Eligibility based on product registration with Electrolux North America within 60 days of purchase.

Products must have been purchased on or after July 1, 2013. Coverage includes material parts

for 3 years and labor for 1 year.

Stainless

(S)

UNDER-COUNTER

WINE COOLER EI24WL10QS

High standards of quality at Electrolux Home Products, Inc.

mean we are constantly working to improve our products.

We reserve the right to change specifications or

discontinue models without notice.

Electrolux Major Appliances, N.A.

USA •10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •electroluxappliances.com

CANADA •5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •electroluxappliances.ca

24" UNDER-COUNTER WINE COOLER

Capacity

Maximum Storage

Door Swing

Installation Type

FEATURES

IQ-Touch™Electronic Controls

Fully Integrated Control Panel

Blue LED Display

Luxury-Glide®Full-Extension Shelves

Lower Level Display Rack

Black Soft Coat Wireform Racks

Metal Front on Racks

Luxury-Design®LED Lighting

Exhibit Lighting with Manual Control

Perfect Set®Controls

PureAdvantage®Air Filtration

Electronic Control Lock

Display Temp Mode (°C or °F)

Door Ajar Acoustic Alarm

High-Temperature Acoustic Alarm

Power Failure Acoustic Alarm

Mute Sound Control

Power-On/Off Control

Vacation Mode

Sabbath Mode (Star-K®Certified)

Frost-Free Performance

Dynamic Condenser

ADDITIONAL FEATURES

Signature Soft-Arc Door and Handle Design

UV-Filtered, Tinted Glass Window

Luxury-Close™Door

Adjustable Leveling Legs

A.D.A. Compliant *

ACCESSORIES

Maple Wood Trim for Shelves – PN # 241919801

PureAdvantage®Replacement Air Filter – PN # EAFCBF

SPECIFICATIONS

Color –

Stainless Steel

Temperature Range

Power Supply Connection Location

Voltage Rating

Connected Load (kW Rating) @120 Volts‡

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

*When properly installed, this model is A.D.A.-qualified based on the United States Access

Board’s A.D.A./A.B.A. Accessibility Guidelines and the Department of Justice’s 2010 A.D.A.

Standards for Accessible Design.

‡For use on adequately wired 120V, dedicated circuit having 2-wire service with a separate

ground wire. Appliance must be grounded for safe operation.

NOTE: Always consult local and national electric codes. Refer to Product Installation Guide

for detailed installation instructions on the web at electroluxappliances.com.

Specifications subject to change.

5.34 Cu.Ft.

44 Bottles

Left

Built-In / Freestanding

Yes

Optional

Included

41°F – 64°F

Right Bottom Rear

120V / 60 Hz

0.15

15A

125 Lbs.

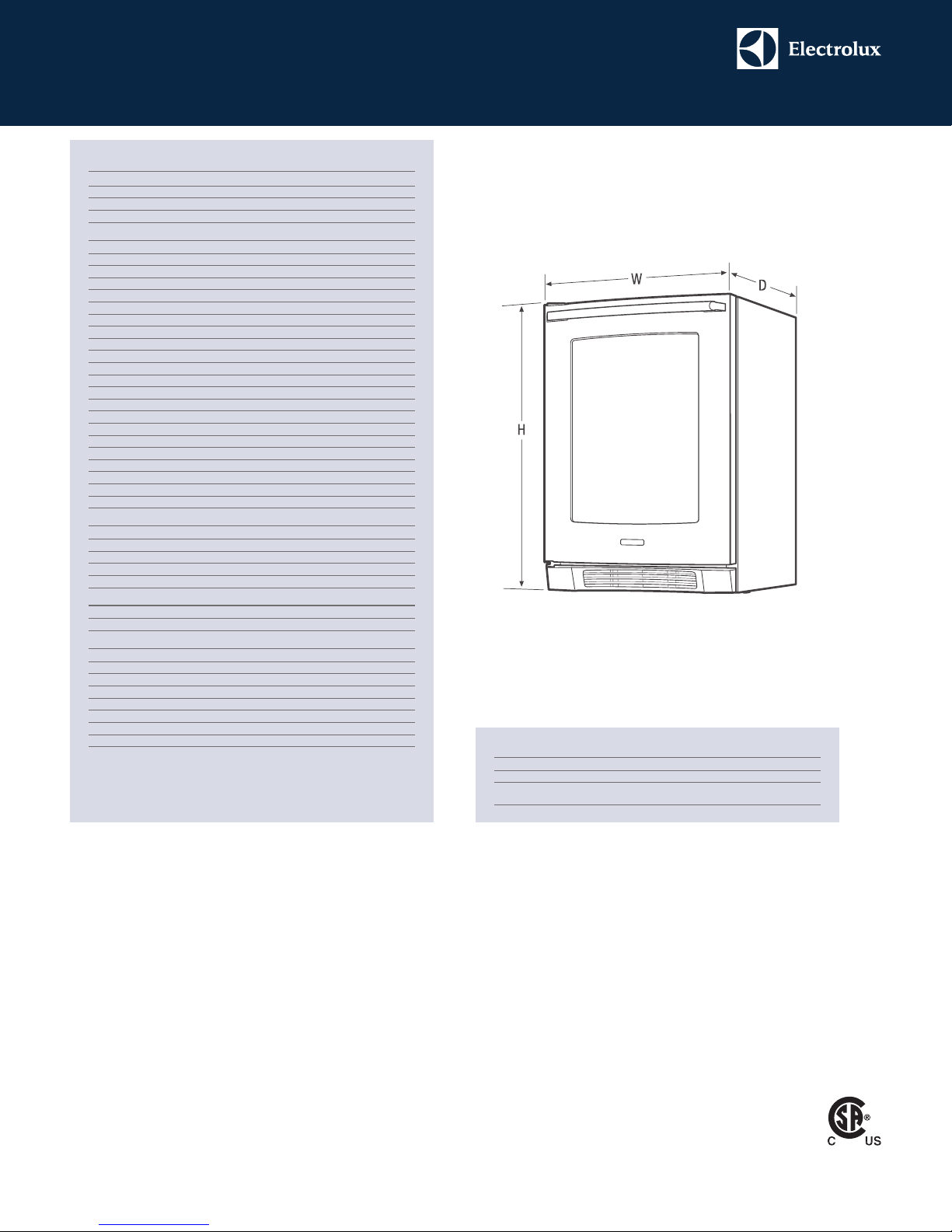

PRODUCT DIMENSIONS

Height

Width

Depth (to Center of Arc)

(with Door 90° Open)

33-3/4" – 34-3/4"

23-7/8"

23-23/32"

46-13/32"

UNDER-COUNTER WINE COOLER

EI24WL10QS

High standards of quality at Electrolux Home Products, Inc.

mean we are constantly working to improve our products.

We reserve the right to change specifications or

discontinue models without notice.

Electrolux Major Appliances, N.A.

USA •10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •electroluxappliances.com

CANADA •5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •electroluxappliances.ca

UNDER-COUNTER WINE COOLER

EI24WL10QS

Wine Cooler

EI24WL10Q

• For proper ventilation, unit can NOT be installed behind closed doors; front grille

MUST remain unobstructed.

• Must be positioned on flat, level surface, capable of supporting entire weight

when fully loaded.

• Leveling legs supplied to adjust height and level unit.

• Do not position unit near any heat source to ensure optimum performance.

• Unit requires zero clearance when installing flush with cabinet or wall.

• When installing against cabinet or wall that extends beyond front edge of

unit, 2-1/2" minimum handle clearance required to allow for 90° door swing,

providing sliding shelves with necessary clearance.

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxappliances.com for detailed instructions.

Optional Accessories

• Maple Wood Trim for Shelves – (PN # 241919801).

Under-Counter Wine Cooler Specifications

• Product Weight – 115 Lbs.

• Voltage Rating – 120V / 60Hz / 15 Amps

• Connected Load (kW Rating) @ 120 Volts = 0.15 kW

(For use on adequately wired 120V, dedicated circuit having 2-wire service

with a separate ground wire. Appliance must be grounded for safe operation.)

• Amps @ 120V = 1.5A

• Electrical cable supplied.

• Always consult local and national electric codes.

• Unit is designed for either freestanding or built-in, under-counter installation.

• Built-in, under-counter installation does not require additional airspace

for top, sides or rear of unit.

• Proper built-in, under-counter installation requires that both electrical

outlet and plug be completely recessed to ensure unit will fit flush against

rear wall.

• To allow for ease of installation and removal, it is recommended that cabinet

rough opening dimensions be increased by at least 1/4" over product’s

dimensions.

General Installation Guidelines

For Installation with Side-by-Side Refrigerator

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •

electroluxappliances.com

CANADA

•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •

electroluxappliances.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at electroluxappliances.com.

Top

Front

Top

General Installation Guidelines

For Installation with French Door Refrigerator

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •

electroluxappliances.com

CANADA

•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •

electroluxappliances.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at electroluxappliances.com.

Front

Top

General Installation Guidelines

For Installation with All Refrigerator or All Freezer

High standards of quality at Electrolux Home Products, Inc. mean

we are constantly working to improve our products. We reserve the right

to change specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•10200 David Taylor Drive •Charlotte, NC 28262 •1-877-4electrolux (1-877-435-3287) •

electroluxappliances.com

CANADA

•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •

electroluxappliances.ca

Use these dimensions and clearance instructions for planning purposes only. For detailed installation

instructions, refer to installation guide, packed with product, or on the web at electroluxappliances.com.

Front

Top
