Electrolux E24WC75HSS1 Manuel utilisateur

Use at Care Guide

Wine Cooler

Guia de Uso y Cuidado

Refrige-rador de Vinos

Guide D'utilisation et D'entretien

Refroidisseur _ Vin

241957002 Feb 2009

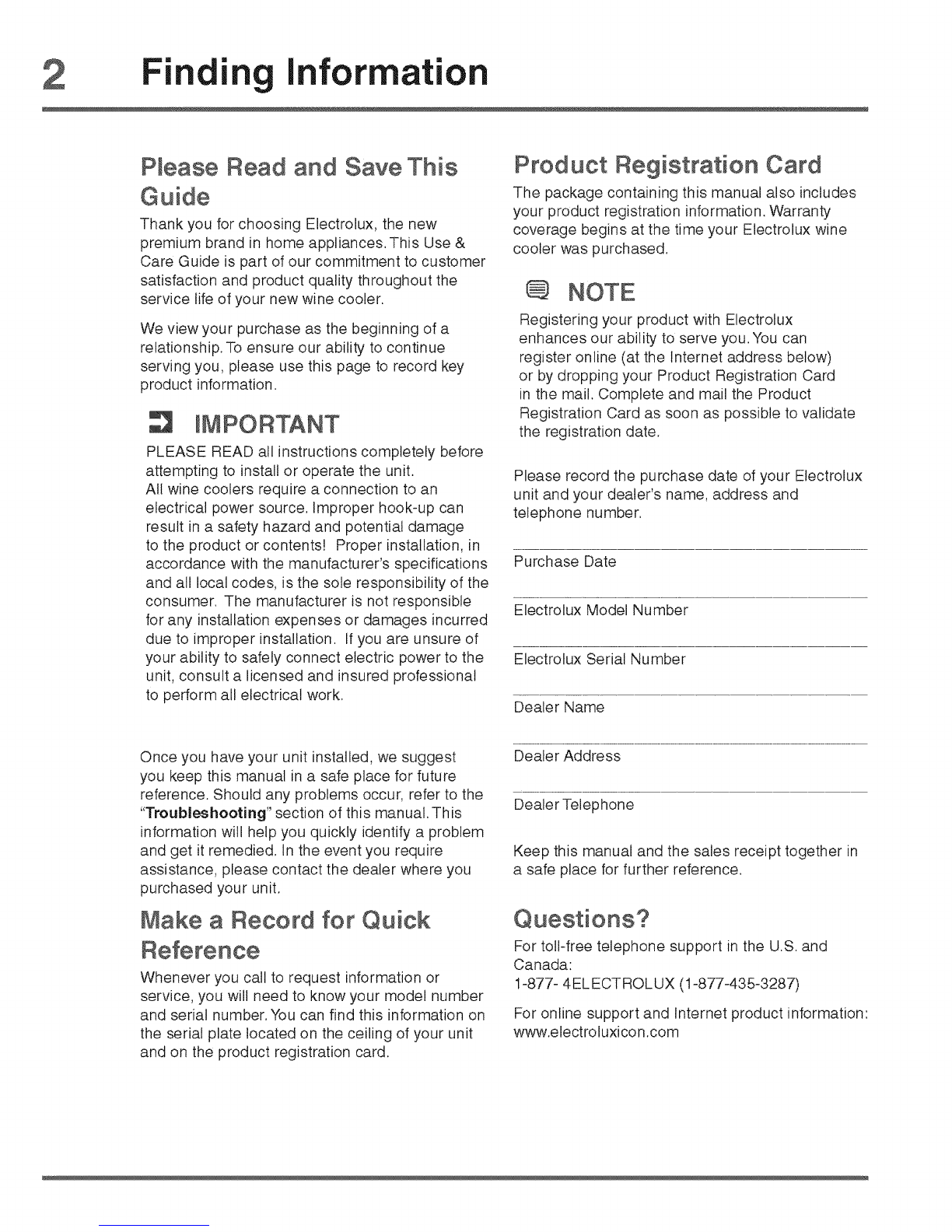

:2 Finding information

Please Read and Save This

Thank you for choosing Electrolux, the new

premium brand in home appliances. This Use &

Care Guide is part of our commitment to customer

satisfaction and product quality throughout the

service life of your new wine cooler.

We view your purchase as the beginning of a

relationship. To ensure our ability to continue

serving you, please use this page to record key

product information.

mMPORTANT

PLEASE READ all instructions completely before

attempting to install or operate the unit.

All wine coolers require a connection to an

electrical power source. Improper hook-up can

result in a safety hazard and potential damage

to the product or contents! Proper installation, in

accordance with the manufacturer's specifications

and all local codes, is the sole responsibility of the

consumer. The manufacturer is not responsible

for any installation expenses or damages incurred

due to improper installation. If you are unsure of

your ability to safely connect electric power to the

unit, consult a licensed and insured professional

to perform all electrical work.

Product Registration Card

The package containing this manual also includes

your product registration information. Warranty

coverage begins at the time your Electrolux wine

cooler was purchased.

NOTE

Registering your product with Electrotux

enhances our ability to serve you. You can

or by dropping your Product Registration Card

in the mail. Complete and mail the Product

Registration Card as soon as possible to validate

the registration date.

Please record the purchase date of your Electrolux

unit and your dealer's name, address and

telephone number.

Purchase Date

Electrolux Model Number

Electrolux Serial Number

Dealer Name

Dealer Address

Dealer Telephone

Once you have your unit installed, we suggest

you keep this manual in a safe place for future

reference. Should any problems occur, refer to the

"Troubleshooting" section of this manual. This

information will help you quickly identify a problem

and get it remedied. In the event you require

assistance, please contact the dealer where you

purchased your unit.

Make a Record for Quick

Whenever you call to request information or

service, you will need to know your model number

and serial number. You can find this information on

the serial plate located on the ceiling of your unit

and on the product registration card.

Keep this manual and the sales receipt together in

a safe place for further reference.

For toll-free telephone support in the U.S. and

Canada:

1-877- 4ELECTROLUX (1-877-435-3287)

For online support and Internet product information:

www.electroluxicon.com

Finq ing information 3

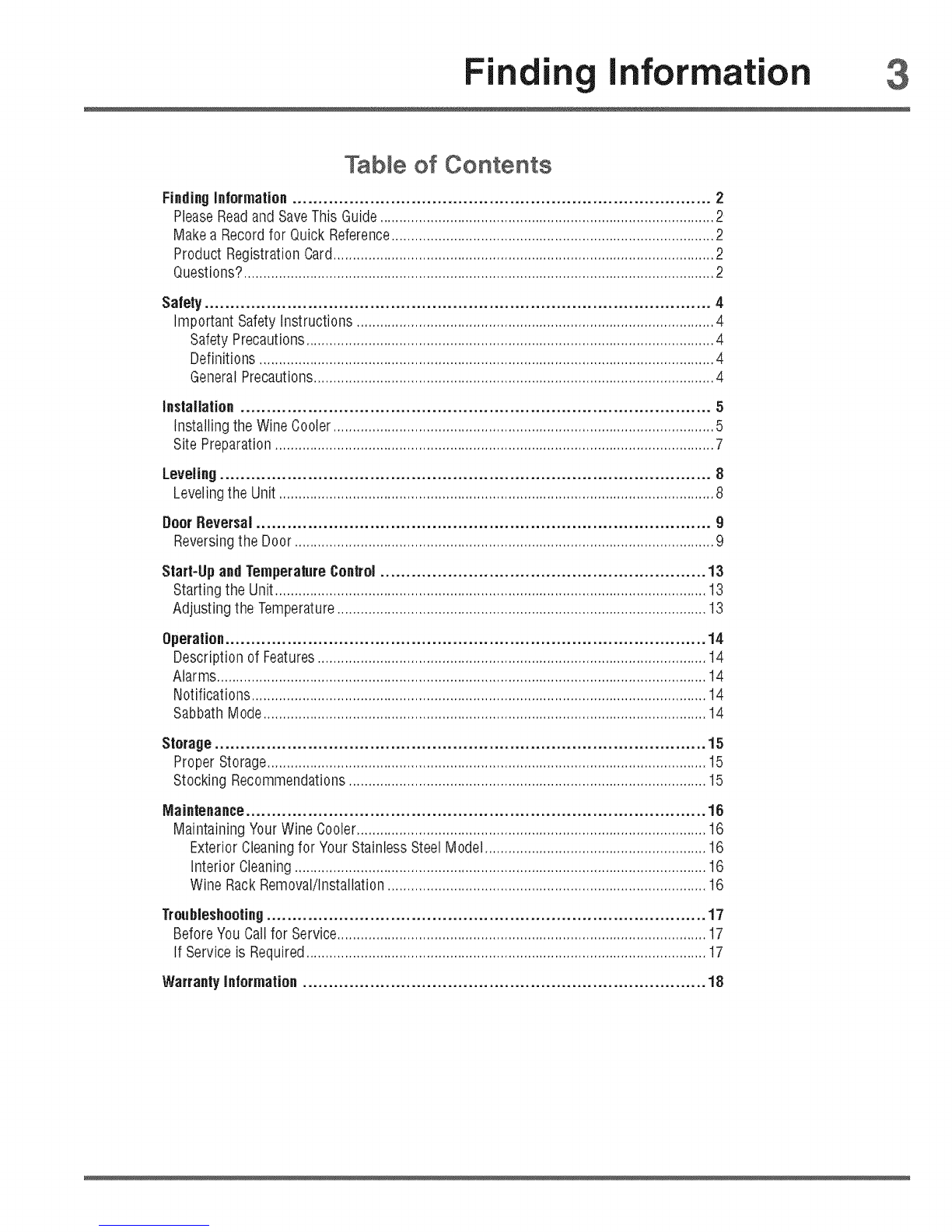

Table of Contents

FindingInformation ................................................................................. 2

PleaseReadand SaveThis Guide...................................................................................... 2

Makea Recordfor Quick Reference................................................................................... 2

Product Registration Card.................................................................................................. 2

Questions?......................................................................................................................... 2

Safety .................................................................................................. 4

Important Safetyinstructions ............................................................................................ 4

Safety Precautions......................................................................................................... 4

Definitions ..................................................................................................................... 4

General Precautions....................................................................................................... 4

installation ........................................................................................... 5

Installing the Wine Cooler.................................................................................................. 5

Site Preparation................................................................................................................. 7

Leveling............................................................................................... 8

Leveringtile Unit ................................................................................................................ 8

DoorReversal ........................................................................................ 9

Reversingthe Door............................................................................................................ 9

Start-Up and TemperatureControl ............................................................... 13

Starting the Unit............................................................................................................... 13

Adjusting the Temperature............................................................................................... 13

Operation............................................................................................. 14

Description of Features.................................................................................................... 14

Alarms.............................................................................................................................. 14

Notifications..................................................................................................................... 14

SabbathMode.................................................................................................................. 14

Storage ............................................................................................... 15

Proper Storage................................................................................................................. 15

Stocking Recommendations ............................................................................................ 15

Maintenance......................................................................................... 16

Maintaining YourWine Cooler.......................................................................................... 16

Exterior Cleaningfor Your Stainless SteelModel......................................................... 16

Interior Cleaning.......................................................................................................... 16

Wine Rack Removal/Installation .................................................................................. 16

Troubleshooting ..................................................................................... 17

BeforeYou Callfor Service............................................................................................... 17

If Service is Required....................................................................................................... 17

WarrantyInformation .............................................................................. 18

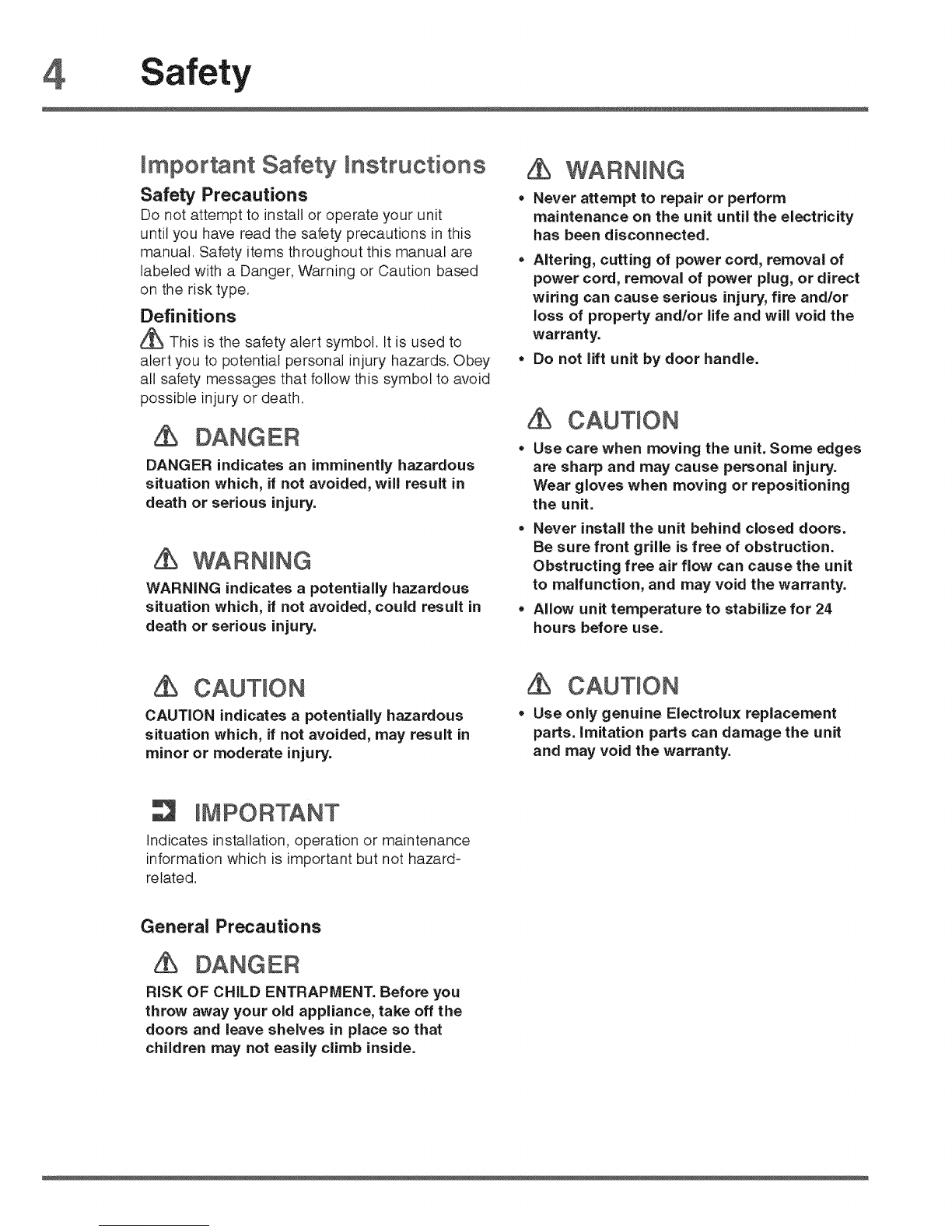

4Safety

important Safety instructions

Safety Precautions

Do not attempt to install or operate your unit

until you have read the safety precautions in this

manual. Safety items throughout this manual are

labeled with a Danger, Warning or Caution based

on the risk type.

Definitions

This is the safety alert symbol. It is used to

alert you to potential personal injury hazards. Obey

all safety messages that follow this symbol to avoid

possible injury or death.

DANGER

DANGER indicates an imminently hazardous

situation which, if not avoided, will result in

death or serious injury.

WARNmNG

WARNING indicates apotentially hazardous

situation which, if not avoided, could result in

death or serious injury.

WARNING

*Never attempt to repair or perform

maintenance on the unit until the electricity

has been disconnected.

*Altering, cutting of power cord, removal of

power cord, removal of power plug, or direct

wiring can cause serious injury, fire and/or

loss of property and/or life and will void the

warranty.

.Do not lift unit by door handle.

CAUTmON

Use care when moving the unit. Some edges

are sharp and may cause personal injury.

Wear gloves when moving or repositioning

the unit.

•Never install the unit behind closed doors.

Be sure front grille is free of obstruction.

Obstructing free air flow can cause the unit

to malfunction, and may void the warranty,

• Allow unit temperature to stabilize for 24

hours before use.

CAUTION

CAUTION indicates apotentially hazardous

situation which, if not avoided, may result in

minor or moderate injury.

CAUTION

• Use only genuine Electrolux replacement

parts. Imitation parts can damage the unit

and may void the warranty.

BMPORTANT

indicates installation, operation or maintenance

information which is important but not hazard-

related.

General Precautions

DANGER

RISK OF CHILD ENTRAPMENT. Before you

throw away your old appliance, take off the

doors and leave shelves in place so that

children may not easily climb inside.

Installation 5

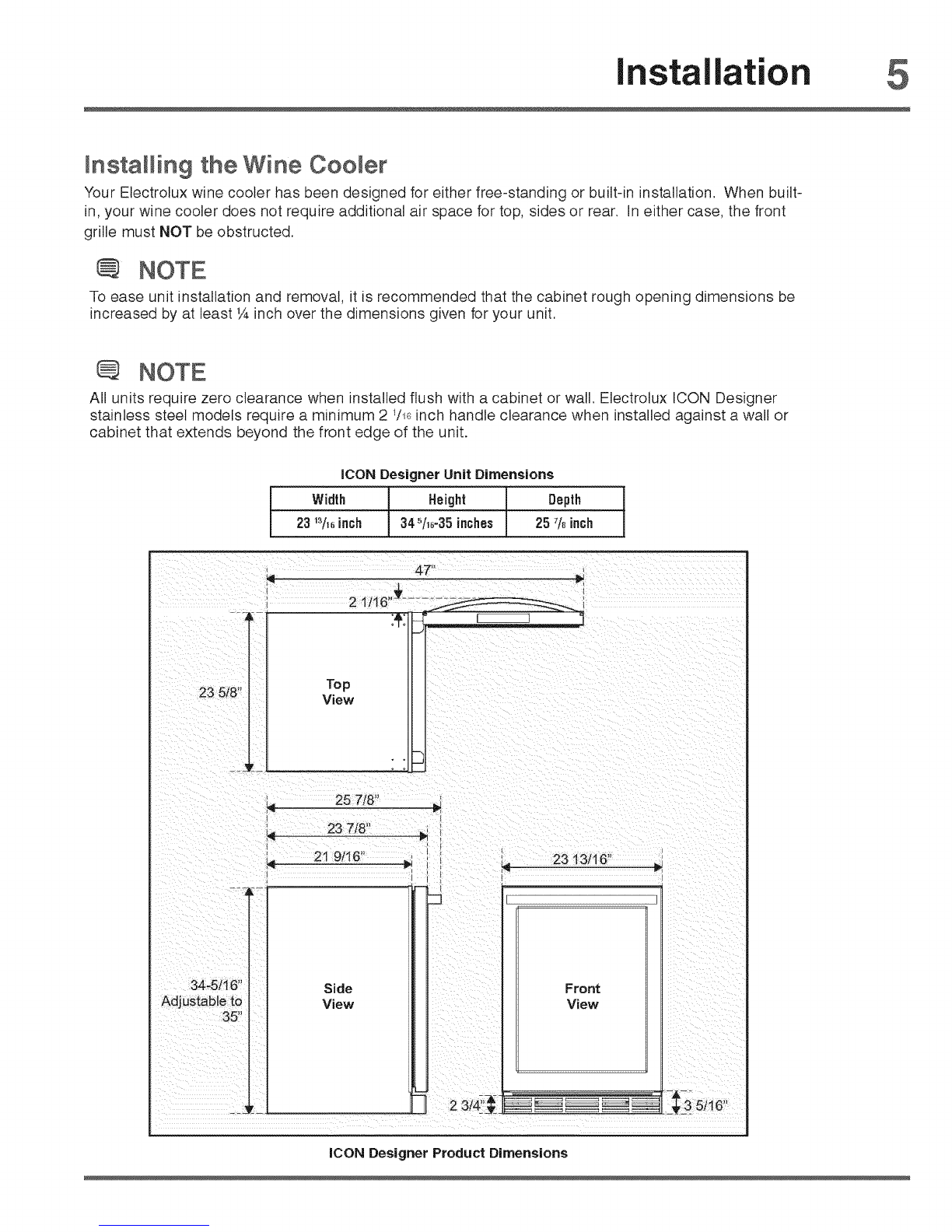

mnstalling the Wine Cooler

Your Electrolux wine cooler has been designed for either free-standing or built-in installation. When built-

in, your wine cooler does not require additional air space for top, sides or rear. Oneither case, the front

gd01emust NOT be obstructed.

NOTE

To ease unit installation and removal, it is recommended that the cabinet rough opening dimensions be

increased by at least 1/4inch over the dimensions given for your unit.

NOTE

All units require zero clearance when installed flush with a cabinet or wall. Electrolux ICON Designer

stainless steel models require a minimum 2 1/1einch handle clearance when installed against a wall or

cabinet that extends beyond the front edge of the unit.

iCON Designer Unit Dimensions

Width Height _Depth

23 1"-"/1,inch 345/1_-35inchesJ257/8inch

47 _'

---j

23 5f8" Top

View

34-5/16"

Adjustable to

35"

25 7/8"

23 7/8"

Side

View

2 3t4'°_

23 13/16" _.

Front

View

_3 5/16"

iCON Designer Product Dimensions

6Installation

NOTE

All units require zero clearance when installed flush with a cabinet or wall. Electrolux ICON Pro stainless

steel models require a minimum 2 _1/16inch handle clearance when installed against a wall or cabinet

that extends beyond the front edge of the unit.

23 5!8"

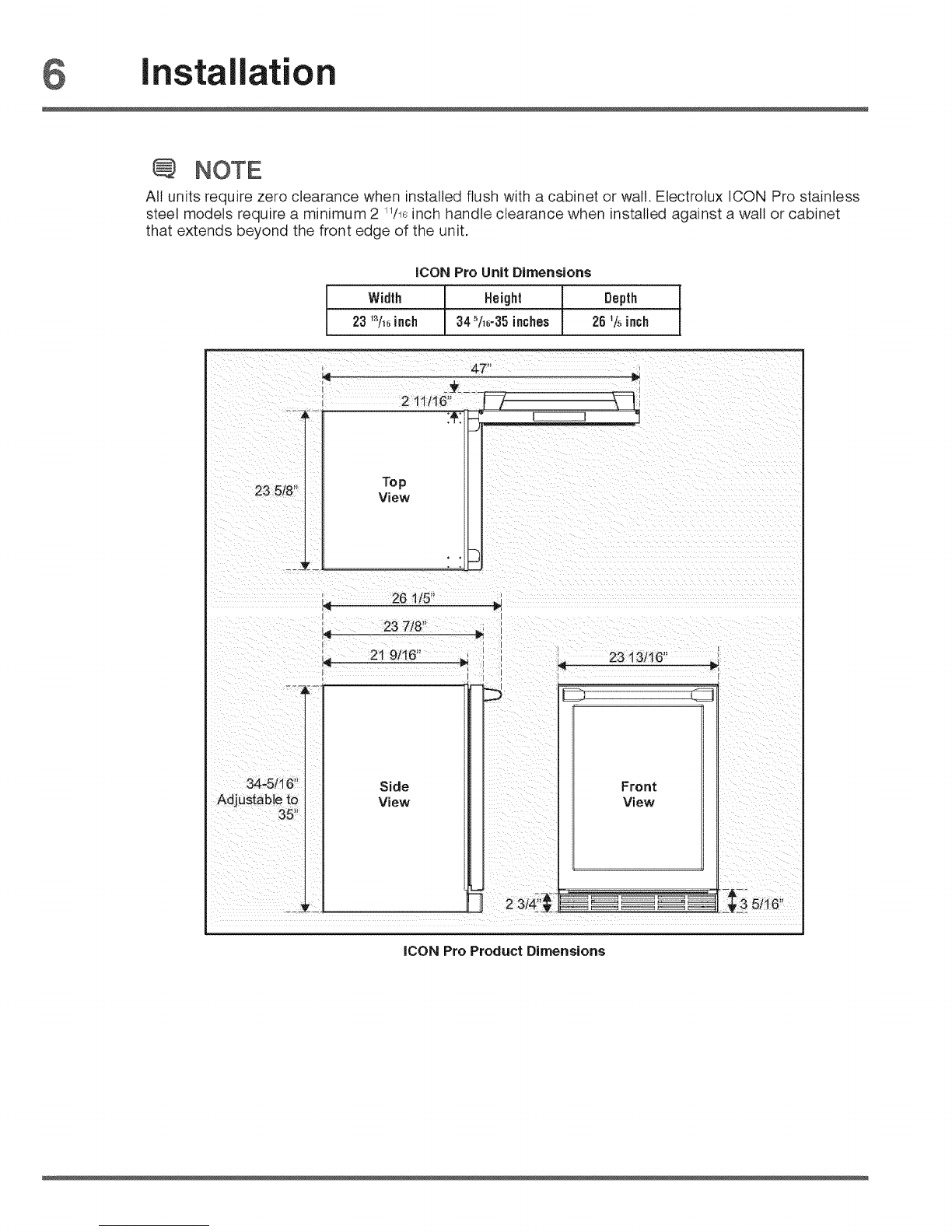

ICON Pro Unit Dimensions

WJd|h Height l Depth

23_I_6inch 34_1_6-35inches _ 26 t/sinch

Top

View

:,£

47"

34-5116"

Adjustable to

35 _

26 1t5' _,

,4 23 7t8"

Side

View

23 13!16"

Front

View

iCON Pro Product Dimensions

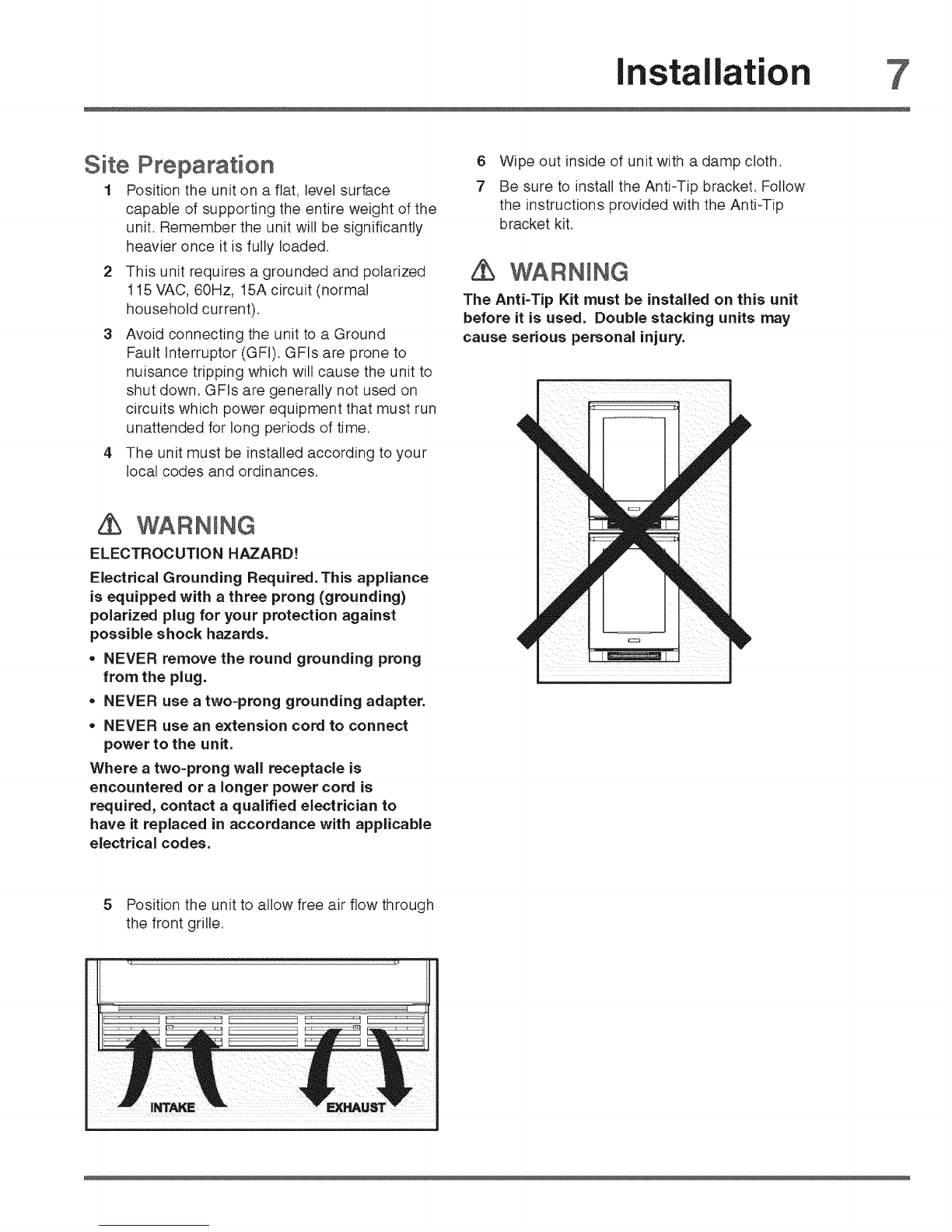

Installation 7

Site Preparation

1 Position the unit on a flat, level surface

capable of supporting the entire weight of the

unit. Remember the unit will be significantly

heavier once it is fully loaded.

2 This unit requires a grounded and polarized

115 VAC, 60Hz, t5A circuit (normal

household current).

3 Avoid connecting the unit to a Ground

Fault Interruptor (GFI). GFIs are prone to

nuisance tripping which will cause the unit to

shut down. GFIs are generally not used on

circuits which power equipment that must run

unattended for long periods of time.

4 The unit must be installed according to your

local codes and ordinances.

WARNSNG

ELECTROCUTION HAZARD!

Electrical Grounding Required. This appliance

is equipped with a three prong (grounding)

polarized plug for your protection against

possible shock hazards.

, NEVER remove the round grounding prong

from the plug.

o NEVER use a two-prong grounding adapter.

NEVER use an extension cord to connect

power to the unit.

Where a two-prong wall receptacle is

encountered or a longer power cord is

required, contact a qualified electrician to

have it replaced in accordance with applicable

electrical codes.

7Wipe out inside of unit with a damp cloth.

Be sure to install the Anti-Tip bracket, Follow

the instructions provided with the Anti-Tip

bracket kit.

The Anti-Tip Kit must be installed on this unit

before it is used. Double stacking units may

cause serious personal injury.

5 Position the unit to allow free air flow through

the front grille.

Levelin

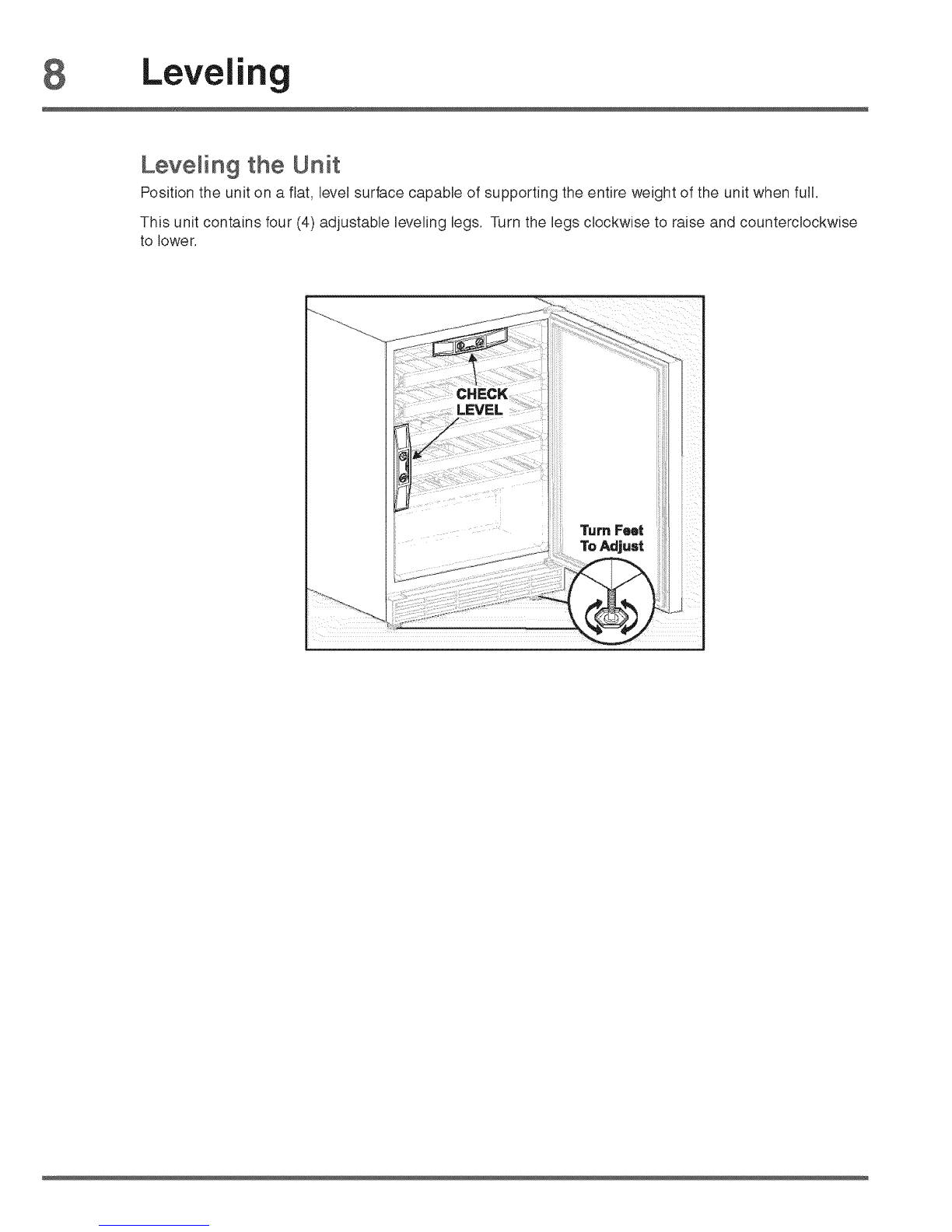

Leveling the Unit

Position the unit on a flat, level surface capable of supporting the entire weight of the unit when full.

This unit contains four (4) adjustable leveling legs, Turn the legs clockwise to raise and counterclockwise

to lower.

Door Reversal 9

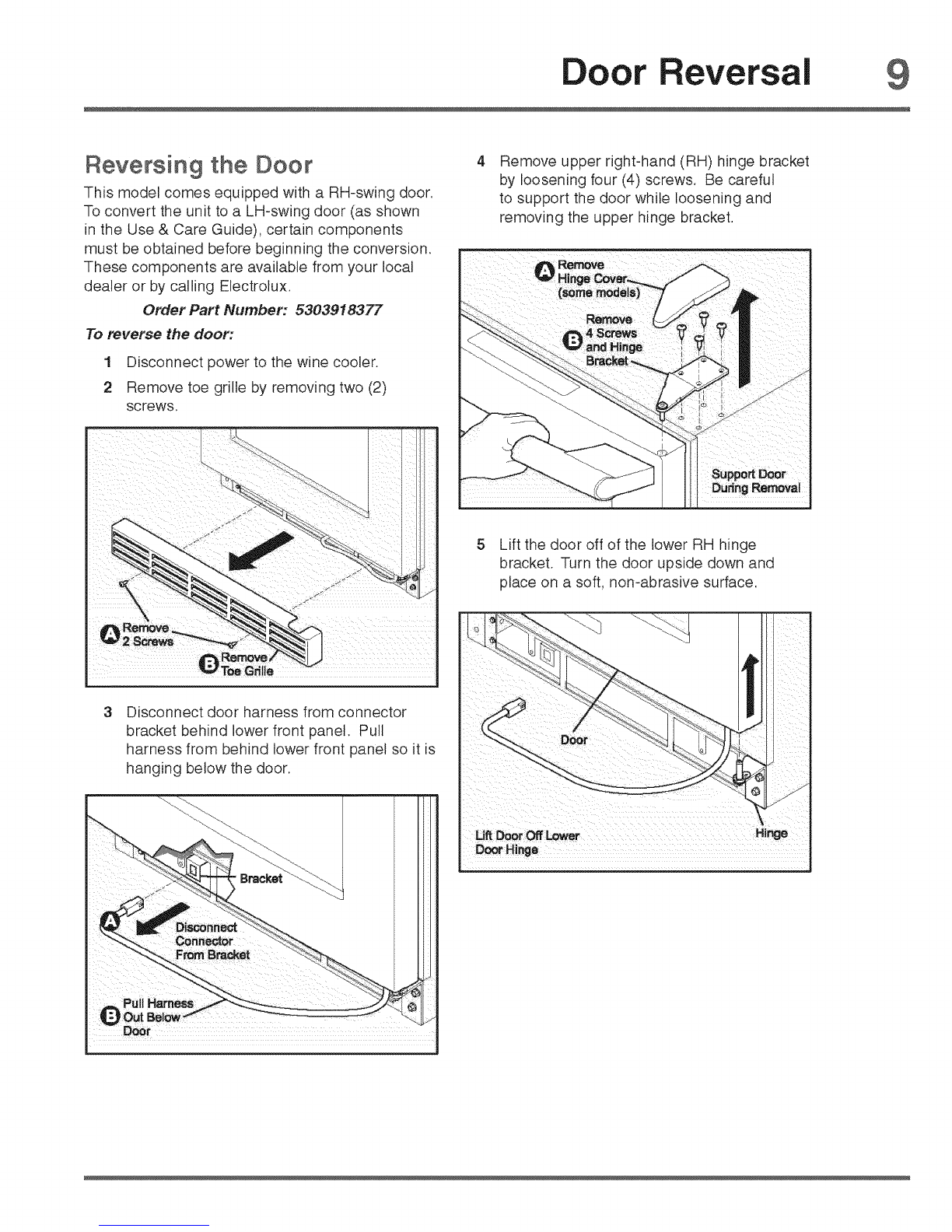

Reversing the Door

This model comes equipped with a RH-swing door.

To convert the unit to a LH-swing door (as shown

in the Use & Care Guide), certain components

must be obtained before beginning the conversion.

These components are available from your local

dealer or by calling Electrotux.

Order Part Number: 5303918377

To reverse the door:

1 Disconnect power to the wine cooler.

2 Remove toe grille by removing two (2)

screws.

Remove upper right-hand (RH) hinge bracket

by loosening four (4) screws. Be careful

to support the door while loosening and

removing the upper hinge bracket.

5 Lift the door off of the lower RH hinge

bracket. Turn the door upside down and

place on a soft, non-abrasive surface.

Disconnect door harness from connector

bracket behind lower front panel. Pull

harness from behind lower front panel so it is

hanging below the door,

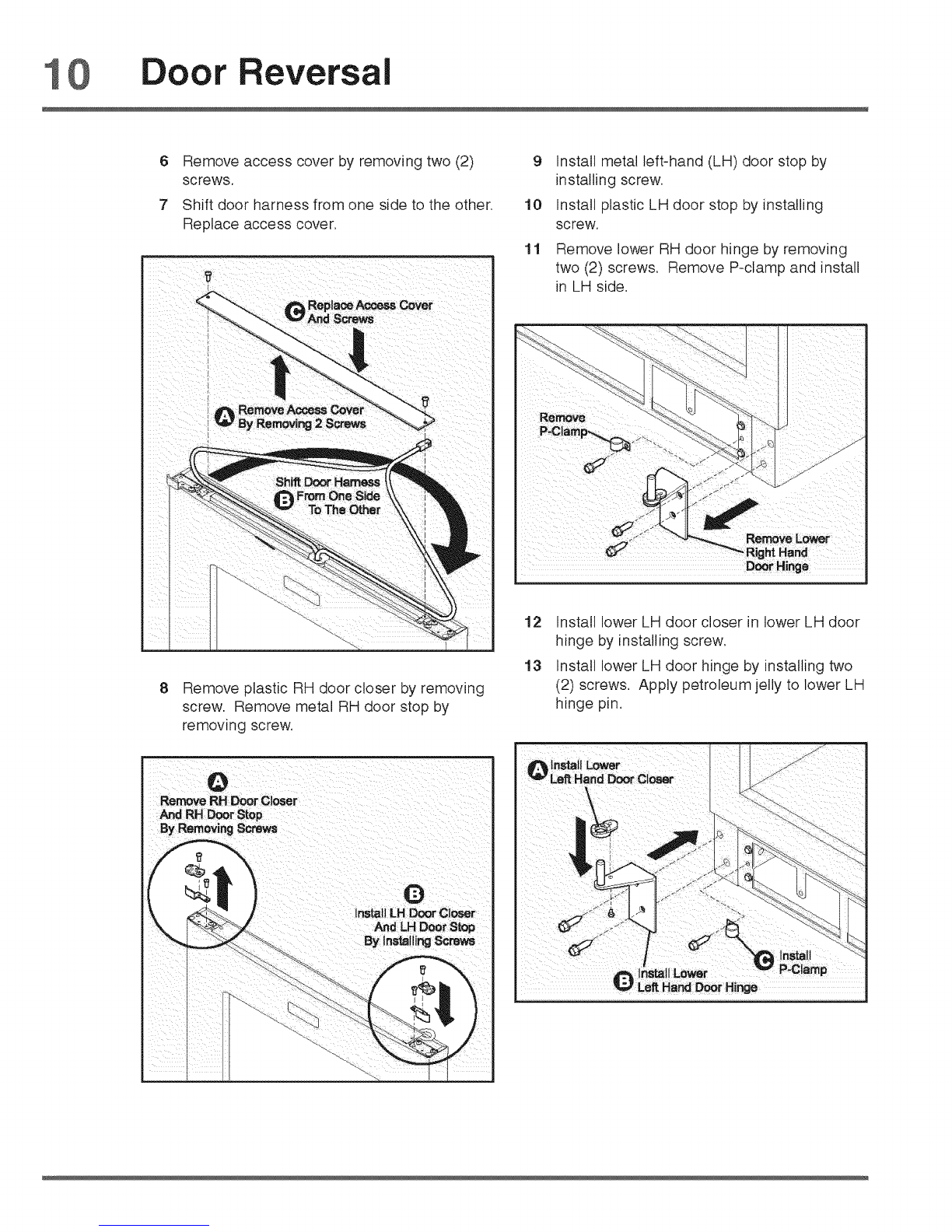

Door Reversal

6 Remove access cover by removing two (2)

screws.

7 Shift door harness from one side to the other.

Replace access cover.

8Remove plastic RH door closer by removing

screw. Remove metal RH door stop by

removing screw.

9 Install metal left-hand (LH) door stop by

installing screw.

10 Install plastic LH door stop by installing

screw.

11 Remove lower RH door hinge by removing

two (2) screws. Remove P-clamp and install

in LH side,

12 Install lower LH door closer in lower LH door

hinge by installing screw.

13 Install lower LH door hinge by installing two

(2) screws. Apply petroleum jelly to lower LH

hinge pin.

Table des matières

Autres manuels Electrolux Refroidisseur de vin

Electrolux

Electrolux E24WC160ES - Icon Wine Coolers Manuel d'utilisation

Electrolux

Electrolux E24WC160ES - Icon Wine Coolers Manuel utilisateur

Electrolux

Electrolux ERT13300WK Manuel utilisateur

Electrolux

Electrolux EI24WC75 Manuel utilisateur

Electrolux

Electrolux CS 200 Manuel utilisateur

Electrolux

Electrolux E24WC75H Manuel utilisateur

Electrolux

Electrolux E24WC75HPS - Icon - Professional Series 48 Bottle Wine... Manuel utilisateur

Electrolux

Electrolux EI24BC65GS - 24 Inch Beverage Center Guide de l'utilisateur

Electrolux

Electrolux EI24WC65GS - Wine Cellar With 46 Bottle... Instructions d'installation

Electrolux

Electrolux ERW 33900 X Manuel utilisateur

Electrolux

Electrolux EI24WC65GS0 Manuel utilisateur

Electrolux

Electrolux EI24BL10QS Manuel utilisateur

Electrolux

Electrolux ERW 33900 X Manuel utilisateur

Electrolux

Electrolux WEK 7 Manuel utilisateur

Electrolux

Electrolux E24 WC 160 ES1 Manuel utilisateur

Electrolux

Electrolux EWK0462X Manuel utilisateur

Electrolux

Electrolux ERC3711WS Manuel utilisateur

Electrolux

Electrolux ERW3313BOX Manuel utilisateur

Electrolux

Electrolux Wine cooler Manuel utilisateur

Electrolux

Electrolux E24WC160ES1 Manuel utilisateur

Electrolux

Electrolux E24WC75HPS - Icon - Professional Series 48 Bottle Wine... Manuel utilisateur

Electrolux

Electrolux Dometic CS 110 Manuel utilisateur

Electrolux

Electrolux EI24BC65GS - 24 Inch Beverage Center Manuel utilisateur

Electrolux

Electrolux EI24WC65GS - Wine Cellar With 46 Bottle... Instructions de montage

Manuels Refroidisseur de vin populaires d'autres marques

U-Line

U-Line Echelon Wine Captain 2075WC Manuel du propriétaire

Haier

Haier WS50GA Manuel utilisateur

Cavist

Cavist 62 Manuel utilisateur

Kenmore

Kenmore 461.99130 Manuel utilisateur

Miele

Miele KWT 6422 iG Manuel utilisateur

Danby

Danby DWC113BLSDB Manuel utilisateur

Caple

Caple Wi6128 Manuel utilisateur

Avanti

Avanti WC1001 Manuel utilisateur

Frigidaire

Frigidaire FFWC38F6LS Manuel utilisateur

Titan

Titan TT-W2454SZ Manuel d'installation

Klarstein

Klarstein Botella 166 Uno Manuel utilisateur

Costway

Costway FP10130WL Manuel utilisateur

Lemair

Lemair LWC59 Manuel utilisateur

Haier

Haier JC-125GEA Manuel utilisateur

Caple

Caple WCi46B Manuel utilisateur

Climadiff

Climadiff CLI24 Guide rapide

Viking

Viking VCWB301LSS Manuel utilisateur

Caple

Caple WC6511 Manuel utilisateur
