Integrated Electronic Controls

Reversible side-swing door with integrated

electronic controls located conveniently on

the top of the door ensure this unit will fit

anywhere.

Smooth-Glide™Shelves

With a ball bearing system, shelves are so

smooth they extend effortlessly.

48-Bottle Capacity

The space-efficient, under-counter wine cooler

safely and conveniently stores up to 48 bottles.

Tinted, Thermal, UV-Resistant

Glass Door

Tinted, thermal-tempered glass door protects

your wine collection from potentially harmful

UV light rays.

Designed for the well-lived home.

Under-Counter Wine Cooler

E24WC75HSS designer series

24" UNDER-COUNTER SIDE-SWING WINE COOLER

Sabbath Mode (Star-K® Certified)

Capacity

Maximum Storage

Installation Type

FEATURES

Integrated Electronic Controls

Fully Integrated Control Panel

Electronic Control Lock

Blue LED Display

Frost-Free Performance

Dynamic Condenser

PureAdvantage®Air Filter

Precision Set™Controls

Display Temp Mode (°C or °F)

Door Open Acoustic Alarm

Power Failure Acoustic Alarm

Mute Sound Control

Theatre-Style Lighting

Exhibit Lighting with Manual Control

Power-On/Off Control

Vacation Mode

Smooth-Glide™Full-Extension Racks

Black Soft Coat Wireform Racks

Maple Wood Front on Racks

ADDITIONAL FEATURES

Designer Series Door and Handle Design

UV-Filtered, Tinted Glass Window

Self-Closing Door

Adjustable Leveling Legs

ACCESSORIES

Field-Reversible Door Kit – PN# 5303918374

SPECIFICATIONS

Overall Exterior Dimensions –

Height (Adjustable)

Width

Depth (Including Handle)

(with 90° Door Open)

Temperature Range

Power Supply Connection Location

Voltage Rating

Connected Load (kW Rating) @120 Volts‡

Minimum Circuit Required (Amps)

Shipping Weight (Approx.)

Optional accessories available on the web at electroluxicon.com.

‡For use on adequately wired 110V, dedicated circuit having 2-wire service with a separate

ground wire. Appliance must be grounded for safe operation.

NOTE: Always consult local and/or national electric codes. Refer to Product Installation

Guide for detailed installation instructions on the web at electroluxicon.com.

Specifications subject to change.

Yes

6 Cu. Ft.

48 Bottles

Built In/Freestanding

Yes

Optional

34-5/16" – 35"

23-13/16"

23-7/8"

25-7/8"

47"

45°F-65°F

Right Bottom Rear

120V/60Hz/15A

0.15

166 Lbs.

Under-Counter Wine Cooler Specifications

•

Product Weight – 159 Lbs.

•

Voltage Rating –120V/60Hz/15 Amps

•

Connected Load (kW Rating) @120 Volts = 0.15kW

(For use on adequately wired 120V, dedicated circuit having 2-wire

service with a separate ground wire. Appliance must be grounded

for safe operation.)

•

Amps @120 Volts = 6 Amps

•

Electrical cable supplied.

•

Always consult local and/or national electric codes.

•

Unit is designed for either freestanding or built-in, under-counter

installation.

•

Built-in, under-counter installation does not require additional airspace for

top, sides or rear of unit.

•

Proper built-in, under-counter installation requires that both electrical

outlet and plug be completely recessed to ensure unit will fit flush against

rear wall.

•

To allow for ease of installation and removal, it is recommended that

cabinet rough opening dimensions be increased by at least 1/4" over

product’s dimensions.

•

For proper ventilation, unit can NOT be installed behind closed doors;

front grille MUST remain unobstructed.

•

Must be positioned on flat, level surface, capable of supporting entire

weight when fully loaded.

•

Leveling legs supplied to adjust height and level unit.

•

Do not position unit near any heat source to ensure optimum

performance.

•

Unit requires zero clearance when installing flush with cabinet or wall.

•

When installing against cabinet or wall that extends beyond front edge

of unit, 2-7/8" minimum handle clearance required to allow for 90° door

swing, providing sliding shelves with necessary clearance. (Door swing

can be reversed with installation of Field-Reversible Door Kit –

5303918374).

Note: For planning purposes only. Refer to Product Installation Guide

on the web at electroluxicon.com for detailed instructions.

Optional Accessories

•

Field-Reversible Door Kit – (PN# 5303918374).

Under-Counter Wine Cooler

E24WC75HSS designer series

High standards of quality at Electrolux Home Products, Inc. mean we are

constantly working to improve our products. We reserve the right to change

specifications or discontinue models without notice.

Electrolux Major Appliances, N.A.

USA

•250 Bobby Jones Expressway •Augusta, GA 30907 •1-877-4electrolux (1-877-435-3287) •

electroluxicon.com

CANADA

•5855 Terry Fox Way •Mississauga, ON L5V 3E4 •1-800-265-8352 •

electroluxicon.ca

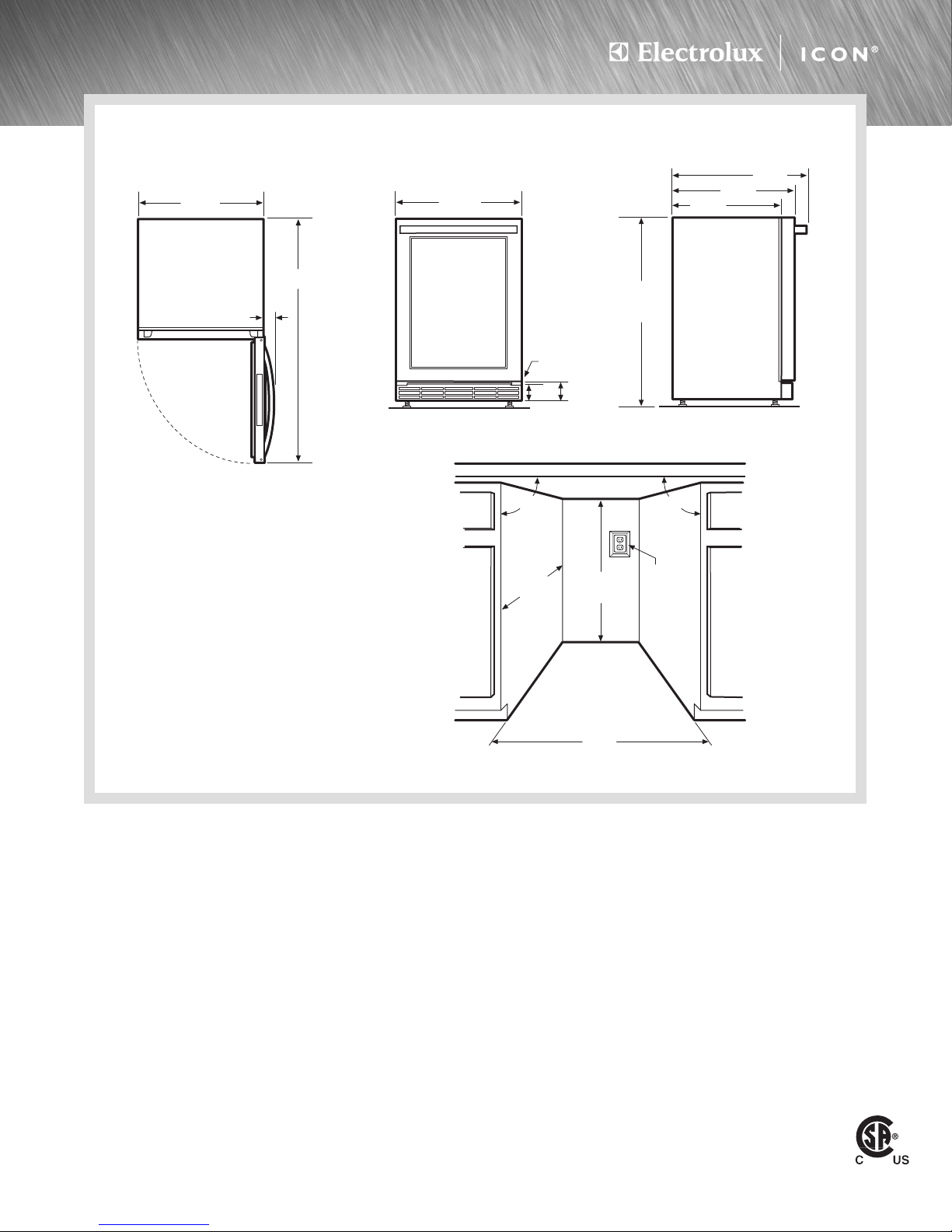

Top

21/16"

Door in 90°

open position

47"

235/8"

24 1/8"

24"

min.

90°90°

34 3/8"

min.

Recessed

electrical

outlet*

*Proper built-in,

under-counter

installation requires that

both electrical outlet & plug

be completely recessed to ensure

unit will fit flush against rear wall

Left

257/8"

345/16"

Adjustable

to 35"

237/8"

219/16"

23 13/16"

Front

Power cord

location (right

bottom rear)

23/4"35/16"
