Safety Precautions

Do not dry unwashed items in the machine

The machine is not to be used if industrial chemicals have been used for cleaning.

Do not allow minors to use the machine.

Do not hose down the machine with water.

The machine's door lock must under no circumstances be bypassed.

Items that have been soiled with substances such as cooking oil, acetone, alcohol,

petrol, kerosene, spot removers, turpentine, waxes and wax removers should be

washed in hot water with an extra amount of detergent before being dried in the

machine.

Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber

backed articles and clothes or pillows ﬁtted with foam rubber pads should not be

dried in the machine.

Fabric softeners or similar products should be used as speciﬁed by the fabric

softener instructions.

The machine may not be used to dry ﬂoor mops that contain polypropylene.

The ﬁnal part of a drying cycle occurs without heat (cool down cycle) to ensure that

the items are left at a temperature that ensures that the items will not be damaged.

WARNING. Never stop the machine before the end of the drying cycle unless all items

are quickly removed and spread out so that the heat is dissipiated.

Remove garments from the machine as soon as they are dried. This prevents them

from becoming creased and reduces the risk of spontaneous ignition.

If the machine develops a fault, this must be reported to the person in charge as soon

as possible. This is important both for your safety and that of others.

The machine must not be located where a door, sliding door, etc., can block the

machine's door

The machine is not intended to be used by people (including minors) with reduced

physical or mental capacity or lack of experience and knowledge. Such people must

be instructed in the use of the machine by a person who has responsibility for their

safety. Minors must be supervised to ensure that they do not play with the machine.

Adequate ventilation has to be provided to avoid the back ﬂow of gases into the room

for appliances burning other fuels, including open ﬁres.

Gas heated tumble dryer:

The machine is not to be installed in rooms containing cleaning machines with

perchloroethylene, TRICHLOROETHYLENE or CHLOROFLUOROCONTAINING

HYDROCARBONS as cleaning agents.

If you can smell gas,

• Do not switch on any equipment

•Do not use electrical switches

• Do not use telephones in the building

• Evacuate the room, building or area

•Contact the person responsible for the machine

Operating manual 5

Contents

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Diagram of tumble dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Instruction signs/operating panels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Operating panels - buttons and symbols . . . . . . . . . . . . . . . . . . . . . . . . .9

Programmes - Coin-operated laundries . . . . . . . . . . . . . . . . . . . . . . . . .10

Coin-operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Programmes - OPL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Tumble dryer with manual operation - OPL . . . . . . . . . . . . . . . . . . . . . .13

Programmes - AHL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Tumble dryer with manual operation - AHL. . . . . . . . . . . . . . . . . . . . . . .15

Error codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Maintenance.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

The manufacturer reserves the right to modify design, material and

specifications without notice.

Textiles as silk and wool must not be overdried

to avoid the risk of creasing.

Operating manual

Glossary

Auto Stop

The tumble dryer stops automatically when the clothes are dry.

AHL (Apartment House Laundry)

Example: Communal laundries / Housing block laundries.

OPL (On Premises Laundry)

Example: Institutional laundries.

RMC (Residual Moisture Control)

The tumble dryer has residual moisture control.

Operating manual 7

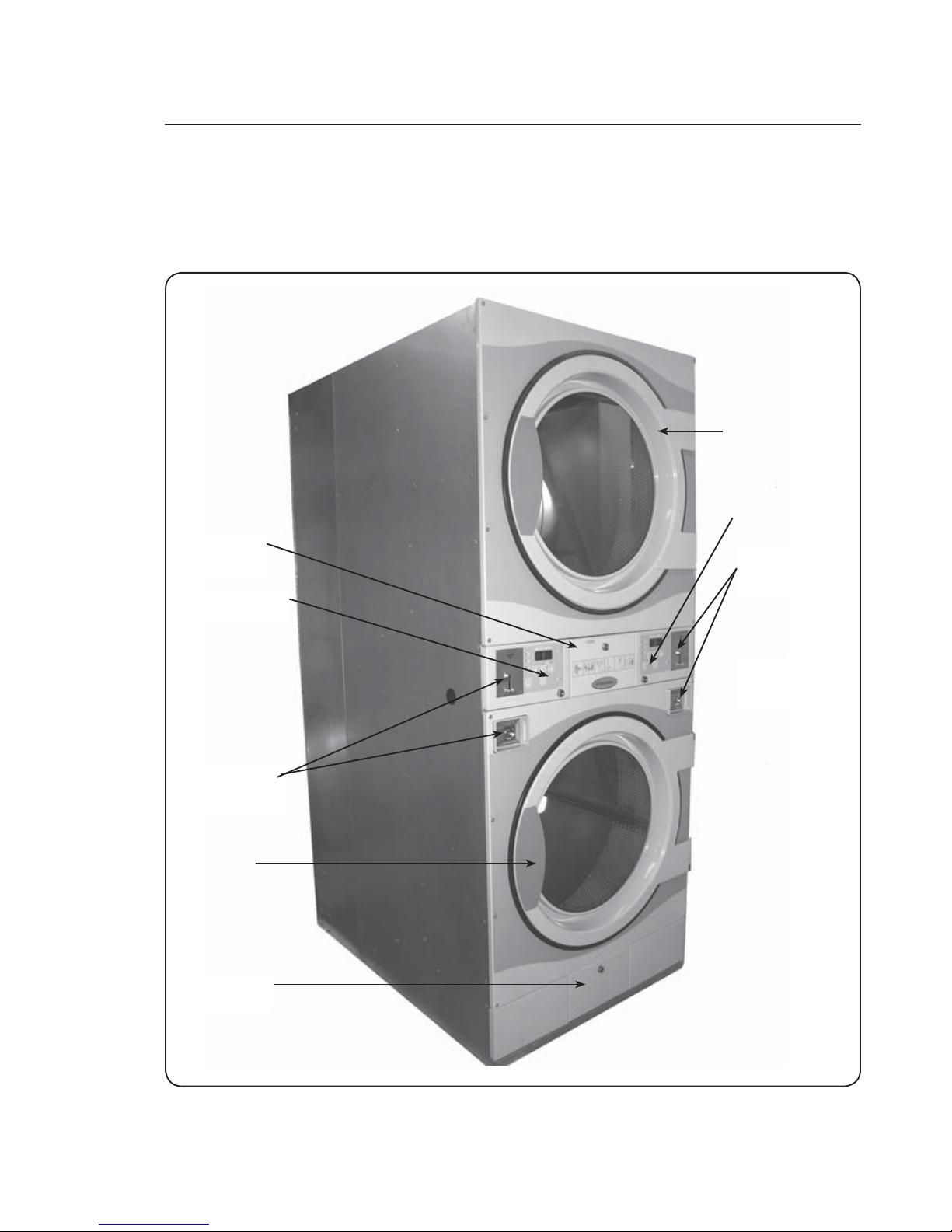

Diagram of tumble dryer

Bottom drum

coin insert and

coin drawer

Upper drum

coin insert and

coin drawer

Instruction sign

Upper drum door

Upper drum

lint drawer

Bottom drum

operating panel

Upper drum

operating panel

Bottom drum

door

Bottom drum

lint drawer

Operating manual

Coin-operated laundries

487 09 10 01.00

SELECTA CON TROL

487 09 10 01.00

SELECTA CON TROL

487 09 11 06.00

SELECTA CON TROL

487 09 11 05.00

SELECTA CON TROL

OPL - Dryer with manual operation

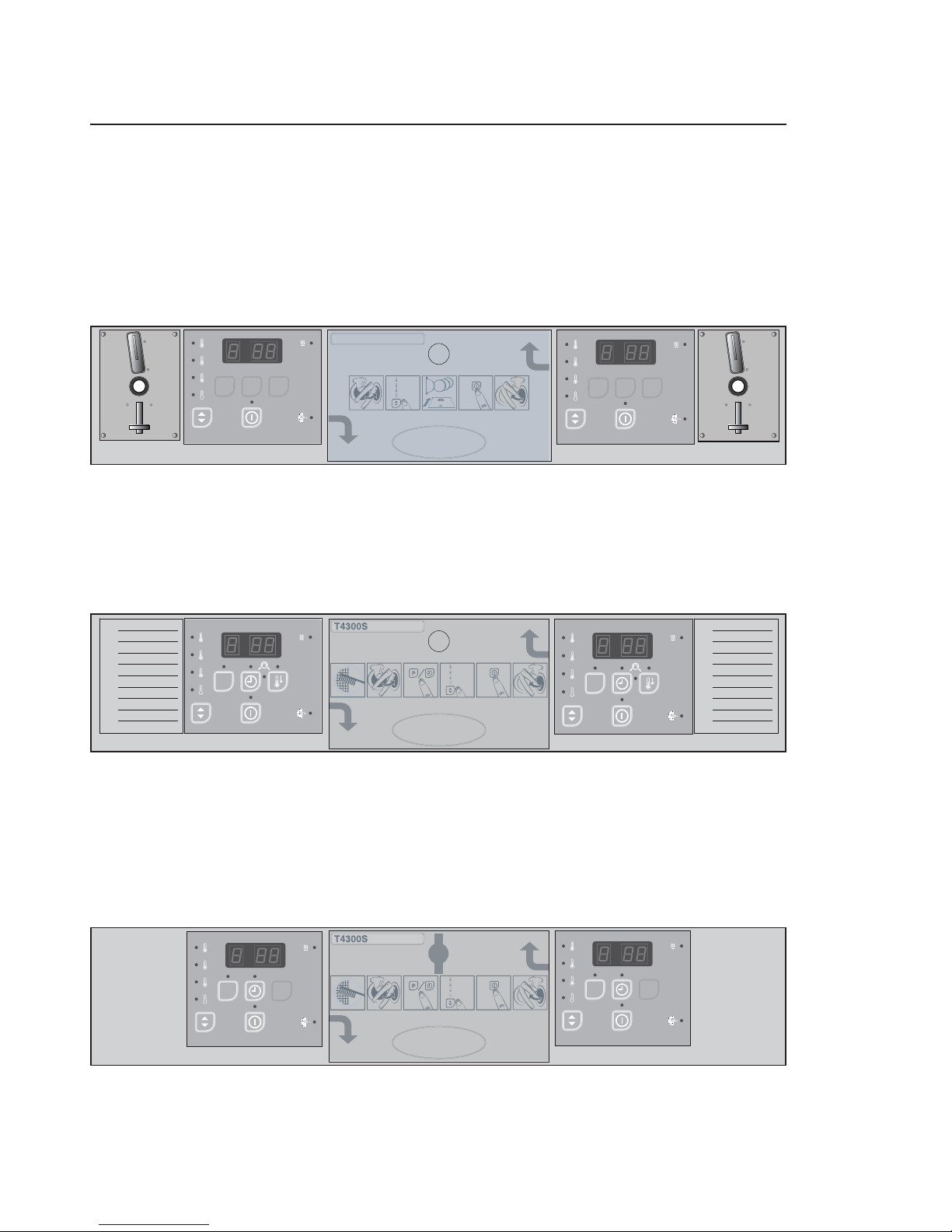

Instruction signs/operating panels

7 22

SELECTA CON TROL

487 09 10 00.00

7 22

SELECTA CON TROL

487 09 10 00.00

487 09 11 05.00

AHL - Dryer with manual operation

Operating manual 9

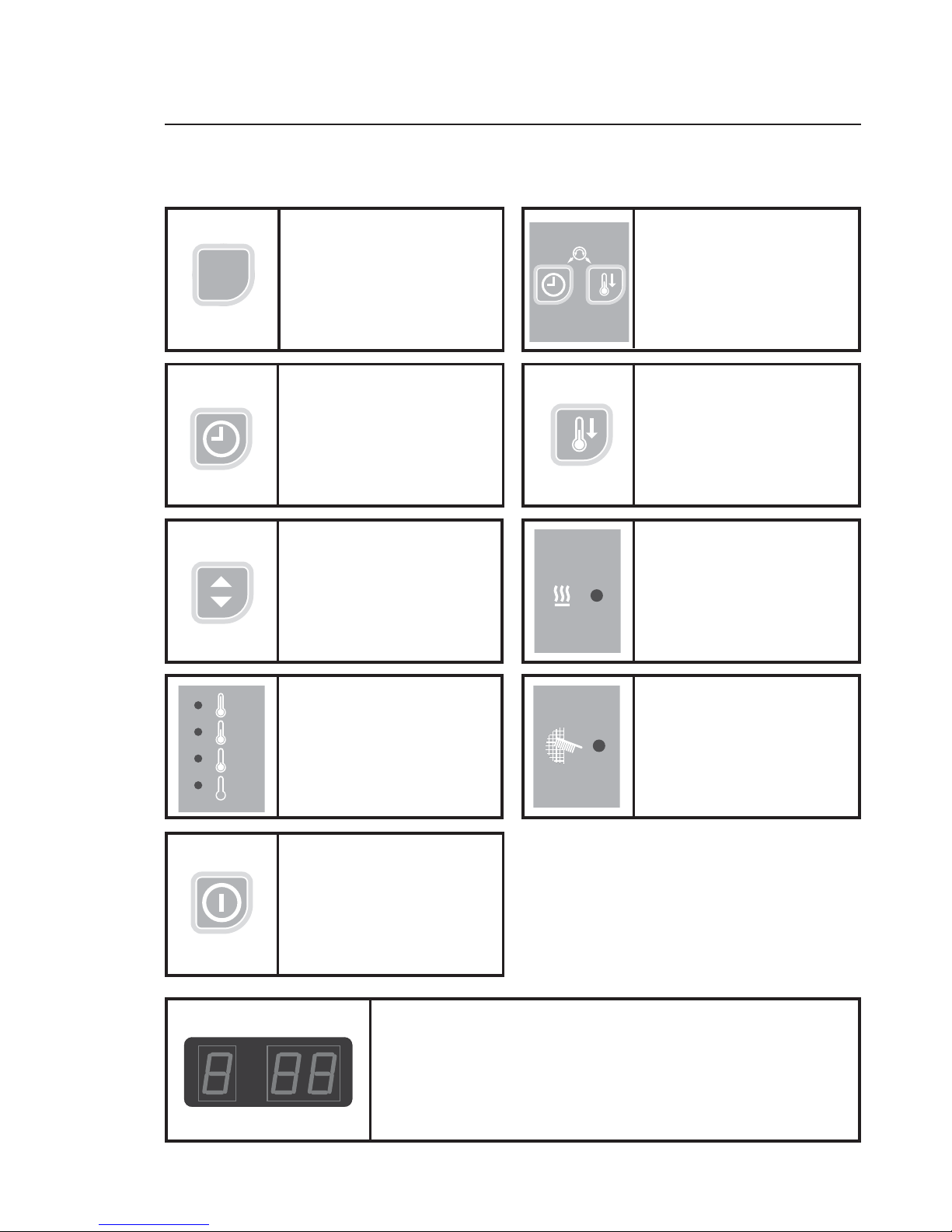

P button

Program selection button.

Not active on pay machines.

With RMC: Push button during

operation, display shows: the

residual moisture in the clothes.

Cool-down time

Setting of cool-down time.

OPL laundries only.

Heat

When light-emitting diode is lit

the heat is on.

Filter

When light-emitting diode is lit

filter door/ filter drawer is open.

Time button

Setting of drying time.

Not active on pay machines.

Program status

“d xx” = Time controlled drying - xx indicates the time.

“c xx” = Time controlled cool-down - xx indicates the time.

“c - -” = Temperature controlled cool-down.

“ 00” = Standby. An anti-crease program runs for 120 minutes or

until the door is opened.

Start/stop button

Start: Push button.

Stop: Push button or open

door.

Reversing

Reversing on/off.

OPL laundries only.

Operating panel - buttons and symbols

Selected temperature

Light-emitting diode is lit at

selected temperature.

Temperature button

Temperature selection.

Push button during operation,

display shows: the outlet

temperature.

Operating manual

Temperature

High Non-iron/normal wash Cotton and mixed fabrics

Medium Non-iron/normal wash Cotton and mixed fabrics

Low Fine wash/mild wash Delicate fabrics,

No heat Airing bedspreads, duvets and bedclothes

Load

Full loads are recommended in order to achieve the best result.

Full load is indicated in kilos of dry textile.

Dryer type 4300S = 2 x 13.6 kg

Programmes - Coin-operated laundries
