EN Tumble Dryer User Manual

CONTENTS

1. SAFETY INFORMATION....................................................................................3

2. SAFETY INSTRUCTIONS..................................................................................5

3. PRODUCT DESCRIPTION................................................................................ 7

4. CONTROL PANEL............................................................................................. 7

5. PROGRAMME TABLE....................................................................................... 9

6. OPTIONS..........................................................................................................10

7. SETTINGS........................................................................................................12

8. BEFORE FIRST USE....................................................................................... 13

9. DAILY USE....................................................................................................... 13

10. HINTS AND TIPS........................................................................................... 15

11. CARE AND CLEANING..................................................................................15

12. TROUBLESHOOTING....................................................................................18

13. TECHNICAL DATA.........................................................................................19

14. QUICK GUIDE................................................................................................21

15. PRODUCT INFORMATION SHEET IN REFERENCE TO E.U. REGULATION

1369/2017.............................................................................................................23

WE’RE THINKING OF YOU

Thank you for purchasing an Electrolux appliance. You’ve chosen a product that

brings with it decades of professional experience and innovation. Ingenious and

stylish, it has been designed with you in mind. So whenever you use it, you can

be safe in the knowledge that you’ll get great results every time.

Welcome to Electrolux.

Visit our website for:

Get usage advice, brochures, trouble shooter, service information:

www.electrolux.com/webselfservice

www.registerelectrolux.com

Buy Accessories, Consumables and Original spare parts for your appliance:

www.electrolux.com/shop

CUSTOMER CARE AND SERVICE

Always use original spare parts.

When contacting our Authorised Service Centre, ensure that you have the

following data available: Model, PNC, Serial Number.

The information can be found on the rating plate.

Warning / Caution-Safety information

General information and tips

Environmental information

Subject to change without notice.

www.electrolux.com2

1. SAFETY INFORMATION

Before beginning the installation and use of this

appliance, carefully read the supplied instructions. The

manufacturer is not responsible for any injuries or

damages that are the result of incorrect installation or

usage. Always keep the instructions in a safe and

accessible location for future reference.

- Read the supplied instructions.

1.1 Children and vulnerable people safety

WARNING!

Risk of suffocation, injury or permanent

disability.

•This appliance can be used by children aged from 8

years and above and persons with reduced physical,

sensory or mental capabilities or lack of experience

and knowledge if they have been given supervision or

instruction concerning the use of the appliance in a

safe way and understand the hazards involved.

•Children between 3 and 8 years of age and persons

with very extensive and complex disabilities shall be

kept away unless continuously supervised.

•Children of less than 3 years of age should be kept

away unless continuously supervised.

•Do not let children play with the appliance.

•Keep all packaging away from children and dispose of

it appropriately.

•Keep detergents away from children.

•Keep children and pets away from the appliance when

the door is open.

•If the appliance has a child safety device, it should be

activated.

•Children shall not carry out cleaning and user

maintenance of the appliance without supervision.

ENGLISH 3

1.2 General Safety

•Do not change the specification of this appliance.

•If the tumble dryer is put on top of a washing machine,

use the stacking kit. The stacking kit, available from

your authorized vendor, can be used only with the

appliance specified in the instructions supplied with

the accessory. Read it carefully before installation

(refer to the Installation leaflet).

•The appliance can be installed as freestanding or

below a kitchen counter with correct space (refer to

the Installation leaflet).

•Do not install the appliance behind a lockable door, a

sliding door or a door with a hinge on the opposite

side, that would prevent the appliance door from being

fully open.

•The ventilation opening in the base must not be

covered by a carpet, mat, or any floor covering.

•WARNING: The appliance must not be supplied

through an external switching device, such as a timer,

or connected to a circuit that is regularly switched on

and off by a utility.

•Connect the mains plug to the mains socket only at

the end of the installation process. Make sure that the

mains plug is accessible after installation.

•If the mains power supply cable is damaged, it must

be replaced by the manufacturer, its Authorised

Service Centre or similarly qualified persons to avoid

an electrical hazard.

•Do not exceed the maximum load of 9 kg (refer to the

"Programme chart" chapter).

•Do not use the appliance if items have been soiled

with industrial chemicals.

•Wipe away lint or packaging debris that has

accumulated around the appliance.

•Do not run the appliance without a filter. Clean the lint

filter before or after each use.

•Do not dry unwashed items in the tumble dryer.

www.electrolux.com4

•Items that have been soiled with substances such as

cooking oil, acetone, alcohol, petrol, kerosene, spot

removers, turpentine, waxes and wax removers

should be washed in hot water with an extra amount of

detergent before being dried in the tumble dryer.

•Items such as foam rubber (latex foam), shower caps,

waterproof textiles, rubber backed articles and clothes

or pillows fitted with foam rubber pads should not be

dried in the tumble dryer.

•Fabric softeners, or similar products, should only be

used as specified by the product manufacturer’s

instructions.

•Remove all objects from items that could be a source

of fire ignition such as lighters or matches.

•WARNING: Never stop a tumble dryer before the end

of the drying cycle unless all items are quickly

removed and spread out so that the heat is dissipated.

•Before any maintenance operation, deactivate the

appliance and disconnect the mains plug from the

socket.

2. SAFETY INSTRUCTIONS

2.1 Installation

• Remove all the packaging.

• Do not install or use a damaged

appliance.

• Follow the installation instructions

supplied with the appliance.

• Always take care when moving the

appliance as it is heavy. Always use

safety gloves and enclosed footwear.

• Do not install or use the appliance

where the temperature can be lower

than 5°C or higher than 35°C.

• The floor area on which the appliance

is to be installed must be flat, stable,

heat resistant and clean.

• Make sure that there is air circulation

between the appliance and the floor.

• Always keep the appliance vertical

when it is being moved.

• The rear surface of the appliance

must be put against a wall.

• When the appliance is in its

permanent position, check if it is

levelled correctly with the aid of a

spirit level. If it is not, adjust the feet

accordingly.

2.2 Electrical connection

WARNING!

Risk of fire and electric

shock.

• Connect the mains plug to the mains

socket only at the end of the

installation. Make sure that there is

access to the mains plug after the

installation.

• The appliance must be earthed.

• Make sure that the parameters on the

rating plate are compatible with the

electrical ratings of the mains power

supply.

ENGLISH 5

• Always use a correctly installed

shockproof socket.

• Do not use multi-plug adapters and

extension cables.

• Do not pull the mains cable to

disconnect the appliance. Always pull

the mains plug.

• Do not touch the mains cable or the

mains plug with wet hands.

• This appliance complies with the

E.E.C. Directives.

2.3 Use

WARNING!

Risk of injury, electric shock,

fire, burns or damage to the

appliance.

• This appliance is for household use

only.

• Do not dry damaged (torn, frayed)

items that contain padding or fillings.

• Only dry fabrics which are suitable for

drying in a tumble dryer. Follow the

instructions on the fabric label.

• If you have washed your laundry with

a stain remover start an extra rinse

cycle before you start the dryer.

• Do not drink or prepare food with the

condensed water/distilled water. It can

cause health problems to people and

pets.

• Do not sit or stand on the open door

of the appliance.

• Do not dry dripping wet clothes in a

tumble dryer.

2.4 Internal lighting

WARNING!

Risk of injury.

• Visible LED radiation, do not look

directly into the beam.

• The LED lamp is dedicated to drum

lighting. This lamp cannot be reused

for other lighting purposes.

• To replace the internal lighting,

contact the Authorised Service

Centre.

2.5 Care and cleaning

WARNING!

Risk of injury or damage to

the appliance.

• Do not use water spray and steam to

clean the appliance.

• Clean the appliance with a moist soft

cloth. Only use neutral detergents. Do

not use any abrasive products,

abrasive cleaning pads, solvents or

metal objects.

• To prevent damage to the cooling

system be careful when you clean the

appliance.

2.6 Compressor

WARNING!

Risk of damage to the

appliance.

• The compressor and its system in the

tumble dryer is filled with the special

agent which is free from fluoro-chloro-

hydrocarbons. This system must stay

tight. The damage of the system can

cause a leakage.

2.7 Disposal

WARNING!

Risk of injury or suffocation.

• Disconnect the appliance from the

mains electrical and water supplies.

• Cut off the mains electrical cable

close to the appliance and dispose of

it.

• Remove the door catch to prevent

children or pets from becoming

trapped in the drum.

• Dispose of the appliance in

accordance with local requirements

for the disposal of Waste Electrical

and Electronic Equipment (WEEE).

www.electrolux.com6

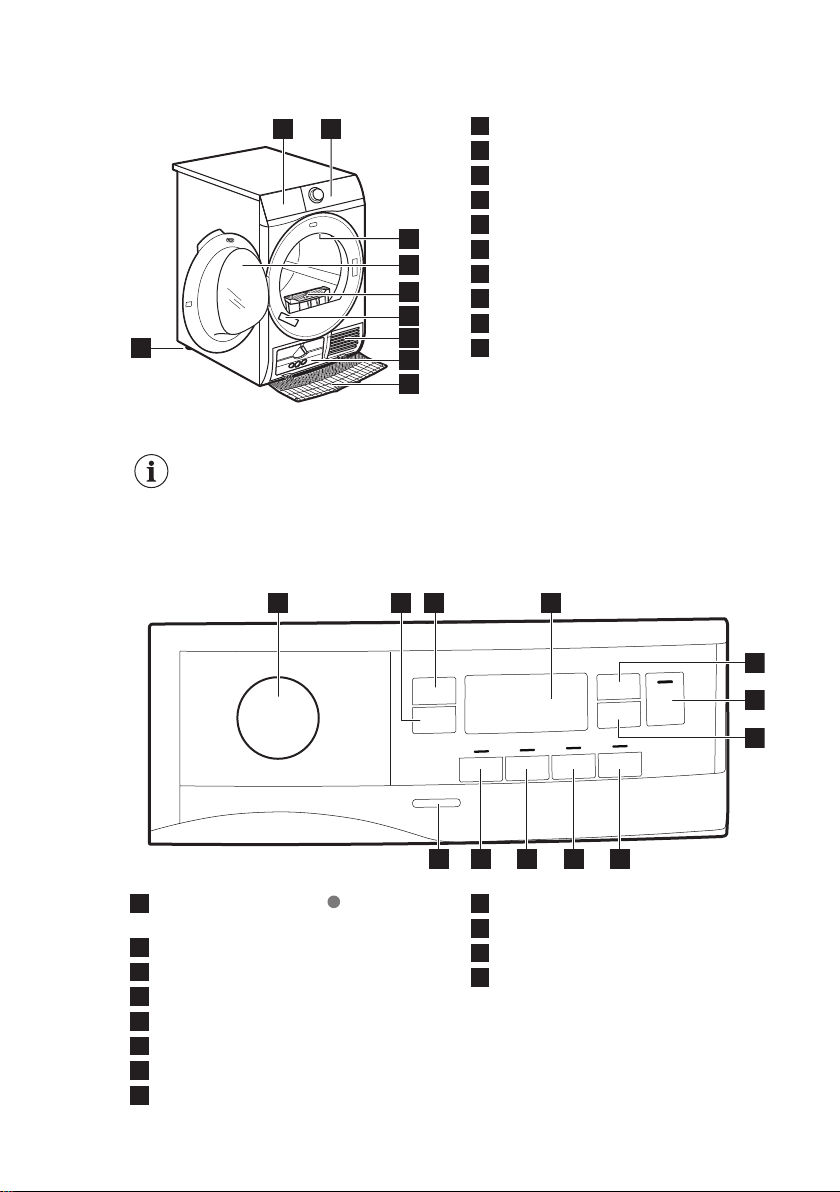

3. PRODUCT DESCRIPTION

1 2

1Water container

2Control panel

3Internal light

4Appliance door

5Filter

6Rating plate

7Airflow slots

8Heat Exchanger lid

9Heat Exchanger cover

10 Adjustable feet

For ease of loading laundry

or ease of installation the

door is reversible. (see

separate leaflet).

4. CONTROL PANEL

1112 10 9 8

432

1Programme knob and RESET

switch

2Extra Anticrease touch button

3Dryness Level touch button

4Display

5Time Dry touch button

6Start/Pause touch button

7Delay Start touch button

8Refresh touch button

9End Alert touch button

10 Reverse Plus touch button

11 Extra Silent touch button

12 On/Off button

ENGLISH 7

Press the touch buttons with

your finger in the area with

the symbol or name of the

option. Do not wear gloves

when you operate the

control panel. Make sure

that the control panel is

always clean and dry.

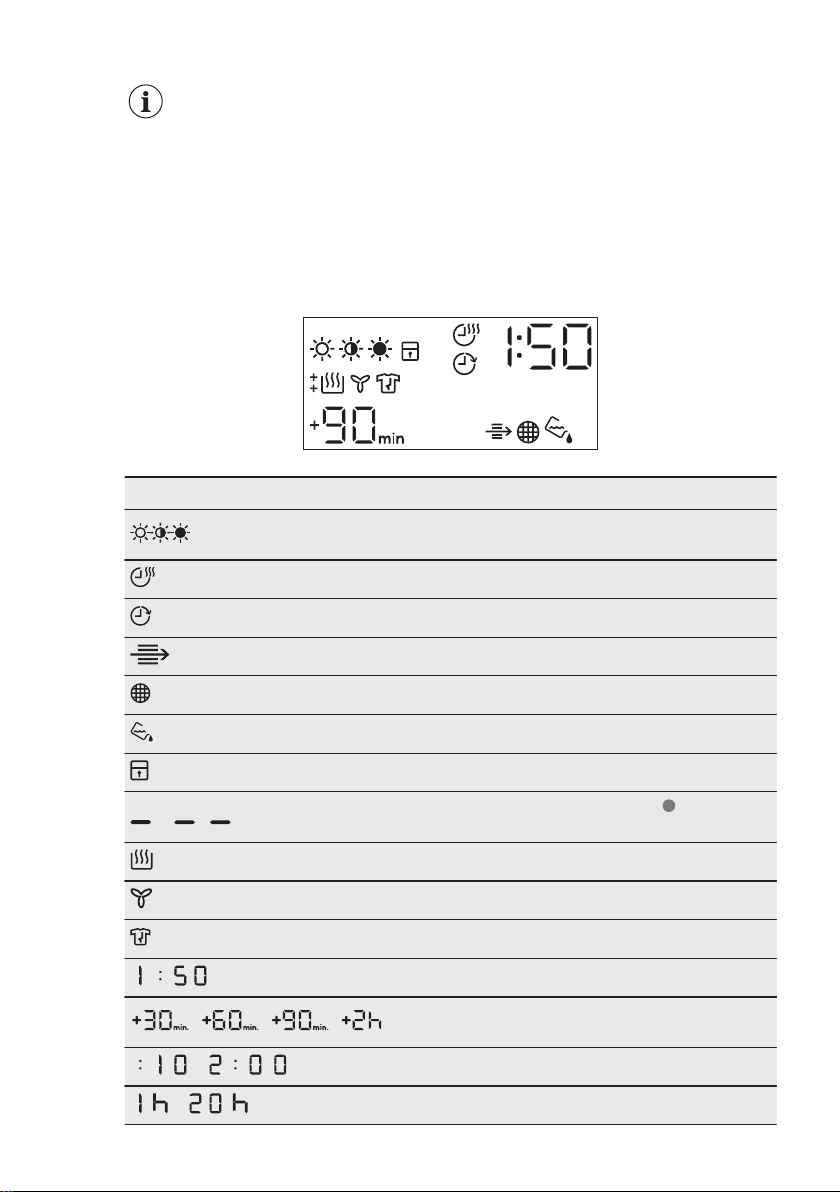

4.1 Display

Symbol on the display Symbol description

laundry dryness option: iron dry, cupboard dry,

extra dry

time drying option on

delay start option on

indicator:

check Heat Exchanger

indicator:

clean filter

indicator:

drain the water container

child lock on

wrong selection or knob is in the "Reset" po‐

sition

indicator:

drying phase

indicator:

cooling phase

indicator:

anti-crease phase

programme duration

, , , extension of default anti-crease phase:

+30min, +60min, +90min, +2h)

- time drying selection (10min-2h)

- delay start selection (1h-20h)

www.electrolux.com8

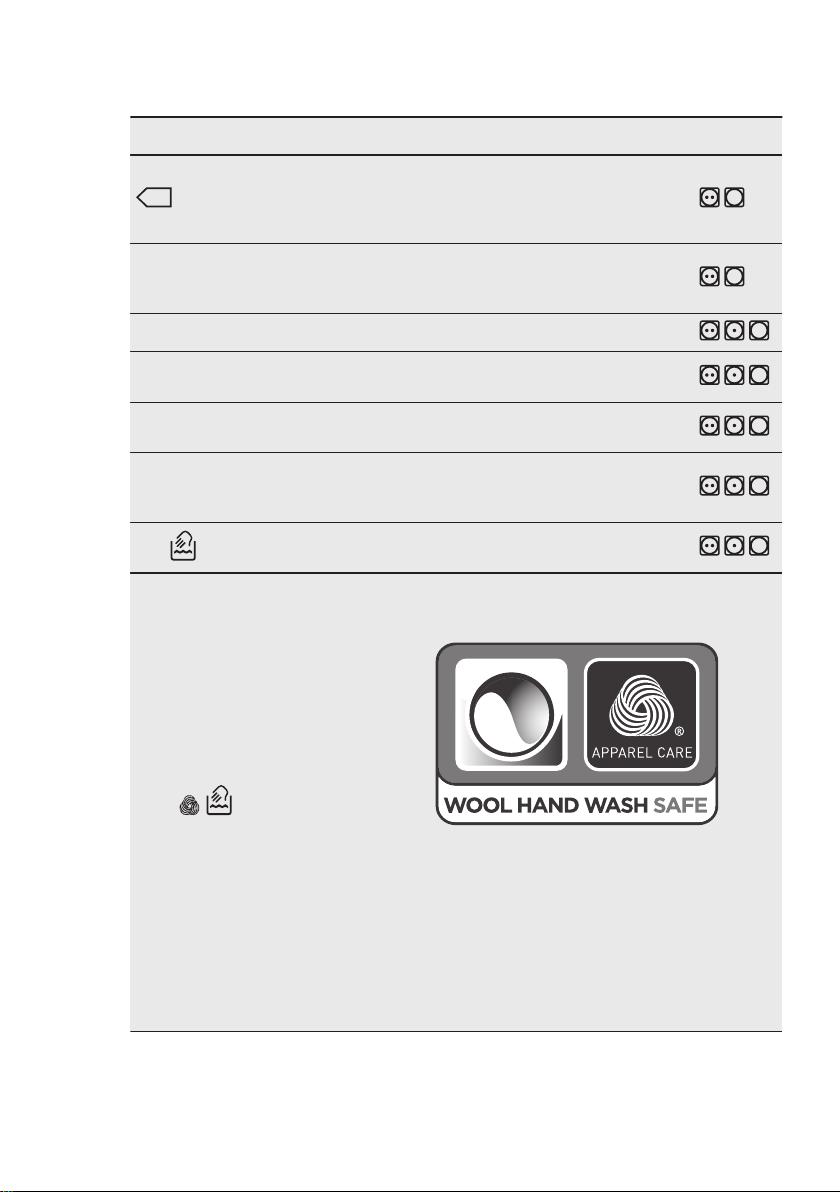

5. PROGRAMME TABLE

Programme Load 1) Properties / Fabric type2)

3) Cotton Eco 9 kg

Cycle to be used to dry cotton

with "cotton cupboard" dryness

level, with maximum energy sav‐

ing.

Cotton 9 kg

Cycle defined to dry all types of

cotton ready to store (cupboard

dry). /

Synthetics 3,5 kg Synthetic and mixed fabrics. /

Delicates 4 kg Delicate fabrics such as viscose,

rayon, acrylic, and their blends. /

Sport 2 kg Sportswear, thin and light fab‐

rics, microfiber, polyester. /

Duvet 3 kg

Single or double duvets and pil‐

lows (with feather, down or syn‐

thetic fillings). /

Silk 1 kg Gentle drying of hand-washable

silks. /

Wool 1 kg

Woollen fabrics. Gentle drying for hand-wash‐

able woollens. Remove items immediately

when the programme is completed.

The wool drying cycle of this machine has

been approved by The Woolmark Company

for the drying of wool garments labelled as

"hand wash" provided that the garments are

dried according to the instructions issued by

the manufacturer of this machine. Follow the

garment care label for other laundry instruc‐

tions. M1717

The Woolmark symbol is a Certification mark

in many countries.

ENGLISH 9

Programme Load 1) Properties / Fabric type2)

Outdoor 2 kg

Outdoor clothing, technical,

sports fabrics, waterproof and

breathable jackets, shell jackets

with a removable fleece or inner

insulation. Suitable for drying in

tumble dryer.

Denim 4 kg

Leisure clothing such as jeans,

sweat-shirts of different material

thicknesses (e.g. at the neck,

cuffs and seams).

Bedlinen XL 4,5 kg Up to three bed linen sets, one

of which can be double size. /

Mixed XL 6 kg

Mix of garments made of cotton,

cotton-synthetic blend and syn‐

thetic fabric. /

1) The maximum weight refers to dry items.

2) For fabric mark meaning see chapter

HINTS AND TIPS: Preparing the laundry.

3) The Cotton Cupboard Dry ECO programme is the “Standard cotton programme” ac‐

cording to Commission Regulation EU No. 392/2012. It is suitable for drying normal wet cot‐

ton laundry and it is the most efficient programme in terms of energy consumption for drying

wet cotton laundry.

6. OPTIONS

6.1 Extra Anticrease

Extends the anti-crease phase by 30,60,

90 or 2 hours at the end of the drying

cycle. This function reduces creases.

The laundry can be removed during the

anti-crease phase.

6.2 Dryness Level

This function helps to increase dryness

of the laundry. There are 3 options:

• Extra Dry

• Cupboard Dry

• Iron Dry

6.3 Time Dry

You can set the programme duration,

from a minimum of 10 minutes to a

maximum of 2 hours. The required

duration is related to the quantity of

laundry in the appliance.

We recommend that you set

a short duration for small

quantities of laundry or for

only one item.

6.4 Time Dry on Wool

programme

Option suitable for Wool programme to

adjust final dryness level.

6.5 Refresh

To refresh clothes that were in storage.

Maximum load cannot exceed 1 kg.

6.6 End Alert

The buzzer sounds at the:

• cycle end

• start and end of the anti-crease phase

• cycle interruption

www.electrolux.com10

Table des matières

Autres manuels Electrolux Séchoir

Electrolux

Electrolux EDC 5335 Manuel utilisateur

Electrolux

Electrolux EWED65HSS - 27" Electric Dryer Manuel utilisateur

Electrolux

Electrolux EDE 421 E Manuel utilisateur

Electrolux

Electrolux EDV605 Manuel utilisateur

Electrolux

Electrolux FEQ332CES0 Manuel utilisateur

Electrolux

Electrolux EDV5552 Manuel utilisateur

Electrolux

Electrolux EDC47130W Manuel utilisateur

Electrolux

Electrolux EDC2086PDW Manuel utilisateur

Electrolux

Electrolux EIGD55H - Gas Dryer With 8.0 cu. Ft.... Manuel utilisateur

Electrolux

Electrolux EDH903BEWA Manuel utilisateur

Electrolux

Electrolux SAGQ7000FS0 Manuel utilisateur

Electrolux

Electrolux EDS805JQWA Manuel utilisateur

Electrolux

Electrolux XDEX75NZHS Manuel utilisateur

Electrolux

Electrolux 864512 Manuel utilisateur

Electrolux

Electrolux T4290 Manuel utilisateur

Electrolux

Electrolux Iron Aid EDI97170W Manuel utilisateur

Electrolux

Electrolux GLEQ2152ES Manuel utilisateur

Electrolux

Electrolux EDE1072PDW Manuel utilisateur

Electrolux

Electrolux TWSL4E301 Manuel utilisateur

Electrolux

Electrolux EFMG417SIW0 Manuel utilisateur

Electrolux

Electrolux Tumble dryer Manuel utilisateur

Electrolux

Electrolux TK 5357 F Manuel utilisateur

Electrolux

Electrolux 27" Dryers Manuel utilisateur

Electrolux

Electrolux T4130 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire

Bosch

Bosch WTX8HKM9SN Manuel utilisateur
