Electrolux EWMED65IRR Manuel utilisateur

Use _ Care Guide

Wave-Touch TM Fro_t-Load Gas _ Electric D_y'er

Guia de Uso y Cuidado

Secadora eKctfica y a gas de carga fro_tal Wave-Touch Mc

Guide d'utilisation et d'entretien

S_cheuse 5 gaz et 5 ]'_]ectficit_ 5 chargeme_lt fro_ta] \,_ave-Touch Mc

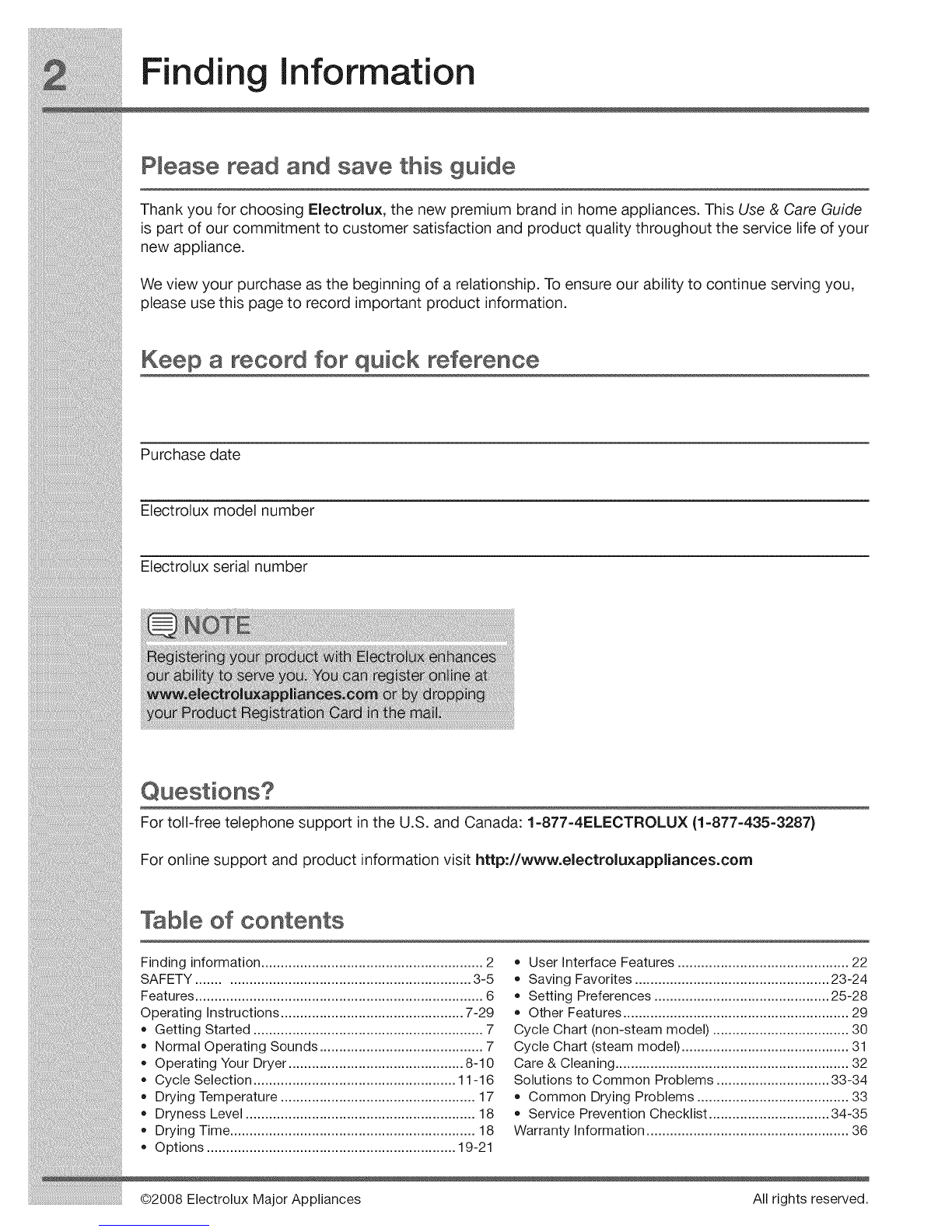

Finding Information

Please read and save this guide

Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide

is part of our commitment to customer satisfaction and product quality throughout the service life of your

new appliance.

We view your purchase as the beginning of a relationship. To ensure our ability to continue serving you,

please use this page to record important product information.

Keep a record for quick reference

Purchase date

Electrolux model number

Electrolux serial number

For toll-free telephone support in the U.S. and Canada: 1-877-4ELECTROLUX {1-877-435-3287)

For online support and product information visit http://www.electroluxappliances.com

Table of contents

Finding information ......................................................... 2

SAFETY ..................................................................... 3-5

Features .......................................................................... 6

Operating instructions ............................................... 7-29

• Getting Started ........................................................... 7

Normal Operating Sounds .......................................... 7

Operating Your Dryer ............................................. 8-10

Cycle Selection .................................................... 11-16

Drying Temperature .................................................. 17

Dryness Level ........................................................... 18

Drying Time ............................................................... 18

Options ................................................................ 19-21

User Interface Features ............................................ 22

Saving Favorites .................................................. 23-24

Setting Preferences ............................................. 25-28

Other Features .......................................................... 29

Cycle Chart (non-steam model) ................................... 30

Cycle Chart (steam model) ........................................... 31

Care & Cleaning ............................................................ 32

Solutions to Common Problems ............................. 33-34

Common Drying Problems ....................................... 33

Service Prevention Checklist ............................... 34-35

Warranty information .................................................... 36

Safety

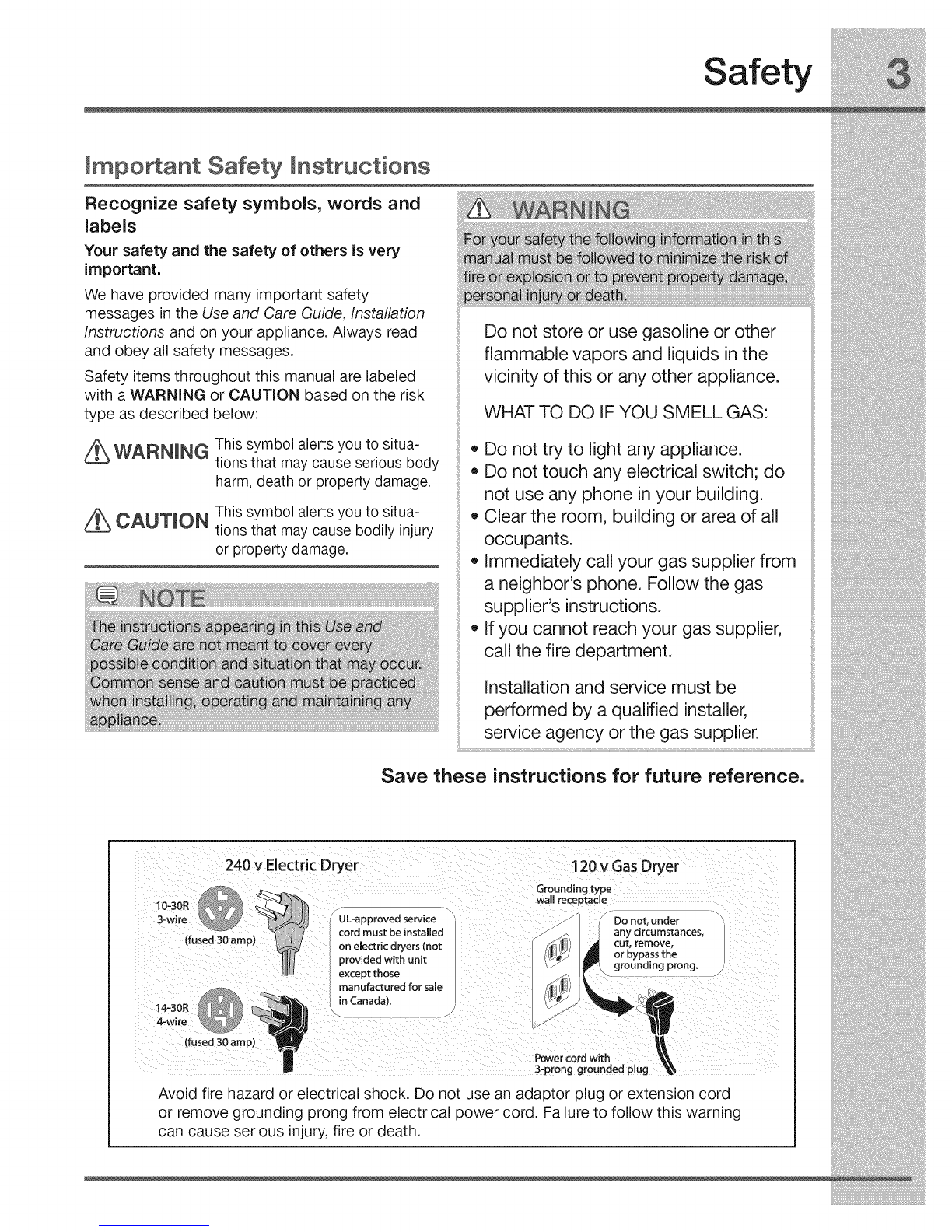

ImpoAant Safety Instructions

Recognize safety symbols, words and

labels

Your safety and the safety of others is very

important.

We have provided many important safety

messages in the Use and Care Guide, Installation

Instructions and on your appliance. Always read

and obey all safety messages.

Safety items throughout this manual are labeled

with a WARNING or OAUTION based on the risk

type as described below:

/_ WARNING This symbol alerts you to situa-

tions that may cause serious body

harm, death or property damage.

/_ CA[JT_ON This symbol alerts you to situa-

tions that may cause bodily injury

or property damage.

Do not store or use gasoline or other

flammable vapors and liquids in the

vicinity of this or any other appliance.

WHAT TO DO IF YOU SMELL GAS:

,, Do not try to light any appliance.

_,Do not touch any electrical switch; do

not use any phone in your building.

_,Clear the room, building or area of all

occupants.

,, Immediately call your gas supplier from

a neighbor's phone. Follow the gas

supplier's instructions.

_,If you cannot reach your gas supplier,

call the fire department.

Installation and service must be

performed by a qualified installer,

service agency or the gas supplier.

Save these instructions for future reference.

240 v Electdc Dryer

UL-approved service

cord must be installed

on electric dryers (not

provided with unit

except those

manufactured for sale

in Canada).

120 v Gas Dryer

Grounding type

wall receptacle

Do not, under

_..\ any circumstances,

--_'_I_ .i cut, remove,

I_/ _ or bypass the

_'_ grounding prong.

Power cord with k_

3-prong grounded plug _,'_

Avoid fire hazard or electrical shock. Do not use an adaptor plug or extension cord

or remove grounding prong from electrical power cord. Failure to follow this warning

can cause serious injury, fire or death.

Safety

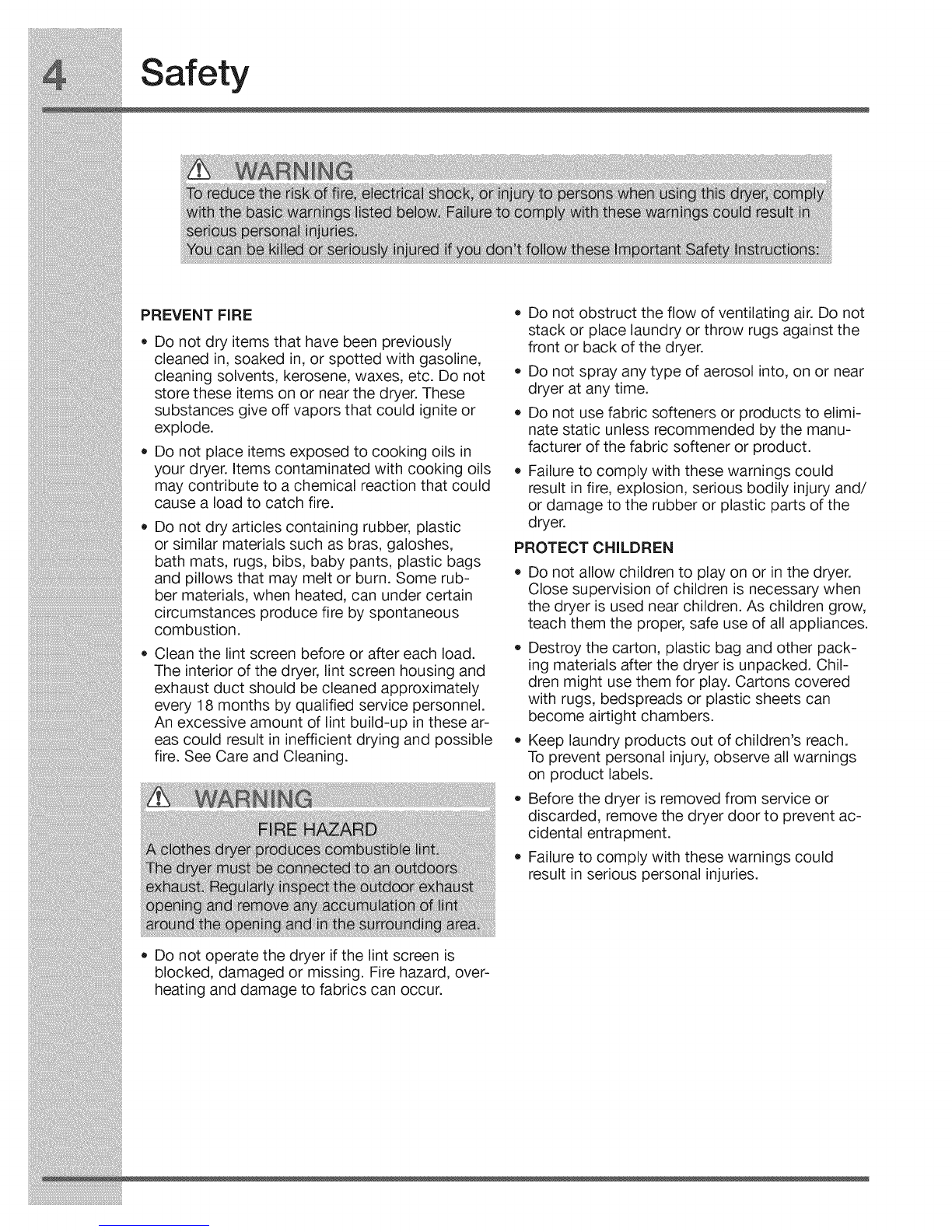

PREVENT FiRE

• Do not dry items that have been previously

cleaned in, soaked in, or spotted with gasoline,

cleaning solvents, kerosene, waxes, etc. Do not

store these items on or near the dryer. These

substances give off vapors that could ignite or

explode.

Do not place items exposed to cooking oils in

your dryer. Items contaminated with cooking oils

may contribute to a chemical reaction that could

cause a load to catch fire.

Do not dry articles containing rubber, plastic

or similar materials such as bras, galoshes,

bath mats, rugs, bibs, baby pants, plastic bags

and pillows that may melt or burn. Some rub-

ber materials, when heated, can under certain

circumstances produce fire by spontaneous

combustion.

Clean the lint screen before or after each load.

The interior of the dryer, lint screen housing and

exhaust duct should be cleaned approximately

every 18 months by qualified service personnel.

An excessive amount of lint build-up in these ar-

eas could result in inefficient drying and possible

fire. See Care and Cleaning.

Do not obstruct the flow of ventilating air. Do not

stack or place laundry or throw rugs against the

front or back of the dryer.

Do not spray any type of aerosol into, on or near

dryer at any time.

Do not use fabric softeners or products to elimi-

nate static unless recommended by the manu-

facturer of the fabric softener or product.

Failure to comply with these warnings could

result in fire, explosion, serious bodily injuryand/

or damage to the rubber or plastic parts of the

dryer.

PROTECT CHILDREN

Do not allow children to play on or in the dryer.

Close supervision of children is necessary when

the dryer is used near children. As children grow,

teach them the proper, safe use of all appliances.

Destroy the carton, plastic bag and other pack-

ing materials after the dryer is unpacked. Chil-

dren might use them for play. Cartons covered

with rugs, bedspreads or plastic sheets can

become airtight chambers.

Keep laundry products out of children's reach.

To prevent personal injury, observe all warnings

on product labels.

Before the dryer is removed from service or

discarded, remove the dryer door to prevent ac-

cidental entrapment.

Failure to comply with these warnings could

result in serious personal injuries.

• Do not operate the dryer ifthe lint screen is

blocked, damaged or missing. Fire hazard, over-

heating and damage to fabrics can occur.

Safety

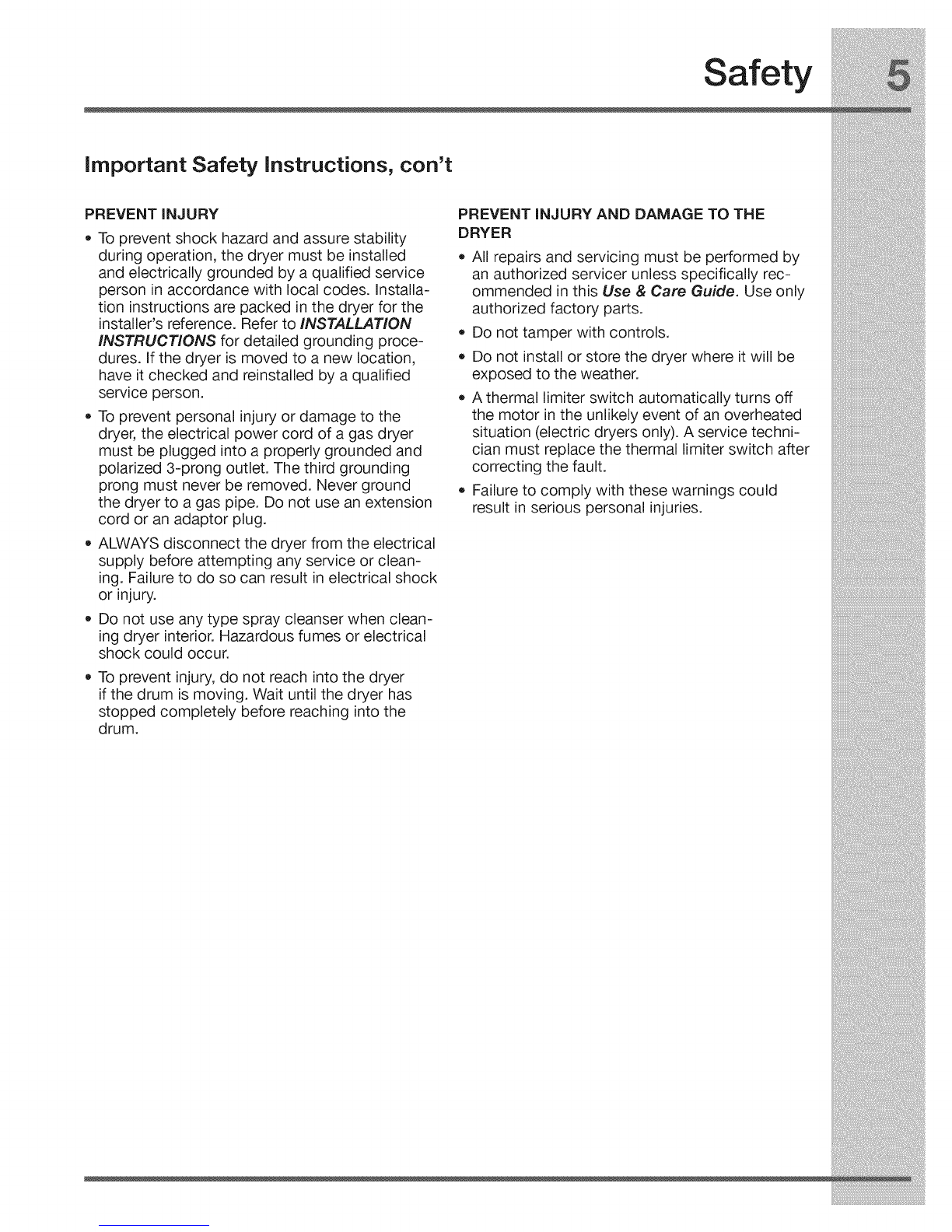

important Safety instructions, con't

PREVENTINJURY

• To prevent shock hazard and assure stability

during operation, the dryer must be installed

and electrically grounded by a qualified service

person in accordance with local codes. Installa-

tion instructions are packed in the dryer for the

installer's reference. Refer to INSTALLATION o

INSTRUCTIONS for detailed grounding proce-

dures. If the dryer is moved to a new location,

have it checked and reinstalled by a qualified

service person.

To prevent personal injury or damage to the

dryer, the electrical power cord of a gas dryer

must be plugged into a properly grounded and

polarized 3-prong outlet. The third grounding

prong must never be removed. Never ground

the dryer to a gas pipe. Do not use an extension

cord or an adaptor plug.

ALWAYS disconnect the dryer from the electrical

supply before attempting any service or clean-

ing. Failure to do so can result in electrical shock

or injury.

Do not use any type spray cleanser when clean-

ing dryer interior. Hazardous fumes or electrical

shock could occur.

To prevent injury, do not reach into the dryer

if the drum is moving. Wait until the dryer has

stopped completely before reaching into the

drum.

PREVENT INJURY AND DAMAGE TO THE

DRYER

All repairs and servicing must be performed by

an authorized servicer unless specifically rec-

ommended in this Use & Care Guide. Use only

authorized factory parts.

Do not tamper with controls.

Do not install or store the dryer where it will be

exposed to the weather.

A thermal Iimiter switch automatically turns off

the motor in the unlikely event of an overheated

situation (electric dryers only). A service techni-

cian must replace the thermal limiter switch after

correcting the fault.

Failure to comply with these warnings could

result in serious personal injuries.

iil

Touch=2=OpenTM

Cycle Selector Multi-language

LCD interface Control Lock

Dual Stage,

Wide=Angle

Door Hinge

Theater-Style,

Luxury-LightingTM

System

Large Surface

Moisture Sensor

Reversible,

Touch=2=OpenTM

Door System

Door Strike

Exhaust Channel \

Outlet

Reversing=Action,

Perfect TumbleTM

Drying System

Touch- 2=Open T_

Door Latch

Adjustable

Leveling Legs

Lint Fiiter

Stacking Kit for Mounting

on Matching Washer

Col|apsible

Drying Rack

Touch-2-OpenTM

Latch Indicator

Operating instructions

casual

active

cate

perfect

steam

my time

favorites dry

To operate your dryer, follow these basic steps:

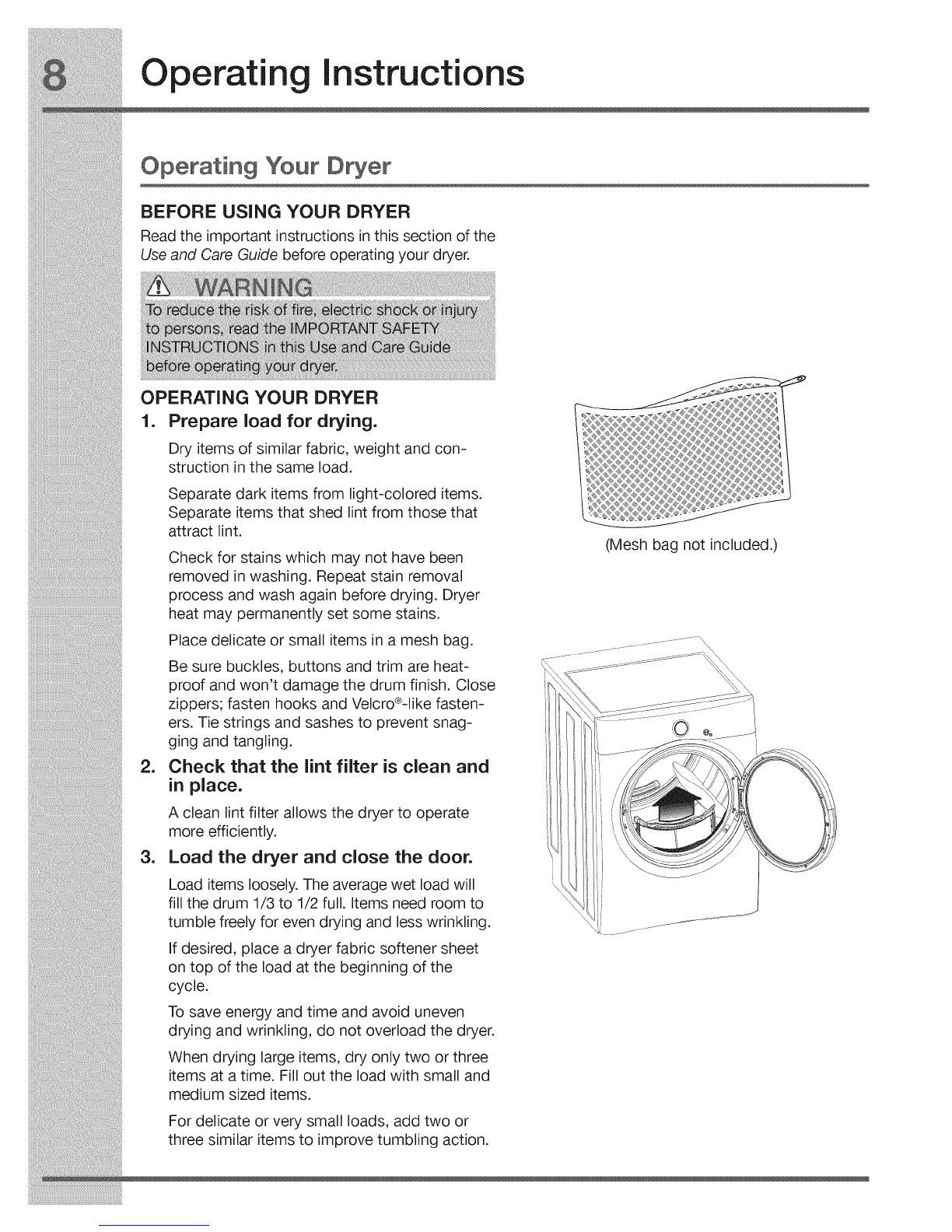

1. Check and dean the lint filter. (See page 8.)

2. Load the dryer. (See page 8.)

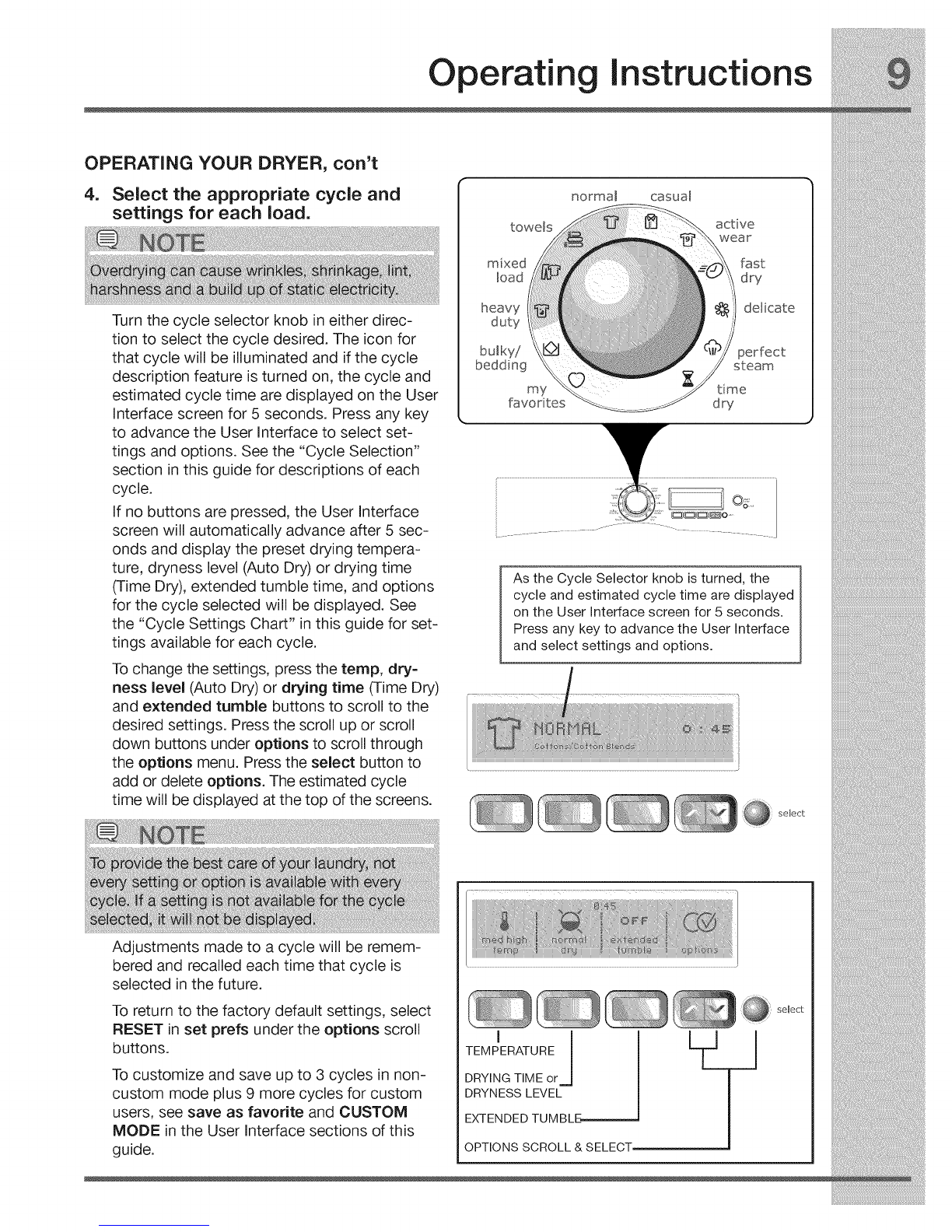

3. Select the desired cycle. (See page 9, pages

11-14 and page 29.)

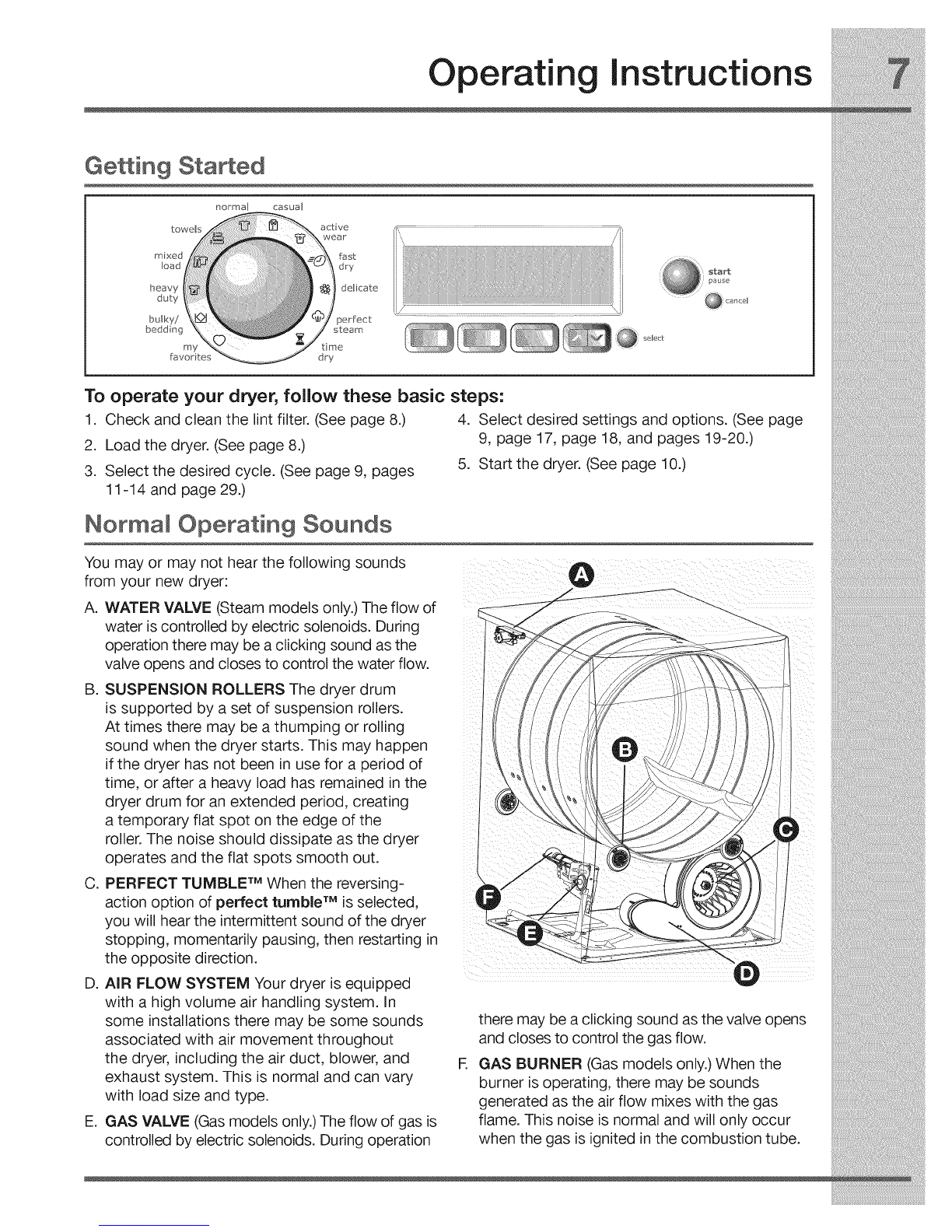

Normal Operating Sounds

4. Select desired settings and options. (See page

9, page 17, page 18, and pages 19-20.)

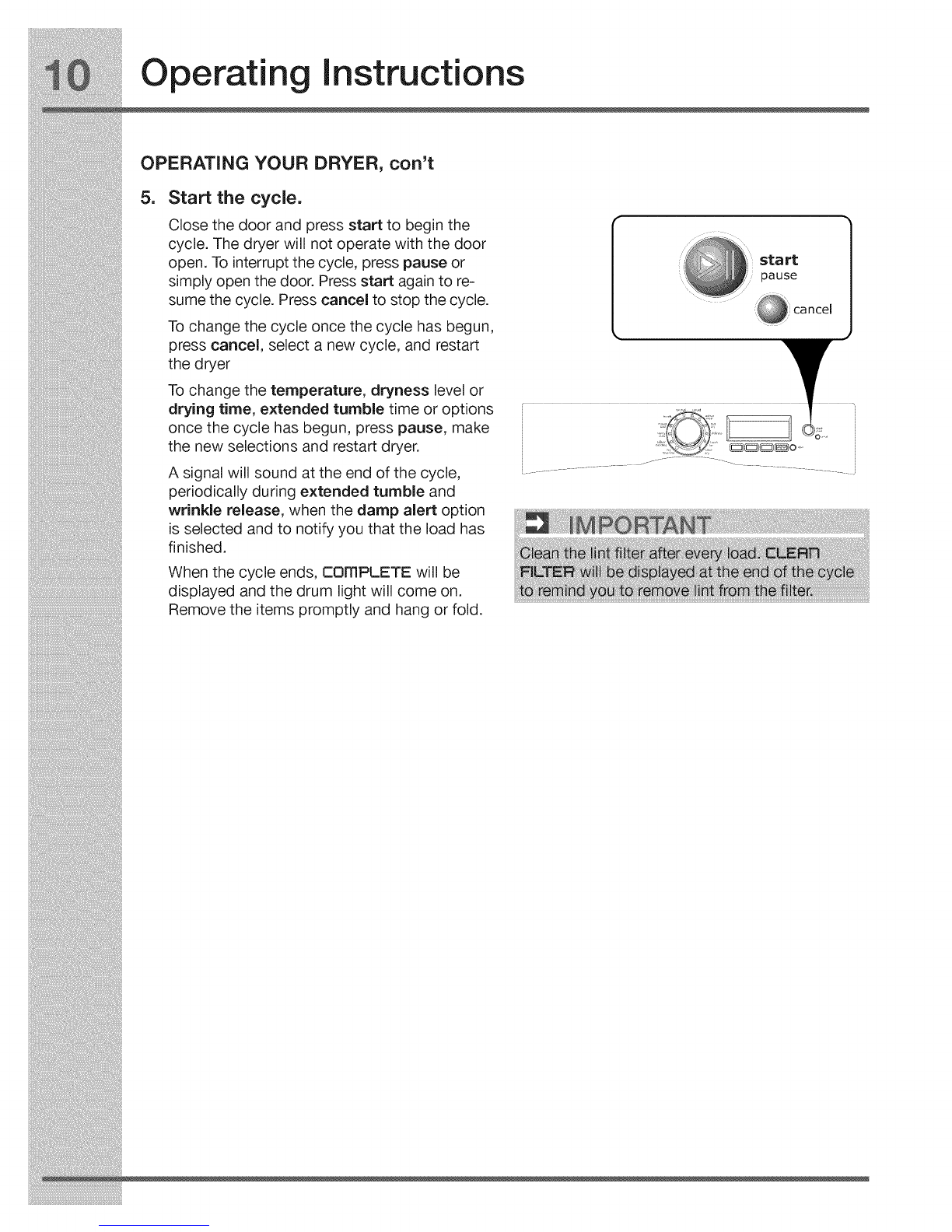

5. Start the dryer. (See page 10.)

You may or may not hear the following sounds

from your new dryer:

A. WATER VALVE (Steam models only.) The flow of

water is controlled by electric solenoids. During

operation there may be a clicking sound as the

valve opens and closes to control the water flow.

B. SUSPENSION ROLLERS The dryer drum

is supported by a set of suspension rollers.

At times there may be a thumping or rolling

sound when the dryer starts. This may happen

if the dryer has not been in use for a period of

time, or after a heavy load has remained in the

dryer drum for an extended period, creating

a temporary flat spot on the edge of the

roller. The noise should dissipate as the dryer

operates and the flat spots smooth out.

C. PERFECT TUMBLE TM When the reversing-

action option of perfect tumble TM is selected,

you will hear the intermittent sound of the dryer

stopping, momentarily pausing, then restarting in

the opposite direction.

D. AIR FLOW SYSTEM Your dryer is equipped

with a high volume air handling system. In

some installations there may be some sounds

associated with air movement throughout

the dryer, including the air duct, blower, and E

exhaust system. This is normal and can vary

with load size and type.

E. GAS VALVE (Gas models only.) The flow of gas is

controlled by electric solenoids. During operation

there may be a clicking sound as the valve opens

and closes to control the gas flow.

GAS BURNER (Gas models only.) When the

burner is operating, there may be sounds

generated as the air flow mixes with the gas

flame. This noise is normal and will only occur

when the gas is ignited in the combustion tube.

Operatin instructions

Operating Your Dryer

BEFORE USING YOUR DRYER

Read the important instructions in this section of the

Use and Care Guide before operating your dryer.

OPERATING YOUR DRYER

=Prepare load for drying.

Dry items of similar fabric, weight and con-

struction in the same load.

Separate dark items from light-colored items.

Separate items that shed lint from those that

attract lint.

Check for stains which may not have been

removed in washing. Repeat stain removal

process and wash again before drying. Dryer

heat may permanently set some stains.

Place delicate or small items in a mesh bag.

Be sure buckles, buttons and trim are heat-

proof and won't damage the drum finish. Close

zippers; fasten hooks and Velcro®-Iike fasten-

ers. Tie strings and sashes to prevent snag-

ging and tangling.

2. Check that the lint filter is clean and

in place.

A clean lint filter allows the dryer to operate

more efficiently.

3. Load the dryer and close the door.

Load items loosely. The average wet load will

fill the drum 1/3 to 1/2 full. items need room to

tumble freely for even drying and less wrinkling.

If desired, place a dryer fabric softener sheet

on top of the load at the beginning of the

cycle.

To save energy and time and avoid uneven

drying and wrinkling, do not overload the dryer.

When drying large items, dry only two or three

items at a time. Fill out the load with small and

medium sized items.

For delicate or very small loads, add two or

three similar items to improve tumbling action.

Mesh bag not included.)

Operating instructions

OPERATING YOUR DRYER, con't

4. Select the appropriate cycle and

settings for each load.

Turn the cycle selector knob in either direc-

tion to select the cycle desired. The icon for

that cycle will be illuminated and if the cycle

description feature is turned on, the cycle and

estimated cycle time are displayed on the User

Interface screen for 5 seconds. Press any key

to advance the User Interface to select set-

tings and options. See the "Cycle Selection"

section in this guide for descriptions of each

cycle.

If no buttons are pressed, the User Interface

screen will automatically advance after 5 sec-

onds and display the preset drying tempera-

ture, dryness level (Auto Dry) or drying time

(Time Dry), extended tumble time, and options

for the cycle selected will be displayed. See

the "Cycle Settings Chart" in this guide for set-

tings available for each cycle.

To change the settings, press the temp, dry-

ness level (Auto Dry) or drying time (Time Dry)

and extended tumble buttons to scroll to the

desired settings. Press the scroll up or scroll

down buttons under options to scroll through

the options menu. Press the select button to

add or delete options. The estimated cycle

time will be displayed at the top of the screens.

towe_s

mixed

load

heavy

duty

bulky/

bedding

norma_ casual

active

wear

fast

dry

del care

perfect

steam

my time

favorites dry

............................. 7" ............... ..................

As the Cycle Selector knob is turned, the

cycle and estimated cycle time are displayed

on the User Interface screen for 5 seconds.

Press any key to advance the User Interface

and select settings and options.

select

Adjustments made to a cycle will be remem-

bered and recalled each time that cycle is

selected in the future.

To return to the factory default settings, select

RESET in set prefs under the options scroll

buttons.

To customize and save up to 3 cycles in non-

custom mode plus 9 more cycles for custom

users, see save as favorite and CUSTOM

MODE in the User interface sections of this

guide.

TEMPERATURE

DRYING TIME or

DRYNESS LEVEL

EXTENDED TUMBLB

OPTIONS SCROLL & SELECT--

select

Operatin Instructions

OPERATING YOUR DRYER, con't

5_ Start the cycle.

Close the door and press start to begin the

cycle. The dryer will not operate with the door

open. To interruptthe cycle, press pause or

simply open the door. Press start again to re-

sume the cycle. Press cancel to stop the cycle.

To change the cycle once the cycle has begun,

press cancel, select a new cycle, and restart

the dryer

To change the temperature, dryness level or

drying time, extended tumble time or options

once the cycle has begun, press pause, make

the new selections and restart dryer.

A signal will sound at the end of the cycle,

periodically during extended tumble and

wrinkle release, when the damp alert option

is selected and to notify you that the load has

finished.

When the cycle ends, cOmPLETE will be

displayed and the drum light will come on.

Remove the items promptly and hang or fold.

Table des matières

Autres manuels Electrolux Séchoir

Electrolux

Electrolux IQ-TOUCH EIGD55H IW Manuel d'utilisation

Electrolux

Electrolux EDE421E Manuel utilisateur

Electrolux

Electrolux EDP2074GDW Manuel utilisateur

Electrolux

Electrolux EDV606E Manuel utilisateur

Electrolux

Electrolux EDC 5340 Manuel utilisateur

Electrolux

Electrolux EW2C327R1 Manuel utilisateur

Electrolux

Electrolux EDE1074PDW Manuel utilisateur

Electrolux

Electrolux EIED2CAQS series Manuel utilisateur

Electrolux

Electrolux EIGD50LIW Instructions d'installation

Electrolux

Electrolux EDC 5372 Manuel d'utilisation

Electrolux

Electrolux ENV06 Manuel utilisateur

Electrolux

Electrolux TK L2 E Manuel utilisateur

Electrolux

Electrolux EIED55IKG - 8.0 cu. Ft. Electric Dryer Manuel utilisateur

Electrolux

Electrolux TWL4E300 Manuel utilisateur

Electrolux

Electrolux EDE 425 M Guide rapide

Electrolux

Electrolux EWED65HSS - 27" Electric Dryer Manuel utilisateur

Electrolux

Electrolux TWL3E301 Manuel utilisateur

Electrolux

Electrolux FEQ1442ES Manuel utilisateur

Electrolux

Electrolux EIMGD55I Manuel utilisateur

Electrolux

Electrolux TWSL5E300 Manuel utilisateur

Electrolux

Electrolux EDE 425 M Manuel utilisateur

Electrolux

Electrolux EFDE317TIW0 Manuel utilisateur

Electrolux

Electrolux EIMED55IIW - 27" Electric Dryer Manuel de service

Electrolux

Electrolux EDC 3250 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire

Bosch

Bosch WTX8HKM9SN Manuel utilisateur
