LAVATHERM 56840L

User manual Condenser dryer

Thank you for choosing one of our high-quality products.

To ensure optimal and regular performance of your appliance please read this

instruction manual carefully. It will enable you to navigate all processes perfectly

and most efficiently. To refer to this manual any time you need to, we recommend

you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

Contents

Operating Instructions 3

Important safety information 3

Environment 5

Product description 6

Control panel 7

Display 7

Before first use 8

Sorting and preparing laundry 8

Programme overview 9

Daily use 10

Switching machine on / switching light on

Opening loading door / loading laundry

Selecting the programme 11

DELICATE function 11

LONG ANTI-CREASE function 11

BUZZER function 11

TIME function 12

DELAY START function 12

CHILD LOCK function 13

Starting the programme 13

Changing programme 13

Putting in extra items or taking items out

before end of programme 13

Drying cycle complete / removing laundry

Care and cleaning 14

Cleaning fluff filter 14

Cleaning the door seal 16

Emptying the condensate tank 16

Cleaning heat exchanger 17

Cleaning the drum 18

Clean operating screen and housing 18

What to do if ... 18

Troubleshooting by yourself 18

Machine settings 20

Technical data 21

Consumption values 21

Hints for test institutes 22

Installation 22

Appliance positioning 22

Removing transport safety packaging 23

Electrical connection 23

Door reversal 24

Special accessories 24

Service 25

Subject to change without notice

2Contents

Operating Instructions

Important safety information

In the interest of your safety and to ensure the correct use, before installing and

first using the appliance, read this user manual carefully, including its hints and

warnings. To avoid unnecessary mistakes and accidents, it is important to ensure

that all people using the appliance are thoroughly familiar with its operation and

safety features. Save these instructions and make sure that they remain with the

appliance if it is moved or sold, so that everyone using it through its life will be

properly informed on appliance use and safety.

General safety

• It is dangerous to alter the specifications or attempt to modify this product in any way.

• This appliance is not intended for use by persons (including children) with reduced

physical, sensory or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for

their safety.

• Make sure that small pets do not climb into the drum. To avoid this, please check into

the drum before using.

• Any objects such as coins, safety pins, nails, screws, stones or any other hard, sharp

material can cause extensive damage and must not be placed into the machine.

• In order to avoid danger of fires caused by excessive drying, do not use appliance to dry

the following items: Cushions, quilts and the like (these items accumulate heat).

• Items such as foam rubber (latex foam), shower caps, waterproof textiles, rubber backed

articles and clothes or pillows fitted with foam rubber pads should not be dried in the

tumble dryer.

• Always unplug the appliance after use, cleaning and maintenance.

• Under no circumstances should you attempt to repair the machine yourself. Repairs

carried out by inexperienced persons may cause injury or serious malfunctioning. Contact

your local Service Centre. Always insist on genuine spare parts.

• Items that have been soiled with substances such as cooking oil acetone, petrol, kerosene,

spot removers, turpentine, waxes and wax removers should be washed in hot water with

an extra amount of detergent before being dried in the tumble dryer.

•Danger of explosion: Never tumble dry items that have been in contact with inflam-

mable solvents (petrol, methylated spirits, dry cleaning fluid and the like). As these sub-

stances are volatile, they could cause an explosion. Only tumble dry items washed with

water.

•Risk of fire: items that have been spotted or soaked with vegetable or cooking oil

constitute a fire hazard and should not be placed in the tumble dryer.

• If you have washed your laundry with stain remover you must execute an extra rinse

cycle before loading your tumble dryer.

Important safety information 3

• Please make sure that no gas lighters or matches have accidentally been left in pockets

of garments to be loaded into appliance

WARNING!

Never stop a tumble dry before the end of the drying cycle unless all items are

quickly removed and spread out so that the heat is dissipated. Risk of fire!

•Risk of electric shock! Do not spray down the appliance with jets of water.

• The final part of a tumble dryer cycle occurs without heat ( cool down cycle ) to ensure

that the items are left at a temperature that ensures that items will not be damaged.

• The tumble dryer is not to be used if industrial chemicals have been used for cleaning.

• Ensure you have good ventilation in the installation room to avoid the back flow of gases

into the room from appliances burning other fuels, including open fires.

Installation

• This appliance is heavy. Care should be taken when moving it.

• When unpacking the appliance, check that it is not damaged. If in doubt, do not use it

and contact the Service Centre.

• All packaging must be removed before use. Serious damage can occur to the product

and to property if this is not adhered to. See relevant section in the user manual.

• Any electrical work required to install this appliance should be carried out by a qualified

electrician or competent person.

• Care must be taken to ensure that the appliance does not stand on the electrical supply

cable.

• If the machine is situated on a carpeted floor, please adjust the feet in order to allow air

to circulate freely under the appliance.

• After having installed the appliance, check that it is not pressing or standing on its

electrical supply cable.

• If the tumble dryer is placed on top of a washing machine, it is compulsory to use the

stacking kit (optional accessory).

Use

• This appliance is designed for domestic use. It must not be used for purposes other than

those for which it was designed.

• Only wash fabrics which are designed to be machine dried. Follow the instructions on

each garment label.

• Do not dry unwashed items in the tumble dryer.

• Do not overload the appliance. See the relevant section in the user manual.

• Clothes which are dripping wet should not be placed in the dryer.

• Garments which have been in contact with volatile petroleum products should not be

machine dried. If volatile cleaning fluids are used, care should be taken to ensure that

the fluid is removed from the garment before placing in the machine.

• Never pull the power supply cable to remove the plug from the socket; always take hold

of the plug itself.

• Never use the tumble dryer if the power supply cable, the control panel, the working

surface or the base are damaged so that the inside of the tumble dryer is accessible.

• Fabric softeners, or similar products should be used as specified by the fabric softener

instructions.

4Important safety information

•Caution - hot surface : Do not touch the door light cover surface when the light is

switched on.

(Only dryers equipped with internal drum light)

Child safety

• This machine is not intended for use by young children or infirm persons without su-

pervision.

• Children often do not recognise the hazards associated with electrical appliances. Chil-

dren should be supervised to ensure that they do not play with the appliance.

• The packaging components (e.g. plastic film, polystyrene) can be dangerous to children

- danger of suffocation! Keep them out of children’s reach.

• Keep all detergents in a safe place out of children’s reach.

• Make sure that children or pets do not climb into the drum.

Environment

The symbol on the product or on its packaging indicates that this product may not be

treated as household waste. Instead it should be taken to the appropriate collection point

for the recycling of electrical and electronic equipment. By ensuring this product is disposed

of correctly, you will help prevent potential negative consequences for the environment

and human health, which could otherwise be caused by inappropriate waste handling of

this product. For more detailed information about recycling of this product, please contact

your local council, your household waste disposal service or the shop where you purchased

the product.

Environmental tips

• In the dryer, laundry becomes fluffy and soft. Fabric softeners are not therefore needed

when washing.

• Your dryer will function most economically if you:

– Always keep the ventilation slots on the base of the dryer unobstructed;

– Use the loading volumes specified in the programme overview;

– Ensure you have good ventilation in the installation room;

– Clean the micro-fine filter and fine strainer after each drying cycle;

– Spin the laundry well before drying.

Energy consumption depends on spinning speed set in washing machine. Higher spinning

speed - lower energy consumption.

Environmental information

The packaging materials are environmentally friendly and can be recycled. The plastic com-

ponents are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging

materials in the appropriate container at the community waste disposal facilities.

Environment 5

WARNING!

When the unit is no longer being used:

• Pull the plug out of the socket.

• Cut off the cable and plug and dispose of them.

• Dispose of the door catch. This prevents children from trapping themselves inside and

endangering their lives.

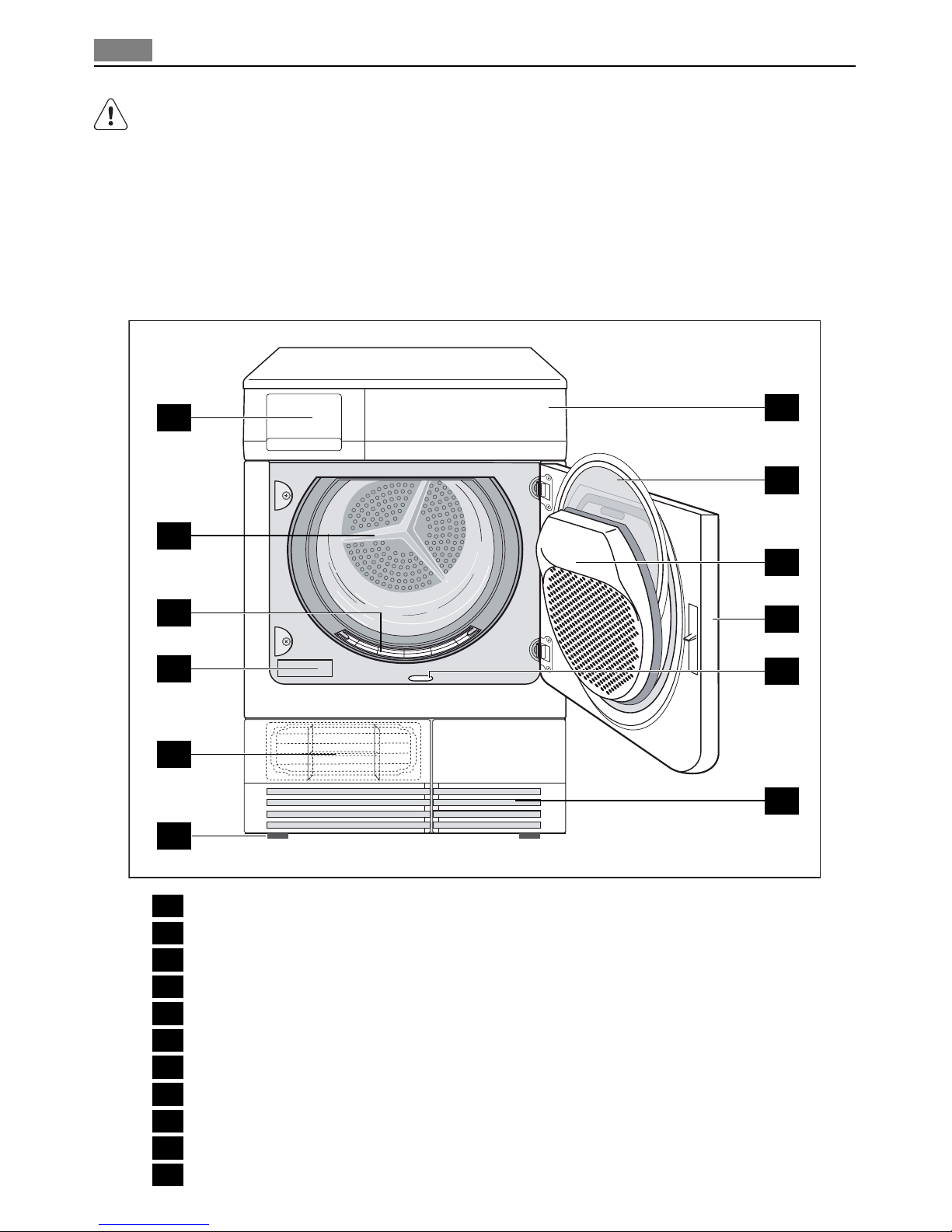

Product description

1Control panel

2Water reservoir

3Drum light

4Fine fluff filters

5Course fluff filters

6Fluff filters

7Rating plate

8Loading door (reversible)

9Heat exchanger door

10 Button for opening door in plinth

11 Ventilation grille

6Product description

12 Adjustable feet

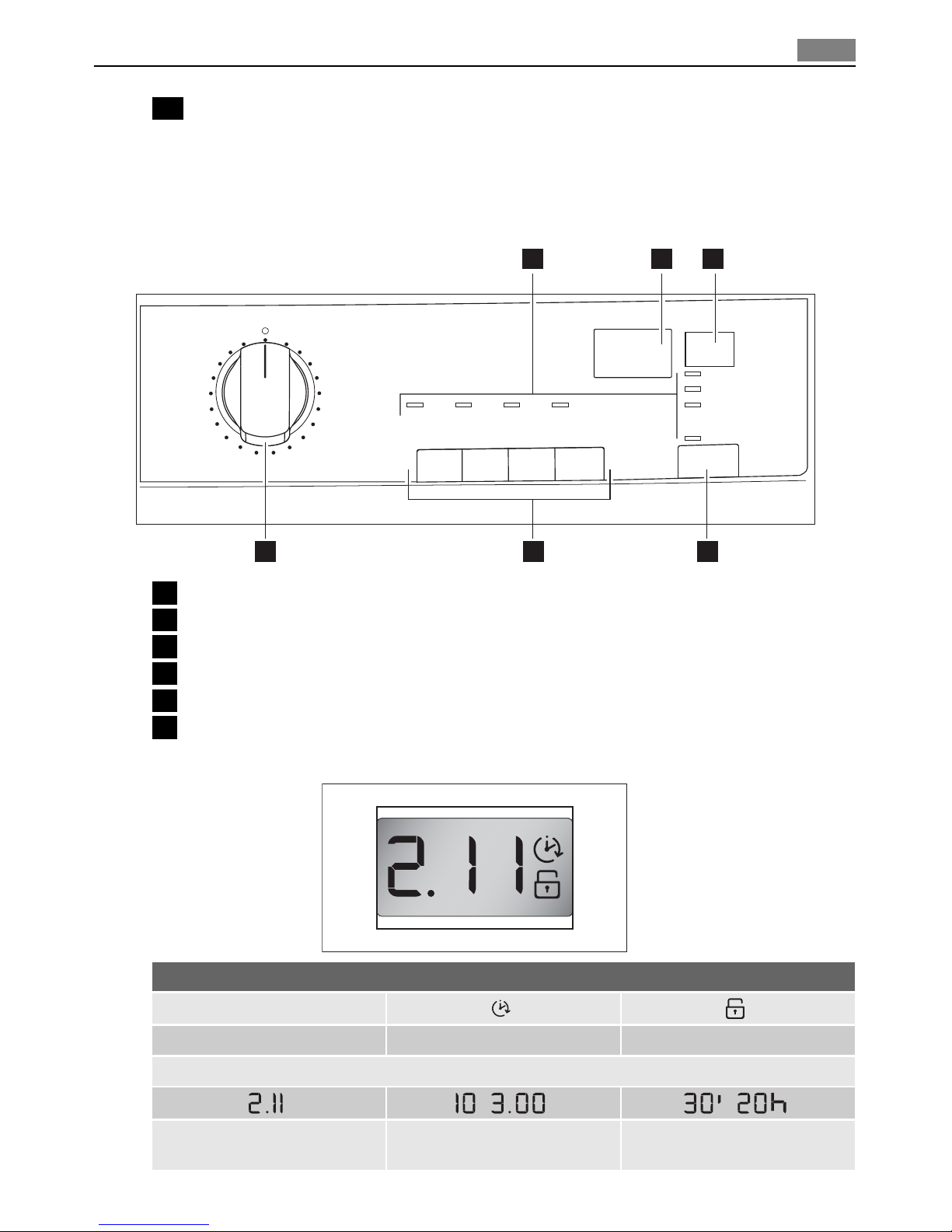

Control panel

6 5 4

321

1Programme selector and on/off switch

2Function buttons

3START PAUSE button

4DELAY START button

5Display

6Status LED

Display

Display description

-delay start child lock

- -

cycle duration time program scope (10 min -

3h) delay start scope

Control panel 7

Before first use

In order to remove any residues which may have been produced during production, wipe

the dryer drum with a damp cloth or carry out a brief drying cycle (ca. 30 min.) with damp

cloths in the machine.

Sorting and preparing laundry

Sorting laundry

• Sort by fabric type:

– Cotton/linen for programmes in COTTONS programme group.

– Mixtures and synthetics for programmes in EASY CARE programme group.

• Sorting by care label. The care labels mean:

Drying in the tumble

dryer possible in prin-

ciple

Dry at normal tem-

perature

Dry at reduced tem-

perature (press DELI-

CATE button!)

Drying in the tumble

dryer not possible

Do not place in the appliance any wet laundry which is not specified on the care label as

being suitable for tumble-drying.

This appliance can be used for all wet laundry items which are labelled as suitable for

tumble-drying.

• Do not dry new, coloured textiles together with light-coloured laundry items. Textile

colours may bleed.

• Do not dry cotton jersey and knitwear with the EXTRA programme. Items may shrink!

• Do not dry wool in the dryer. May become entangled! After air-drying, wool may be dried

with the WOOL CARE programme.

Preparing laundry

• To avoid laundry becoming tangled: close zips, button up duvet covers and tie loose ties

or ribbons (e.g. of aprons).

• Empty pockets. Remove metal items (paper clips, safety pins, etc).

• Turn items with double-layered fabrics inside out (e.g. with cotton-lined anoraks, the

cotton layer should be outermost). These fabrics will then dry better.

8Before first use

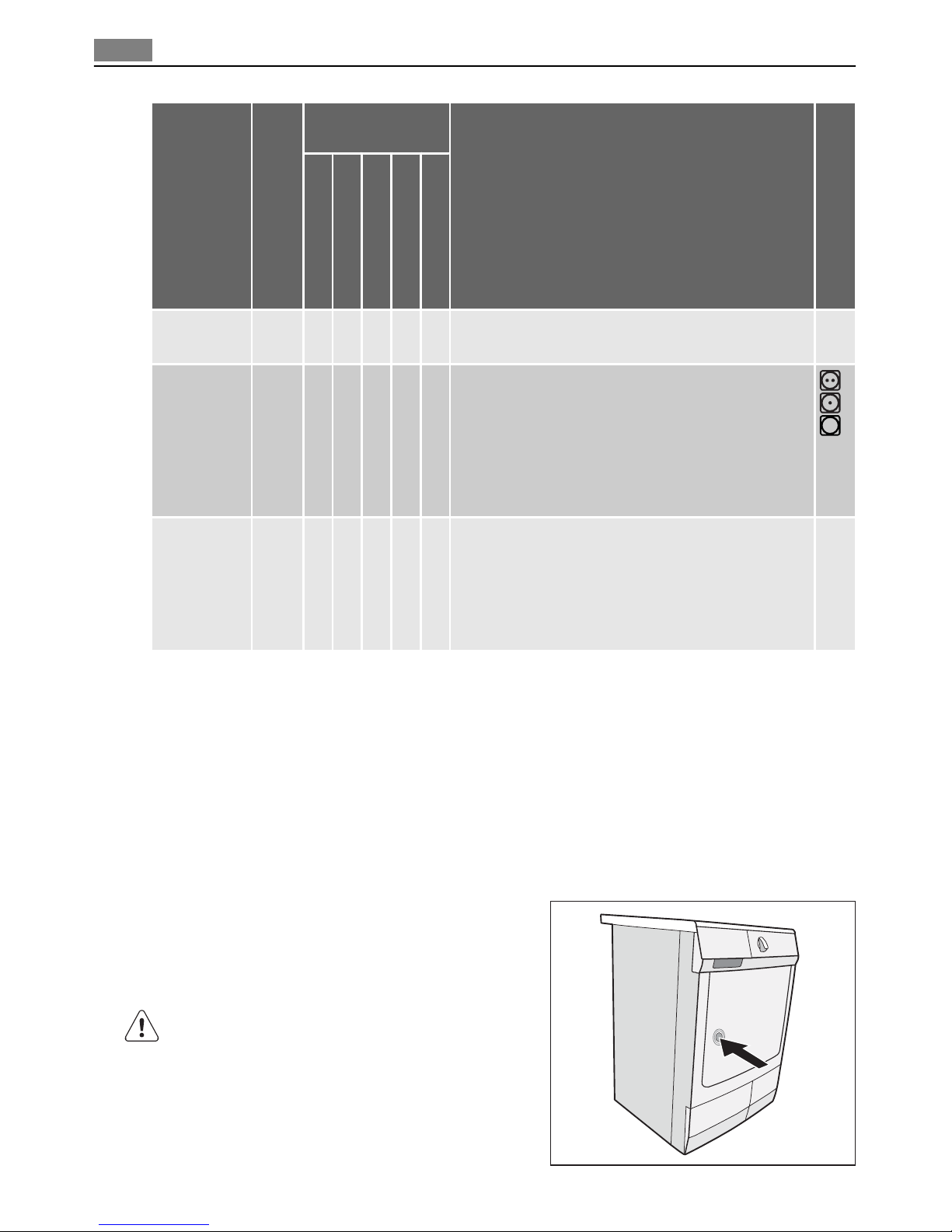

Programme overview

Programmes

max. load

(weight when dry)

Additional func-

tions

Application/properties

Care mark

DELICATE

LONG ANTI-CREASE

BUZZER

TIME

DELAY START

COTTONS

EXTRA DRY 7 kg • • • - • Thorough drying of thick or multi- layered fabrics,

e.g. terry towelling items, bathrobes.

COTTONS

STORAGE

DRY

7 kg • • • - • Thorough drying of fabrics of even thicknesses, e.g.

terry towelling items, knitwear, towels.

COTTONS

IRON DRY 7 kg • • • - • For normal thickness cotton or linen laundry, e.g.

bedding, table linen.

EASY CARE

EXTRA DRY 3 kg • • • - • Thorough drying of thick or multi-layered fabrics,

e.g. pullovers, bedding, table linen.

EASY CARE

STORAGE

DRY

3 kg • • • - •

For thin fabrics which are not ironed, e.g. easy care

shirts, table linen, baby clothes, socks, lingerie with

bones or wires.

EASY CARE

IRON DRY 3 kg • • • - • For thin fabrics which are also to be ironed, e.g.

knitwear, shirts.

TIME 7 kg •••••For further drying of individual items of laundry

or for volumes up to 7 kg.

FRESHEN-

UP 1 kg • • • - • For refreshing or gently cleaning textiles with

commercially available dry cleaning products.

BED LINEN 3 kg • • • - • Bed linen (single and double sheet, pillowcase,

bedspread, duvet cover).

JEANS 7 kg • • • - •

For leisure clothing, such as jeans, sweat-shirts,

etc., of different material thicknesses (e.g. at the

neck, cuffs and seams).

Programme overview 9

Programmes

max. load

(weight when dry)

Additional func-

tions

Application/properties

Care mark

DELICATE

LONG ANTI-CREASE

BUZZER

TIME

DELAY START

SPORTS

LIGHT 2 kg •

• • - • For sportswear, thin fabrics, polyester, which are

not ironed.

EASY IRON

PLUS

1 kg

(or 5

shirt

•

• • - •

Special program with anti-crease mechanism for

easy care fabrics such shirts and blouses; for min-

imum ironing effort. The results depends on the

type of fabric and its finish. Place fabrics in the

dryer straight after spinning; once dried, immedi-

ately remove fabrics and place on a clothes hang-

er.

WOOL

CARE 1 kg • - • - •

Special programme for briefly treating woollens

with warm air, after they have been dried natu-

rally, worn or stored for long periods. Wool fibres

stand up and the wool becomes soft and cosy.

Recommendation: Remove fabrics immediately

after drying.

1) select DELICATE

2) set by default

Daily use

Switching machine on / switching light on

Turn the programme selector to any programme or turn it to DRUM LIGHT. The machine

has been switched on. When the loading door is opened, the drum is illuminated.

Opening loading door / loading laundry

1. Open loading door:

Use force to push against the loading door

(push point)

2. Load your laundry (do not force it in).

CAUTION!

Do not jam laundry in between the loading

door and rubber seal.

3. Close loading door securely. Lock must

audibly lock.

10 Daily use

Table des matières

Autres manuels Electrolux Séchoir

Electrolux

Electrolux T5290 Manuel utilisateur

Electrolux

Electrolux EDC 5369 Manuel d'utilisation

Electrolux

Electrolux EIED55HIW - 8.0 cu. Ft. Electric Dryer Guide de démarrage rapide

Electrolux

Electrolux DC6-4 Manuel utilisateur

Electrolux

Electrolux U04488 WT40 Manuel utilisateur

Electrolux

Electrolux EDC 5370 Manuel utilisateur

Electrolux

Electrolux FRWADREW4 Manuel utilisateur

Electrolux

Electrolux EKDR14XAKW0 Manuel utilisateur

Electrolux

Electrolux EDV6552 Manuel utilisateur

Electrolux

Electrolux EDP2074PMW Manuel utilisateur

Electrolux

Electrolux EDV505 Manuel utilisateur

Electrolux

Electrolux EDP2074PDW Manuel utilisateur

Electrolux

Electrolux EFMG627UIW Manuel utilisateur

Electrolux

Electrolux EFDE210TIW Manuel utilisateur

Electrolux

Electrolux EIMGD60LT3 Manuel utilisateur

Electrolux

Electrolux AEQ6000ES Manuel utilisateur

Electrolux

Electrolux TWSL4E303 Manuel utilisateur

Electrolux

Electrolux Iron Aid EDI97170W Manuel utilisateur

Electrolux

Electrolux EDV5051 Manuel utilisateur

Electrolux

Electrolux EIMED55IIW - 27" Electric Dryer Manuel utilisateur

Electrolux

Electrolux EWMED70J IW Manuel utilisateur

Electrolux

Electrolux TW SL5 E Manuel utilisateur

Electrolux

Electrolux TW SL5 E Manuel utilisateur

Electrolux

Electrolux EDS7051 Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire

Bosch

Bosch WTX8HKM9SN Manuel utilisateur
