Electrolux T4130 Manuel utilisateur

Installation manual

T4130

Compass Control 487 05 41 61.00

Safety instructions 3

* Applies only to floor mops containing polypropylene.

Safety instructions

This machine is only intended for drying water-washed

garments.

Clothes that have been cleaned with chemicals/inflammable

liquids, must NOT be dried in the machine.

Remove clothes from the tumble dryer as soon as they are dry.

This prevents them from becoming creased, and reduces the

risk of spontaneous ignition.

The machine must not be used for drying foam rubber or

foamlike materials.

The machine must not be used for drying floor mops*.

The machine must not be used by minors.

The machine must not be hosed down with water.

Mechanical, electrical and gas installations must only be

carried out by authorised personnel.

If the machine has a fault, this must be reported as soon as

possible to the person in charge. This is important for your

own safety and for the safety of others.

Gas dryers only:

The machine is not to be installed in rooms containing cleaning

machines with perchloroethylene, TRICHLOROETHYLENE or

CHLOROFLUOROCONTAINING HYDROCARBONS as cleaning

agents.

What to do if you smell gas:

Do not try to light any appliance.

Do not touch any electrical switch; do not use any phone in

your building.

Evacuate the room, building or area.

Contact the laundry manager.

The dryer must not be installed behind a lockable door or a

sliding door. In the rooms where the dryer is to be installed the

door hinges must be on the outer side.

Contents 5

Contents

Technical data. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Dimension sketch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Unpacking. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Positioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Mechanical installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Floor mounting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Door reversal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Installation on board a ship. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Washing column . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Condensate dryer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Installation of ventilating system . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Changing over condensate dryers. . . . . . . . . . . . . . . . . . . . . . . . . 13

Evacuation system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Air principle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Fresh air. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Exhaust duct . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Electric installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Function check.. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

The manufacturer reserves the right to modify design and

material specifications without notice.

Technical data

Technical data - T4130/4130C

Standard dryer Condensate dryer

Drum volume 130 liter 130 liter

Weight: Netto 54 kg 57 kg

Drum: Diameter 575 mm 575 mm

Depth 500 mm 500 mm

Revolutions 53 rpm 53 rpm

G-factor 0.9 0.9

Capacity: 6 kg 6 kg

Heat effect: 5,1 / 3,2 kW 3,0 kW

Motor: Effect 0,13 kW 0,20 kW

Revolutions 50 Hz 2730 rpm 2730 rpm

Revolutions 60 Hz 3330 rpm 3330 rpm

Air consumption: 260 m3/h

Piping: Evacuation Ø 100

Condensation water 1/2" hose to drain

Pressure drop: Evacuation 50/60 Hz max. 60 Pa

Sound pressure level: < 70 dB (A) < 70 dB (A)

Dimension sketch 7

Dimension sketch

100

Ø 100

850

595 735

197

402

500

510 44

1260

105

310

550

115

235

ﬂ 14

Connecting branch -

condensate dryers only

Exhaust duct -

standard dryers

only

Unpacking

Unpack the dryer from the packaging.

There are no transportation fittings. Release

the dryer from the pallet by cutting the plastic

ribbon.

Positioning

Fig Place the dryer in such a way that work can

be done as easily as possible by the user as

well as the service technician. The door is

reversible.

The distance to the wall or other equipment

behind the dryer should be min. 300 mm and

the distance to the sides min. 70 mm (if the

dryer is to be equipped with a coin box the

width of the coin box must also be added).

However, for the purpose of servicing the dryer

there should be free access to the back of it.

The dryer can be positioned on a 55-litre

washing machine to form a washing column.

Mechanical installation

Fig Adjust the dryer to ensure that it is horizontal

and stands firmly on all 4 feet.

The max. height adjustment is 14 mm.

Floor mounting

Fig The dryer can be installed directly on the floor

and fastened by means of the accompanying

cups A.

Fasten the cups by means of the

screws.

A drilling plan is given in fig. 3

in the form of alternative 1 (from

the rear) or 2 (from the side),

depending on the space for

mounting the rocker brackets B.

Drill the rawlplug holes using a 10

mm drill.

Front

500 47,547,5

42,5

15,5

42,5

15,5564

510

Alt. 2

Alt. 1

Alt. 2

Alt. 1

375 122

402133

133

Door reversal 9

1. Disconnect the power supply to the dryer.

2. Loosen the hinge mounting and push it down to

allow the door to be lifted off. Unscrew the hinge

mounting.

NB! Hold the door securely while loosening the

screws.

12. Mount the door. Push the hinge mounting

upwards and tighten the screws.

13. Test the door (use washers to adjust the hinge if

necessary). Check that door pin (A) is aligned

with the microswitch aperture.

14. Connect the power to the dryer. Finally, check

that the dryer stops when the door is opened.

TOP

Upper pivot

TOP

Lower pivot

3. Unscrew the

cover screws at

the opposite

side and loosely

mount the hinge

mounting.

Screw in the

cover screws

where the hinge

was previously

mounted.

Door reversal

7. Mount the handle at the opposite side where the

plugs used to be.

8. Insert the plugs where the handle used to be.

9. Remove the bottom pivot to the other side.

10. Release the locking plates by loosening the barb

with a screwdriver.

11. Press out the locking plates, swap them over and

press into position.

4. Remove the three black plugs at the top of the

door.

5. Dismount the handle by loosening the three screws.

6. Remove the pivot at the top to the other side.

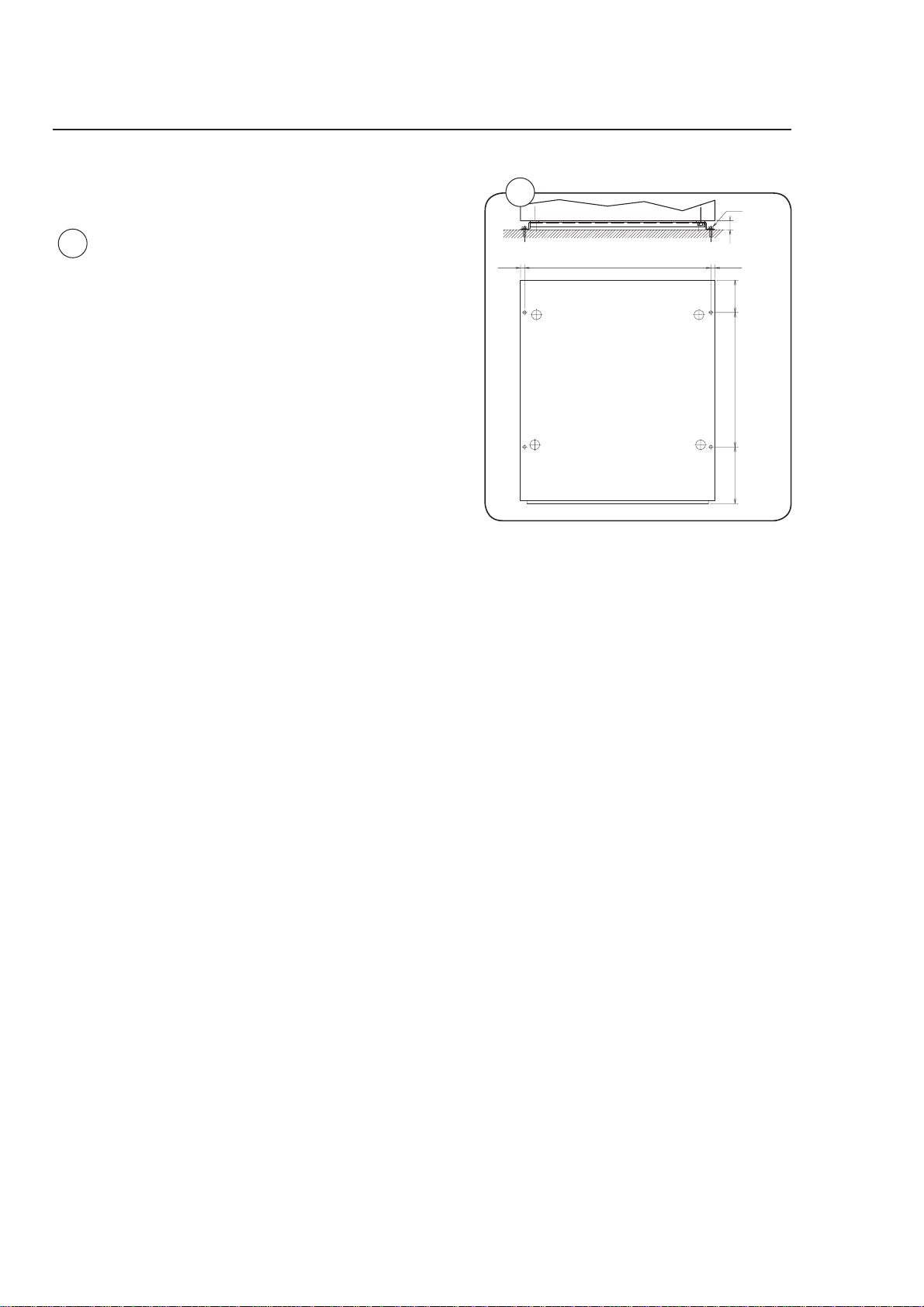

Installation on board a ship

Fig If the dryer is intended for installation on

board a ship, fittings are mounted from factory

(instead of feet) on the dryer for attachment to

the ship floor by means of 4 M8 bolts.

Drilling plan, see fig. 1.

573

416 100 28

175

12,5 12,5

Front
