electrolux 3

Welcome to the world of Electrolux

Thank you for choosing a first class product from

Electrolux, which hopefully will provide you with lots of

pleasure in the future. The Electrolux ambition is to

offer a wide variety of quality products that make your

life more comfortable. You find some examples on

the cover in this manual. Please take a few minutes

to study this manual so that you can take advantage

of the benefits of your new machine. We promise that

it will provide a superior User Experience delivering

Ease-of-Mind. Good luck!

125989940.qxp 2007-07-24 13:23 Page 3

4 contents electrolux

Contents

Safety information..............................5

Product description ...........................7

Control panel.....................................8

Use ..............................................9-10

Drying hints................................11-12

Drying programme...........................13

Care and cleaning ...........................14

Something not working..............15-16

Technical data .................................17

Consumption values........................18

Installation..................................19-21

Environment concerns.....................23

Guarante/Customer Service.......24-25

The following symbols are used in this manual:

Important information concerning your personal safety and information on how

to avoid damaging the appliance.

General information and tips

Environmental information

125989940.qxp 2007-07-24 13:23 Page 4

safety information electrolux 5

Safety Information

In the interest of your safety and to

ensure the correct use, before

installing and first using the

appliance, read this user manual

carefully, including its hints and

warnings. To avoid unnecessary

mistakes and accidents, it is

important to ensure that all people

using the appliance are thoroughly

familiar with its operation and safety

features. Save these instructions

and make sure that they remain

with the appliance if it is moved or

sold, so that everyone using it

through its life will be properly

informed on appliance use and safety.

General safety

●It is dangerous to alter the

specifications or attempt to modify

this product in any way.

●This appliance is not intended for use by

persons (including children) with reduced

physical, sensory or lack of experience

and knowledge, unless they have

been given supervision or instruction

concerning use of the appliance by a

person responsible for their safety.

●Make sure that small pets do not climb

into the drum. To avoid this, please

check into the drum before using.

●Any objects such as coins, safety

pins, nails, screws, stones or any

other hard, sharp material can cause

extensive damage and must not be

placed into the machine.

●In order to avoid danger of fires

caused by excessive drying, do not

use appliance to dry the following

items: Cushions, quilts and the like

(these items accumulate heat).

●Items such as foam rubber (latex foam),

shower caps, waterproof textiles, rubber

backed articles and clothes or pillows

fitted with foam rubber pads should

not be dried in the tumble dryer.

●Always unplug the appliance after

use, clean and maintenance.

●Under no circumstances should you

attempt to repair the machine

yourself. Repairs carried out by

inexperienced persons may cause

injury or serious malfunctioning.

Contact your local Service Centre.

Always insist on genuine spare parts.

●Items that have been soiled with sub-

stances such as cooking oil acetone,

petrol, kerosene, spot removers, tur-

pentine, waxes and wax removers

should be washed in hot water with

an extra amount of detergent before

being dried in the tumble dryer.

●DDaannggeerrooffeexxpplloossiioonn::Never tumble dry

items that have been in contact with

inflammable solvents (petrol, methylated

spirits, dry cleaning fluid and the

like). As these substance are volatile,

they could cause an explosion. Only

tumble dry items washed with water.

●RRiisskkooffffiirree: items that have been

spotted or soaked with vegetable or

cooking oil constitute a fire hazard

and should not be placed in the

tumble dryer.

●If you have washed your laundry

with stain remover you must

execute an extra rinse cycle before

loading your tumble dryer.

●Please make sure that no gas lighters

or matches have accidentally been left

in pockets ofgarments to be loaded

into appliance

Installation

●This appliance is heavy. Care should

be taken when moving it.

●When unpacking the appliance, check

125989940.qxp 2007-07-24 13:23 Page 5

6electrolux safety information

that it is not damaged. If in doubt, do not

use it and contact the Service Centre.

●All packing and transit bolts must be

removed before use. Serious damage

can occur to the product and to

property if this is not adhered to. See

relevant section in the user manual.

●The final part of a tumble dryer cycle

occurs without heat ( cool down

cycle ) to ensure that the items are

left at a temperature that ensures

that items will not be damaged.

●Any electrical work required to

install this appliance should be

carried out by a qualified electrician

or competent person.

●Care must be taken to ensure that

the appliance does not stand on the

electrical supply cable.

●If the machine is situated on a

carpeted floor, please adjust the feet

in order to allow air to circulate freely

●After having installed the appliance,

check that it is not pressing or

standing on its electrical supply

cable, inlet hose and drain hose.

●If the tumble dryer is placed on top of a

washing machine, it is compulsory to

use the stacking kit (optional accessory).

Use

●This appliance is designed for domestic

use. It must not be used for purposes

other than those for which it was

designed.

●Only wash fabrics which are designed

to be machine dried. Follow the

instructions on each garment label.

●Do not dry unwashed items in the

tumble dryer.

●Fabric softeners, or similar products,

should be used as specified by the

fabric softener instructions.

●Do not overload the appliance. See

the relevant section in the user

manual.

●Clothes which are dripping wet

should not be placed in the dryer.

●Garments which have been in

contact with volatile petroleum

products should not be machine

dried. If volatile cleaning fluids are

used, care should be taken to

ensure that the fluid is removed from

the garment before placing in the

machine.

●Never pull the power supply cable to

remove the plug from the socket;

always take hold of the plug itself.

●Never use the tumble dryer if the

power supply cable, the control

panel, the working surface or the

base are damaged so that the inside

of the tumble dryer is accessible.

WWAARRNNIINNGG::

Never stop a tumble dry before the

end of the drying cycle.

Child safety

●This machine is not intended for use

by young children or infirm persons

without supervision.

●Children should be supervised to ensure

that they do not play with the appliance.

●The packaging components (e.g.

plastic film, polystyrene) can be

dangerous to children - danger of

suffocation! Keep them out of

children’s reach

●Keep all detergents in a safe place

out of children’s reach.

●Make sure that children or pets do

not climb into the drum.

125989940.qxp 2007-07-24 13:23 Page 6

product description electrolux 7

Product description

Control panel

Fluff filters

Rating Plate

Adjustable feet

Side vent outlets

Ring nut

Rear vent outlet

125989940.qxp 2007-07-24 13:23 Page 7

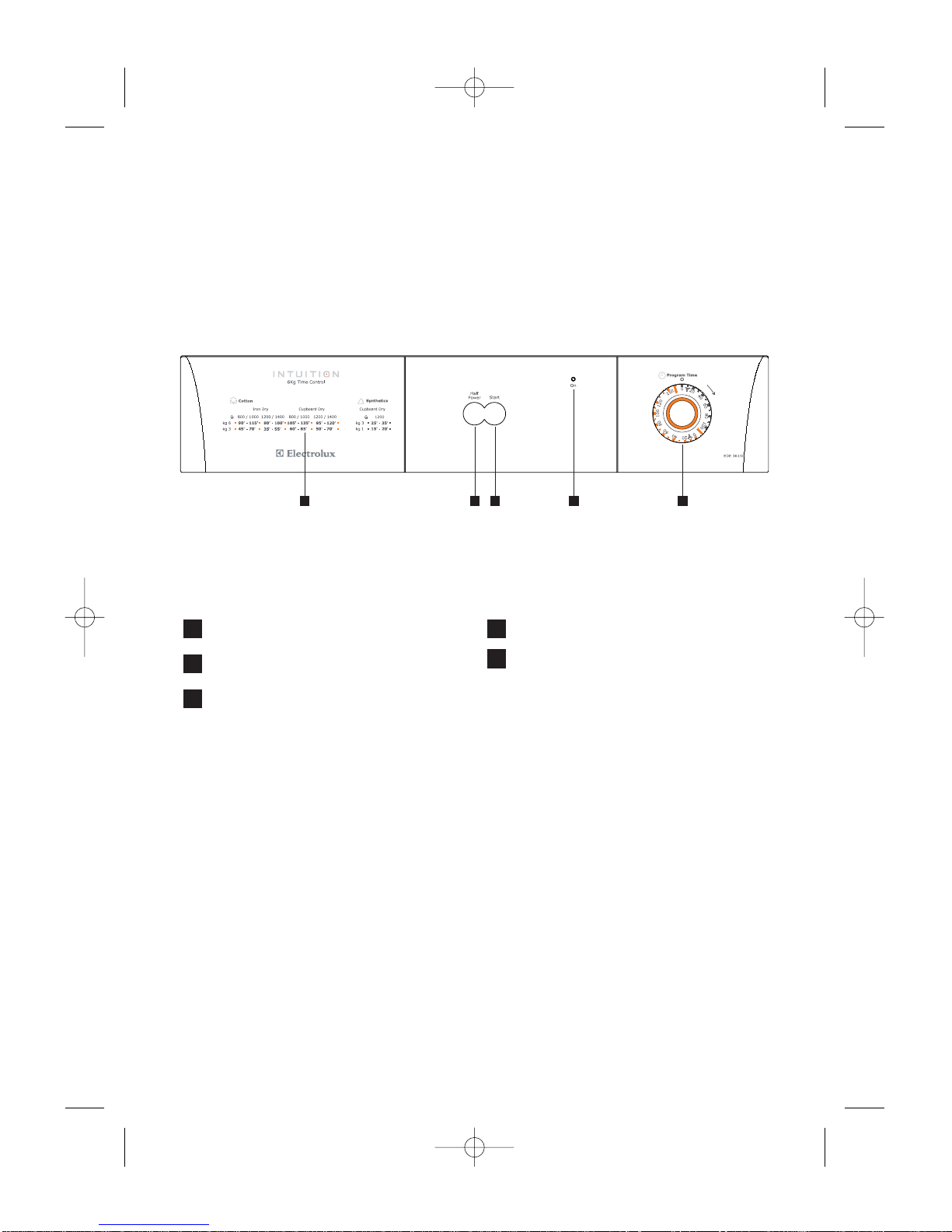

8electrolux control panel

Control panel

Programme CChart

Half ppower bbutton

Start bbutton

1 2 3 4 5

Mains oonLLight

Programme sselector ddial

125989940.qxp 2007-07-24 13:23 Page 8

use electrolux 9

Use

First Use

●Ensure that the electrical connections

comply with the installation instructions.

●Remove the polystryrene block and

any material from the drum.

●Before using your tumble dryer for

the first time, were commend that

you to place a few damp cloths

inside the appliance and dry for 30

minutes.

There may be dust inside a brand

new tumble dryer.

Daily Use

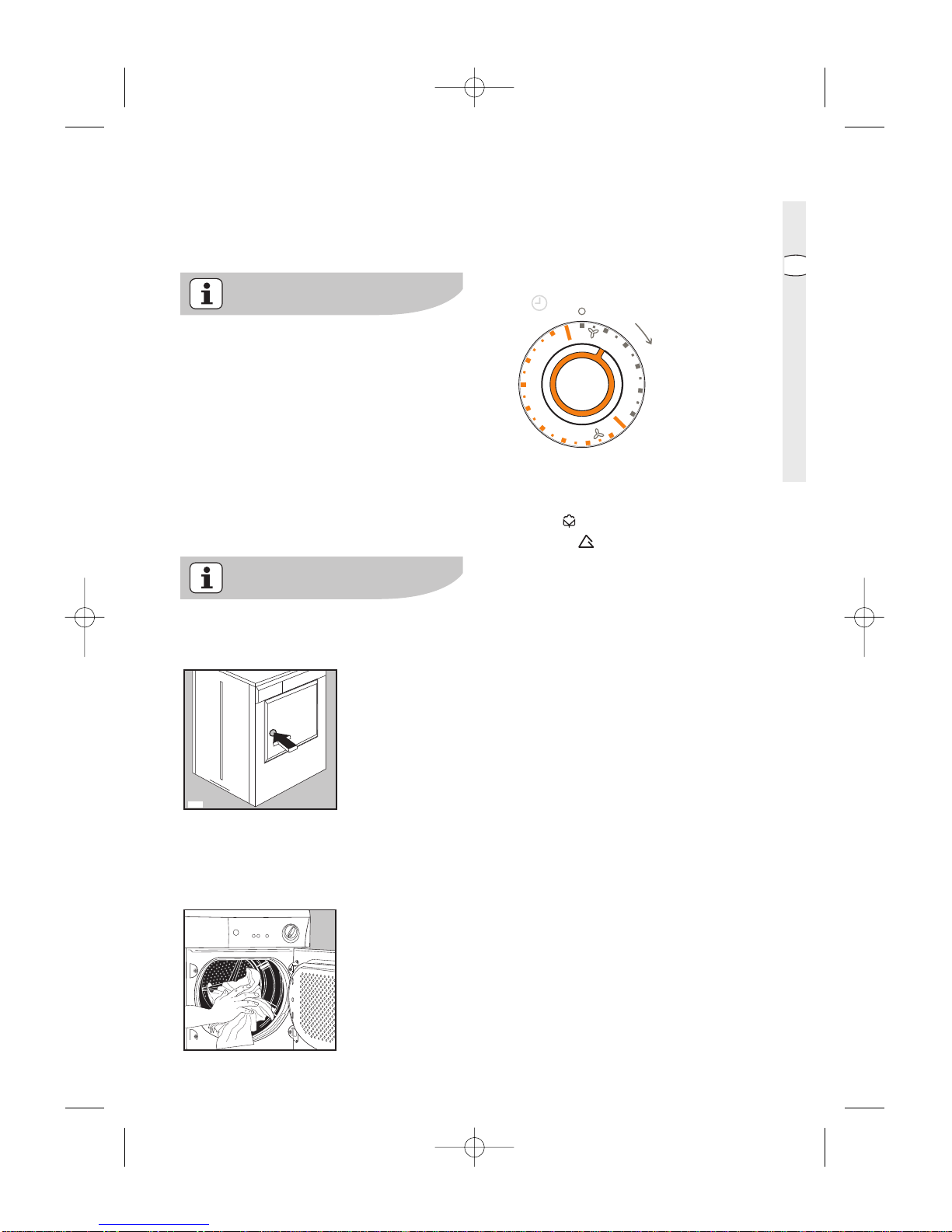

Connect the appliance.

Open the door (see picture).

Place the laundry in the drum, one item

at a time, shaking them out as much

as possible. Close the door. Please check

the laundry does not get caught

between the door and filter.

P1108

P1104

Select the required programme

Turn the programme selector dial to the

required programme.

The light Start starts to flash.

The selector dial is divided into following

sections:

Cottons

Synthetics

Around the knob there are two drying

cycles, one of up to 150 minutes at a

high temperature for cotton and linen,

and one of up to 100 minutes at a low

temperature for synthetic fabrics. To set

the machine to the selected time, turn

the dial clockwise until the the knob

pointer coincides exactly with the time

you want.

NNEEVVEERRaatttteemmppttttoottuurrnntthheeddiiaalliinnaann

aannttiicclloocckkwwiisseeddiirreeccttiioonn..

This phase should not be shortened,

stopped or avoided, as this could cause skin

burns or damages to the laundry.

Programme Option buttons

Depending on the programme, different

functions can be combined. These must

be selected after choosing the desired

programme and before depressing the

Start button. When these buttons are

pressed, the corresponding pilot lights come

on. When they are pressed again, the pilot

lights go out.

Program Time

150

120

100

125989940.qxp 2007-07-24 13:24 Page 9

10 electrolux use

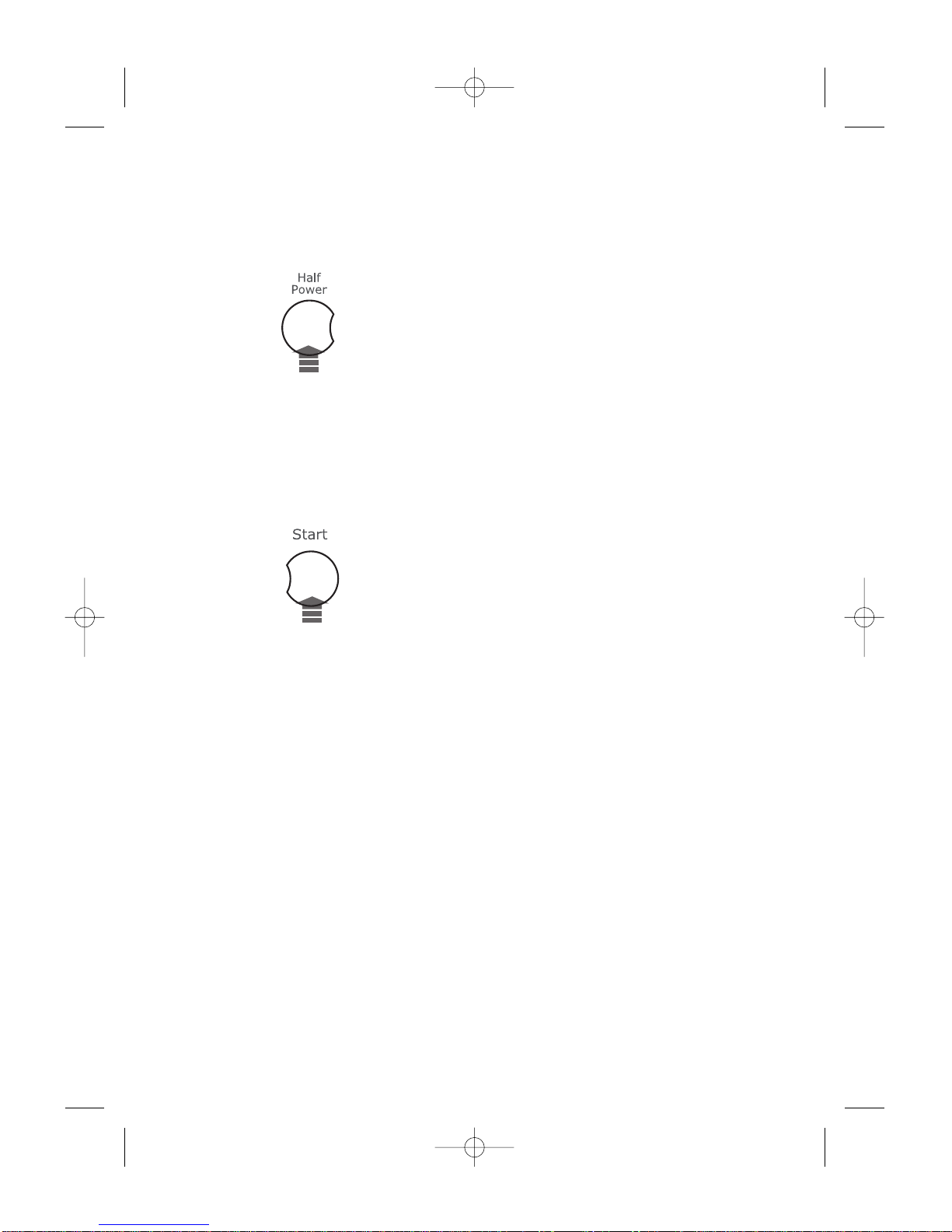

Select the Half power

When the drying cycle has finished, an

intermittent audible signal will sound.

Press this button to reduce the tem-

perature when drying particularly deli-

cate cotton or linen items.

In this case you should select a longer

drying time.

Select the Start

Depress Start-button , the mains-on light

comes on and the machine starts operating.

MMaaiinnssoonnLLiigghhtt

This lights up when the machine starts

operating and goes out when the

selector dial is on position “0” and

when you open the door of the

appliance or the small door covering

the condenser at the bottom.

AAfftteerreeaacchhuussee

• Clean the filters.

Important!

The machine stops automatically. The

selector dial is on “O”, the mains-on

light is off.

If the laundry is still too damp, select

a further brief drying time, bearing in

mind that during the last 10 minutes

the dryer carries out the cooling and

anti-crease treatment phase.

125989940.qxp 2007-07-24 13:24 Page 10

Table des matières

Autres manuels Electrolux Séchoir

Electrolux

Electrolux 864500 Manuel utilisateur

Electrolux

Electrolux 137357000A Manuel utilisateur

Electrolux

Electrolux Dito 601837 Manuel utilisateur

Electrolux

Electrolux GLEQ642AS Manuel utilisateur

Electrolux

Electrolux TW SL5 E Manuel utilisateur

Electrolux

Electrolux EDE401E Manuel utilisateur

Electrolux

Electrolux EDC 46130 W Manuel utilisateur

Electrolux

Electrolux EIMGD60LT3 Manuel utilisateur

Electrolux

Electrolux EDC1072LDW Manuel utilisateur

Electrolux

Electrolux EDH3786GDE Manuel utilisateur

Electrolux

Electrolux SWISSLINE TW SL5M 100 Manuel utilisateur

Electrolux

Electrolux EDC47130W Manuel utilisateur

Electrolux

Electrolux Wave-Touch 137018100 A Manuel utilisateur

Electrolux

Electrolux TK SL 3E Manuel utilisateur

Electrolux

Electrolux EDH3498RDL Manuel utilisateur

Electrolux

Electrolux EDC 5320 Manuel utilisateur

Electrolux

Electrolux EDH3886PW3 Manuel utilisateur

Electrolux

Electrolux ELFE4222AW Manuel utilisateur

Electrolux

Electrolux U04488 WT40 Manuel utilisateur

Electrolux

Electrolux T5675 Manuel utilisateur

Electrolux

Electrolux EW8H458BP Manuel utilisateur

Electrolux

Electrolux EDE 56160W Manuel utilisateur

Electrolux

Electrolux Compass Pro TD6-10 Manuel utilisateur

Electrolux

Electrolux DC6-8HP Q Series Manuel utilisateur

Manuels Séchoir populaires d'autres marques

Bosch

Bosch WTA79200GB Manuel utilisateur

Amana

Amana W10233410A Manuel utilisateur

Miele

Miele TWH 780 WP Manuel utilisateur

Asko

Asko T760 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems 25 Series Manuel utilisateur

Bosch

Bosch Logixx 10 WTB76556GB Fiche technique

STIEBEL ELTRON

STIEBEL ELTRON Ultronic S Mode d’emploi

Beko

Beko DS8433RX1M Manuel utilisateur

Dawlance

Dawlance Spinner DS 6000 C Manuel utilisateur

AEG

AEG TR838P4OB Manuel utilisateur

Indesit

Indesit IDV 75 Manuel utilisateur

Infiniton

Infiniton SD-DG85C Manuel utilisateur

BOMANN

BOMANN WT 5019 Manuel utilisateur

Alliance Laundry Systems

Alliance Laundry Systems TMB795C Manuel utilisateur

Asko

Asko T793C Manuel utilisateur

Kenmore

Kenmore 8041 - 5.8 cu. Ft. Capacity Electric Dryer Manuel utilisateur

Frigidaire

Frigidaire CAQE7077KW0 Manuel du propriétaire

Bosch

Bosch WTX8HKM9SN Manuel utilisateur
