Ekwb Supremacy MX AMD Manuel utilisateur

Supremacy MX – AMD®

4th revision, Jan 20th 2016

USER GUIDE

/ 2 /

GENERAL INFORMATION ON WATER BLOCK COMPATIBILITY

This CPU liquid cooling unit is pre-as-

sembled for use with modern AMD®

desktop socket type motherboards. By

default this water block supports the fol-

lowing CPU sockets:

-AMD® socket AMx and FMx

/ 3 /

INSTAL LING THE WATERBLOCK

AMx and FMx SOCKET

MOTHERBOARDS

STEP 1

Place the motherboard on a neven sur-

face with front side facing up.

Using Philips-head screwdriver remove

the four UNC 6-32 screws securing the

original plastic hold-down clamps around

the socket as shown on the picture.

Keep original AMD backplate in place!

STEP 1

/ 4 /

STEP 2

Thermal grease

Non-abrasive

cloth

IHS

STEP 2

Cleaning the CPU: Wipe the CPU’s con-

tact surface (by using non–abrasive cloth

or Q-tip, as shown on sample photo).

Applying thermal compound: EK rec-

ommends blob or line method of apply-

ing the enclosed thermal compound to

the CPU heat spreader (IHS) - see sam-

ple photo on right.

The quantity of about two

rice grains is just about right.

There is no need to cover the

whole IHS. Applying too much

thermal grease will have neg-

ative impact on the cooling

performance!

/ 5 /

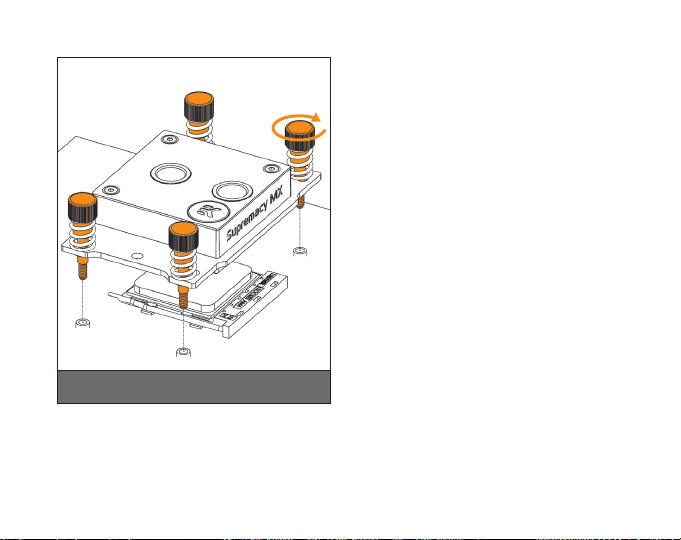

STEP 3

Align water block with pre-installed

mounting mechanism above the AMD®

socket motherboard with pre-installed

CPU and original AMD® backplate.

Tighten the screws with your thumbs un-

til you reach the end of the thread, prefer-

ably by tightening two thumb screws at a

time in the cross pattern. Do not use any

tools (such as pliers) during this process!

STEP 3

/ 6 /

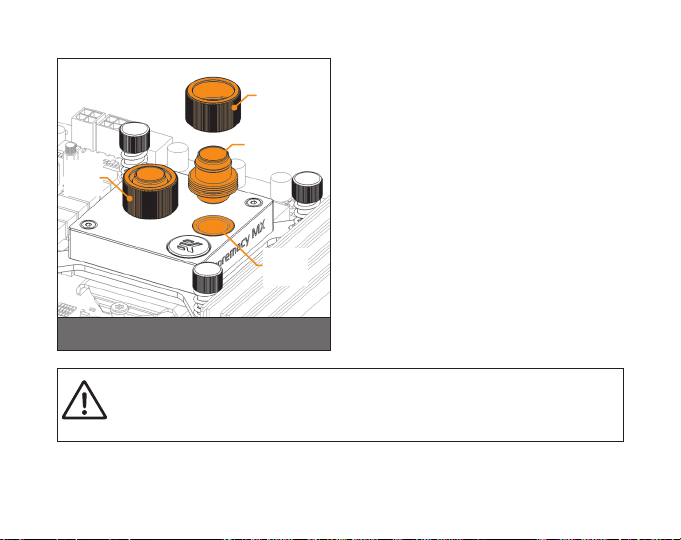

STEP 4

Tighten the ﬁtting barbs in clockwise

direction until the gasket underneath is

compressed.

The installation of the CPU water block is

now complete.

With EK-Supremacy MX series water blocks it is mandatory to use the port

that is nearest to the center of the water block as INLET port. Mixing the

ports may result in less than ideal thermal performance of the water block.

STEP 4

Fitting

Barb

Fitting Ring

Inlet

port

Outlet

port
