Ekwb EK-Quantum Reflection2 PC-O11D EVO D5 PWM... Manuel utilisateur

USER GUIDE

DISTRIBUTION PLATE

EKQuantum

Reﬂection2MEG Prospect 700R D-RGB – Plexi

Please note the installation of the product is intended to be

undertaken by an adequately trained and experienced person.

You are installing the product at your own risk. If you are not

properly trained or experienced or feel unsure about the

installation procedure, please refrain from installing the product

yourself and contact our tech support for assistance. We disclaim

our liability for any damages to the product as well as incidental,

consequential, or indirect damages incurred due to improper or

inappropriate installation

Before you start using this product please follow these basic guidelines:

Please carefully read the manual before beginning with the

installation process!

The EK Fittings require only a small amount of force to screw

them ﬁrmly in place since the liquid seal is ensured by the

rubber O-ring gaskets.

The use of corrosion inhibiting coolants is always recommended

for any liquid cooling system. EKWB recommends any of the

EKCryofuel for worry-free usage.

- 3 -

TABLE OF CONTENT

BOX CONTENTS 4

DISTRIBUTION PLATE DIMENSIONS 5

TECHNICAL SPECIFICATIONS AND PRODUCT PARTS 6

PREPARING THE MEG PROSPECT 700R CASE 7

INSTALLATION OF “EK-Quantum Reﬂection2MEG Prospect 700R D-RGB – Plexi” DISTRIBUTION PLATE INTO CHASSIS 8

RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS 10

FLOW DIAGRAM 12

CONNECTING THE D-RGB LED STRIP 13

CONNECTING THE PUMP 13

TESTING THE LOOP 14

SUPPORT AND SERVICE 15

SOCIAL MEDIA 15

- 4 -

BOX CONTENTS

10 mm

EK-Quantum Reﬂection2MEG Prospect

700R D-RGB - Plexi, EAN: 3831109859797

Screw M4 x 10 DIN7984 (6 pcs)

Allen Key 2.5 mm (1 pc)

Allen Key 2 mm (1 pc)

EK-Loop Multi Allen Key (1 pc)

Mounting mechanism Reﬂection2 MEG Prospect 700R EAN: 106447

Metal Washer M4 x 0.8 (6 pcs)

- 5 -

DISTRIBUTION PLATE DIMENSIONS

17.5 mm

45.5 mm

73.5 mm

19 mm

71 mm

167.6 mm

188.6 mm

84.1 mm

237.6 mm

258.6 mm

286.6 mm

314.6 mm

341 mm

369 mm

397 mm

416 mm

71.3 mm

19 mm

130 mm

26.8 mm

72.6 mm

30.3 mm

19 mm

369 mm

45.5 mm

- 6 -

TECHNICAL SPECIFICATIONS AND PRODUCT PARTS

Technical Speciﬁcation:

Dimensions with the attached pump (W x D x H): 416 x 130 x 72.6 mm

– D-RGB LED count: 19

– D-RGB cable length: 500 mm

– D-RGB connector standard 3-pin (+5V, Data, Blocked, Ground)

Position EAN Description Quantity

19061 Screw M3 x 25 DIN7991 3

28311 Screw M4 x 20 DIN7984 4

38206 Screw M4 x 12 7991DIN 41

45154 Pump OR 52 x 3 mm 1

53831109834282 Plug Cover (Black) 10

63831109813898 EK-D5 PWM (12V SATA) 1

7104310 OR Set 1

8104290 Sticker - MSI Branding 1

9104289 LED Cover (Black Elox) 1

10 104287 Backplate 1

11 104286 TOP plate (Plexi) 1

12 102639 EK-Plug G1/4 (Nickel) 12

13 101803 Pump Mount 1

14 100815 LED D-RGB Strip 500/400 mm 1

15 100663 EK-Badge 1

- 7 -

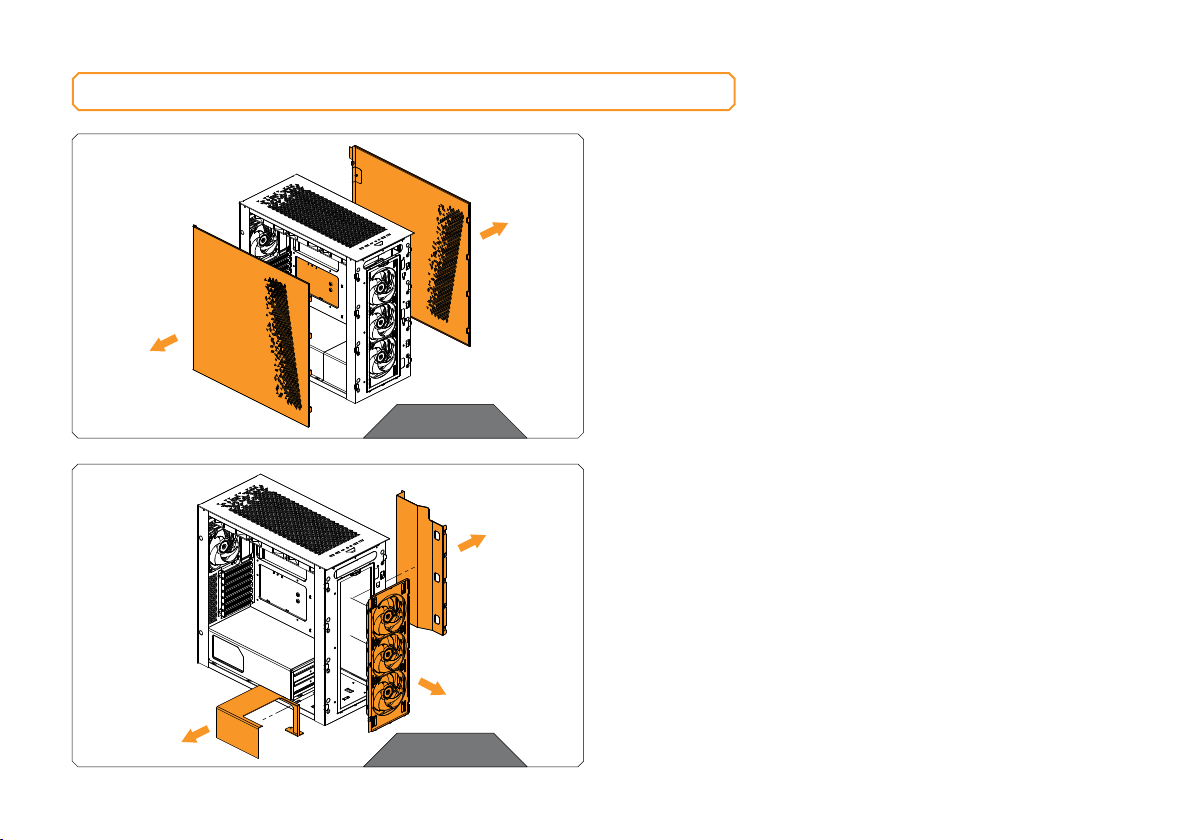

PREPARING THE MEG PROSPECT 700R CASE

STEP 1

Remove the front and back panel of your MEG PROSPECT 700R

case.

STEP 2

Remove the back cable cover panel, the bottom storage shroud and

front bracket with fans. If there are any additional fans or brackets

blocking insertion of the distribution plate, we suggest you remove

those as well.

STEP 1

- 8 -

STEP 2

Once you have successfully mounted the “EK-Quantum Reﬂection2

MEG Prospect 700R D-RGB – Plexi “ distribution plate on the bracket

outside the case, place it and tighten it from the back side of the case

after the holes are aligned properly and the orientation is as seen in

STEP 2 picture.

STEP 2

INSTALLATION OF “EK-Quantum Reﬂection2MEG Prospect 700R D-RGB – Plexi” DISTRIBUTION PLATE INTO CHASSIS

STEP 1

Place the “EK-Quantum Reﬂection2MEG Prospect 700R D-RGB –

Plexi “distribution plate as high as possible on the bracket and loosely

tighten the screws so you can still barely move the distribution plate.

Bracket and distribution plate must be aligned as seen in STEP 1

picture. This step is crucial if you want to install straight tubing with

MATRIX7 compliance.

STEP 1

M4 x 10 DIN7984

(5x)

MOUNTING

BRACKET

For this step you will need:

Allen Key 2.5 mm

- 9 -

STEP 3

Matrix7 compliance:

When you have secured the “EK-Quantum Reﬂection2MEG

Prospect 700R D-RGB – Plexi” distribution plate inside the case,

align it with your GPU water block and CPU water block ports for

Matrix7 compliance and tighten the loose screws from STEP 1 on

the back side of the distribution plate bracket.

STEP 3

CPU OUTLET

CPU INTLET

GPU OUTLET

GPU INTLET

- 10 -

RECOMMENDED DISTRIBUTION PLATE CONFIGURATIONS

TOP RADIATOR

INLET

USING BOTH RADIATORS

FRONT RADIATOR

OUTLET

GPU OUTLET

FRONT RADIATOR

INLET

Note that the top or front radiator is completely optional and a

closed loop without either one can be completed.

To complete your loop, all ports must be used as marked in the

image.

All remaining unused ports must be closed with supplied plugs,

using the EK-Loop Multi Allen Key.

If one of the prescribed components will not be installed

(ie. The Front radiator or GPU block) then one INLET and

one OUTLET port must still be joined together in order

for this distribution plate to function!

Only one INLET and one OUTLET port for the GPU

connection can be used, while all other INLET and

OUTLET GPU ports must be closed with G1/4 plugs

(enclosed in the package).

TOP RADIATOR

OUTLET

CPU OUTLET

CPU INLET

GPU INLET
