Ei Electronics Ei175 Ionisation Manuel utilisateur

Model Ei 175 Ionisation

•Complete smoke alarm system

•Includes high intensity strobe, ionisation smoke

alarm and vibration pad

•Rechargeable battery back up

•Test button

•Continuous monitoring of wiring

•Interconnectable to other Ei alarms

•Auxiliary sockets

•Low power cell warning

•Complies with BS415:1990 electrical safety

•5 year guarantee

Product Description

The Ei175 is a complete smoke alarm system designed

for the deaf and hard of hearing. The system includes

the Ei173 control panel, Ei174 vibrating pad and

Ei100CD ionisation smoke alarm.

The Ei173 control panel includes a high intensity Xenon

strobe, a sealed lead-acid rechargeable battery for

standby use in the event of mains failure and all the

required circuitry to connect to the Ei100CD smoke alarm

and Ei174 vibrating pad

The Ei173 control panel also incorporates a Test button

and circuitry to continuously monitor the system wiring

The Ei174 vibrating pad is designed to be placed under

the mattress or pillow to waken people who fail to

respond to the strobe alarm

Up to 11 other smoke/heat alarms (Ei100C/105C/103C)

can be interconnected to the master smoke alarm

Ei100CD. The smoke alarms are all powered from the

control panel and in the event of mains failure the

rechargeable battery in the panel will power the entire

system, including the smoke alarms, for one week.

Operation

•The green indicator will illuminate to show mains power

is present

•The red indicator will flash once every second to show

that the mains supply is off and the system is running

on battery backup power

•The red indicator will go off as the battery becomes

depleted (with mains off)

•The slide switch on the control panel disconnects mains

and battery power from the control panel and

extinguishes both LED indicators

•The “Test” button will check the strobe, vibration pad

and panel

•When the Ei100CD ionisation smoke alarm is activated,

the Ei173 control panel will flash the strobe at 1Hz and

activate the vibrating pad

•The interconnect wiring from the smoke alarm to the

control panel is monitored so that if the smoke alarm is

not connected or if it is open/short circuit, then the

strobe will flash and the vibrating pad will turn on

•An auxiliary socket allows the connection of an extra

strobe or vibrating pad

MAINS POWERED 230V~

For the deaf and hard of hearing

Shannon Free Zone, Shannon, Co. Clare, Ireland.

Ph.+353 61 471277 Fx.+353 61 471053

Email. [email protected]

www.eielectronics.com

Model Ei175 Ionisation

Placement Information

Alarms should be placed in accordance with the general guidelines shown in

the diagram above. These recommendations are based on the problem of

areas of “dead air” close to corners of rooms and apexes of ceilings, which

could result in the prevention of smoke reaching the smoke detector

Important Precaution:

Do not install the actual smoke/heat

alarm itself in new or renovated

buildings until all work is completed

(including floor coverings) and the

building has been fully cleaned.

The wiring can be installed when

appropriate. (Excessive dust and

debris from building work can

contaminate the smoke chamber

and cause problems, and it will also

invalidate the guarantee). If it must

be installed, cover it completely,

particularly around the edges, with

a dust cover (eg. a plastic bag),

until all cleaning is finished..

Connect wires to the unit as in

wiring diagram. All wiring must

comply with local codes.

Technical Specification

Sensor Ionisation

Sensitivity: Complies with BS 5446 Part 1:

1990

Source: Americium 241

Airspeed: Essentially immune to the effect

of airspeed.

Button Test: Tests strobe, vibration pad and

panel

Fault Monitor: Open/short circuit

Supply Voltage: 230V AC standby 8mA, alarm

40mA

Battery back up: Sealed Rechargeable lead acid

battery

Auxiliary socket: Provides 12V/200mA in alarm

Power-On Indicator: Continuous green LED

Alarm: Xenon tube strobe (1Hz)

Temperature Range: 0 to 40°C

Humidity Range: 0% to 90% Relative Humidity

Interconnect: Up to 12 interconnected

Ei100C/105C/103C smoke/heat

alarms

Fixing: Screw fixings supplied

Plastic material: UL94VO flame retardant

Dimensions: 5 year (limited) warranty

Approvals: BS 415:1990 electrical safety

Specifications are subject to change

Shannon Free Zone, Shannon, Co. Clare, Ireland.

Ph.+353 61 471277 Fx.+353 61 471053

Email. [email protected]

www.eielectronics.com

Table des matières

Autres manuels Ei Electronics Détecteur de fumée

Ei Electronics

Ei Electronics Ei3024 Manuel utilisateur

Ei Electronics

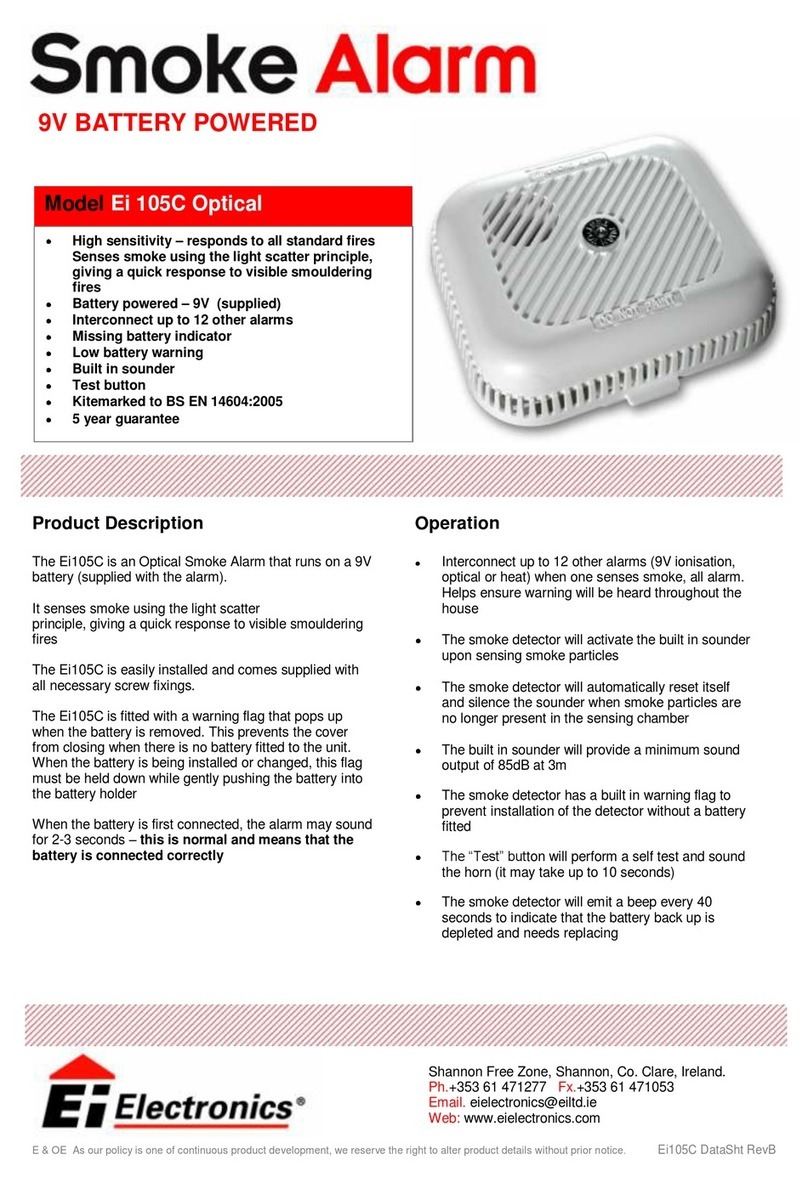

Ei Electronics Ei 105C Optical Manuel utilisateur
