Ei Electronics Ei3105RF Optical Manuel utilisateur

Shannon Free Zone, Shannon, Co. Clare, Ireland.

Ph.+353 61 471277 Fx.+353 61 471053

Web: www.eielectronics.com

E & OE As our policy is one of continuous product development, we reserve the right to alter product details without prior notice. Ei3105RF DataSht RevB

Model Ei3105RF Optical

RF wireless interconnect

Unique house coding feature

Visual RF transmission indicator

High performance optical chamber with integral

insect screen

Test button

Advanced suppression and calibration technology

Radio transmitter and receiver in each alarm

Built in auto self test feature

Low power cell warning

Kitemarked to BS EN 14604:2005

5 year guarantee

Product Description

The Ei3105RF is an Optical Smoke Alarm that runs on

9V alkaline battery and is part of the Radio Frequency

range of smoke alarms. The RF signal will wirelessly

interconnect the Ei3105RF to other RadioLINK products

The Ei3105RF uses advanced radio transceiver

technology with unique software coding to transmit and

receive the radio signals. The transmissions are

frequency modulated (FM) and use Manchester coding

to ensure robust signal integrity and avoid signal noise

interference

The Ei3105RF has other advanced features such as high

performance optical chambers fitted with integral insect

screens to reduce the chances of false alarms, as well

as the ability to wireless interconnect up to twelve alarms

to allow all alarms to sound if just one of the

interconnected alarms should be triggered.

The Ei3105RF has built in circuitry to aid suppression of

voltage transients and RF interference to further reduce

the chances of false alarms under such conditions

Operation

The red indicator will flash every 40 seconds to show that

the detector has performed an automatic self test

In normal standby mode the amber indicator will light to

indicate transmission of an RF signal

In code mode, the amber indicator will flash to indicate the

number of other RF alarms that have been “learned” in the

system

The red indicator will flash rapidly to show an alarm

condition for the smoke detector

The “Test/Hush” button will either silence false alarms or

perform a unit self test

In “Hush” mode the alarm enters a ten minute period of

reduced sensitivity and the red light flashes every 10

seconds and then resets

When interconnected to other Ei mains powered alarms, an

alarm on one detector will trigger all other interconnected

alarms within one second (only the triggered alarm will flash

a red indicator)

The smoke detector will emit a beep and the red light

flashes every 40 seconds to indicate that the battery is

depleted and needs to be changed

BATTERY POWERED 9V

RF Communication

Shannon Free Zone, Shannon, Co. Clare, Ireland.

Ph.+353 61 471277 Fx.+353 61 471053

Email. [email protected]

Web: www.eielectronics.com

E & OE As our policy is one of continuous product development, we reserve the right to alter product details without prior notice. Ei3105RF DataSht RevB

Model Ei3105RF Optical

Installation & Placement

Place the alarm on the ceiling/wall and mark the screw holes. Drill with a

suitable drill bit, insert the screw plugs and screw the alarm into position.

Simply connect the battery on the alarm and slide into position on the

mounting plate.

The RF alarms should be house coded to prevent possible interference from

neighbouring installations –see instructions for more details.

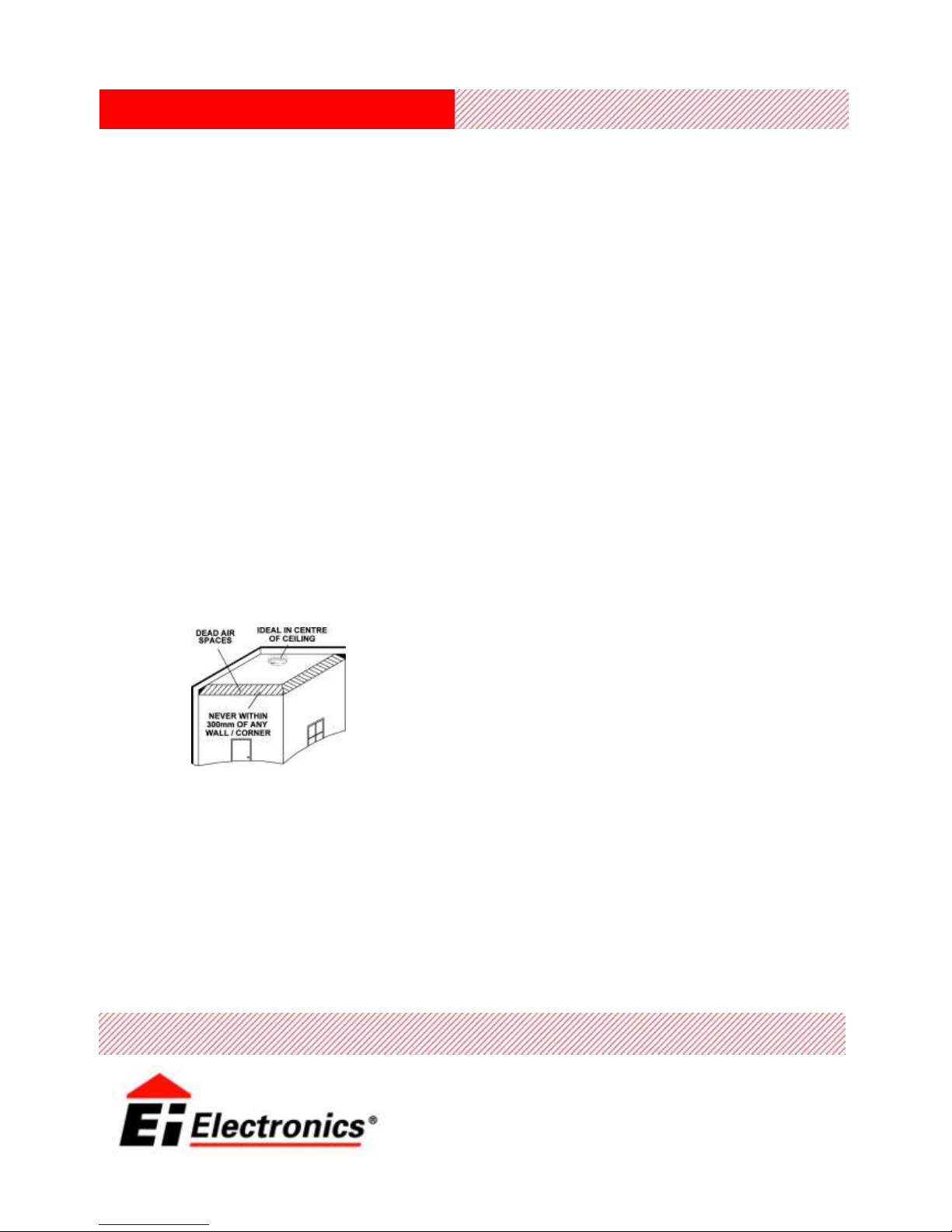

Alarms should be placed in accordance with the general guidelines shown in

the diagram above. These recommendations are based on the problem of

areas of “dead air” close to corners of rooms and apexes of ceilings, which

could result in the prevention of smoke reaching the smoke detector

House Code Procedure

1. Connect the battery

2. Press the house code switch

until the amber light turns on

and then release

3. Similarly, place other alarms

into house code mode

4. Check that the number of

amber flashes (on each

alarm) corresponds to the

number of alarms in your

system

5. Remove all alarms from

house code

6. Button test each alarm to

check your system

Technical Specification

Sensor Optical, uses light scatter from

smoke

Sensitivity: Complies with BS 5446 Part 1:

2000

Automatic Self-Test: Smoke Chamber is tested every 40

Sec. and unit beeps (without LED

flash) if it is degraded.

Supply Voltage: 9V alkaline battery

RF Range: 150 meters (min) free space

RF Visual Indicator: Amber light flashes continuously

for 1.5 to 3.5 seconds while

transmitting RF signal

RF Frequency: 868.499MHZ (1% duty cycle)

RF Power: +5dBM

Dimensions: 140mm x 120mm x 45mm

Weight: 220g

Power-On Indicator: Red light flashes every 40 seconds

Alarm: Electronic Piezoelectric horn

Alarm Sound Output: 85dB (minimum) at 3m

Alarm Status: Red LED flashes every second on

unit sensing fire

Temperature Range: 00to 400C

Humidity Range: 15% to 95% Relative Humidity

Interconnect: Up to 12 RadioLINK products

Plastic material: UL94HB flame retardant

Warranty: 5 year (limited) warranty

Approvals: Kitemarked to BS EN 14604: 2005,

CE Approved

Specifications are subject to change
