Ei Electronics Ei156TLH Optical Manuel utilisateur

Shannon Free Zone, Shannon, Co. Clare, Ireland.

Ph.+353 61 471277 Fx.+353 61 471053

Web: www.eielectronics.com

E & OE As our policy is one of continuous product development, we reserve the right to alter product details without prior notice. Ei156TLH DataSht RevB

Model Ei156TLH Optical

Tamper proof rechargeable lithium battery back up

High performance optical chamber with integral

insect screen

Test/Hush button

Advanced suppression and calibration technology

Interconnectable to other Ei mains powered alarms

Built in auto self test feature

Low power cell warning

Kitemarked to BS EN 14604:2005

5 year guarantee

Product Description

The Ei156TLH is an Optical Smoke Alarm that runs on

230V AC mains power, and has built in tamper proof

rechargeable lithium cells that act as a battery back up in

the event of mains failure. These rechargeable lithium

cells are designed to have a ten year life and outlast the

life of the smoke alarm itself, whilst providing up to six

months of smoke alarm operation without mains power.

The Ei156TLH has other advanced features such as high

performance optical chambers fitted with integral insect

screens to reduce the chances of false alarms, as well

as the ability to interconnect up to twelve alarms to allow

all alarms to sound if just one of the interconnected

alarms should be triggered.

The Ei156TLH has built in circuitry to aid suppression of

voltage transients and RF interference to further reduce

the chances of false alarms under such conditions.

Operation

The green indicator will illuminate to show mains

power is present

The red indicator will flash every 40 seconds to

show that the detector has performed an automatic

self test

The red indicator will flash rapidly to show an alarm

condition for the smoke detector

The “Test/Hush” button will either silence false

alarms or perform a unit self test

In “Test” mode the alarm will perform a self test and

sound the horn

In “Hush” mode the alarm enters a ten minute period

of reduced sensitivity to overcome false alarm

conditions, and will then automatically reset itself

When interconnected to other Ei mains powered

alarms, an alarm on one detector will trigger all other

interconnected alarms within one second (only the

triggered alarm will flash a red indicator)

The smoke detector will emit a beep and flash the

red light every 40 seconds to indicate that the

battery back up is depleted and needs recharging

MAINS POWERED 230V~

Rechargeable Battery Back-Up

Shannon Free Zone, Shannon, Co. Clare, Ireland.

Ph.+353 61 471277 Fx.+353 61 471053

Email. [email protected]

Web: www.eielectronics.com

E & OE As our policy is one of continuous product development, we reserve the right to alter product details without prior notice. Ei156TLH DataSht RevB

Model Ei156TLH Optical

Installation & Placement

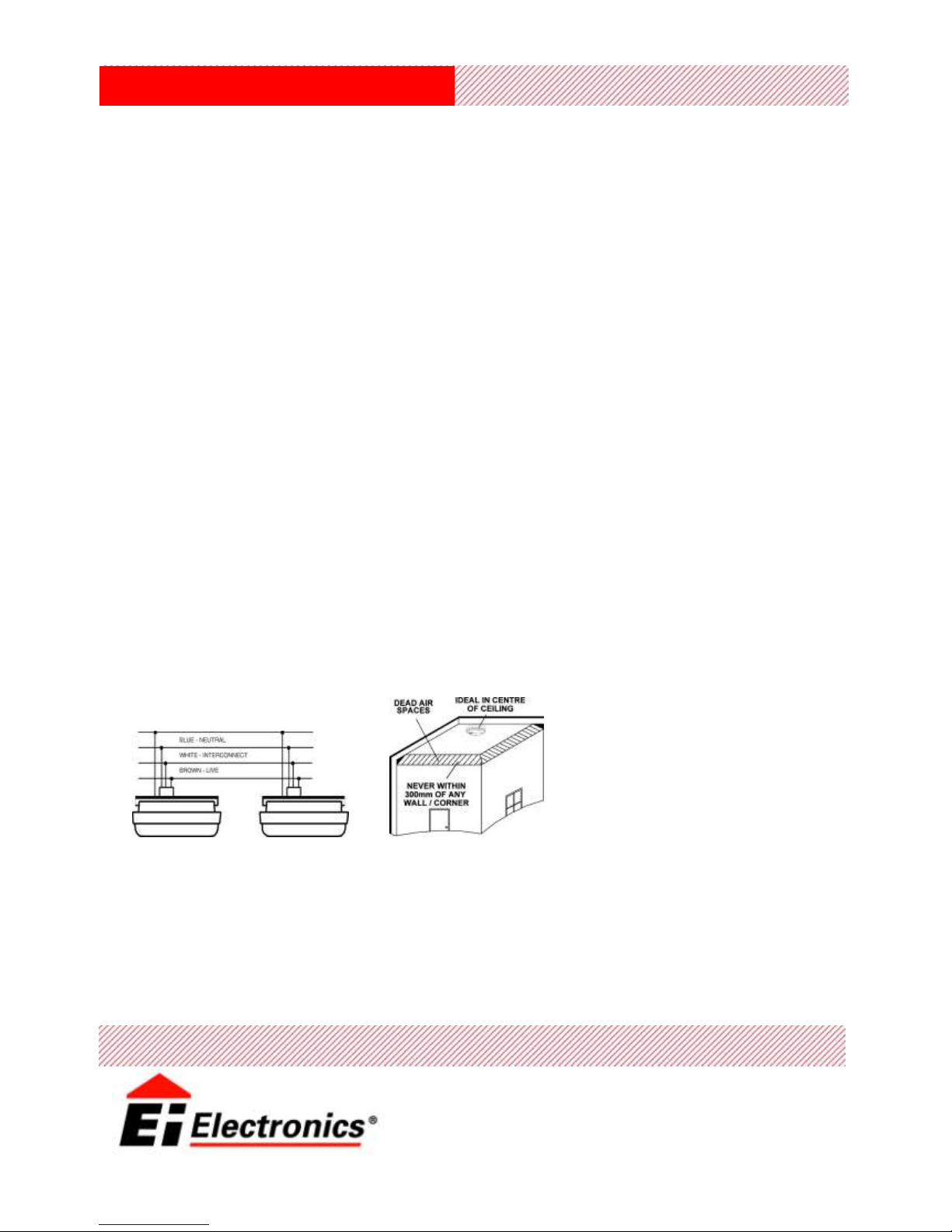

Wiring for Interconnected Alarms

Be very careful about correctly wiring the alarms as mixing Live and Neutral

will blow/damage interconnected alarms.

Alarms should be placed in accordance with the general guidelines shown in

the diagram above. These recommendations are based on the problem of

areas of “dead air” close to corners of rooms and apexes of ceilings, which

could result in the prevention of smoke reaching the smoke detector

Please consult instruction booklet for specific installation details

Important Precaution:

Do not install the actual smoke/heat

alarm itself in new or renovated

buildings until all work is completed

(including floor coverings) and the

building has been fully cleaned.

The wiring can be installed when

appropriate. (Excessive dust and

debris from building work can

contaminate the smoke chamber

and cause problems, and it will also

invalidate the guarantee). If it must

be installed, cover it completely,

particularly around the edges, with

a dust cover (eg. a plastic bag),

until all cleaning is finished..

Connect wires to the unit as in

wiring diagram. All wiring must

comply with local codes.

Technical Specification

Sensor Optical, uses light scatter from

smoke

Sensitivity: Complies with BS 5446 Part 1:

2000

Source: Contains no radioactive material

Airspeed: Essentially immune to the effect

of airspeed.

Button Test: Simulates the effect of smoke and

checks chamber, electronics and

horn.

Ambient Light: Chamber housing design and

compensation overcomes

problems with stray light.

Automatic Self-Test: Smoke Chamber is tested every 40

Sec. and unit beeps (without LED

flash) if it is degraded.

Insect Screen: Prevents insects or debris entering

chamber (1.00mm mesh size)

Supply Voltage: 230V AC

Battery back up: Rechargeable lithium cells

Power-On Indicator: Continuous green LED

Alarm: Electronic Piezoelectric horn

Alarm Sound Output: 85dB (minimum) at 3m

Alarm Status: Red LED flashes every second on

unit sensing fire

Temperature Range: 0° to 40°C

Humidity Range: 15% to 95% Relative Humidity

Interconnect: Up to 12 interconnected

Ei150/151TLR/154TL/155/156TLH/

156TLR smoke or heat alarms,

along with an EI158 relay base

Fixing: Screw fixings supplied

Plastic material: UL94VO flame retardant

Dimensions: 140mm x 120mm x 46mm

Weight: 218g

Warranty: 5 year (limited) warranty

Approvals: Kitemarked to BS EN 14604:2005,

CE Approved

Specifications are subject to change
