ECS L4S8A Manuel utilisateur

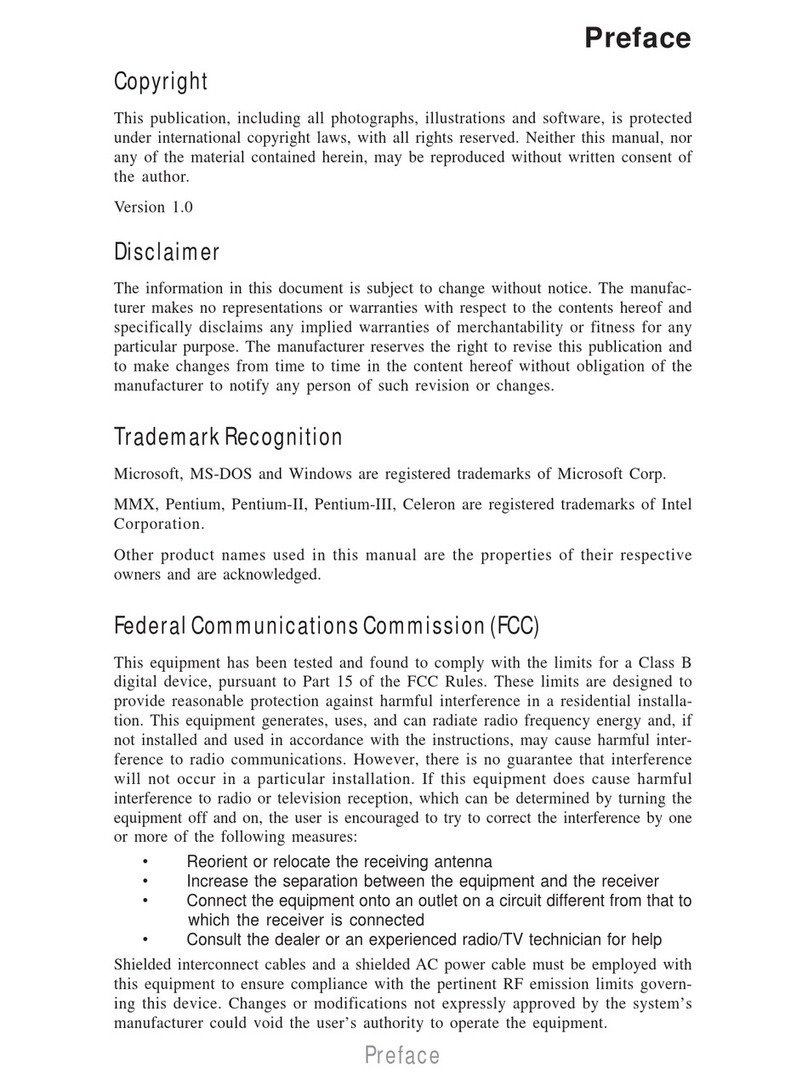

Preface

This publication, including all photographs, illustrations and software, is protected un-

of the material contained herein, may be reproduced without writtenconsent ofthe au-

thor.

Version 1.0

Disclaimer

The information in this document is subject to change without notice. The manufac-

turer makes no representations or warranties with respect to the contents hereof and

specifically disclaims any implied warranties of merchantability or fitness for any par-

ticular purpose. The manufacturer reserves the right to revise this publication and to

make changes from time to time in the content hereof without obligation of the manu-

facturer to notify any person of such revision or changes.

Trademark Recognition

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel

Corporation.

Other product names used in this manual are the properties of their respective owners

and are acknowledged.

Federal Communications Commission (FCC)

This equipment has been tested and found to comply with the limits for a Class B digi-

tal device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide

reasonable protection against harmful interference in a residential installation. This

equipment generates, uses, and can radiate radio frequency energy and, if not in-

stalled and used in accordance with the instructions, may cause harmful interference

to radio communications. However, there is no guarantee that interference will not oc-

cur in a particular installation. If this equipment does cause harmful interference to

radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

−Reorient or relocate the receiving antenna.

−Increase the separation between the equipment and the receiver.

−Connect the equipment onto an outlet on a circuit different from that to which

the receiver is connected.

−Consult the dealer or an experienced radio/TV technician for help.

Shielded interconnect cables and a shielded AC power cable must be employed with

this equipment to ensure compliance with the pertinent RF emission limits governing

this device. Changes or modifications not expressly approved by the system's manu-

facturer could void the user's authority to operate the equipment.

Declaration of Conformity

This device complies with part 15 of the FCC rules. Operation is subject to the follow-

ing conditions:

−This device may not cause harmful interference, and

−This device must accept any interference received, including interference

that may cause undesired operation.

Canadian Department of Communications

This class B digital apparatus meets all requirements of the Canadian Interference-

causing Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Réglement

sur le matériel brouilieur du Canada.

About the Manual

The manual consists of the following:

Chapter 1

Introducing the Mainboard Describes features of the mainboard,

and provides a shipping checklist.

Go to ⇒page 1

Chapter 2

Installing the Mainboard Describes installation of mainboard

components.

Go to ⇒page 7

Chapter 3

Using BIOS Provides information on using the BIOS

Setup Utility.

Go to ⇒page 27

Chapter 4

Using the Mainboard Software Describes the mainboard software.

Go to ⇒page 52

iii

Preface i

Features and Packing List Translations 錯誤! 尚未定義書籤。

CHAPTER 1 1

Introducing the Mainboard 1

Introduction............................................................................................................1

Checklist.................................................................................................................1

Standard Items...................................................................................................1

Features..................................................................................................................2

Choosing a Computer Case................................................................................4

Mainboard Components.......................................................................................5

CHAPTER 2 7

Installing the Mainboard 7

Safety Precautions................................................................................................7

Quick Guide...........................................................................................................7

Installing the Mainboard in a Case.....................................................................8

Checking Jumper Settings...................................................................................8

Setting Jumpers.................................................................................................8

Checking Jumper Settings .................................................................................9

Jumper Settings .................................................................................................9

Connecting Case Components.........................................................................10

Front Panel Connector.....................................................................................12

Installing Hardware.............................................................................................13

Installing the Processor ...................................................................................13

Installing Memory Modules............................................................................16

Installing a Hard Disk Drive/CD-ROM..........................................................17

Installing a Floppy Diskette Drive..................................................................19

InstallingAdd-on Cards...................................................................................20

Connecting Optional Devices..........................................................................22

ConnectingI/ODevices.....................................................................................25

External Connector Color Coding...................................................................26

CHAPTER 3 27

Using BIOS 27

About the Setup Utility........................................................................................27

The Standard Configuration............................................................................27

Entering the Setup Utility................................................................................28

Updating the BIOS..........................................................................................28

Using BIOS..........................................................................................................29

Standard CMOS Features................................................................................30

Advanced BIOS Setup Option........................................................................32

Advanced Chipset Features Option.................................................................35

Integrated Peripherals......................................................................................38

Power Management Setup Option...................................................................43

PNP/PCI Configurations.................................................................................47

PC Health Status Option..................................................................................48

Frequency/Voltage Control..............................................................................49

Load Fail-Safe Defaults Option......................................................................50

Load Optimized Defaults Option....................................................................50

Set Supervisor/User Password.........................................................................51

Save & Exit Setup Option...............................................................................51

Exit Without Saving........................................................................................51

CHAPTER 4 52

Using the Mainboard Software 52

About the Software CD-ROM............................................................................52

Auto-installing under Windows 98/ME/2000/XP............................................52

Running Setup.................................................................................................53

Manual Installation..............................................................................................54

Utility Software Reference.................................................................................55

Introducing the Mainboard

Thank you for choosing the L4S8A mainboard. The L4S8A mainboard is a

high–performance, enhanced function mainboard that supports Socket 478

Pentium 4 processors with system speeds up to 533MHz for high-end busi-

ness or personal desktop markets.

The mainboard incorporates the SiS648 Northbridge and SiS963 Southbridge

chipsets. The SiS648 Northbridge chipset provides an 8XAGP and 12-level

In-Order-Queue to support maximum outstanding transactions on host up to

12. The memory controller offers high-bandwidth up to 2.7GB/s under

DDR333 in order to sustain the bandwidth demand from the host processor,

as well as the multi I/O masters and AGP masters. While the SiS963

Southbridge integrates the Universal Serial Bus 2.0 Host Controllers, 1394a

and Audio Controller with AC 97 interface.

The L4S8A is designed to give customers an advanced, multimedia solution.

It provides advanced features such as 2 USB ports and an optional LAN con-

nector. There is also an EPP/ECP parallel port and a 16550 high-speedserial

I/O port. A range of audio ports is supplied, comprising line-in, line-out, micro-

phone-in, CD-in and game port. . One AGP slot, five PCI local bus slots and

one communication and networking riser (CNR) slot provide expandability for

add-on peripheral cards.

Compare the mainboard’s package contents with the following checklist:

Standard Items

•One mainboard

•One diskette drive ribbon cable

•One IDE drive ribbon cable

•One auto-install software support CD

•One I/O panel

•One cooling fan retention module

•This user’s manual

Processor The L4S8A mainboard uses a micro PGA 478-pin socket that

has the following features:

•Supports 400/533 MHz system bus

•Accommodates Pentium 4 processors at 1.5G/1.6G/1.7G…

2.5G and above

Chipset The SiS648 and SiS963 chipsets are based on an innovative

and scalable architecture with proven reliability and perform-

ance. A few of the chipset’s advanced features are:

•Supports Intel Pentium 4 series CPU with data transfer

rate up to 533MHz

•Support 12 outstanding transactions and out-of-order

completion

•Supports 64-bit high performance DDR333/DDR266

Memory Controller

•Universal AGP v3.0 compliant and supports AGP 8X/4X

Interface with Fast Write Transaction

•Distributed arbitration strategy with long contiguous data

streaming

•PCI 2.2 specification compliance

•Integrated multi-threaded I/O link mastering with read

pipelined streaming

•Supports Ultra DMA 33/66/100/133

Additional key features include support for six USB ports, Fast

Ethernet MAC controller, AC97 interface, IEEE 1394A host

controller, advanced power management, integrated DMA

controller and keyboard controller.

Memory •Supports DDR up to 200/266/333 MHz SDRAM memory

module

•Accommodates three unbuffered 2.5V 184-pin slots

•Each slot supports up to 1 GB with a total maximum

capacity of 3 GB

AGP The L4S8A includes an 8xAGP slot that provides eight times

the bandwidth of the original AGP specification. The AGP 3.0

(8xAGP) offers a significant increase in performance along

with feature enhancements to AGP2.0. This interface repre-

sents the natural evolution from the existing AGP to meet the

ever-increasing demands placed on the graphic interfaces

within the workstation and desktop environments.

Audio The AC’ 97 Audio codec is compliant with the AC’ 97 2.2

specification, and supports 18-bit ADC (Analog Digital Con-

verter) and DAC (Digital Analog Converter) resolution as well

as 18-bit stereo full-duplex codec with independent and vari-

able sampling rates. Further features include support for four

analog line-level stereo inputs.

Expansion

Options The mainboard comes with the following expansion options:

•Five 32-bit PCI slots (PCI 5 and onboard RAID share)

•One 8X/4X AGP slot

•A Communications Network Riser (CNR) slot (AC97 inter-

face only)

•Two IDE connectors which support four IDE channels and

a floppy disk drive interface

The L4S8A supports Ultra DMA bus mastering with transfer

rates of 33/66/100/133 MB/sec.

RTL8201BL is a Fast Ethernet Phyceiver with an MII (Media

Independent Interface)/SNI (Serial Network Interface). It can

be used as a Network Interface Adapter, MAU, CNR, ACR,

Ethernet Hub, Ethernet Switch.

Onboard LAN

(optional)

RTL8100B (L) is a highly integrated, cost-effective single-chip

Fast Ethernet controller that provides 32-bit performance and

PCI bus master capability. It supports the Advanced Configu-

ration Power management Interface (ACPI), PCI power

management for modern operating systems that are capable

of Operating System Directed Power Management (OSPM) to

achieve the most efficient power management possible.

Sil3112A Serial

ATA (optional)

•Integrated Serial ATA Link and PHY logic

•Compliant with Serial ATA 1.0 specifications

•Supports two independent Serial ATA channel

•Supports Serial ATA Generation 1 transfer rate of

1.5Gb/s

•Supports Spread Spectrum in receiver

•Single PLL architecture, 1 PLL for both ports

Integrated I/O The mainboard has a full set of I/O ports and connectors:

•Two PS/2 ports for mouse and keyboard

•Two serial ports

•One parallel port

•One MIDI/game port

•Two USB ports

•One LAN port

•Audio jacks for microphone, line-in and line-out

BIOS

Firmware This mainboard uses Award BIOS that enables users to con-

figure many system features including the following:

•Power management

•Wake-up alarms

•CPU parameters

•CPU and memory timing

The firmware can also be used to set parameters for different

processor clock speeds.

There are many types ofcomputer cases on the market. The mainboard com-

plies with the specifications for the ATX system case. Some features on the

mainboard are implemented by cabling connectors on the mainboard to indi-

cators and switches on the system case. Ensure that your case supports all

the features required. The mainboard can support one or two floppy diskette

drives and four enhanced IDE drives. Ensure that your case has sufficient

power and space for all the drives that you intend to install.

Most cases have a choice of I/O templates in the rear panel. Make sure that

the I/O template in the case matches the I/O ports installed on the rear edge

of the mainboard.

This mainboard has an ATX form factor of 305 x 244 mm. Choose a case that

accommodates this form factor.

Table of Mainboard Components

Label Component

1394A_J1/1394A_J2

IEEE 1394A header

AGP1 Accelerated Graphics Port

ATX1 Standard 20-pin ATX power connector

ATX2 ATX12V power connector

AUDIO1 Front audio connector

BT1 Three volt realtime clock battery

CASFAN1 Case fan connector

CDIN1 Primary CD-in connector

CDIN2 Secondary CD-in connector

CNR1 Communications Networking Riser slot

CPU SOCKET Micro PGA 478-pin socket for Pentium 4 CPUs

CPUFAN1 Cooling fan for CPU

DIMM1~ DIMM3 Three 184-pin DDR SDRAM

FDD1 Floppy disk drive connector

IDE 1 Primary IDE channel

IDE 2 Secondary IDE channel

IR1 Infrared port

J4/J2 Serial ATA connector

JP1 Clear CMOS jumper

LED11Memory module LED

PANEL1 Connector for case front panel switches and LED indicators

PCI1 ~ PCI5 Five 32-bit add-on card slots

PWRFAN1 Power fan connector

SJ1 Single color LED header

SPEAKER1 Speaker connector

SPDIF1 SPDIF out header

USB2 ~ USB3 Connector for front panel USB ports

This concludes Chapter 1. The next chapter explains how to install the main-

board.

1The red indicator LED1 turns on if your system is still powered, at which

time memory modules cannot be installed or uninstalled.

Table des matières

Autres manuels ECS Carte mère

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
