ECS H11H4-I Manuel utilisateur

Introducing the Motherboard

Chapter 1

Introducing the Motherboard

Introduction

Thank you for choosing the H11H4-I motherboard. This motherboard is a high

performance, enhanced function motherboard designed to support Intel Skylake

processors for high-end business or personal desktop markets.

This motherboard is based on integrated Intel Chipset for best desktop platform

solution. Skylake is a dual-core processor. The chipset for Skylake is highly inte-

grated and high performance. Moreover, Skylake will feature DirectX11.1-compli-

ant GCN-based graphics and support Win8 and UEFI Secure Boot. This motherboard

supports up to 16 GB 260pin SO-DIMM memory with dual-channel DDR4 2133

(1GB/ 2GB/ 4GB/ 8GB) SDRAM. One PCI Express x16 slot is supported, is fully

compliant to the PCI Express Base Specification revision 2.0. One Mini PCIE is also

supported. It implements an EHCI (Enhanced Host Controller Interface) compliant

interface that provides four USB 2.0 ports (two USB 2.0 headers support additional

four USB 2.0 ports and one port is supported by mPCIE 2.0 USB signal) and four USB

3.0 ports at the rear panel.

The motherboard is equipped with advanced full set of I/O ports in the rear panel,

including PS/2 mouse and PS/2 keyboard connectors, two Serial ports (COM), one

VGA port, two Lan ports, four USB 3.0 ports, one HDMI port and audio jacks for

line-out and Mic-in.

In addition, this motherboard supports two SATA 6.0Gb/s connectors.

Introducing the Motherboard

Feature

• DirectX11.1-compliant GCN-based graphics architecture

• Supports “Hyper-Threading” technology APU

• Supports Win7/ Win8.1/ Win10 and UEFI Secure Boot.

“Hyper-Threading” technology enables the operating system into thinking

it’s hooked up to two processors, allowing two threads to be run in parallel, both

on separate “logical” processors within the same physical processor.

The motherboard uses Skylake CPU that carries the following features:

Processor

Chipset

• Supports DDR4 2133 (1GB/ 2GB/ 4GB/ 8GB) SDRAM with dual-chan-

nel architecture

• Up to 16GB 260pin SO-DIMM memory module support

Memory

Audio

The integrated Bay Trail chip is a dual-chip with proven reliability and high

performance.

• Support one PCI Express x16 slot

• Integrated two SATA 6.0 Gb/s Host Controllers

• Four USB 2.0 ports supported

• Four USB 3.0 port supported

• Serial Peripheral Interface (SPI) support

• Intel®High Definition Audio Controller

• 2+2 Channel High Definition Audio Codec

• Meets Microsoft Windows Logo Program and Lync audio

requirements

• All DACs supports 44.1k/48k/96k/192kHz sample rate

• Software selectable 2.2V/3.0V/3.9V VREFOUT as voltage for

analog microphone input

• Direct Sound 3DTM compatible

• Power Support: Digital: 3.3V; Analog: 5.0V

Introducing the Motherboard

Expansion Options

The motherboard comes with the following expansion options:

• One PCI Express x16 slot

• One Mini PCI Express x1 slot (With mSATA and USB2.0)

• Two SATA 6.0Gb/s connectors

The motherboard has a full set of I/O ports and connectors:

Integrated I/O

• Two LAN ports (LAN2 Option)

• Two Serial port (COM)

• four USB 3.0 ports

• One VGA port

• One HDMI port

• One PS/2 keyboard and PS/2 mouse connectors

• Audio jacks for line-out and Mic-in

The firmware can also be used to set parameters for different processor clock

speeds.

• Power management

• Wake-up alarms

• APU parameters

• APU and memory timing

• Graphic parameters

BIOS Firmware

This motherboard uses AMI BIOS that enables users to configure many system

features including the following:

1. Some hardware specifications and software items are subject to change

without prior notice.

2. Due to chipset limitation, we recommend that motherboard be operated

in the ambiance between 0 and 60 °C. (NOTICE: Test method: bare PCB

with 100% loading running Pass Mark 7.0 at chamber 60 °C)

Ethernet LAN

The onboard LAN provides the following features:

• Supports PCI ExpressTM 1.1

• IEEE 802.3/z

• Wake-on-LAN (including from S3, S4, S5, power button off)

and remote wake-up support

• PXE and RPL support

Introducing the Motherboard

• Integrated Intel Skylake H110 chip

• Intel Skylake series processors, up to 4 cores

• Supports “Hyper-Threading” technology APU

Chipset

CPU

Specifications

• Dual-channel DDR4 memory architecture

• 2 DDR4 260pin SO-DIMM sockets support up to 16 GB

• Supports 2133 (1GB/ 2GB/ /4GB/ 8GB) SDRAM

• 1 x PCI Express x16

• 1 x Mini PCI Express x1 slot (With mSATA and USB2.0 and

PCIe)

• Two SATA 6.0Gb/s connectors

• Supported by integrated Intel skylake H110 SoC chip

2 x Serial ATA 6.0 Gb/s Host Controllers

• 4 x USB 3.0 ports

• 2 x Serial ports (COM)

• 1 x VGA ports

• 2 x RJ45 LAN connectors (LAN2 Option)

• 1 x PS/2 keyboard & PS/2 mouse connectorss

• 1 x Audio port (Line out, Mic in )

• 1 x HDMI port

Memory

Expansion

Slots

Storage

Ethernet LAN

Rear Panel I/O

• Realtek RTL8111G

Audio

• 1 x 4-pin 12V Power Supply connector

• 1 x 4-pin CPU_FAN connector

• 1 x 4-pin SYS_FAN connector

• 2 x SATA III 6.0Gb/s connectors

• 1 x Front panel switch/LED header

• 1 x Front panel audio header

• 2 x USB 2.0 header supports additional four USB 2.0 ports

• 1 x SPKR header

• 1 x COM3~6 header

• 1 x Clear CMOS button with jumper

• 1 x LPT header

• 1 x LVDS header

• 1 x VCON header with jumper

• 1 x Opened Chassis detective header

• 1 x LCD_PWR header with jumper

• 1 x LVDSPW_CONN connector

• 1 x DIO header

• 1 x SATA_DOM header with jumper

Internal I/O

Connectors &

Headers

• Realtek ALC269VC 2.1-Ch HD audio CODEC

Introducing the Motherboard

• AMI BIOS with 64Mb SPI Flash ROM

• Supports Plug and Play, S1 / STR (S3) / STD (S4) , Hard-

ware monitor

• Supports ACPI & DMI

• Audio, LAN, can be disabled in BIOS

• Supports Dual Display

• F7 hot key for boot up devices option

Form Factor • Mini ITX Size, 170mm x 170mm

System BIOS

Driver • Windows 7 (32bit/ 64bit)

• Windows 8.1 (32bit/ 64bit)

• Windows 10

Certification • RoHS

• EMI: FCC, CE

• WHQL: TBD

Introducing the Motherboard

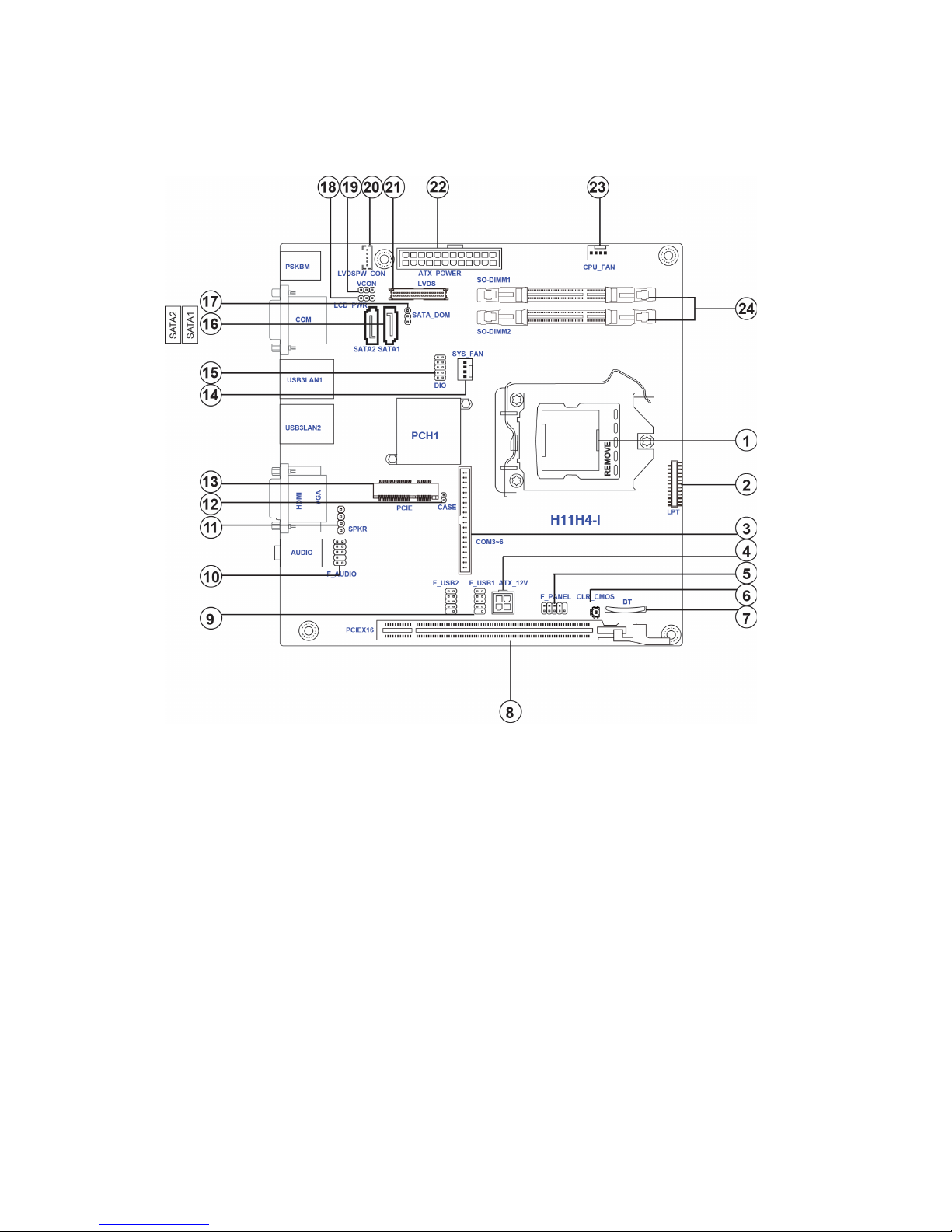

Motherboard Components

Introducing the Motherboard

Table of Motherboard Components

This concludes Chapter 1. The next chapter explains how to install the motherboard.

LABEL COMPONENTS

1. CPU Socket LGA1151 socket for Intel Skylake processors

2. LPT Printer header

3. COM3~6 Onboard serial port headers

4. ATX_12V 4-pin +12V power in connector

5. F_PANEL Front panel switch/LED header

6. CLR_CMOS Clear CMOS button with jumper

7. BT Battery

8. PCIEX16 PCI Express slot for graphics interface

9. F_USB1~2 Front panel USB2.0 header

10. F_AUDIO Front audio header

11. SPKR Speaker

12. CASE CASE open header

13. PCIE PCI Express Gen2 x1 slot

14. SYS_FAN 4-pin System cooling fan connector

15. DIO 4 bit GPIO (GPI*4, GPO*4)

16. SATA1~2 Serial ATA 6.0Gb/s connectors (one supports SATA DOM)

17. SATA_DOM SATA DOM header

18. LCD_PWR LVDS Power select jumper

19. VCON LVDS power & inverter jumper

20. LVDSPW_CON LCD backlight power & Brightness control header

21. LVDS LVDS connector

22. ATX_POWER Standard 24-pin ATX power connector

23. CPU_FAN 4-pin CPU cooling fan connector

24. SO-DIMM1~2 DDR4 2133 SDRAM slot

Introducing the Motherboard

Memo

Installing the Motherboard

Chapter 2

Installing the Motherboard

Safety Precautions

• Follow these safety precautions when installing the motherboard

• Wear a grounding strap attached to a grounded device to avoid dam-

age from static electricity

• Discharge static electricity by touching the metal case of a safely

grounded object before working on the motherboard

• Leave components in the static-proof bags they came in

• Hold all circuit boards by the edges. Do not bend circuit boards

Choosing a Computer Case

There are many types of computer cases on the market. The motherboard complies

with the specifications for the DTX system case. Some features on the motherboard

are implemented by cabling connectors on the motherboard to indicators and switches

on the system case. Make sure that your case supports all the features required.

Most cases have a choice of I/O templates in the rear panel. Make sure that the I/O

template in the case matches the I/O ports installed on the rear edge of the

motherboard.

This motherboard carries a Mini ITX form factor of 170 x 170 mm. Choose a case

that accommodates this form factor.

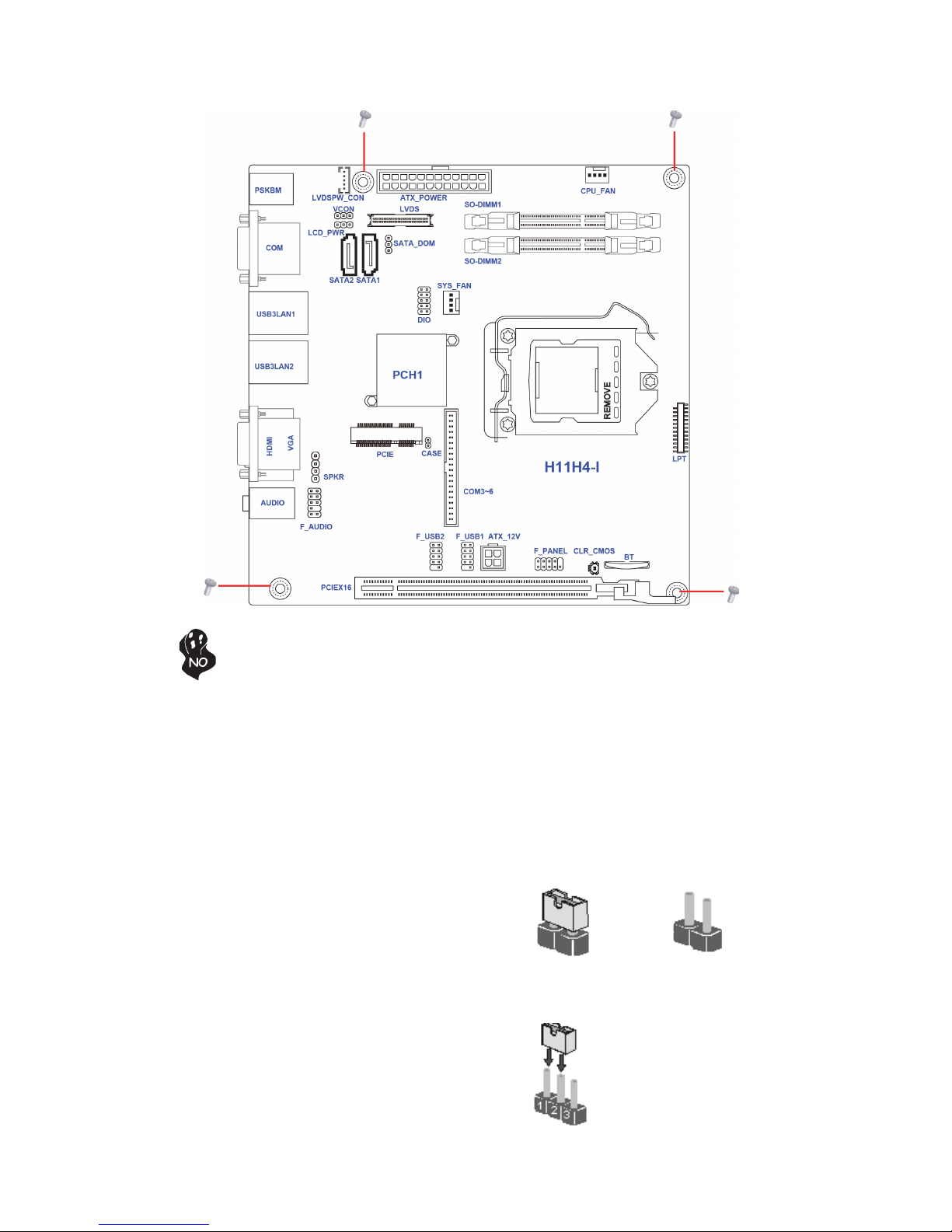

Installing the Motherboard in a Case

Refer to the following illustration and instructions for installing the motherboard in

a case.

Most system cases have mounting brackets installed in the case, which correspond

the holes in the motherboard. Place the motherboard over the mounting brackets

and secure the motherboard onto the mounting brackets with screws.

Ensure that your case has an I/O template that supports the I/O ports and expansion

slots on your motherboard.

Installing the Motherboard

Checking Jumper Settings

This section explains how to set jumpers for correct configuration of the motherboard.

Setting Jumpers

Use the motherboard jumpers to set system configuration options. Jumpers with

more than one pin are numbered. When setting the jumpers, ensure that the jumper

caps are placed on the correct pins.

The illustrations show a 2-pin jumper. When

the jumper cap is placed on both pins, the

jumper is SHORT. If you remove the jumper

cap, or place the jumper cap on just one pin,

the jumper is OPEN.

This illustration shows a 3-pin jumper. Pins

1 and 2 are SHORT.

SHORT OPEN

Do not over-tighten the screws as this can stress the motherboard.
