ECS 649-M2 Manuel utilisateur

iii

Preface

This publication, including all photographs, illustrations and software, is protected under

material contained herein, may be reproduced without written consent of the author.

Version 1.0b

Disclaimer

The information in this document is subject to change without notice. The manufacturer

makes no representations or warranties with respect to the contents hereof and specifically

disclaims any implied warranties of merchantability or fitness for any particular purpose.

The manufacturer reserves the right to revise this publication and to make changes from

time to time in the content hereof without obligation of the manufacturer to notify any

person of such revision or changes.

TrademarkRecognition

Microsoft, MS-DOS and Windows are registered trademarks of Microsoft Corp.

MMX, Pentium, Pentium-II, Pentium-III, Celeron are registered trademarks of Intel Cor-

poration.

Other product names used in this manual are the properties of their respective owners and

are acknowledged.

FederalCommunicationsCommission(FCC)

This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason-

able protection against harmful interference in a residential installation. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed and used in

accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which

can be determined by turning the equipment off and on, the user is encouraged to try to

correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and the receiver

• Connect the equipment onto an outlet on a circuit different from that to which

the receiver is connected

• Consult the dealer or an experienced radio/TV technician for help

Shielded interconnect cables and a shielded AC power cable must be employed with this

equipment to ensure compliance with the pertinent RF emission limits governing this

device. Changes or modifications not expressly approved by the system’s manufacturer

could void the user’s authority to operate the equipment.

Preface

DeclarationofConformity

This device complies with part 15 of the FCC rules. Operation is subject to the following

conditions:

• This device may not cause harmful interference, and

• This device must accept any interference received, including interference

that may cause undesired operation

CanadianDepartmentofCommunications

This class B digital apparatus meets all requirements of the Canadian Interference-causing

Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Réglement sur le

matériel brouilieur du Canada.

AbouttheManual

The manual consists of the following:

Chapter 1

Introducing the Motherboard

Chapter 2

Installing the Motherboard

Chapter 3

UsingBIOS

Chapter 4

Using the Motherboard Software

Describes features of the motherboard.

Go to Hpage 1

Describes installation of motherboard

components.

Goto Hpage 7

Provides information on using the BIOS

Setup Utility.

Go to Hpage 27

Describes the motherboard software

Go to Hpage 49

Provides information about SATA RAID

Setup

Go to Hpage 53

Chapter 5

SIS965/SIS965LSATARAIDSetup

Guide

iii

TABLE OF CONTENTSABLE OF CONTENTS

ABLE OF CONTENTSABLE OF CONTENTS

ABLE OF CONTENTS

Preface i

Chapter 1

IntroducingtheMotherboard 1

Introduction.................................................................................................1

Feature..........................................................................................................2

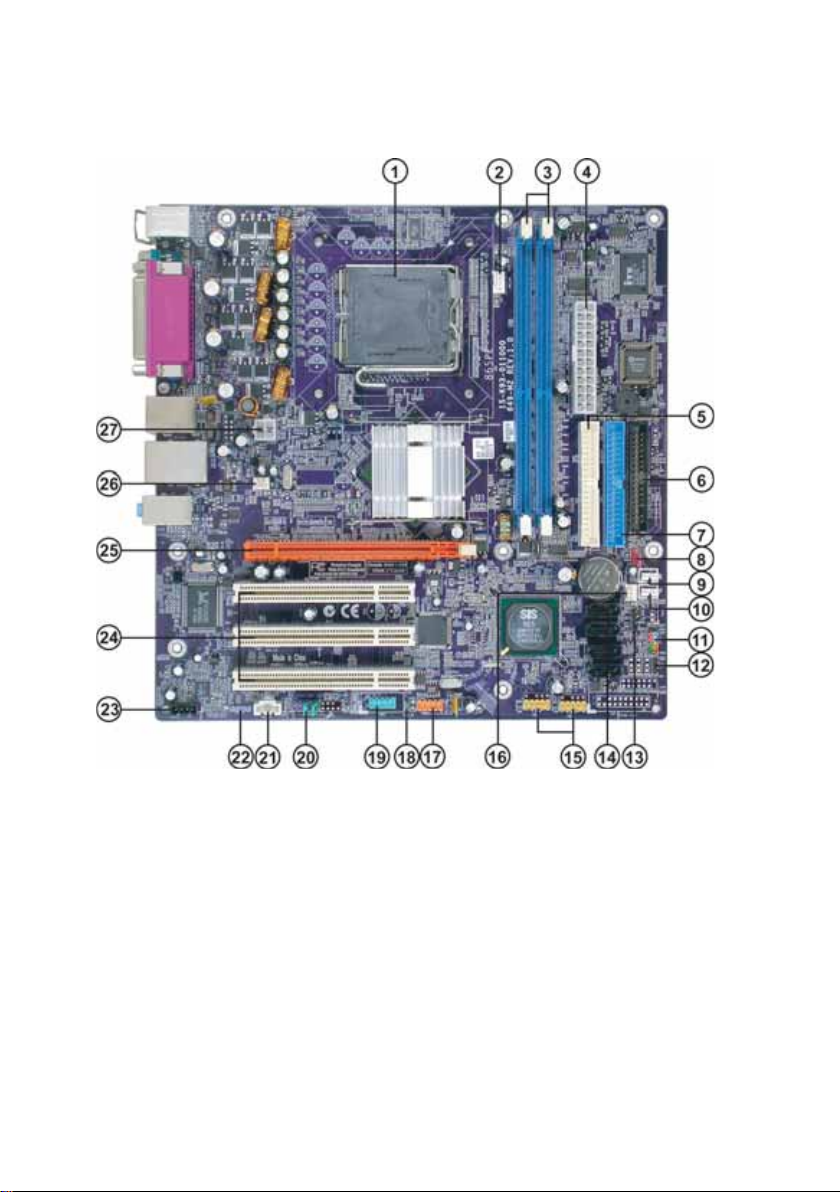

MotherboardComponents........................................................................4

Chapter 2 77

Installing the Motherboard 7

SafetyPrecautions......................................................................................7

Choosinga ComputerCase.......................................................................7

Installingthe Motherboard ina Case......................................................7

CheckingJumperSettings.........................................................................8

Setting Jumpers..............................................................................8

Checking Jumper Settings..............................................................9

Jumper Settings..............................................................................9

ConnectingCase Components...............................................................10

Front Panel Header.....................................................................12

InstallingHardware...................................................................................13

Installing the Processor...............................................................13

Installing Memory Modules.........................................................15

Installing a Hard Disk Drive/CD-ROM/SATA Hard Drive........17

Installing a Floppy Diskette Drive...............................................19

Installing Add-on Cards..............................................................20

Connecting Optional Devices......................................................21

ConnectingI/ODevices..........................................................................25

Chapter 3 2727

2727

UsingBIOS 27

Aboutthe SetupUtility............................................................................27

The Standard Configuration........................................................27

Entering the Setup Utility..............................................................27

Updating the BIOS.......................................................................29

UsingBIOS................................................................................................29

Standard CMOS Features...........................................................30

Advanced BIOS Features.............................................................32

Advanced Chipset Features.........................................................35

Integrated Peripherals.................................................................37

Power Management Setup...........................................................40

PNP/PCI Configurations.............................................................43

PC Health Status..........................................................................44

Frequency/Voltage Control..........................................................45

Load Fail-Safe Defaults................................................................46

Load Optimized Defaults.............................................................46

Set Password...............................................................................46

Save & Exit Setup Option.............................................................47

Exit Without Saving......................................................................47

Chapter 4 4949

4949

UsingtheMotherboardSoftware 49

AbouttheSoftwareCD-ROM................................................................49

Auto-installingunderWindows 98/ME/2000/XP................................49

Running Setup..............................................................................50

ManualInstallation..................................................................................52

UtilitySoftware Reference......................................................................52

Chapter 5 5353

5353

SIS965/SiS965LSATARAIDSetup Guide 53

Introductionfor SiS965/SiS965LSATARAIDFunction.....................53

Features......................................................................................................53

SupportOperating Systems....................................................................53

WhatisRAID............................................................................................53

InstallingSoftwareDrivers......................................................................54

BIOSUtilityOperation.............................................................................55

Multi-Language Translation

IntroducingtheMotherboard

Chapter1

IntroducingtheMotherboard

Introduction

Thank you for choosing the 649-M2 motherboard. This motherboard is a high

performance, enhanced function motherboard that supports LGA775 socket for the

latest Intel Pentium 4/Celeron processors for high-end business or personal desktop

markets.

The motherboard incorporates the SiS649 Northbridge (NB) and SiS965/SiS965L

Southbridge (SB) chipsets. The SiS649 Northbridge chipset features the AGTL & AGTL+

compliant bus driver technology with integrated on-die termination to support Intel

Pentium 4 series processors up to FSB 800/533 MHz. The memory controller supports

DDR SDRAM only, supporting up to 2GB in maximum size with DDR400/333/266. It

can offer maximum memory bandwidth up to 3.2 GB/s under DDR 400. One 16-lane PCI

Express slot, intended for Graphics Interface, is fully compliant to the PCI Express Base

Specification revision 1.0a.

The SiS965/SiS965L Southbridges support Hi-Precision Event Timer (HPET) for Microsoft

Windows with multiple DMA bus architecture that supports isochronous request and

continuous packet transmission. It implements an EHCI compliant interface that provides

480Mb/s bandwidth for eight USB 2.0 ports, integrates AC’97 v2.3 compliant audio

controller that features a 6-channel audio speaker out and HSP v.90 modem support.

With PCI 2.3 specification compliant, this motherboard supports three PCI slots. The

Southbridge integrates a Serial ATA host controller with four onboard SATA ports (SiS965L

features two SATA ports) that is SATA v1.0 compliant, supporting Ultra DMA 150 and

LAN controller supporting 10/100Mbit/s ethernet. In addition, the Southbridge comes

with dual independent IDE channels, supporting PIO mode 0,1,2,3,4 and Multiword DMA

mode 0,1,2 and UltraDMA 133/100/66.

The 649-M2 motherboard is equipped with advanced full set of I/O ports in the rear panel,

including PS/2 mouse and keyboard connectors, COM1, LPT1, four USB ports, one

optional LAN port, one optional 1394 port, and audio jacks for microphone, line-in and

line-out.

IntroducingtheMotherboard

Feature

The SiS649 Northbridge (NB) and SiS965 Southbridge (SB) chipset are based on an

innovative and scalable architecture with proven reliability and performance.

SiS649

(NB)

• Supports 12 Outstanding Transactions and Quasi-Synchro-

nous Host to DRAM timing

• AccommodatesHigh Throughput SiSMuTIOL connecting to

SiS965MuTIOL media I/Owith bi-directional 16-bit databus

to perform 1GB/s bandwidth in 133 MHz x 4 mode

• Supports PCI-Express X16 Graphic Port

• Supports DDR400/333/266 or DDR2-533/400 SDRAM

• Supports up to 2 unbuffered DDR2-533 DIMMs or 2 unbuf-

fered DDR400 DIMMs up to 2 GB

“Hyper-Threading” technology enables the operating system into thinking it’s hooked

up to two processors, allowing two threads to be run in parallel, both on separate

“logical” processors within the same physical processor.

SiS965/965L

(SB)

• Supports DDR up to 400/333/266 MHz SDRAM memory module

• Accommodates two DDR 184-pin un-buffered DIMM sockets

• Each slot supports up to 1GB with a total maximum capacity of 2GB

Memory

Processor

Chipset

• Concurrent servicing of all DMA Devices: Dual IDE Control-

lers, SATA controller, three USB 1.1 host controllers and

one USB 2.0 host controller, LAN MAC Controller and Au-

dio/ModemDMAController

• Integrated MuTIOL 1G to PCI Express x1 Bridge, compliant

with PCI Express 1.0a

• Compliant with PCI 2.3 specificaiton

• Compliant with Serial ATA 1.0 specification, supports up to

four independent ports (SiS965 only)

• Compliant with AC’97 v2.3 supporting 8 Channels of audio

outputs and V.90 HSP-Modem

• Integrated USB 2.0/1.1 Controller sopporting up to eight

USB ports

Expansion Options

The motherboard uses a LGA775 socket that has the following features:

• Accommodates Intel P4/Celeron Processors

• Supports a system bus of 800/533MHz

• Supports Dual Core CPU

• Supports “Hyper-Threading” technology CPU

1394a FireWire (optional)

• Compliant Single Chip PCI Host Controller for IEEE1394-1995 Release 1.0

andIEEE1394a-2000

• Provides two 1394a fully compliant cable ports at 100/200/400 Mbit per

second

The motherboard comes with the following expansion options.

• One PCI Express x16 slot

• Three 32-bit PCI slots

• Two IDE connectors which support four IDE channels

• A floppy disk drive interface

The motherboard supports UltraDMA bus mastering with transfer rates of 133/100

66MB/s

IntroducingtheMotherboard

Audio

• Compliant with theAC’97 v2.3 CODEC

• Supports 6-channel audio CODEC designed for PC multimedia systems

• Provides three analog line-level stereo inputs with 5-bit volume control:

Line-in,CD,AUX

• Supports S/PDIF output function

• Compliant with Azalia specification, supporting 8 channel DACs with

SNR.100dB

• Capabilities: 192/96/48/44.1 KHz with 24/20/16 bits

• 8 Smart Jack I/O port support

• Extensive jack detection via RNM (resistors network method) that can be

used to monitor the plugging status of each jack

• DigitalS/PDIFOUT& IN support

BIOS Firmware

This motherboard uses Award BIOS that enables users to configure many system

features including the following:

• Two PS/2 ports for mouse and keyboard

• Two serial ports (COM1)

• One parallel port

• Four USB ports

• One LAN port (optional)

• One 1394 port (optional)

• Audio jacks for microphone, line-in and line-out

Integrated I/O

The motherboard has a full set of I/O ports and connectors:

Onboard LAN (optional)

• Supports 100/10 Mb/s N-Way Auto negotiation operation

• Half/Full duplex capability

• Supports Wake-On-LAN(WOL) function and remote wake-up

• Integrate 10/100/1000 transceiver

• Supports PCI v2.3, 32-bit, 33/66MHz

• Supportsfully with IEEE802.3, IEEE802.3uand IEEE802.3ab

•(Please note that only SiS965 supports Giga LAN)

• Supports 10/100Mbps operation

• Half/full duplex operation

• Supports 802.3/802.3u compliant

• Power management

• Wake-up alarms

• CPUparameters

• CPUandmemroytiming

Some hardware specifications and software items are subject to change

with out prior notice.

The firmware can also be used to set parameters for different processor clock speeds.

• Supports 3.3V power supply with 5V tolerant inputs

• Supports 32-bit power-managed PCI Bus interface

IntroducingtheMotherboard

MotherboardComponents

Table des matières

Langues :

Autres manuels ECS Carte mère

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
