Ecler NIMBO-24 Manuel utilisateur

50-0435-0100 NIMBO-24 EN

NIMBO-24

Loudspeakers

Top Performance Cabinet Loudspeaker

USER MANUAL

PACKAGE

CONTENTS

DESCRIPTION &

FEATURES

CONNECTIONS

POSITIONING &

INSTALLATION

RECOMMENDED

AMPLIFIER

EQ SETTINGS

PRECAUTIONS

TECHNICAL

DATA

PACKAGE

CONTENTS

DESCRIPTION &

FEATURES

CONNECTIONS

POSITIONING &

INSTALLATION

RECOMMENDED

AMPLIFIER

EQ SETTINGS

PRECAUTIONS

T.O.C.

TECHNICAL

DATA

TABLE OF CONTENTS

1. PRECAUTIONS........................................................................................................................3

1.1 Important Remark.................................................................................................................................3

1.2 Important Safety Instructions ...........................................................................................................4

1.3 Cleaning...................................................................................................................................................4

2. PACKAGE CONTENTS ..........................................................................................................5

3. DESCRIPTION & FEATURES ...............................................................................................5

3.1 Main Features.........................................................................................................................................6

4. CONNECTIONS .......................................................................................................................6

4.1 Connections Diagram ..........................................................................................................................7

4.2 Impedance Selector..............................................................................................................................8

5. EQ SETTINGS...........................................................................................................................8

6. RECOMMENDED AMPLIFIER ..............................................................................................8

7. POSITIONING & INSTALLATION .......................................................................................9

7.1 Positioning...............................................................................................................................................9

7.2 Installation ..............................................................................................................................................9

7.3 Installation Diagram.......................................................................................................................... 10

8. TECHNICAL DATA .............................................................................................................. 12

8.1 Technical Specifications................................................................................................................... 12

8.2 Mechanical Diagram ......................................................................................................................... 13

PACKAGE

CONTENTS

DESCRIPTION &

FEATURES

CONNECTIONS

POSITIONING &

INSTALLATION

RECOMMENDED

AMPLIFIER

EQ SETTINGS

PRECAUTIONS

T.O.C.

TECHNICAL

DATA

1. PRECAUTIONS

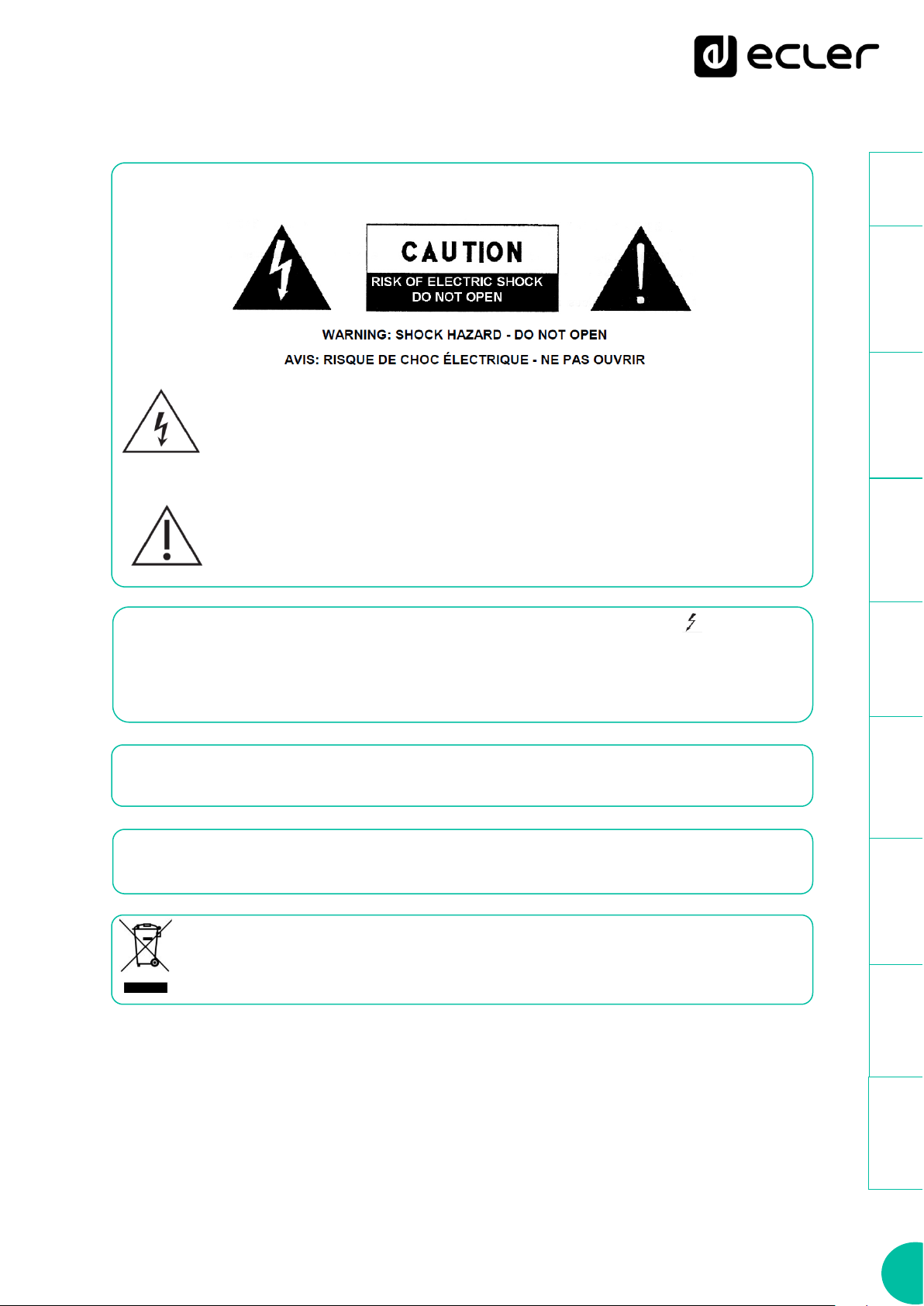

1.1 IMPORTANT REMARK

The lightning flash with arrowhead symbol, within an equilateral triangle, is

intended to alert the user to the presence of uninsulated “dangerous voltage”

within the product’s enclosure that may be of sufficient magnitude to

constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the

user to the presence of important operating and maintenance (servicing)

instructions in the literature accompanying the appliance.

WARNING (If applicable): The terminals marked with symbol of “ ” may be of

sufficient magnitude to constitute a risk of electric shock. The external wiring connected to

the terminals requires installation by an instructed person or the use of ready-made leads

or cords.

WARNING: To prevent fire or shock hazard, do not expose this equipment to rain or

moisture.

WARNING: A device with Class I construction shall be connected to a mains socket-

outlet with a protective earthing connection.

WARNING: This product must not be discarded, under any circumstance, as

unsorted urban waste. Take to the nearest electrical and electronic waste

treatment centre.

PACKAGE

CONTENTS

DESCRIPTION &

FEATURES

CONNECTIONS

POSITIONING &

INSTALLATION

RECOMMENDED

AMPLIFIER

EQ SETTINGS

PRECAUTIONS

T.O.C.

TECHNICAL

DATA

1.2 IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this device near water.

6. Clean only with dry cloth.

7. Do not block any ventilation

openings. Install in accordance with

the manufacturer’s instructions.

8. Do not install near any heat sources

such as radiators, heat registers,

stoves, or other device (including

amplifiers) that produce heat.

9. Do not defeat the safety purpose of

the polarized or grounding type plug.

A polarized plug has two blades with

one wider than the other. A grounding

type plug has two blades and a third

grounding prong. The wide blade or

the third prong are provided for your

safety. If the provided plug does not

fit into your outlet, consult an

electrician for replacement of the

obsolete outlet.

10. Protect the power cord from being

walked on or pinched particularly at

the plugs, convenience receptacles,

and at the point where they exit from

the device.

11. Only use attachments/accessories

specified by the manufacturer.

12. Unplug the device during lightening

sorts or when unused for long periods

of time.

13. Refer all servicing to qualified

personnel. Servicing is required when

the device has been damaged in any

way, such as power supply cord or

plug is damaged, liquid has been

spilled or objects have fallen into the

device, the device has been exposed

to rain or moisture, does not operate

normally, or has been dropped.

14. Disconnecting from mains: When

switching off the POWER switch, all

the functions and light indicators of

the unit will be stopped, but fully

disconnecting the device from mains

is done by unplugging the power

cable from the mains input socket. For

this reason, it always shall remain

easily accessible.

15. Equipment is connected to a socket-

outlet with earthing connection by

means of a power cord.

16. The marking information is located at

the bottom of the unit.

17. The device shall not be exposed to

dripping or splashing and that no

objects filled with liquids, such as

vases, shall be placed on device.

1.3 CLEANING

Clean the unit with a soft, dry clean cloth or slightly wet with water and neutral

liquid soap only, then dry it with a clean cloth. Be careful that water never gets into the

unit through any hole. Never use alcohol, benzine, solvents or abrasive substances to

clean this unit.

NEEC AUDIO BARCELONA, S.L. accepts no liability for any damage that may be caused

to people, animal, or objects due to failure to comply with the warnings above.

PACKAGE

CONTENTS

DESCRIPTION &

FEATURES

CONNECTIONS

POSITIONING &

INSTALLATION

RECOMMENDED

AMPLIFIER

EQ SETTINGS

PRECAUTIONS

T.O.C.

TECHNICAL

DATA

Thank you for choosing our device Ecler NIMBO-24!

We appreciate your trust.

It is VERY IMPORTANT to carefully read this manual and to fully understand its

contents before any connection in order to maximize your use and get the best

performance from this equipment.

To ensure optimal operation of this device, we strongly recommend that its maintenance

be carried out by our authorised Technical Services.

Ecler NIMBO-24 comes with a 5-year warranty.

2. PACKAGE CONTENTS

•1 x NIMBO-24 loudspeaker.

•1 x VEASY wall bracket with vertical and horizontal adjustment (VESA compatible).

•2x Euroblock.

•Getting Started Guide.

•Warranty card.

3. DESCRIPTION & FEATURES

NIMBO-24 is a premium performance 2-way passive loudspeaker with 80W RMS power,

in a compact size with extended low frequency response. Suitable for outdoor applications,

with a cloud-inspired design, result of Ecler's engineering skills and the collaboration of

architects and interior designers.

Including 2 x 4" woofers and a 1" silk tweeter located in the acoustic centre, acting as a

single point source to disperse the sound evenly.

The nominal impedance of the speaker can be selected to 4 ohm or 16 ohm thanks to the

front switch located behind the logo, which allows to modify its impedance without

removing the aluminium front grille.

It includes the robust VEASY wall bracket, allowing tilt and pan adjustment using a single

screw.

PACKAGE

CONTENTS

DESCRIPTION &

FEATURES

CONNECTIONS

POSITIONING &

INSTALLATION

RECOMMENDED

AMPLIFIER

EQ SETTINGS

PRECAUTIONS

T.O.C.

TECHNICAL

DATA

3.1 MAIN FEATURES

•2-way passive loudspeaker for surface and ceiling mounting.

•2x 4" woofers with 4-layer voice coil improves power handling and low frequency

response.

•1" silk tweeter with neodymium magnet and ferrofluid.

•Glass-fibre reinforced ABS non resonant compact enclosure.

•Wide dispersion pattern.

•VEASY bracket compatible with VESA 75 included. Quick and easy to install,

including jumps and markings for repeating speaker orientation.

•Weather-protected with an IP-44 rating.

•Available in white, black and gold colour.

•RAL paint customization available.

4. CONNECTIONS

The connection cables which connect the amplifiers output and the speaker should be of

good quality, have sufficient conductor area and be as short as possible. The latter fact is

especially important when the distance is long and the load impedance low (4-16 Ω). A

cross-section of at least 2.5mm2 is recommended for distances up to 10m; 4 or 6mm2 for

longer distances. Following formula gives the required section, assuming 4% losses:

Cross section in mm2=Length in m

Loudspeaker impedance in Ω

Always respect the polarity. The loudspeaker has an INPUT Euroblock connector,

and a second STACK Euroblock connector thereby facilitating the parallel connection of

speaker.

See detailed connection diagram on next page.

PACKAGE

CONTENTS

DESCRIPTION &

FEATURES

CONNECTIONS

POSITIONING &

INSTALLATION

RECOMMENDED

AMPLIFIER

EQ SETTINGS

PRECAUTIONS

T.O.C.

TECHNICAL

DATA

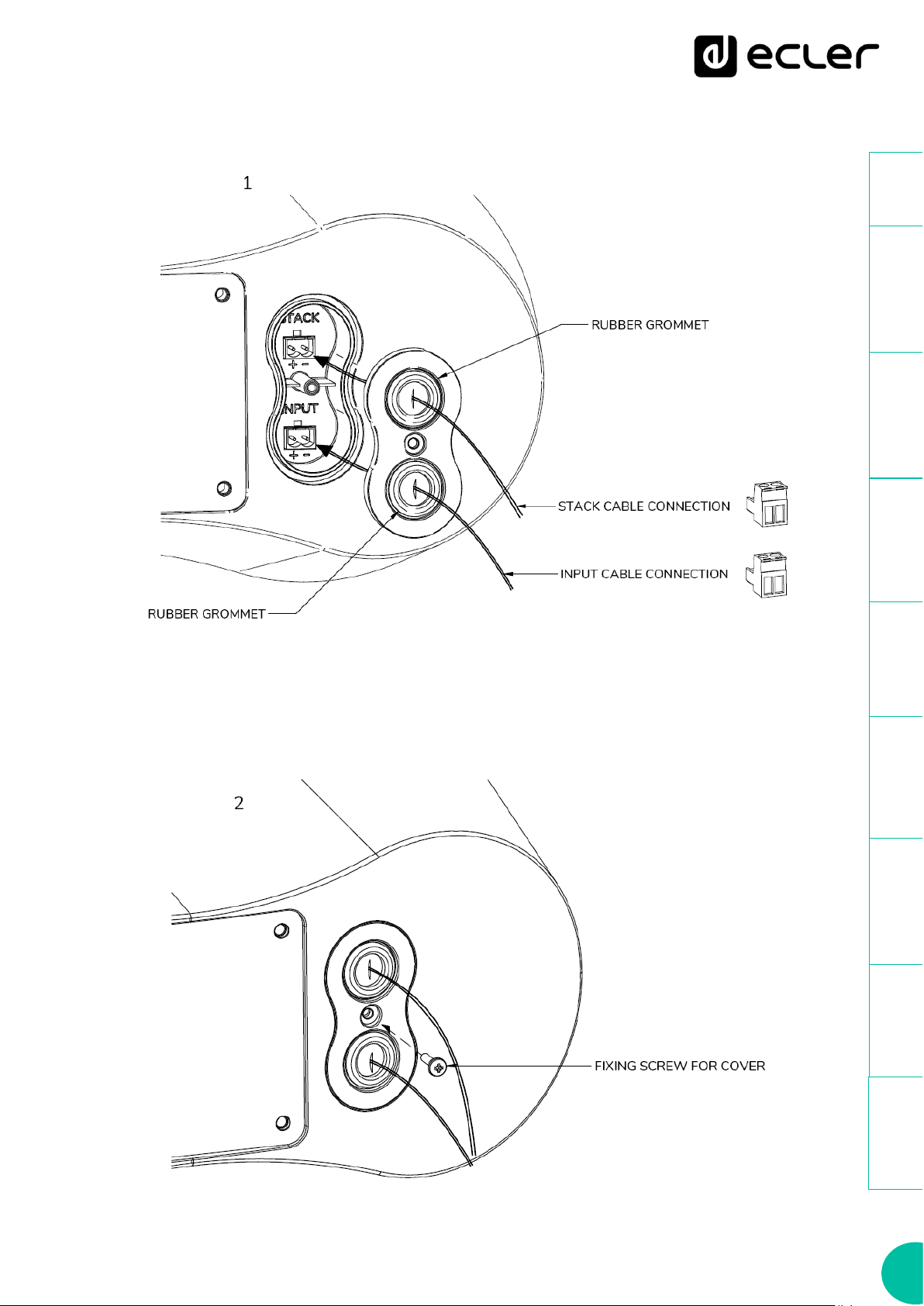

4.1 CONNECTIONS DIAGRAM

PACKAGE

CONTENTS

DESCRIPTION &

FEATURES

CONNECTIONS

POSITIONING &

INSTALLATION

RECOMMENDED

AMPLIFIER

EQ SETTINGS

PRECAUTIONS

T.O.C.

TECHNICAL

DATA

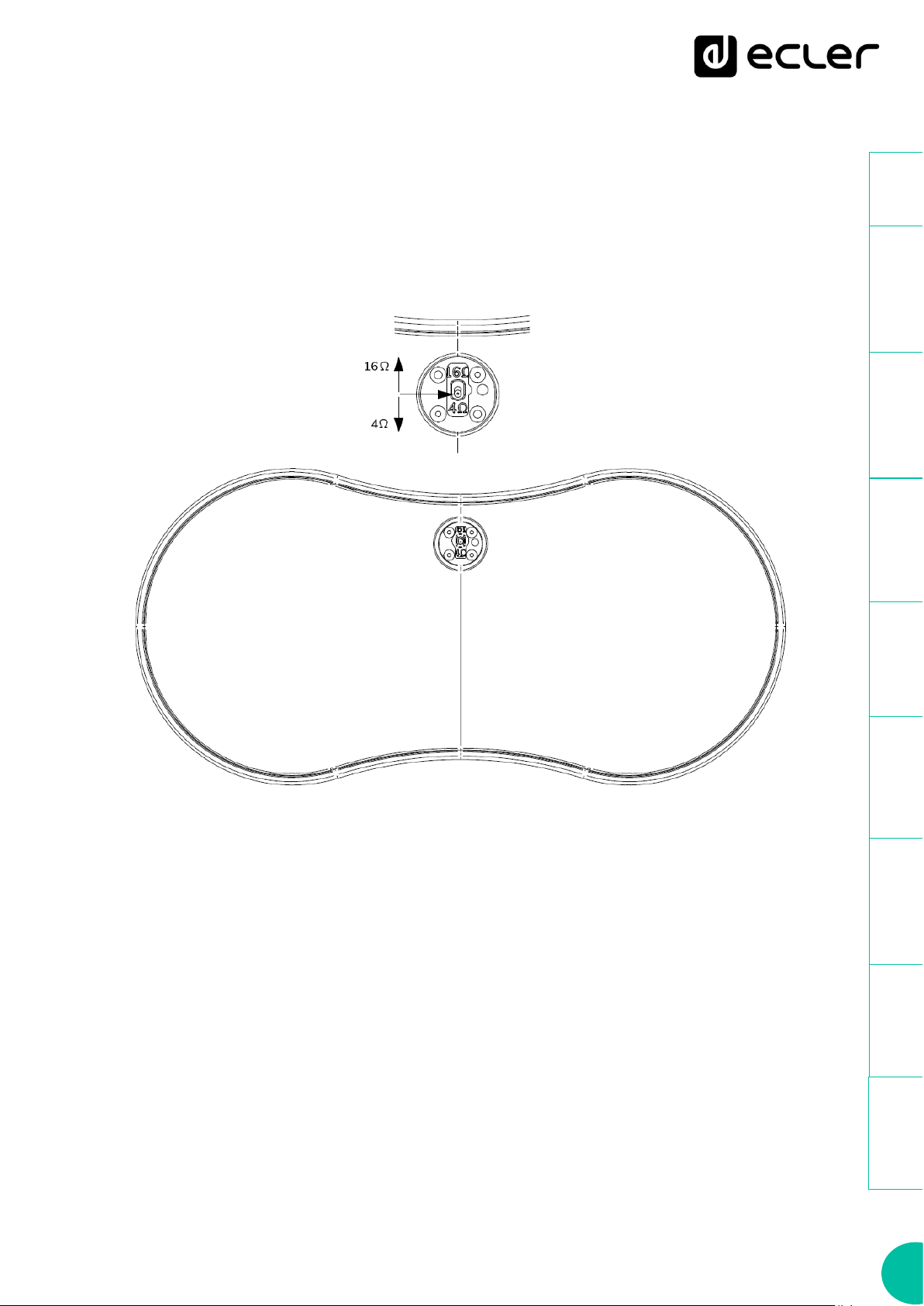

4.2 IMPEDANCE SELECTOR

NIMBO-24 works in low impedance operation. In this matter, it has a 2-position switch

on its front panel (behind the logo) that allows to select its working mode without

removing the grill.

5. EQ SETTINGS

The Ecler NIMBO-24 EQ Settings file will be available on our website in the coming

weeks, ready to import in EclerNet Manager software.

6. RECOMMENDED AMPLIFIER

The output power of the recommended amplifier for NIMBO-24 is 150W RMS.

PACKAGE

CONTENTS

DESCRIPTION &

FEATURES

CONNECTIONS

POSITIONING &

INSTALLATION

RECOMMENDED

AMPLIFIER

EQ SETTINGS

PRECAUTIONS

T.O.C.

TECHNICAL

DATA

7. POSITIONING & INSTALLATION

7.1 POSITIONING

Consider following general rules.

Place the speaker on a solid and firm surface. No obstacles should stand between the

enclosures and the audience. The high frequencies are very directive compared to the low

frequencies, so that any obstacle will impair their response. In case large audiences must

be addressed, a better long distance sound propagation will be achieved if the enclosures

are flown high enough.

Download all EASE files by clicking on the image:

7.2 INSTALLATION

NIMBO loudspeaker include the VEASY wall bracket, VESA 75 compatible and easy to

install. The robust VEASY wall bracket, allow tilt and pan adjustment using a single screw.

Quick and easy to install, including jumps and markings for repeating speaker orientation.

See detailed installation diagram on next page.

PACKAGE

CONTENTS

DESCRIPTION &

FEATURES

CONNECTIONS

POSITIONING &

INSTALLATION

RECOMMENDED

AMPLIFIER

EQ SETTINGS

PRECAUTIONS

T.O.C.

TECHNICAL

DATA

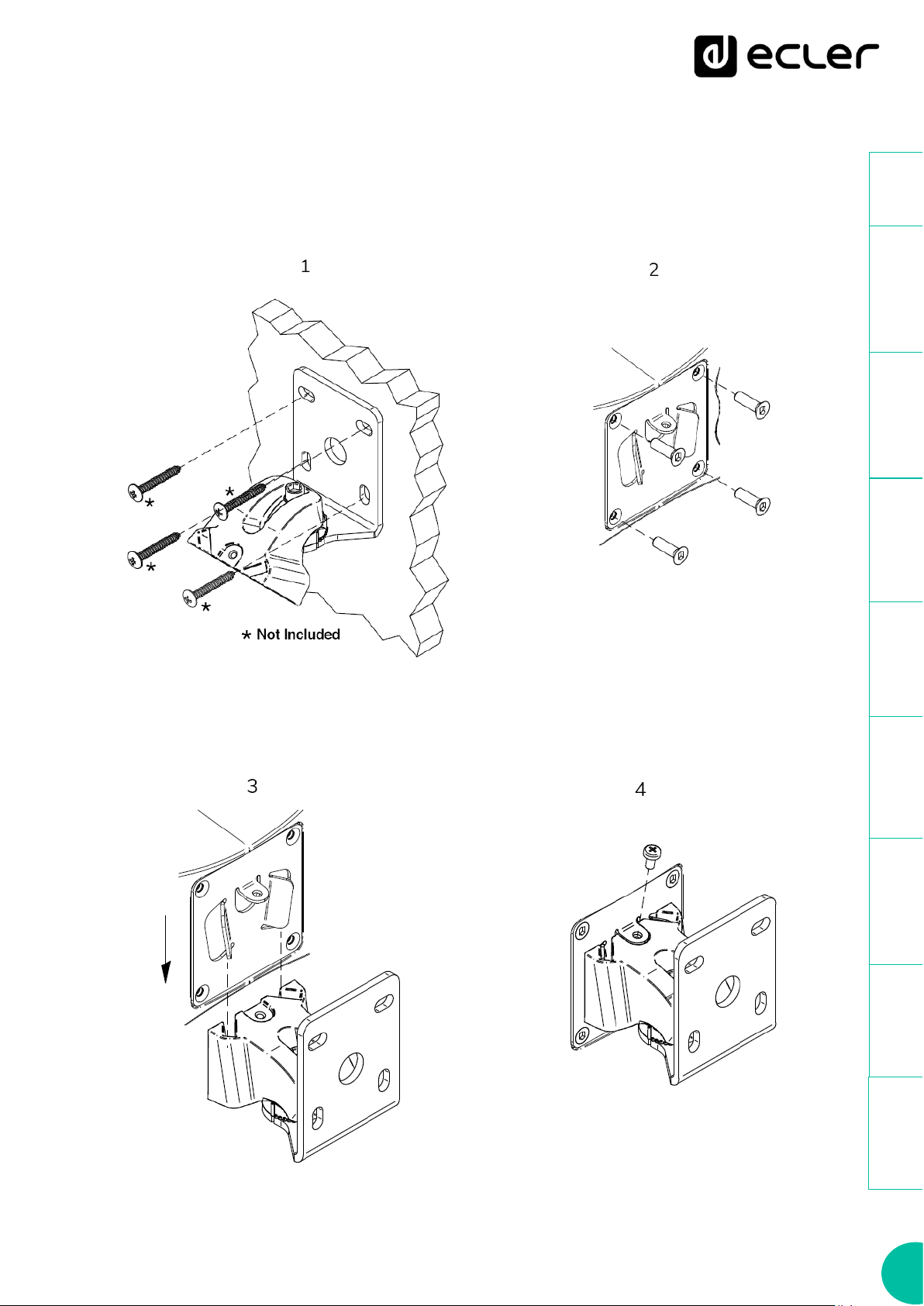

7.3 INSTALLATION DIAGRAM

Mounting the VEASY wall bracket.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ecler Intervenants

Ecler

Ecler IW6 Manuel utilisateur

Ecler

Ecler DACORD SB210 Manuel utilisateur

Ecler

Ecler WiSpeak TUBE3WH Manuel utilisateur

Ecler

Ecler AUDEO103 Manuel utilisateur

Ecler

Ecler eIC5154 Manuel utilisateur

Ecler

Ecler ARQIS Series Manuel utilisateur

Ecler

Ecler TRAILSB6T Manuel utilisateur

Ecler

Ecler ARQISi SB6TiWH Manuel utilisateur

Ecler

Ecler IC Series Manuel utilisateur

Ecler

Ecler eMOTUS5OD Manuel utilisateur

Ecler

Ecler Philos 10A Manuel utilisateur

Ecler

Ecler VERSO P Series Manuel utilisateur

Ecler

Ecler IC6CLASSTR Manuel utilisateur

Ecler

Ecler ePHS20T Manuel utilisateur

Ecler

Ecler ARQIS Series Manuel utilisateur

Ecler

Ecler ARQSB10SATB Guide de l'utilisateur

Ecler

Ecler TRAIL103WH Manuel utilisateur

Ecler

Ecler GIUGIARO DESIGN AUDEO 103 Manuel utilisateur

Ecler

Ecler IC6CLASS-54 Manuel utilisateur

Ecler

Ecler IC3BK Manuel utilisateur

Ecler

Ecler NEST106 Manuel utilisateur

Ecler

Ecler DROP6 Manuel utilisateur

Ecler

Ecler eMOTUS8OD Manuel utilisateur

Ecler

Ecler DACORD SB208 Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
