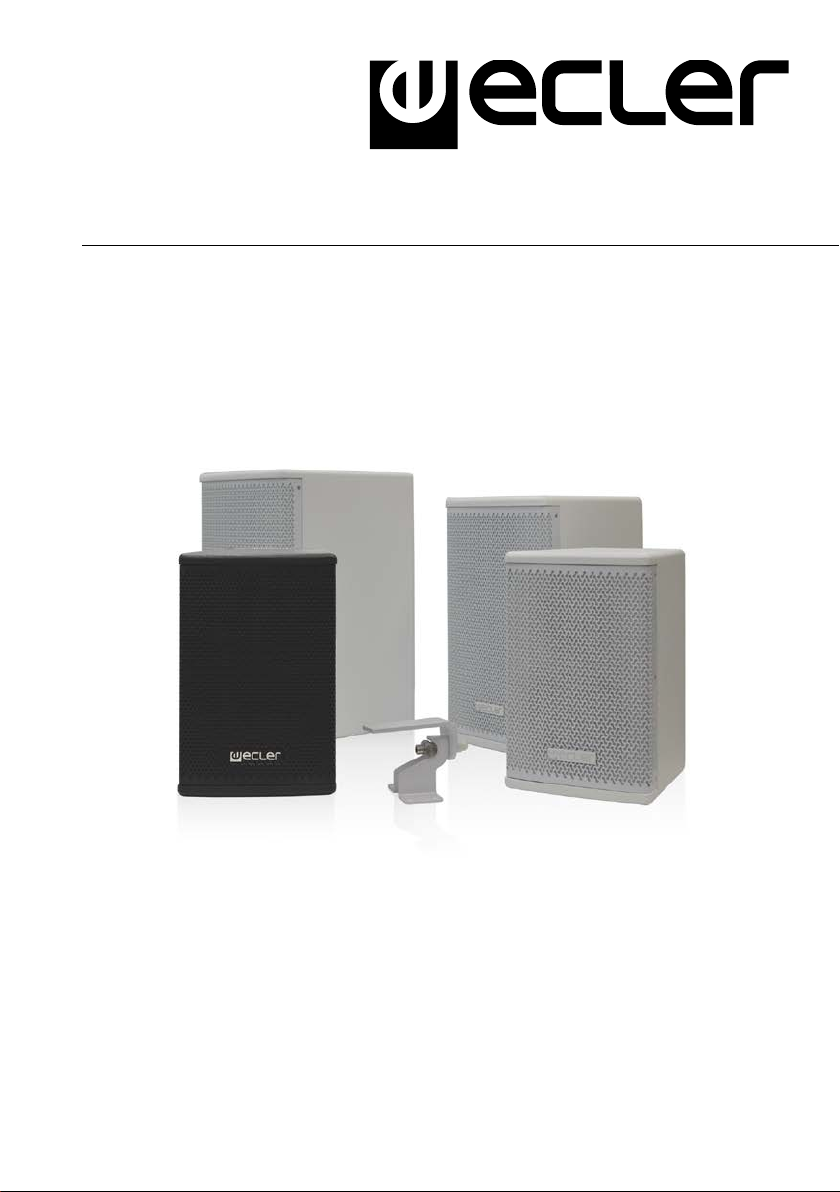

Ecler ARQIS 108BK Manuel utilisateur

ARQIS Series

CABINET LOUDSPEAKERS

Architectural Loudspeaker Cabinets

USER MANUAL

INDEX

Important note 3

Precautions 3

Introduction 4

Models4

Connections 7

Recommended amplifier 8

Positioning 8

Installation 8

Technical specifications 9

Diagram 11

IMPORTANT NOTE

Congratulations! You are the owner of carefully designed and manufactured

equipment. We thank you for trusting in us and choosing our ARQIS Series

loudspeaker cabinets.

In order to get the optimum operation and efficiency from this unit, it is VERY

IMPORTANT - before you plug anything - to read this manual very carefully and bear

in mind all considerations specified within it. We strongly recommend that its

maintenance be carried out by our Authorised Technical services.

PRECAUTIONS

•Read these instructions

•Keep these instructions

•Heed all warnings

•Follow all instructions

•Do not use this apparatus near water

•Clean only with dry cloth

•Install in accordance with the manufacturer’s instructions

•Do not install near any heat sources such as radiators or heat registers

•Only use attachments/accessories specified by the manufacturer

•Refer all servicing to qualified personnel

Warning: an inappropriate usage of the device could cause

injury, death or damage the apparatus.

INTRODUCTION

Based on studying installers and interior design and system integration professionals

as well as on a permanent contact with them, the ARQIS line of speakers is designed

for fixed installation, especially in environments in need of a compact speaker offering

high output, easy installation, long-term reliability and excellent sound quality.

MODELS

ARQIS105

• Full range, 2-way architectural loudspeaker

• 70 WRMS @ 8 Ω

• 5,25" woofer

• 1" tweeter

• Double INPUT/STACK connector, Euroblock type, with security attachment

screws to avoid accidental disconnection

• Wall bracket included, allowing for pan & tilt adjustment, employing a single

screw for fastening

• Metal safety sling included, to avoid drops in case of accidental detachment

from the wall surface

• Available in black or white finish

ARQIS106

• Full range, 2-way architectural loudspeaker

• 120 WRMS @ 8 Ω

• 6,5" woofer

• 1" compression driver (rotable)

• Double INPUT/STACK connector, Euroblock type, with security attachment

screws to avoid accidental disconnection

• Wall bracket included, allowing for pan & tilt adjustment, employing a single

screw for fastening

• Metal safety sling included, to avoid drops in case of accidental detachment

from the wall surface

• Available in black or white finish

ARQIS108

• Full range, 2-way architectural loudspeaker

• 175 WRMS @ 8 Ω

• 8" woofer

• 1" compression driver (rotable)

• Double INPUT/STACK connector, Euroblock + Speakon© type, with security

attachment screws to avoid accidental disconnection

• Wall bracket included, allowing for pan & tilt adjustment, employing a single

screw for fastening

• U-bracket wall-mount accessory compatible, ARQ108UB (not included)

• Metal safety sling included, to avoid drops in case of accidental detachment

from the wall surface

• Available in black or white finish

ARQIS205

• Full range, 2-way architectural loudspeaker

• 140 WRMS @ 8 Ω

• 2 x 5,25" woofer

• 1" compression driver (rotable)

• Double INPUT/STACK connector, Euroblock + Speakon© type, with security

attachment screws to avoid accidental disconnection

• U-bracket wall-mount included, allowing for tilt adjustment

• 8 x M8 cabinet flying points

• Metal safety sling included, to avoid drops in case of accidental detachment

from the wall surface

• Available in black or white finish

ARQIS208

• Full range, 2-way architectural loudspeaker

• 300 WRMS @ 8 Ω

• 2 x 8" woofer

• 1" compression driver (rotable)

• Double INPUT/STACK connector, Euroblock + Speakon© type, with security

attachment screws to avoid accidental disconnection

• U-bracket wall-mount included, allowing for tilt adjustment

• 8 x M8 cabinet flying points

• Metal safety sling included, to avoid drops in case of accidental detachment

from the wall surface

• Available in black or white finish

ARQIS110

• Full range, 2-way architectural loudspeaker

• 220 WRMS @ 8 Ω

• 10” woofer

• 1" compression driver (rotable)

• Double INPUT/STACK connector, Euroblock + Speakon© type, with security

attachment screws to avoid accidental disconnection

• 35 mm mount socket, compatible with SR12 wall bracket (not included) &

TRIPO1 floor stand (not included)

• U-bracket wall-mount accessory compatible, ARQ110UB (not included)

• 8 x M8 cabinet flying points.

• Metal safety sling included, to avoid drops in case of accidental detachment

from the wall surface

• Available in black and white finish

ARQIS112

• Full range, 2-way architectural loudspeaker

• 340 WRMS @ 8 Ω

• 1 x 12" woofer

• 1" compression driver (rotable)

• Double INPUT/STACK connector, Euroblock + Speakon© type, with security

attachment screws to avoid accidental disconnection

• 35 mm mount socket, compatible with SR12 wall bracket (not included) &

TRIPO1 floor stand (not included)

• U-bracket wall-mount accessory compatible, ARQ112UB (not included)

• 8 x M8 cabinet flying points.

• Metal safety sling included, to avoid drops in case of accidental detachment

from the wall surface

• Available in black and white finish

ARQISSB10

• 1-way surface-mount subwoofer

• 150 WRMS @ 8 ohm

• 10" woofer

• Euroblock connector and spring loaded input terminals

• LPF cut-off frequency selection: OFF/ 120Hz / 150Hz

• Wall-mount hardware included

• 12 x M8 cabinet flying points

• Available in black or white finish

ARQISSB15

• 1-way architectural subwoofer

• 600 WRMS @ 8 Ω

• 15" woofer

• Double INPUT/STACK connector, Speakon© type

• 35 mm top-hat mount socket, for pole mount combinations with ARQIS10,

ARQIS12, etc.

• 8 x M8 cabinet flying points.

• Available in black finish

CONNECTIONS

The connection cables which connect the amplifiers output and the speaker should be

of good quality, have sufficient conductor area and be as short as possible. The latter

fact is especially important when the distance is long and the load impedance low (4-8

Ω). A cross-section of at least 2.5mm2is recommended for distances up to 10m; 4 or

6mm2for longer distances. Following formula gives the required section, assuming

4% losses:

Cross section in mm2=Length in m

Loudspeaker impedance in Ω

Always respect the polarity. All models have an Euroblock connector, and a

second connector (Euroblock or Speakon®, depending on model), thereby

facilitating the parallel connection of speakers.

RECOMMENDED AMPLIFIER

Following table shows the output power of the amplifier adequate to each acoustic

system:

•ARQIS 105: between 70 and 150W RMS

•ARQIS 106: between 120 and 250W RMS

•ARQIS 108: between 150 and 300W RMS

•ARQIS 205: between 150 and 300W RMS

•ARQIS 208: between 300 and 600W RMS

•ARQIS 110: between 220 and 450W RMS

•ARQIS 112: between 340 and 700W RMS

•ARQIS SB10: between 150 and 300W RMS

•ARQIS SB15: between 600 and 1000W RMS

POSITIONING

Consider following general rules:

Place the speakers on a solid and firm surface. Subwoofers placed directly and

horizontally on the ground have a higher output than hanged or directly on the floor,

but vertically. No obstacles should stand between the enclosures and the audience.

The high frequencies are very directive compared to the low frequencies, so that any

obstacle will impair their response. In case large audiences must be addressed, a

better long distance sound propagation will be achieved if the enclosures are flown

high enough.

INSTALLATION

In the ARQIS series, the best way to install the enclosure was studied for each model.

Each model from the ARQIS range is supplied with the optimal installation system.

ARQIS205 / ARQIS208 / ARQIS110 / ARQIS 112 / ARQISSB10 / ARQISSB15 also have

built-in M8 rigging points for suspension from a compatible structure or "truss" using

steel cables.

IMPORTANT NOTE: The equipment must in no case be suspended using its carrying

handles (if any); use the appropriate accessories for each application. Whenever a

ceiling/wall mounting bracket is used, it is mandatory to add a redundant safety

system. Use wire ropes, slings or chains of the appropriate diameter to prevent the fall

of the speaker in case the main mounting system is pulled out.

TECHNICAL SPECIFICATIONS

ARQIS105

ARQIS106

ARQIS108

Ways

Impedance

8Ω

8Ω

RMS power

70 WRMS

120 WRMS

175 WRMS

Program power

140 WRMS

240 WRMS

350 WRMS

SPL 1W/1m

89 dB

92dB

93dB

Max SPL @ 1m

110 dB

116dB

118dB

Frequency response (±3dB)

85Hz÷20kHz

75Hz÷19kHz

60Hz÷19kHz

Cross-over frequency

3.2kHz

3.5kHz

Dispersion (HxV)

120⁰x120⁰

90⁰x60⁰

Driver LF/MF

5.25”

6.5”

8”

Driver HF

Dome tweeter 1”

Compression driver 1”

Connection Euroblock 2 ways Euroblock 2 ways

Euroblock 2 ways +

Speakon© 4 ways

Dimensions (WxHxD)

186x280x210mm

216x350x240mm

244x390x280mm

Weight

3.6kg

7.4kg

8.4kg

Colour

Black / White

ARQIS205

ARQIS208

Ways

Impedance

8Ω

RMS power

140 WRMS

300 WRMS

Program power

280 WRMS

600 WRMS

SPL 1W/1m

92dB

96dB

Max SPL @ 1m

116dB

124dB

Frequency response (±3dB)

85Hz÷18kHz

65Hz÷18kHz

Cross-over frequency

2.6kHz

3.5kHz

Dispersion (HxV)

90⁰x60⁰

Driver LF/MF

2x5.25”

2x8”

Driver HF

Compression driver 1”

Connection

Euroblock 2 ways + Speakon© 4

ways

Euroblock 2 ways + Speakon© 4

ways

Dimensions (WxHxD)

480x186x210mm

610x244x280mm

Weight

8.4kg

14.4kg

Colour

Black / White

ARQIS110

ARQIS112

Ways

Impedance

8Ω

RMS power

220 WRMS

340 WRMS

Program power

440 WRMS

680 WRMS

SPL 1W/1m

95dB

97dB

Max SPL @ 1m

118dB

122dB

Frequency response (±3dB)

60Hz÷18kHz

Cross-over frequency

3.5kHz

2.5kHz

Dispersion (HxV)

90⁰x50⁰

80⁰x40⁰

Driver LF/MF

10”

12”

Driver HF

Compression driver 1”

Connection

Euroblock 2 ways + Speakon© 4

ways

Euroblock 2 ways + Speakon© 4

ways

Dimensions (WxHxD)

359x495x310mm

416x565x352mm

Weight

14.8kg

20.0kg

Colour

Black / White

ARQISSB10

ARQISSB15

Ways

10” subwoofer

15” subwoofer

Impedance

8Ω

RMS power

150W

600W

Program power

300W

1200W

SPL 1W/1m

94dB

98dB

Max SPL @ 1m

115dB

125dB

Frequency response (±3dB)

45Hz-3kHz

Connection

Euroblock connector and spring

Dimensions (WxHxD)

600×442x228mm

534×460x525mm

Weight

16.5 kg

32.0 kg

Colour

Black / White

Black

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Ecler Intervenants

Ecler

Ecler WiSpeak TUBE3WH Manuel utilisateur

Ecler

Ecler IC6CLASS-54 Manuel utilisateur

Ecler

Ecler PRS10T Manuel utilisateur

Ecler

Ecler IW6PLUS Manuel utilisateur

Ecler

Ecler TRAIL103WH Manuel utilisateur

Ecler

Ecler DACORD SB208 Manuel utilisateur

Ecler

Ecler GIUGIARO DESIGN AUDEO 103 Manuel utilisateur

Ecler

Ecler IC6CLASS-54 Manuel utilisateur

Ecler

Ecler ePHS20T Manuel utilisateur

Ecler

Ecler VIC6 Manuel utilisateur

Ecler

Ecler TRAILSB6T Manuel utilisateur

Ecler

Ecler eAMBIT103 Manuel utilisateur

Ecler

Ecler ARQISi Series Manuel utilisateur

Ecler

Ecler ARQISi SB6TiWH Manuel utilisateur

Ecler

Ecler AWAKi Manuel utilisateur

Ecler

Ecler NEST106 Manuel utilisateur

Ecler

Ecler ARQIS Series Manuel utilisateur

Ecler

Ecler DACORD T108i Instructions de montage

Ecler

Ecler IG108 Manuel utilisateur

Ecler

Ecler IC6CLASSTR Manuel utilisateur

Ecler

Ecler PhiloS Series Manuel utilisateur

Ecler

Ecler TRAIL103 Manuel utilisateur

Ecler

Ecler IW103 Manuel utilisateur

Ecler

Ecler IC6CLASS54X Manuel utilisateur

Manuels Intervenants populaires d'autres marques

argon audio

argon audio IE20 Manuel utilisateur

Denon

Denon SC-N7 Manuel utilisateur

Gemline

Gemline Ace 3952 Manuel utilisateur

Focal

Focal ON WALL 300 Mode d’emploi

HEADRUSH

HEADRUSH Maximus HRSP 5024 Manuel utilisateur

SoundLogic

SoundLogic BCCS-6/6395 Manuel utilisateur

Peavey

Peavey DTH 218 Manuel utilisateur

Avantree

Avantree Pluto Air Manuel utilisateur

Morel

Morel Integra Series INTEGRA OVATION 4 Manuel utilisateur

Oppo

Oppo SONICA Manuel utilisateur

Bose

Bose SoundLink Wireless Music System Manuel utilisateur

Rocksteady

Rocksteady Stadium Manuel utilisateur

Bowers & Wilkins

Bowers & Wilkins 4 Manuel utilisateur

Sonance

Sonance SONOS OUTDOOR Series Manuel utilisateur

Electro-Voice

Electro-Voice EVID FM4.2 Manuel utilisateur

Pioneer

Pioneer XW-HTD630 Manuel utilisateur

Onn

Onn BWA16AA002 Manuel utilisateur

HP GL313AA - USB Speakers PC Multimedia Manuel utilisateur
