Eaton 9155 Parallel UPS

8–15 kVA

User's Guide

Class A EMC Statements

FCC Part 15

NOTE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference

when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate

radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at his own expense.

ICES-003

This Class A Interference Causing Equipment meets all requirements of the Canadian Interference Causing

Equipment Regulations ICES‐003.

Cet appareil numérique de la classe A respecte toutes les exigences du Reglement sur le matériel brouilleur du

Canada.

IEC 62040-2

Some configurations are classified under IEC 62040-2 as “C2 UPS for Unrestricted Sales Distribution.”

VCCI Notice

Eaton, ABM, FERRUPS, Powerware Hot Sync, and X-Slot are registered trademarks of Eaton or its subsidiaries and

affiliates. Greenlee is a registered trademark of Greenlee Textron. National Electrical Code and NEC are registered

trademarks of National Fire Protection Association, Inc. All other trademarks are property of their respective

companies.

in any way without the express written approval of Eaton.

Special Symbols

The following are examples of symbols used on the UPS or accessories to alert you to important

information:

RISK OF ELECTRIC SHOCK - Observe the warning associated with the risk of electric

shock symbol.

CAUTION: REFER TO OPERATOR'S MANUAL - Refer to your operator's manual for

additional information, such as important operating and maintenance

instructions.

This symbol indicates that you should not discard the UPS or the UPS batteries

in the trash. This product contains sealed, lead‐acid batteries and must be

disposed of properly. For more information, contact your local recycling/reuse or

hazardous waste center.

This symbol indicates that you should not discard waste electrical or electronic

equipment (WEEE) in the trash. For proper disposal, contact your local

recycling/reuse or hazardous waste center.

Eaton 9155 Parallel UPS (8–15 kVA) User's Guide S164201592 Rev D www.eaton.com/powerquality i

Table of Contents

1 Introduction 1.........................................................

2 Safety Warnings 3.....................................................

3 UPS Setup 7..........................................................

Inspecting the Equipment 7...............................................................

Floor Loading 8........................................................................

Clearances 8.........................................................................

Unloading the Cabinet(s) 9................................................................

4 Parallel Installation 13...................................................

5 Installing Options 23....................................................

Powerware Hot Sync CAN Bridge Card 24......................................................

6 Stabilizing the Cabinet 31................................................

7 Extended Battery Module Installation 35....................................

8 Operation 39...........................................................

Control Panel Functions 39................................................................

Changing the Language 40..............................................................

Display Functions 40..................................................................

User Settings 42.....................................................................

Parallel UPS Startup 45...................................................................

Configuring the UPS for EBMs 49............................................................

Parallel System Shutdown 50..............................................................

Individual UPS Shutdown 51...............................................................

Restarting the Parallel System 52...........................................................

9 Parallel Bypass 53......................................................

10 Troubleshooting 55......................................................

Typical Alarms and Conditions 55............................................................

Silencing the Alarm 57...................................................................

Service and Support 58...................................................................

11 Warranty 59...........................................................

Two-Year Limited Warranty (US and Canada) 59.................................................

Load Protection Guarantee (US and Canada) 61..................................................

TABLE OF CONTENTS

Eaton 9155 Parallel UPS (8–15 kVA) User's Guide S164201592 Rev D www.eaton.com/powerquality

Eaton 9155 Parallel UPS (8–15 kVA) User's Guide S164201592 Rev D www.eaton.com/powerquality 1

Chapter 1 Introduction

A parallel system with up to three uninterruptible power supplies (UPSs)

can be installed to provide a parallel capacity and/or redundant system.

This load sharing system provides more capacity than a single UPS and

can provide backup, depending on the load and configuration. In

addition, when one UPS is taken out of service for maintenance or is not

operating properly, a redundant UPS continues to supply uninterrupted

power to the critical load. A parallel Eaton®Powerware Hot Sync®

Controller Area Network (CAN) Bridge Card provides connectivity for

system metering and operational mode control. The parallel system

consists of two or three UPSs, each with a CAN Bridge Card and a

parallel tie cabinet.

Figure 1 shows the Eaton 9155 UPS and an optional Extended Battery

Module (EBM).

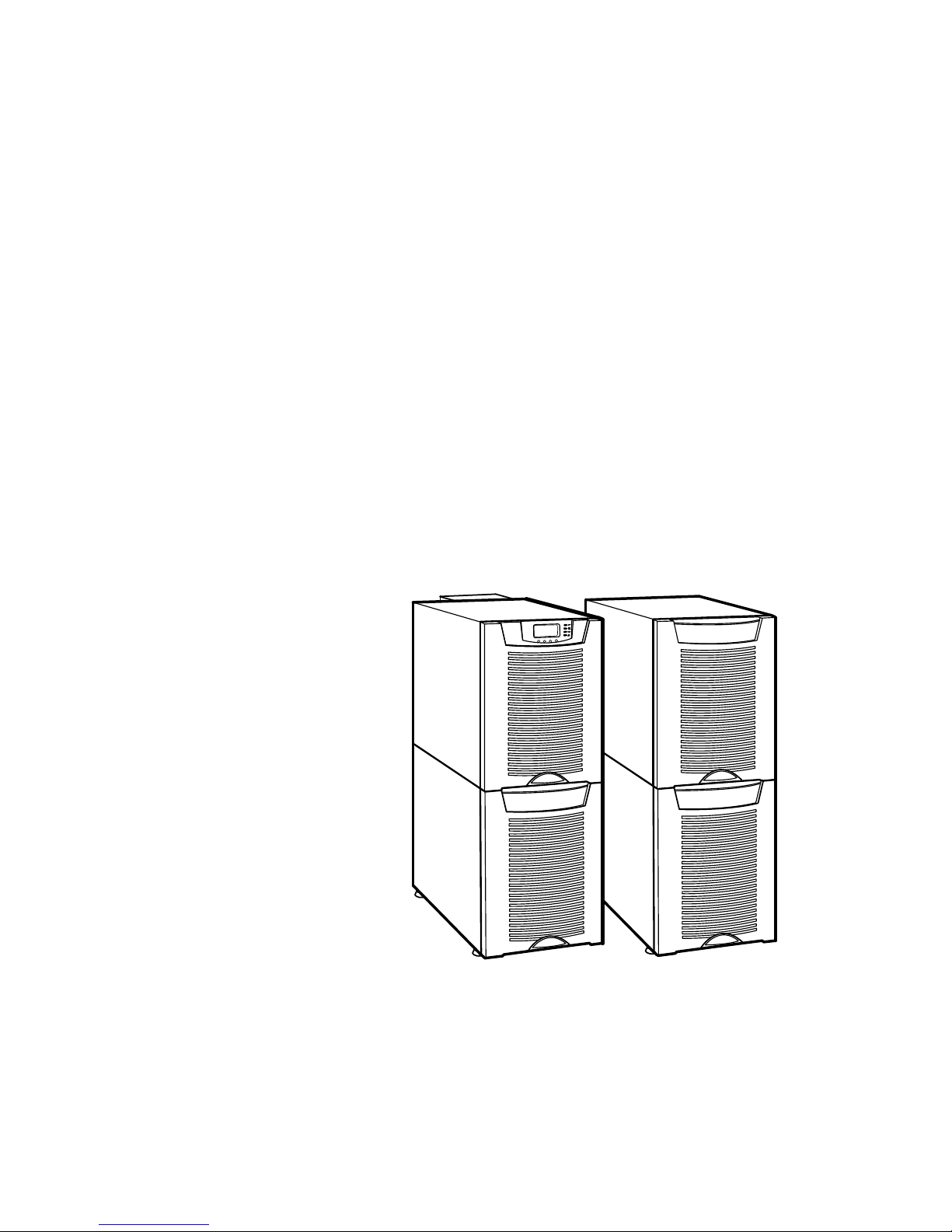

Figure 1. The Eaton 9155 UPS and EBM (2-High Cabinets Shown)

INTRODUCTION

Eaton 9155 Parallel UPS (8–15 kVA) User's Guide S164201592 Rev D www.eaton.com/powerquality

Eaton 9155 Parallel UPS (8–15 kVA) User's Guide S164201592 Rev D www.eaton.com/powerquality 3

Chapter 2 Safety Warnings

IMPORTANT SAFETY INSTRUCTIONS

SAVE THESE INSTRUCTIONS

This manual contains important instructions that you should follow during installation and

maintenance of the UPS and batteries. Please read all instructions before operating the

equipment and save this manual for future reference.

DANGER

This UPS contains LETHAL VOLTAGES. All repairs and service should be performed by

AUTHORIZED SERVICE PERSONNEL ONLY. There are NO USER SERVICEABLE

PARTS inside the UPS.

WARNING

SThis UPS contains its own energy source (batteries). The UPS output may carry live

voltage even when the UPS is not connected to an AC supply.

STo reduce the risk of fire or electric shock, install this UPS in a temperature and humidity

controlled, indoor environment, free of conductive contaminants. Ambient temperature

must not exceed 40°C (104°F). Do not operate near water or excessive humidity (95%

maximum).

STo reduce the risk of fire, connect only to a circuit provided with 100 amperes maximum

branch circuit overcurrent protection in accordance with the National Electrical Code®

(NEC®), ANSI/NFPA 70.

SOutput overcurrent protection and disconnect switch must be provided by others.

CAUTION

SBatteries can present a risk of electrical shock or burn from high short circuit current.

Observe proper precautions. Servicing should be performed by qualified service personnel

knowledgeable of batteries and required precautions. Keep unauthorized personnel away

from batteries.

SProper disposal of batteries is required. Refer to your local codes for disposal

requirements.

SNever dispose of batteries in a fire. Batteries may explode when exposed to flame.

SAFETY WARNINGS

Eaton 9155 Parallel UPS (8–15 kVA) User's Guide S164201592 Rev D www.eaton.com/powerquality

Consignes de Sécurité

CONSIGNES DE SÉCURITÉ IMPORTANTES

CONSERVER CES INSTRUCTIONS

CE MANUEL CONTIENT DES CONSIGNES DE SÉCURITÉ

IMPORTANTES

DANGER!

Cet onduleur contient des TENSIONS MORTELLES. Toute opération d'entretien et de

réparation doit être EXCLUSIVEMENT CONFIÉE A UN PERSONNEL QUALIFIÉ AGRÉÉ.

AUCUNE PIÈCE RÉPARABLE PAR L'UTILISATEUR ne se trouve dans l'onduleur.

WARNING

SCet onduleur renferme sa propre source d'énergie (batteries). Les prises de sortie peuvent

être sous tension même lorsque l'onduleur n'est pas branché sur le secteur.

SPour réduire les risques d'incendie et de décharge électrique, installer l'onduleur

uniquement à l'intérieur, dans un lieu dépourvu de matériaux conducteurs, où la

température et l'humidité ambiantes sont contrôlées. La température ambiante ne doit

pas dépasser 40 °C. Ne pas utiliser à proximité d'eau ou dans une atmosphère

excessivement humide (95 % maximum).

SLa protection contre une surintensité pour le(s) circuit(s) de sortie de courant alternatif

doit être fournie par un autre fournisseur.

SLes interrupteurs de déconnexion convenables pour le(s) circuit(s) de sortie de courant

alternatif doivent être fournie par un autre fournisseur.

ATTENTION!

SLes batteries peuvent présenter un risque de décharge électrique ou de brûlure par des

courts-circuits de haute intensité. Prendre les précautions nécessaires.

SUne mise au rebut réglementaire des batteries est obligatoire. Consulter les règlements

en vigueur dans votre localité.

SNe jamais jeter les batteries au feu. L'exposition aux flammes risque de les faire

exploser.
