Earth Way Polar Tech 90399 Manuel utilisateur

100LBStainlessSteel

IceMeltSpreader

MODEL#90399ASSEMBLYINSTRUCTIONS



2170_M52164_RevMar2021PAGE1



Priortoassembly,youwillneed:

Needlenosepliers



#2Phillipsscrewdriver



Two7/16″adjustableor

boxwrenches



THANKYOU

ThankyouforselectingEarthWayforyour

spreaderneeds.Ourproductionteamin

NorthernIndianatakesprideinbuildingthis

spreader.Ourcustomersupportteamis

standingreadytoensureyoursuccess.

Pleasecontactusatwww.EarthWay.comto

seeourfulllineofcommercial,lawn&gardentools.



NOTE:Thelargeopeningisdesignedtoallowicemelttoflow

throughspreaderwithouttheneedforanagitator.Thisunitis

notdesignedforfertilizer



ASSEMBLYHARDWARE

SPREADERCOMPONENTS



HANDLES



CONTROLROD

HANDLESHAFT

GEARBOXIMPELLER

LOWERFRAME

GUAGE

HOPPER

FRAME

X‐BRACE

METER

ROD

FRAME

FOOT

AXLE

PIVOT

¼”X1½”

¼”X2”

¼”X21/4”

Qty2

21/4”

2”

1½”

1”

Qty5

Qty4

Visit our EarthWay

website to see the

assembly video

¼”X1”

¼”X1½”

Qty4

AssemblyandOperationInstructions



90399_M52162_Oct_2021.docxPAGE2

HELPFULHINTS

Readthedirectionsbeforeassembly.

Ifyourspreaderdoesnotspreadevenly,besure“FRONT”ontheGEARBOXpointstothefrontofthespreader.The

impellermustturnclockwisewhenpushingforward.ReversingtheGEARBOXduringassemblywillcauseissues.

Yourspreaderiscalibratedforthreemilesperhour,whichisabriskwalkingspeed.Slowerorfasterspeedswill

changethespreadpattern.Donotusepowderedmaterialsasitwilldamagethegearbox.

Gearsarepermanentlylubricatedatthefactory.DonotopentheGEARBOXordirtmayenter.

SPREADERASSEMBLYINSTRUCTIONS



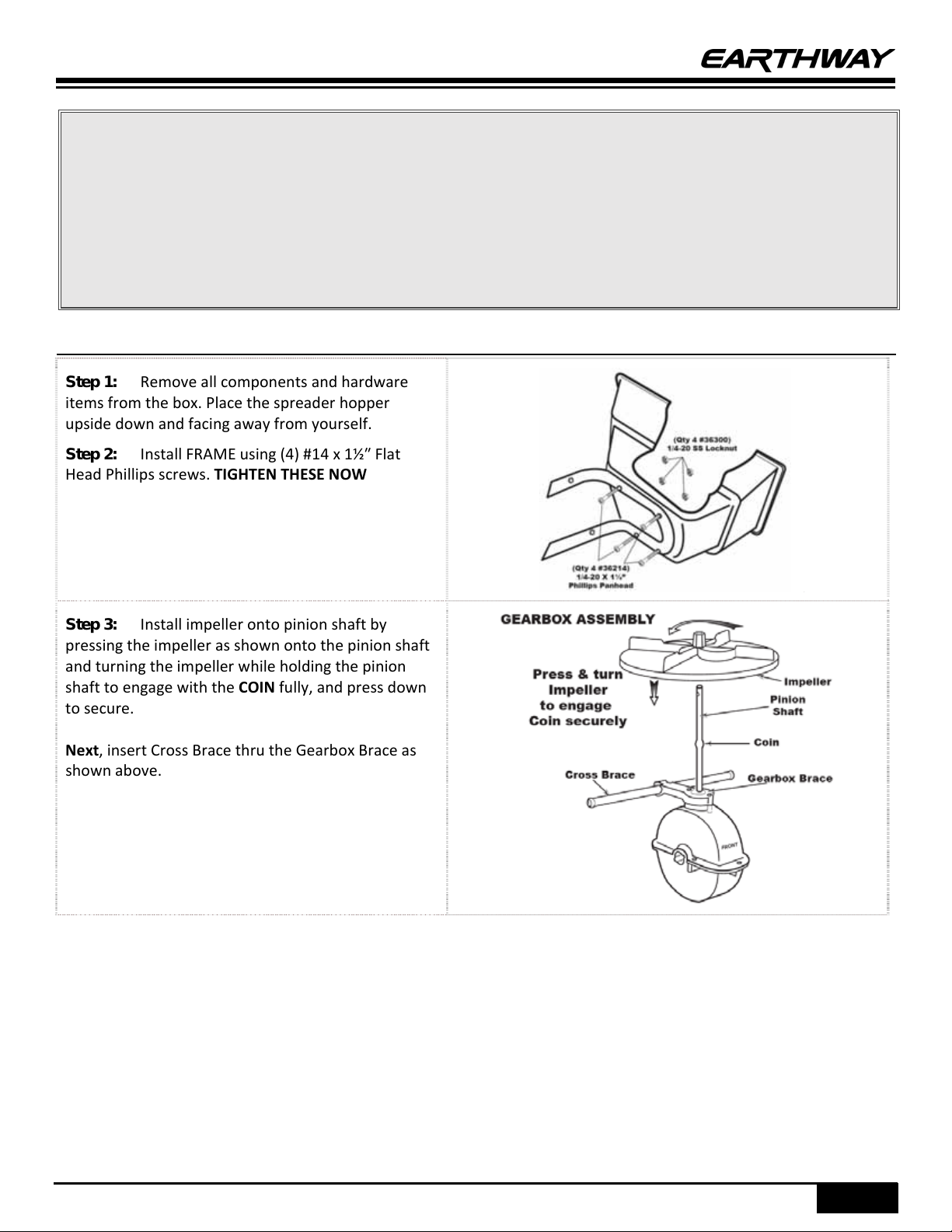

Step 1:

Removeallcomponentsandhardware

itemsfromthebox.Placethespreaderhopper

upsidedownandfacingawayfromyourself.

Step 2:

InstallFRAMEusing(4)#14x1½″Flat

HeadPhillipsscrews.TIGHTENTHESENOW

Step 3:

Installimpellerontopinionshaftby

pressingtheimpellerasshownontothepinionshaft

andturningtheimpellerwhileholdingthepinion

shafttoengagewiththeCOINfully,andpressdown

tosecure.



Next,insertCrossBracethrutheGearboxBraceas

shownabove.



AssemblyandOperationInstructions



90399_M52162_Oct_2021.docxPAGE3

Step 4:

InstallGEARBOXbyinsertingthePINION

SHAFTintoholeincenterofHOPPERbottom.The

word“FRONT”ontheGEARBOXmustpointtoFront

oftheHOPPER.

NOTE: Place PolarTech brand towards the front of

the hopper.



Step 5:

(A)Install

LOWERHANDLESonto

FRAMEtobothsidesas

shown.Insert2¼″bolt

throughholeinLOWER

HANDLEandthrough

holeinFRAMEinstall

locknut.DONOT

TIGHTEN.



(B)Nowinsert1½″bolt

intotheholeinLOWER

HANDLE,thenthrough

FRAMEbrace.Nextinto

threadedconnectorin

CROSSBRACE.DONOT

TIGHTEN

NOTE: Numbers on

frame brace must be

facing toward gear

box as shown.

(C)InstalltheFOOTinto

theFRAMEandalignthe

boltholesintheFOOT

andtheFRAME(a

Phillipsscrewdriveror

largenailishelpfulto

aligntheparts)

(D)Nextinsert1½″boltthroughotherendof

FRAMEBRACEandthroughholeinFRAMEthrough

theFOOTandinstalllocknut.



AssemblyandOperationInstructions



90399_M52162_Oct_2021.docxPAGE4

Step 6:

Placesthebearingsintothelowerframe

usingthe“notch”onthebearingtofitintothe

“notch”ontheLOWERAXLEFRAME.Nextslidethe

axlethroughthebearings,throughtheGEARBOX

andintotheotherLOWERAXLEFRAME.Next,install

AXLEBUSHINGontotheaxle,byplacingthesmaller

endinfirst,slideovertheAXLE,pastthedrilled

holes.





NOWGOBACKANDTIGHTENALLNUTSANDBOLTSSTARTINGWITHFIRSTSTEP.DONOTOVERTIGHTEN.

Step 7:

InstallDRIVEWHEELontotheAXLEandalign

withthecotterpinholenearesttoLOWERHANDLEas

shown.Insert2″cotterpinthroughwheelandthrough

AXLE.Bendwithplierstopreventpinfromfallingout.

Step 8:

InstallCOASTWHEELontotheAXLEfully,then

usingoutsidecotterpinhole,insert1″cotterpinthrough

AXLE(notthruthewheel).Bendwithplierstoprevent

pinfromfallingout.



Step 9:

Newfor2021EarthWaylistenedtocustomerswhodesiredanadjustablehandlefortalleroperators.

Selectthree¼”x2”boltsandthreenylonlocknuttocompletethisstep.

Noticethatthesquarehandleshafthastwosetsofholesinbothends.Theendthattheholesareclosesttotheend

ofthehandleshaftisthetop.Placeitasshowninbetweenthehandles.

Startbyboltingthroughthehandlespacerusingthetopmosthandlebarhole.Thenboltthegauge&leverassembly

throughthetwocenterholesusingtwoofyour¼”x2”bolts.

TIGHTENALLHARDWARE.

AssemblyandOperationInstructions



90399_M52162_Oct_2021.docxPAGE5

TALLOPERATORCONFIGUATION–withthefourhandleholes,usethebottomtwoholesfortheguageandusethe

topholeforthespacer.







AssemblyandOperationInstructions



90399_M52162_Oct_2021.docxPAGE6

Step 10:(Thisstepisonlyrequiredifyouwant

tochangethepositionofthehandles).NOTE:

BEFOREINSTALLINGGAUGEANDUPPER

HANDLESTOHANDLESHAFT,UPPERHANDLES

FEATURETHREEPOSITONSFOROPERATOR’S

COMFORT.Ifoperatorchoosesmiddleorupper

positions,usehandlespacerinholenearestto

handlegrips.



Insert2”boltthroughupperhandle,then

throughhandlespacerthroughotherupper

handleandsecurewithlocknut.DONOT

TIGHTENLOCKNUTYET.TIGHTENTHISNUT

LAST.



Step 11:

Threadhexnutontotheendofthepivotrod.

Insertthreadedendofthepivotrodintotheshutoff

plate.

Threadanadditionalhexnutontheendofthepivotrod.

Usea7/16”wrenchtosecurethehexnutinplacearoundthe

shutoffplateandpivotrod.

*SeeImagebelow.*





Step 12:

InstallHANDLESHAFTtoLOWERHANDLEsandPIVOT&BRACKETassemblyasshown.Using2″boltsand

locknuts.TIGHTENBOLTSANDNUTSNOW.



Step 13:

InstallflattenedendofCONTROLROD

intoLEVERonGAUGEasshown.Turntolockin

place.NextpushLEVERforwardtosetting“0”.

AlignCONTROLRODwithholeinPIVOTBRACKET,

pullLEVERbackwardtoinsertCONTROLROD

throughholeinPIVOTBRACKET.

Step 14:

Install(1)1/4‐20regularnut(nota

locknut)ontoCONTROLRODasshown.





A

B



C



AssemblyandOperationInstructions



90399_M52162_Oct_2021.docxPAGE7

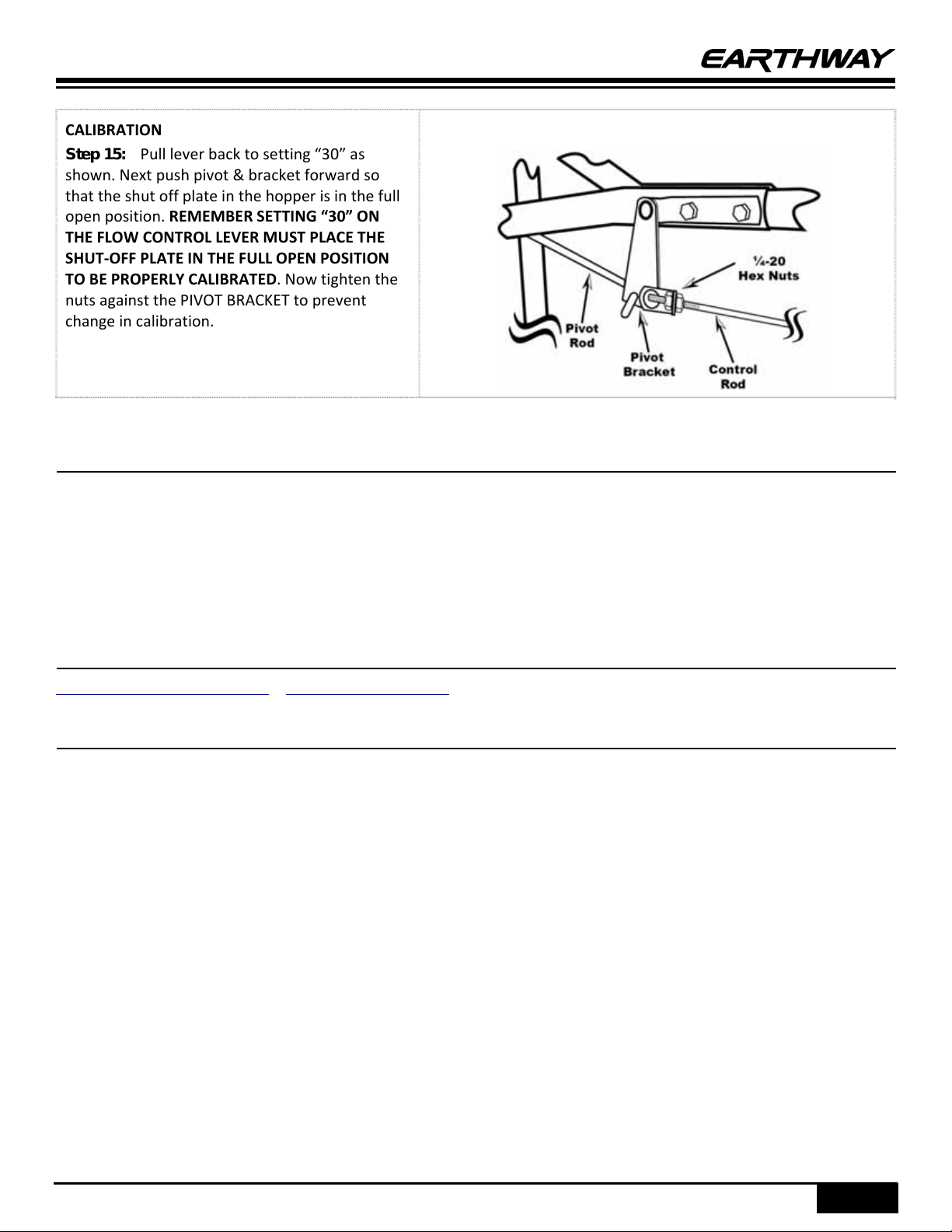

CALIBRATION

Step 15:

Pullleverbacktosetting“30”as

shown.Nextpushpivot&bracketforwardso

thattheshutoffplateinthehopperisinthefull

openposition.REMEMBERSETTING“30”ON

THEFLOWCONTROLLEVERMUSTPLACETHE

SHUT‐OFFPLATEINTHEFULLOPENPOSITION

TOBEPROPERLYCALIBRATED.Nowtightenthe

nutsagainstthePIVOTBRACKETtoprevent

changeincalibration.



OPERATINGINSTRUCTIONS



Beforefillinghopper,becomefamiliarwiththeoperationofthisspreader.

Movestopboltonrategaugeassemblytothepropersetting.

Whilepushingspreaderforward,pullcontrolleverbacktostopbolt.

Tostop,pushleverforwardtocloseflowholesbeforeyoustopmoving.

Whenfinished,emptyanyremainingmaterialfromhopper.

Thoroughlywashspreaderanddrybeforestoring.Acoatingoflightoilwillhelppreventcorrosion.

CUSTOMERSERVICE



SUPPORT@EARTHWAY.COM|www.EARTHWAY.com|1009MapleStreet,Bristol,IN46507



ONEYEARWARRANTY



EarthWayProducts,Inc.warrantsthisproductfreeofdefectsinoriginalworkmanshipandmaterialsforaperiodofoneyeartothe

enduserwiththeoriginalpurchasereceipt.Ifamanufacturingnon‐conformanceisfound,EarthWayProducts,Inc.atitsdiscretion

willrepairorreplacethepart(s)/productatnochargeprovidedthefailureisnottheresultofincorrectinstallation,mishandling,

misuse,tampering,ornormalwearandtearasdeterminedbyEarthWay.

EarthWayatitsdiscretionmayrequirethatthepart(s)orproductbereturnedalongwiththeoriginalpurchasereceiptfor

examinationandcompliancewiththetermsofthiswarranty.Donotreturnanyproductwithoutfirstreceivingauthorizationfrom

EarthWayProducts,Inc.

Toseekremedyunderthiswarranty,contactEarthWayProducts,Inc.at[email protected]orwritetoEarthWay

Products,Inc.1009MapleStreet,Bristol,IN46507anddescribethenatureofthemanufacturingdefect.SPECIFIC

LIMITATIONS:Thiswarrantycoversonlythepart(s)orproduct;anylaborchargesassociatedwithrepairorreplacementof

non‐conformancesarespecificallyexcluded.Duetothecorrosivenatureofmostfertilizersandicemeltproducts,EarthWay

Products,Inc.makesnowarrantyagainstandspecificallyexcludespart(s)orproductdegradationorfailureduetocorrosionor

itseffects.



AssemblyandOperationInstructions



90399_M52162_Oct_2021.docxPAGE8

HOWTOORDERSPAREPARTS–CALLorEMAIL:

TURF DEPOT 800-305-9255 or [email protected]om



100LB High Output Broadcast Spreader (90399) Parts List

ERIES PART # DESCRIPTION SERIES PART #

DESCRIPTION

140003

SQUARE SCREEN

9 60333

GEABOX ASSEMBLY

299342

HOPPER & SHUTOFF ASSEMBLY

10 12110

9” ROUND DISHED IMPELLER

3 38144

HARDWARE KIT - SS

(3.1 - 3.94)

11 70138

13” PNEUMATIC TIRE

460266

CONTROL PACKAGE

(4.1- 4.5)

12 25723

FRAME FOOT

6 25222

LOWER HANDLE - SS

12.1 24111

FRAME

7 25223

HANDLE SHAFT

13 F77130

HEAVY DUTY RAIN COVER ACCESSORY

8 60175

UPPER HANDLE - SS

14 60600

THREE-SIDED DEFLECTOR ASSEMBLY
