Eachine QX105 BAT Manuel utilisateur

QUICK START GUIDE V1.0

MICRO FPV RACING DRONES

mmia-

mai ail



ff°

111=1"

111

*EpCIINE



OX105

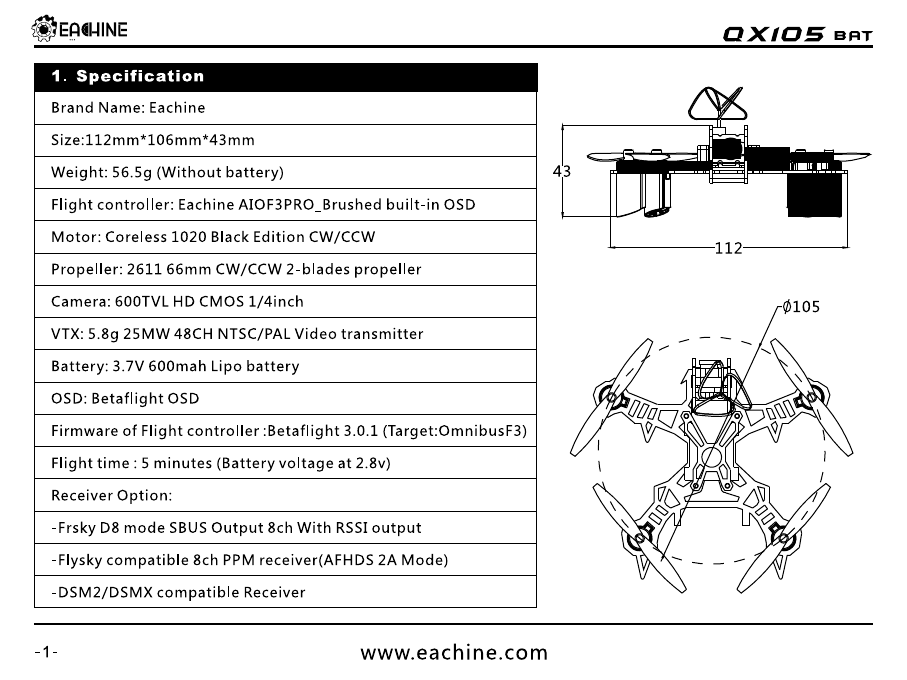

1. Specification

Brand Name: Eachine

Size:112mm*106mm*43mm

Weight: 56.5g (Without battery)

Flight controller: Eachine AIOF3PRO_Brushed built-in OSD

Motor: Coreless 1020 Black Edition CW/CCW

Propeller: 2611 66mm CW/CCW 2-blades propeller

Camera: 600TVL HD CMOS 1/4inch

VTX: 5.8g 25MW 48CH NTSC/PAL Video transmitter

Battery: 3.7V 600mah Lipo battery

OSD: Betaflight OSD

Firmware of Flight controller :Betaflight 3.0.1 (Target:OmnibusF3)

Flight time : 5 minutes (Battery voltage at 2.8v)

Receiver Option:

-Frsky D8 mode SBUS Output 8ch With RSSI output

-Flysky compatible 8ch PPM receiver(AFHDS 2A Mode)

-DSM2/DSMX compatible Receiver

www.eachine.com

OX/OH



*EplIWINE

www.eachine.com



-2-

*E911.11NE



OX105

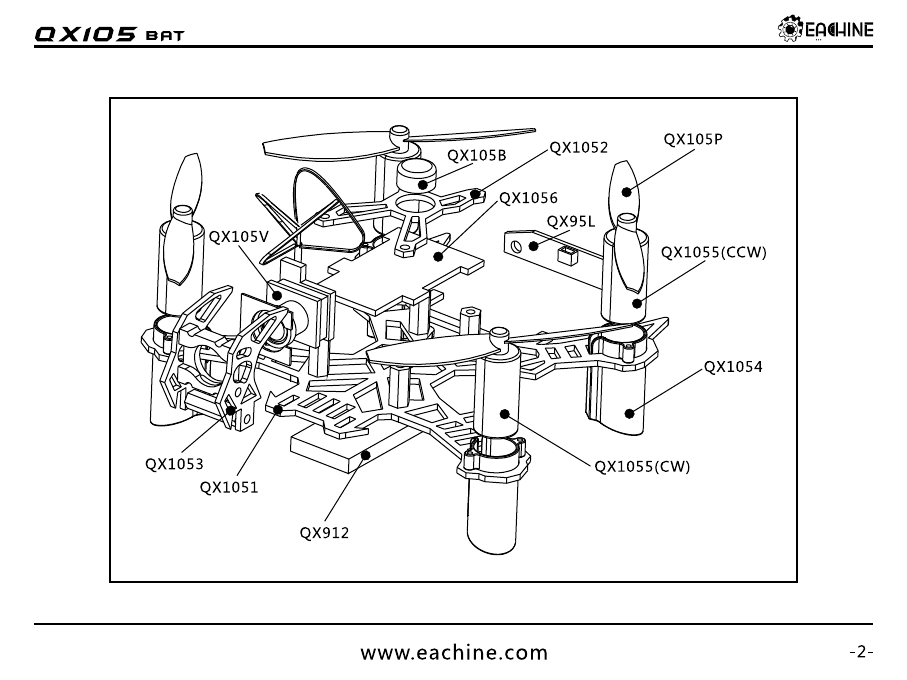

2. Components

1.5mm 3K carbon fiber bottom plate

QTY

FRSKY

Include

FLYSKY

Include

DSM2/DSMX

Include

Part NO.

QX1051

1.5mm 3K carbon fiber top board

Include

Include Include

QX1052

CNC Aluminum camera mount

Include

Include Include

Qx1053

1020 Motor mounting seat

Include

Include Include

QX1054

Eachine 1020 Coreless motor ( CW )

Include

Include Include

QX1055CW

Eachine 1020 Coreless motor ( CCW)

Include

Include Include

QX1055CCW

AIOF3PRO_BRUSHED FC built-in Frsky receiver

Include

QX1056

AIOF3PRO_BRUSHED FC built-in Flysky receiver

Include

AIOF3PRO_BRUSHED FC built-in DSM2/X receiver

Include

3IN1 5.8G 48CH VTX&600TVL Camera

Include

Include Include

QX105V

2611 66MM Propeller(2pcs CW+2pcs CCW)

Include

QX105P

3.7V 600mah Lipo battery

Include

Include Include

QX912

Charger cable

Include

Include Include

QX913

1S USB Charger

Include

Include Include

QX95C

Propeller Disassembly tool

Include

QX914

Rear Ws2812 LED Board

Include

Include Include

QX95L

Buzzer

Include

Include Include

QX105B

-3-



www.eachine.com

NTSC/PAL Switch

still touch up 2S;

Short touch switch

to reverse video

display

Frequency

group A—F

selected still

touch up to 2S;

Channel chl—ch8

selected with

short touch.

OX/OH

BST



*EplIWINE

3. 5.8G VTX channels list

CH1

5740MHz 5705MHz 5865MHz

5658MHz

5733MHz

5362MHz

CH2

5760MHz 5685MHz 5845MHz

5695MHz

5752MHz

5399MHz

CH3

5780MHz 5665MHz 5825MHz

5732MHz

5771MHz

5436MHz

CH4

5800MHz 5645MHz 5805MHz

5769MHz

5790MHz

5473MHz

CH5

5820MHz 5885MHz 5785MHz

5806MHz

5809MHz

5510MHz

CH6

5840MHz 5905MHz 5765MHz

5843MHz

5828MHz

5547MHz

CH 7

5860MHz 5925MHz 5745MHz

5880MHz

5847MHz

5584MHz

CH 8

5880MHz 5945MHz 5725MHz

5917MHz

5866MHz

5621MHz

Orange:Camera video signal

Blue:Video out

Red:+5V

Black:GND



..•



-...0

..."

.,.'

www.eachine.com



-4-

*E911.11NE



OX105

4ni

CAUTION: Read and follow all instructions and warnings in the manual prior to setup or use. Failure to

operate the product correctly can result in damage to the product, personal property and/or injury. This is a

sophisticated hobby product. It must be operated with caution and common- sense and requires some basic

mechanical ability.

4. General Product Safety Precautions

•

As the user of this product, you are responsible for operating it safely, not endangering yourself and others,or

damaging the product or the property of others.

•

Operate your product in open spaces away from people and property.

•

Never operate your product with damaged electrical components.

•

Keep the transmitter powered on while model is powered on.

•

Let parts cool after use before touching, motors will get hot in use.

•

Remove batteries after use, as applicable.

•

Keep all batteries, chemicals, small parts and anything electrical out of the reach of children.

•

Avoid water exposure to this product. Keep parts dry.

•

Keep moving parts clean.

5. Flight controller connection diagram

-5-



www.eachine.com

Charging with USB Li-Po Charger

Connect the battery to the USB Li-Po

Charger,

then plug into the USB port of your

computer

LED STATUS:

Solid Red LED --Charging

Solid Blue LED --Charge Complete

OX/OH



*EplIWINE

6. Charge the Flight Battery

NOTICE: Inspect the battery to make sure it is not damaged e.g., swollen, bent, broken or punctured. Charge only

batteries that are cool to the touch and are not damaged.

Charging with Balance Charger

Connect the 2 batteries and the charge cable ,then connect the

cable to 2S Balance charge (Not include) like B3PRO, 3S10D,4S15D,

Charsoon DC-4S ,etc.

&CAUTION: Only use 2 batteries together to charging

&CAUTION: Once charging is complete, immediately remove the battery.

Never leave a battery connected to the charger.

www.eachine.com



-6-

Green LED Status meaning:

Solid- Works normal or Binding mode

Blinking - Lost signal

Off - Binding successfully

*E911.11NE



QX105

7. QX105 Frsky BNF Version binding procedue

1. Power for the QX105 while holding the Bind button, the Green LED on the receiver will getting to be solid, this

means the QX105 is in binding mode, then release the Bind button.

-7-

www.eachine.com

DIEITAL. TELEMETRY RAD/0

SYSTEM

PAGE

Tun

.:•AIA

!t:Aitta

ENT

AL}?

TARANIS

-P/us

Channel Map

8551 Channel

■

LiAER1234

LE'



885

■

IMM1

Rall

Pitch

Yaw

Throttle

AUX 1

AUX 2

AUX 3

AUX 4

AUX 5

OXIOH

BST



*EI=141-11NE

2. Turn on your Radio and select D8 mode for the Receiver. Then Go to the Receiver [Bind] option, and ENT to

Binding with the QX105. The Green LED on the receiver will turning off, this indicates binding successfully.

3. The default receiver channel map for QX105 Frsky version is TAER1234, please ensure your transmitter is

matched with it, otherwise it can't be armed. And the RSSI output was set CH9 ..

RC Deadband



Yaw Deadband



RC Interpolanan

Auto •



RC interpolation

www.eachine.com

-8-

ft:

••

■

''r

::1;7

raW7L

m'e"'Pr''''""'wr'"'"''''''''''''''''''"n

C=1:11



t•oo



Max: 21(10



900



000



1500



1E00



2000 2100

DISITAL

PAGE

EXIT

*E911.11NE



OX105

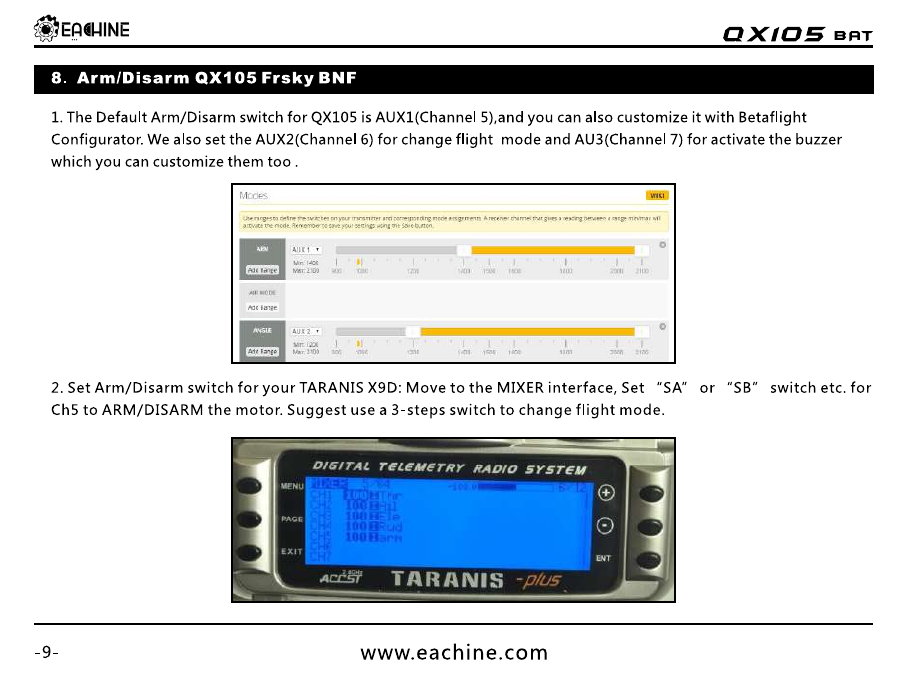

8. Arm/Disarm QXIO5 Frsky BNF

The Default Arm/Disarm switch for QX105 is AUX1(Channel 5),and you can also customize it with Betaflight

Configurator. We also set the AUX2(Channel 6) for change flight mode and AU3(Channel 7) for activate the buzzer

which you can customize them too .

Set Arm/Disarm switch for your TARANIS X9D: Move to the MIXER interface, Set "SA" or "SB" switch etc. for

Ch5 to ARM/DISARM the motor. Suggest use a 3-steps switch to change flight mode.

-9-



www.eachine.com
