Eachine Wizard TS130 Manuel utilisateur

Wizard Ts130

QUICK START GUIDE

Package included:

1 x Eachine Wizard TS130 frame kit

1 x TS 20A 4in1 Brushless ESC

4 x TS1507 4100KV brushless motor

1 x F4 flight controller

1 x FOXEER Arrow MICRO PRO camera

1 x 5.8G 40CH 25mw 100mw 200mw switchable VTX

2 x T3056C 3-blade propeller transparent white CW

2 x T3056C 3-blade propeller transparent white CCW

2 x T3056C 3-blade propeller blue CW

2 x T3056C 3-blade propeller blue CCW

1 x Antenna

1 x Battery strap

2 x Carbon fiber wrench

10 x Nylon cable tie

Wizar d Ts13 0 QUICK START GUIDE

-2-

-3-

Contents

1.0 Frame kit----------------------------------------04

4.0 Flight controller---------------------------------05

2.0 ----------------------------------------04

Motor-----

5.0

Switchable VTX---------------------------------06-09

3.0 Esc------------------------------------------------05

6.0

Camera-----------------------------------------------09

Wi zar d Ts1 30 QUICK START GUIDE

7.0 Motor Unlock/Lock------------------------------10

8.0 Traversing flight---------------------------------10

1.0 Frame kit

2.0 Motor

Wheelbase: 130mm

Material: 3K carbon fiber

Top plate thickness: 2mm

Bottom plate thickness: 3mm

Artist: hydrographics transfer printing

-4-

Wi zar d Ts1 30 QUICK START GUIDE

Idle Current (Io/10V): 1.68A

Lipo Cell: 3-4S

Weight: 17.6g

Max Continuous Current: 26A

Max Continuous Power: 416W

Max thrust: 626g(4S/3")

Configu-ration: 9N/12P

Motor Resistance (RM): 0.0495 Ω

Stator Diameter: 15mm

Stator Thickness: 7mm

Motor Diameter: 21.6mm

Motor Body Length: 15.5mm

Overall Shaft Length: 29mm

Prop adapter shaft: M5

Bolt holes spacing: 12mm

Bolt thread: M2

Propeller: 3”

3.0 ESC

Continuous current: 20A

Peak current (5S): 25A

Input voltage: 2-4S

Supports Dshot600, Dshot300, Dshot150

Size: 27x27mm

Weigjt: 3.3g

-5-

Wi zar d Ts1 30 QUICK START GUIDE

4.0 Flight controller

CPU: f4STM32 F405 SCM

Input voltage: 3-4S

Sensor: MPU6000 SPI

Built in OSD

Built in 5V 2A BEC

Size: 25x25mm

Weight: 2.3g

-6-

Wi zar d Ts1 30 QUICK START GUIDE

5.0 Switchable VTX

Input voltage: 7-24V

Dimensions: 20x20mm

Size: 27mm×27mm×4.5mm

Adjustable 25mw / 100mw / 200mw

Supports smart audio (remote OSD parameter adjustment)

QUICK START GUIDE

There are two ways to control the frequency and power

of the launches:

<1>

Enter the release: FEATURES->VTX SA can enter the following

interface.

uses remote control to visualize control, as shown in Figure

1.1

Figure 1.1

The second row is the status bar, respectively.

F:freestyle modeF5: is now in frequency band F,

fifth frequency point.

5820: now has a frequency of 5820.

500: now has a transmit power of 500MW

Third lines

BAND: indicates frequency band, and BAND can be

modified by remote control.A (BOSCAM A) B (BOSCAM B)

E (BOSCAM E) F (FATSHARK) F (E)

Fourth lines

CHAN: represents frequency points, and the 1---8 can be

modified by remote control.

Fifth lines

(FREQ): indicate the

corresponding frequency now, changing with the band and

Chan above.

Sixth lines

POWER: indicates the transmission

power and can be adjusted.

Wi zar d Ts1 30 QUICK START GUIDE

5.0 Switchable VTX

QUICK START GUIDE

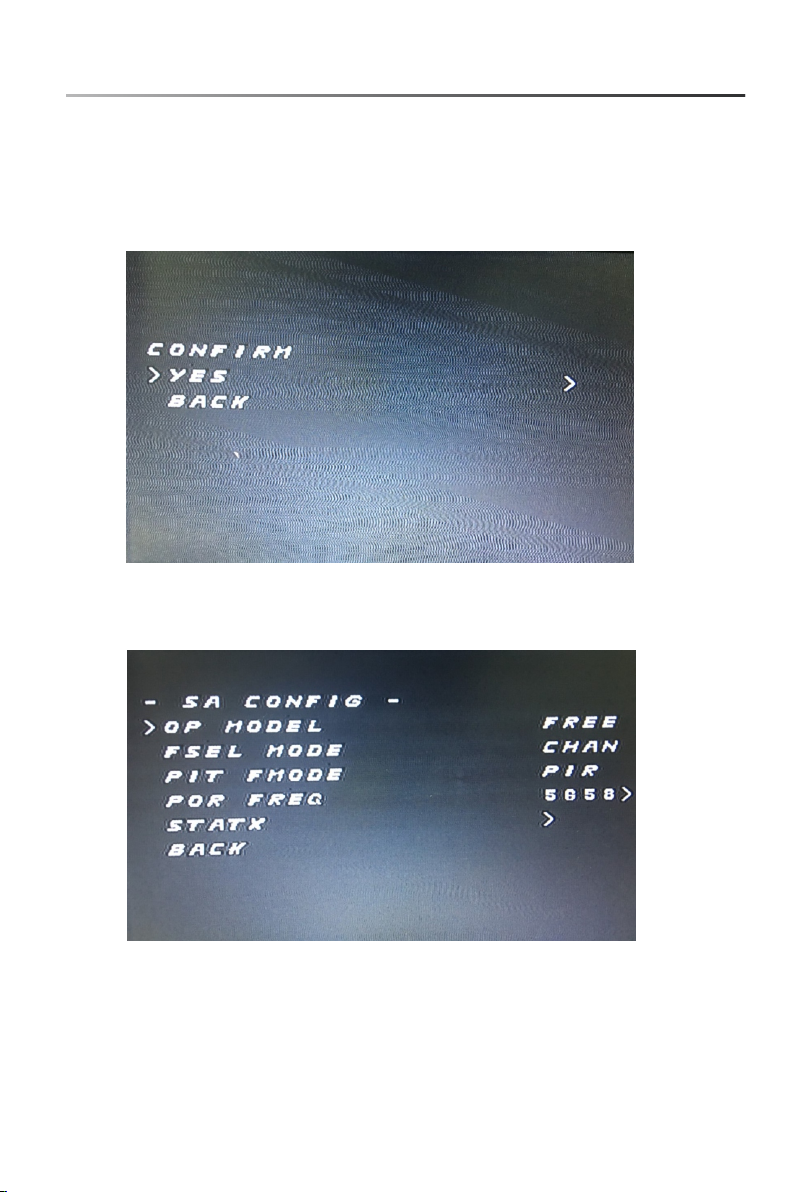

Seventh lines

SET: Enter and select YES to confirm your BADN, CHAN, POWER

settings and take effect immediately., as shown in Figure 1.2

below

Figure 1.2

Figure 1.3

-7-

Eighth lines

The CONFIG: function is set in, as shown in Figure 1.3 below.

OP MODEL: mode adjustment, with free mode and race mode,

needs reboot to take effect.

FSEL MODE: regulates frequency setting mode, CHAN and

user, user mode is temporarily invalid.

PIT FMODE:PITMODE mode, with PIR and POR mode.

Wi zar d Ts1 30 QUICK START GUIDE

5.0 Switchable VTX

QUICK START GUIDE

-8-

In the POR mode, POR FREQ: can enter into any frequency

between 5300-5900, as shown in Figure 1.4.

Figure 1.4

STATX: status information

XMM-VTX is operated by a button with three LED lights (red

light CH1-8; blue light BAND1-5; green light power 1-3 <25-

100-200 mW>)and TBS Smart Audio remote control operation.

Keyboard operation: Long press 3S (three LED indicators are

all on) to open and enter CH switching operation, and the red

light will flash, flashing once represents the currentCH1 (2-8

times for CH2-CH8 respectively). At this time, a short press of

the key CH plus 1 will flash the corresponding number of times.

CH1-8 cycle. Press the button 3S (three LED lights are all on)

to open and enter the BANDswitching operation, and the blue

light will flash. The flash once represents the current BAND1

(2-5 times for BAND2-BAND5 respectively). At this time, press

the button BAND plus 1, and the blue light will flash correspondingly.

BAND1-5 cycle. Press the button 3S (three LED lights are all on)

again to open the power switching operation, and the green light

will flash, one time represents the current power of the first grade

(2-3 times for the green light flashing respectively), at this time,

press the button power to add one gear, and the green light will

flash the corresponding number of times. Power stall 1-3 cycle.

Press the button 3S again (3 LED lights are all bright) to release

the above settings again. Note that the previous settings will not

be saved if the power is off before saving. For example, if CH is

only set, it is also necessary to press 3S three times longer to

save the settings.Long press button 8S (green light) quit PIT mode.

<2>

Note: In the remote control, the power of 25 corresponds to

the actual 25 mW, 200 corresponds to the actual 100 mW, and

500/800 corresponds to the actual 200 mW.

Wi zar d Ts1 30 QUICK START GUIDEQUICK START GUIDE

5.0 Switchable VTX

6.0 Camera

Solution: 1/3” Sony SUPER HAD II CCD+Nextchip 2040 DSP

Pixel:PAL: 976(H) x 494(V);NTSC: 768(H)×494(V)

TV System: PAL/NTSC (based on country)

Resolution: 600TVL(color) 650TVL(B&W)

Synchronization: internal

Min. Illumination: 0.01Lux

WDR: support

OSD programming board: support

White Dot Repair: support

DNR: 2D DNR

Camera Title: support

Image Adjustment: support

OSD: Edit Name, Power, Flying time

Input Power: 5-40V

Storage Temperature: -40 C ~ 60 C

Working Temperature: -10 C ~ 50 C

Power Consumption: 70mA

Low voltage alarm: Support

Preset mode: DEF, VIVID, SUNNY, CLOUDY,LED TR,USR1

Size: 18.5*19mm (bracket excluded)

Weight: 5.3g (bracket excluded)

-9-

7.0 Motor Unlock/lock

Put the throttle rocker at the lowest point, move the rudder rocker

to the right and keep it for more than 2 seconds. The blue state

indicator is always on, that is unlock the motor.

Put the throttle rocker at the lowest point, move the rudder rocker to

the leftmost side, and the red state indicator is always turned on to

lock the motor. At this time, pushing the throttle rocker motor upward

will not rotate.

-10-

Wi zar d Ts1 30 QUICK START GUIDE

Motor Unlock

Motor lock

8.0 Traversing flight

1).Flying is more suitable for experienced pilots.

2).During the flight, please keep the flight within the video

receiving range (the actual range depends on the flight

environment and weather conditions).

3).During flight, please avoid crowd, animals and

High voltage wires and other obstacles
