Eachine FB90 Manuel utilisateur

4c,e9cHinie

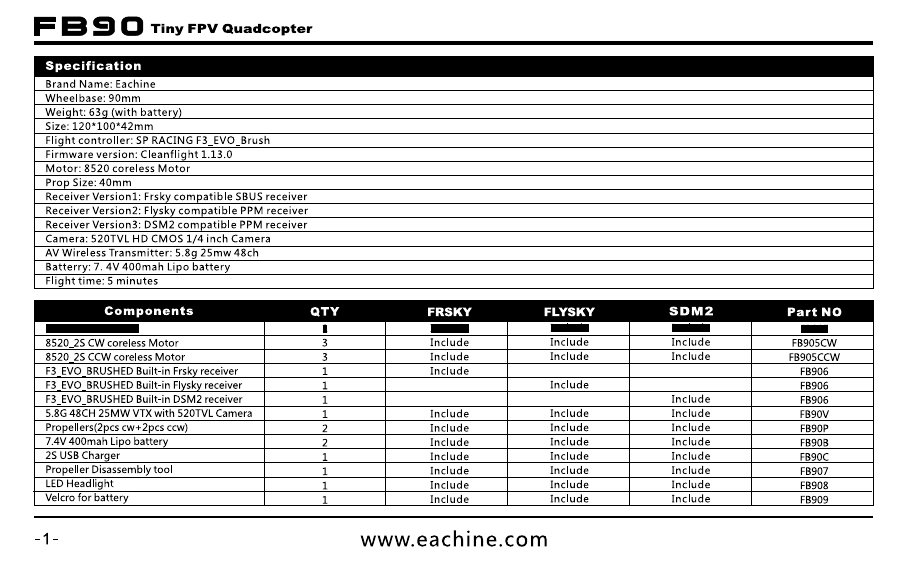

Specification

Brand Name: Eachine

Wheelbase: 90mm

Weight: 63g (with battery)

Size: 120.100*42mm

Flight controller: SP RACING F3_EVO_Brush

Firmware version: Cleanflight 1.13.0

Motor: 8520 coreless Motor

Prop Size: 40mm

Receiver Versionl: Frsky compatible SBUS receiver

Receiver Version2: Flysky compatible PPM receiver

Receiver Version3: DSM2 compatible PPM receiver

Camera: 520TVL HD CMOS 1/4 inch Camera

AV Wireless Transmitter: 5.8g 25mw 48ch

Batterry: 7. 4V 400ma h Li po battery

Flight time: 5 minutes

F B 9 0

Tiny FPV Quadcopter

Components

FB90 Aircraft frame

QTY

FRSKY

Include

FLYSKY

Include

SDM2

Include

Part NO

FB9OF

8520_25 CW coreless Motor

Include

Include Include

FB905CW

8520_25 CCW coreless Motor

Include

Include Include

FB905CCW

F3_EVO_BRUSHED Built-in Frsky receiver

Include

FB906

F3_EVO_BRUSHED Built-in Flysky receiver

Include

FB906

F3_EVO_BRUSHED Built-in DSM2 receiver

Include

FB906

5.8G 48CH 25MW VTX with 520TVL Camera

Include

Include Include

FB9OV

Propellers(2pcs cw+2pcs ccw)

Include

FB9OP

7.4V 400mah Lipo battery

Include

FB9OB

25 USB Charger

Include

Include Include

FB90C

Propeller Disassembly tool

Include

Include Include

FB907

LED Headlight

Include

Include Include

FB908

Velcro for battery

Include

Include Include

FB909

www.eachine.com

NTSC/PAL Switch

still ouch up 2S;

Sho t touch switch

to reverse video

disp ay.

Frequency

group A-F

selected still

touch up to 2S;

Channel ch1-ch8

selected with

short touch.

F B 9 0

Tiny FPV Quadcopter

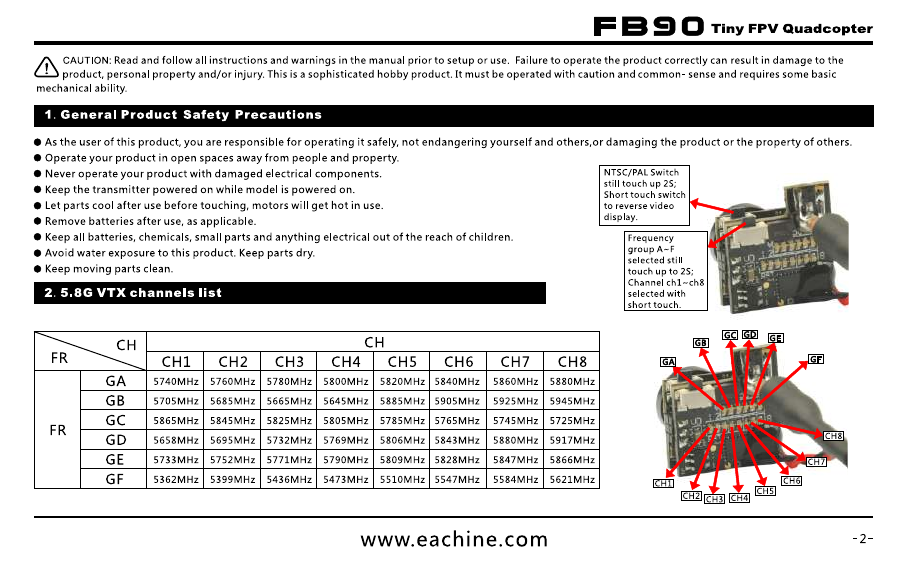

A\ CAUTION: Read and follow all instructions and warnings in the manual prior to setup or use. Failure to operate the product correctly can result in damage to the

product, personal property and/or injury. This is a sophisticated hobby product. It must be operated with caution and common- sense and requires some basic

mechanical ability.

1. General Product Safety Precautions

•

As the user of this product, you are responsible for operating it safely, not endangering yourself and others,or damaging the product or the property of others.

•

Operate your product in open spaces away from people and property.

•

Never operate your product with damaged electrical components.

•

Keep the transmitter powered on while model is powered on.

•

Let parts cool after use before touching, motors will get hot in use.

•

Remove batteries after use, as applicable.

•

Keep all batteries, chemicals, small parts and anything electrical out of the reach of children.

•

Avoid water exposure to this product. Keep parts dry.

•

Keep moving parts clean.

2. 5.8G VTX channels list

CH1

CH2

CH3

CH4

CH5

CH6

CH7

CH8

5740MHz

5760MHz

5780MHz

5800MHz 5820MHz

5840MHz

5860MHz

5880MHz

5705MHz

5685MHz

5665MHz

5645MHz 5885MHz

5905MHz

5925MHz

5945MHz

5865MHz

5845MHz

5825MHz

5805MHz 5785MHz

5765MHz

5745MHz

5725MHz

5658MHz

5695MHz

5732MHz

5769MHz 5806MHz

5843MHz

5880MHz

5917MHz

5733MHz

5752MHz

5771MHz

5790MHz 5809MHz

5828MHz

5847MHz

5866MHz

5362MHz

5399MHz

5436MHz

5473MHz 5510MHz

5547MHz

5584MHz

5621MHz

www.eachine.com



-2-

F B 9 0

Tiny FPV Quadcopter

Charge the Flight Battery

n NOTICE:Inspect the battery to make sure it is not damaged e.g.,

swollen, bent, broken or punctured. Charge only

batteries that are cool to the touch and are not damaged.

Charging with USB LI-Po Charger

Connect the battery to the USB Li-Po Charger,

then plug into the USB port of your computer

LED STATUS:

Solid Red LED --Charging

Solid Blue LED --Charge Complete

4.Flight controller connection diagram

-3-



www.eachine.com

T e • reen LED &



be solid,

thi indita4esitiWcliaget

nto t Fomding.mode

F B 9 0

Tiny FPV Quadcopter

5. (Frsky version)Binding Procedure

1.Turn on the transmitter, select D8 mode for the Receiver.

2.Connect the battery to FB90 while Jumped the two "BIND° pins on the Board, the green LED will get be solid, this indicates the receiver get into the binding mode.

www.eachine.com



-4-

F B 9 0

Tiny FPV Quanicopter

3.Go to the Receiver [Bind] option, and ENT to Bind with the receiver, The transmitter beeps.

DIGITAL TELEMETRY RADIO SYSTEM

[



•

PAGE



EXIT

ACC.Sr



[girdTangel °

(1111

Di::



•

111P3411.14

1.=.bal Funcs

n al RF

Ial

P. a 11

iver

nal



i A 11 ANIS .0/05 1 ENT ( I

1181

4GFtz

4.The green LED on the receiver will turning off, this indicates that the bind process was successful Reconnect the battery for the FB90, and the green LED on the receiver is

solid again.

www.eachine.com

DIGITAL TELEMETRY RAD/0 SYSTEM

100EIThr.

-ioo.a111=111

I I ElAil

PAGE

100EIEle

100EIRud

1001SA

EXIT

ACCS1"

TRIIANIS

()

ENT

F B 9 0

Tiny FPV Quadcopter

6. Set the switch to ARM/DISARM the motor

1.Turn on the transmitter and move to the MIXER interface, Set "SA" or "SB" switch etc. for Ch5 to ARM/DISARM the motor.

2.The FB90 Frsky Version BNF was set AUX1(CH5) to ARM/DISARM the motor before shipping, you can also customize it.The default receiver channel map for frsky

version is TAER1234, please ensure your transmitter is matched with it, otherwise it can't be armed.

www.eachine.com

The blue LED will get be sol

once the motor was armed

F B 9 0

Tiny FPV Quanicopter

3.Toggle the Switch and the blue LED on the flight controller will get be solid, this indicate the motor was armed ,enjoy yourself now !

-7-



www.eachine.com

5-.1•////!

1.Select RX setup to AFHDS Mode

2.Turn on the transmitter while

holding the bind button

F B 9 0

Tiny FPV Quadcopter

7. (Flyskverslon)BIndIng Procedure

1.Select RX setup to AFHDS Mode, turn on the transmitter while holding the bind button to getting into binding mode.

www.eachine.com

1 ti p e d The two Bind pins

F B 9 0

Tiny FPV Quanicopter

2.Connect the battery to FB90 while Jumped the two 'BIND' Pins on the board the green LED will getting to be solid first and turn off for a second ,then it will getting to be

solid again, this indicates binding successfully

-9-



www.eachine.com
